Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 5820300174430 Frame cpl. "ec05" 640 2005	5820300174430	US $1,068.16
	replacement
1	1 5820300174490 Frame cpl. "ec05" 640 adv. 05 2005	5820300174490	—
2	2 5840300234430 Sub frame cpl. "i3" black 06 2005	5840300234430	US $433.72
4	4 58303002090 Plug 12 x 17 mm 2005	58303002090	—
5	5 5810300420030 Footrest bracket r/s black 2005	5810300420030	—
5	5 5840304800030 Footrestbrack. rear l/s 06 2005	5840304800030	—
7	7 0934080003 Hexagon Nut Din0934-M 8 2005	0934080003	US $3.26
8	8 58403056000 Thermal protection bow 04 2005	58403056000	US $6.05
9	9 0985050103 Oval head scr. din7985-m 5x10 2005	0985050103	US $2.18
10	10 59001037000 Special screw m8x26 ws=10 2005	59001037000	US $2.09
11	11 58003012000 Spacer roller 10,3x20x22 2005	58003012000	US $10.39
12	12 71001012100 Pvc cap d=22mm 2005	71001012100	US $2.11
13	13 58307015000 Tank support '93 93	58307015000	US $7.28
14	14 58303055000 Engine support agw '94 94	58303055000	US $13.55
16	16 58403013000 Engine brac.screw m10x110 ws13 94	58403013000	US $13.82
17	17 54630044000 Collar nut m10 ws=13 94	54630044000	US $2.16
18	18 49109481052 Hh collar screw m 8x16 ws=13 94	49109481052	US $2.06
19	19 54310086200 Self Locking Nut M8 10.9 94	54310086200	US $1.56
20	20 58403002370 Battery box 03 94	58403002370	US $9.08
21	21 0015060103 Hh collar screw m 6x10 ws=8 94	0015060103	—
	replacement
21	21 0025060106 Hh collar screw m6x10 tx30 94	0025060106	US $1.58
22	22 0021060003 Washer Din9021-A 6,4 94	0021060003	US $3.26
23	23 43205062100 Rubber grommet 20x15-m6x10 (1) 94	43205062100	US $24.07
24	24 0797060003 Tooth Lock Wash. Din6797-A 6,4 94	0797060003	US $0.29
25	25 0934060003 Hexagon Nut Din0934-M 6 94	0934060003	US $0.43
26	26 58403002010 Rubber grommet 20x15-m6x8-(2) 94	58403002010	US $9.81
27	27 54603048100 Range Change Metal Nut M6 94	54603048100	US $5.27
30	30 0912100250 Ah-Collar Screw M10X25 Isa45 94	0912100250	—
	replacement
30	30 0032100256S Ah-collar screw m10x25 isa45 94	0032100256S	US $5.12
32	32 58403014000 Engine brac.screw m10x160 ws13 94	58403014000	US $18.67
33	33 31004001100 Washer 10,5 x 21 x 3 94	31004001100	US $1.46
34	34 54606004000 Plug 37mm 94	54606004000	US $1.89
35	35 54606004100 Plug 37mm perforated 04 94	54606004100	US $1.96
36	36 55007016001 Pvc-hose 7x10 per meter As Required	55007016001	US $5.98
37	37 50303089000 Angle piece '97 97	50303089000	US $4.52
38	38 58403038100 Footrest bracket left alu 05 97	58403038100	US $80.70
40	40 59003040250 Footrest L/s 08 97	59003040250	US $70.60
	replacement
40	40 78003040050 Footrest l/s 08 97	78003040050	US $44.12
40	40 59003041250 Footrest R/s 08 97	59003041250	US $69.17
	replacement
40	40 78003041050 Footrest r/s 08 97	78003041050	US $44.12
41	41 60003040010 Footrest rubber front l/s 03 97	60003040010	US $19.16
41	41 60003041010 Footrest rubber front r/s 03 97	60003041010	US $19.16
42	42 60003044010 Closing panel front l/s r/s 03 97	60003044010	US $5.12
43	43 54603041000 Footrest Spring L/s & R/s 97	54603041000	US $3.52
44	44 54803044000 Pin For Foot Ped 51.5X9.8 Mm 97	54803044000	US $10.98
46	46 0125100003 Washer Din0125-A10,5 97	0125100003	US $1.19
47	47 0094032253 Pin din0094-3,2x25 steel 97	0094032253	US $1.12
	replacement
47	47 0094032250 Pin din0094-3,2x25 steel 97	0094032250	US $1.12
50	50 58303050044 Footrest rear l/s cpl. '95 95	58303050044	US $110.96
50	50 58303150044 Foot rest rear r/s cpl.'95 95	58303150044	US $109.48
51	51 0985050003 Self Locking Nut Din0985-M 5 95	0985050003	US $3.26
52	52 58303051000 Footrest rubber l/s&r/s duke95 95	58303051000	US $14.84
53	53 58403060000 Chain roll 12x29x22,5 '98 98	58403060000	US $5.20
55	55 58403060065 Bush chain roll 8x12x23 '98 98	58403060065	US $2.58
59	59 51103053000 Chain sliding piece below '97 97	51103053000	US $13.24
60	60 51103053051 Bushing 8,2x10x20 97	51103053051	US $3.06
61	61 54403135000 Plastic cap sfl10 97	54403135000	US $1.31
68	68 36003014000 Lock washer 8mm 97	36003014000	US $0.46
70	70 0015080303 Hh Collar Screw M8X30 Tx40 97	0015080303	—
	replacement
70	70 0025080306 Hh collar screw m8x30 tx40 97	0025080306	US $3.89
71	71 0015080453 Hh Collar Screw M 8X45 Ws=10 97	0015080453	US $1.46
72	72 0910160153 Plug din0910-m16x1,5 97	0910160153	US $6.83
73	73 0603162220 Cu-seal ring 16x22x2 97	0603162220	US $1.65
75	75 54510052200 Ah screw 8x29 fl.head 04 97	54510052200	US $1.55
76	76 54510052100 Counter-Sunk Screw Isa45 M8X26 97	54510052100	—
	replacement
76	76 0019080266S Counter-sunk screw isa45 m8x26 97	0019080266S	US $2.23
79	79 0125080003 Washer din0125-a 8,4 97	0125080003	US $2.02
80	80 58303010000 Cover oil filter '94 94, As Required	58303010000	US $35.46
81	81 0014060153 Hh Collar Screw M6X15 Tx30 As Required	0014060153	—
	replacement
81	81 0024060156 Hh collar screw m6x15 tx30 As Required	0024060156	US $3.96
82	82 0014060103 Hh Collar Screw M6X10 Tx30 As Required	0014060103	—
	replacement
82	82 0024060106 Hh collar screw m6x10 tx30 As Required	0024060106	US $4.35
85	85 50235033300 Snap-nut holder m6 kp142 As Required	50235033300	—
	replacement
85	85 54603048100 Range Change Metal Nut M6 As Required	54603048100	US $5.27
87	87 0984060103 Ah screw din7984-m 6x10 As Required	0984060103	US $0.65
90	90 58412099044 Skid plate limited cpl. 97 97	58412099044	—
93	93 58003012200 Engine protector bracket '97 97	58003012200	—
95	95 54308042000 Rubber Buffer 97	54308042000	US $2.89

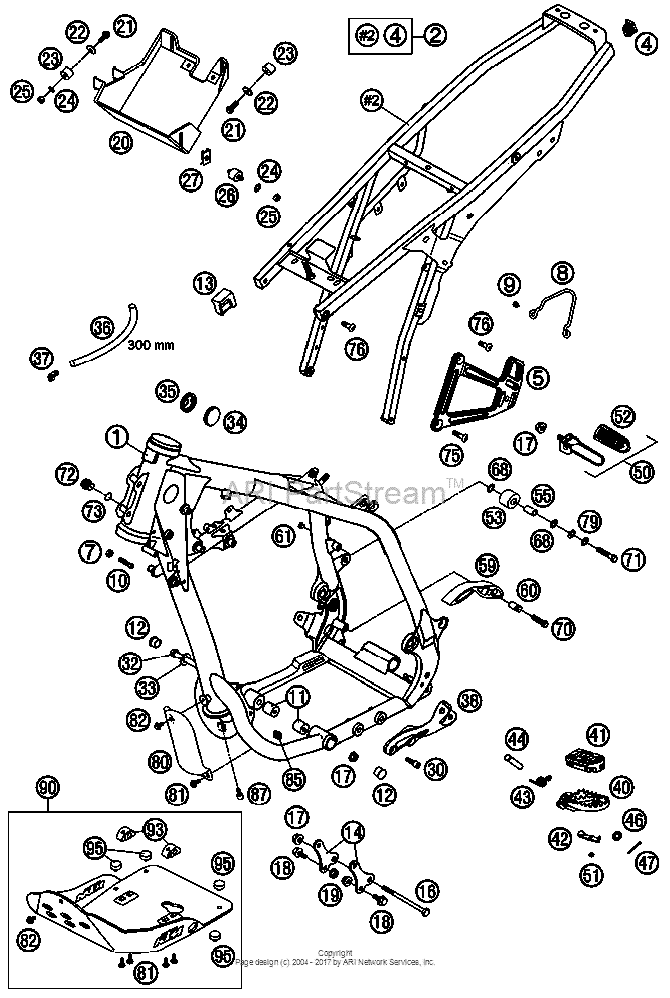

Frame, Sub Frame Diagram KTM 640 640 Adventure US/EU 18103348-940550

Frame, Sub Frame Diagram KTM 640 640 Adventure US/EU 18103348-940550
