Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 58311010000 Headlight low beam duke'94 94	58311010000	US $261.65
2	2 58311038000 Bulb h1 12v 55w white 94	58311038000	US $17.51
3	3 58311044000 Special nut m5x25 ws=10 94	58311044000	US $6.36
4	4 0125080003 Washer din0125-a 8,4 94	0125080003	US $2.02
5	5 31008060000 Rubber Sleeve D=8Mm Open 94	31008060000	US $1.09
6	6 0797050003 Tooth lock wash. din6797-j 5,3 94	0797050003	US $0.27
7	7 0933050123 Hh screw din0933-m 5x12 94	0933050123	US $0.31
8	8 58311011000 Adjusting screw m5x30 cpl. 94	58311011000	US $3.50
9	9 12003007052 Spring l=16mm 94	12003007052	—
10	10 54603073000 Collar bushing 5 x 10 x 6 alu 94	54603073000	US $2.60
11	11 58311039000 Bulb socket ba9s 94	58311039000	US $5.30
12	12 44111005100 Bulb 12v 2w ba9s 94	44111005100	US $4.54
13	13 58302126000 Clutch lever boot '95 95	58302126000	US $3.91
15	15 58311110000 Headlight highbeam duke '94 94	58311110000	US $119.80
18	18 49011435100 Bulb 12V 5W (W2,1X9,5D) Phil New Part	49011435100	US $3.81
19	19 44111015100 Bulb 12v 10w (ba15s) New Part	44111015100	US $2.30
22	22 58414030000 Hh collar nut m10x1,25 ws=13 New Part	58414030000	US $2.60
23	23 0797100003 Lock washer din6797-j10,5 zi New Part	0797100003	US $0.65
24	24 0125100003 Washer Din0125-A10,5 New Part	0125100003	US $1.19
25	25 5841402500030 Flasher Cpl.front L/s Rear R/s New Part	5841402500030	—
26	26 5841402600030 Flasher Cpl.front R/s Rear L/s New Part	5841402600030	US $25.93
28	28 58414028000 Flasher lens l/s & r/s '98 98	58414028000	US $6.75
32	32 58414040051 Metamoll for rearlight 99 99	58414040051	—
40	40 58414040100 Rear light cpl. lc4 2001 2001	58414040100	US $69.99
41	41 58414042000 Bulb 12V 21/5W (Bay15S)Reinfo 2001	58414042000	US $12.56
42	42 41001052000 Rubber Sleeve D=12Mm 2001	41001052000	US $5.46
43	43 58714048000 Rear light bushing 2001	58714048000	US $4.73
44	44 56509064100 Self Locking Nut M6 10.9 2001	56509064100	US $1.04
45	45 0985050003 Self Locking Nut Din0985-M 5 2001	0985050003	US $3.26
46	46 0021050003 Washer din9021-a 5,3 2001	0021050003	US $1.29
47	47 58414047000 License-plate illumination '98 98	58414047000	US $13.69
48	48 0021060003 Washer Din9021-A 6,4 98	0021060003	US $3.26

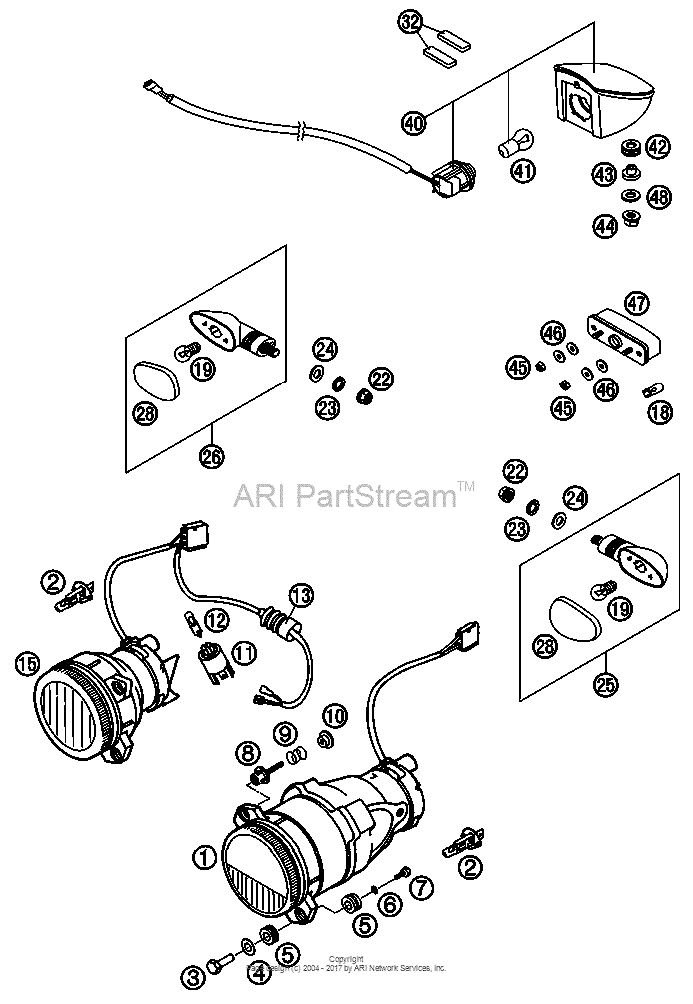

Lighting System Diagram KTM 640 640 Adventure US/EU 18103352-940550

Lighting System Diagram KTM 640 640 Adventure US/EU 18103352-940550
