Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 14187B26LS Fork leg l/s wp48 640 adv. 06 As Required	14187B26LS	US $1,148.30
2	2 14187B26RS Fork leg r/s wp48 640 adv. 06 As Required	14187B26RS	US $1,148.30
4	4 0015080353 Hh Collar Screw M 8X35 Ws=10 As Required	0015080353	US $7.12
5	5 0015080303 Hh Collar Screw M8X30 Tx40 As Required	0015080303	—
	replacement
5	5 0025080306 Hh collar screw m8x30 tx40 As Required	0025080306	US $3.89
6	6 0984100856 Ah screw din6912-m10x85 As Required	0984100856	US $9.98
8	8 60003088000 Plastic cap for m6 03 As Required	60003088000	US $0.80
22	22 58213010150 Brake hose guide 2001 2001	58213010150	US $9.06
23	23 0014060103 Hh Collar Screw M6X10 Tx30 2001	0014060103	—
	replacement
23	23 0024060106 Hh collar screw m6x10 tx30 2001	0024060106	US $4.35
24	24 60008019000 Brake hose guide lower 03 2001	60008019000	US $5.46
25	25 50308052000 Bush 6X11X16X5 Mm 2001	50308052000	US $3.49
	replacement
25	25 79608052000 Bush 6X11X16X5 Mm 2001	79608052000	US $1.31
26	26 0015060163 Hh Collar Screw M 6X16 Ws=8 2001	0015060163	US $2.23
32	32 58201032118 Bot.triple clamp x=18mm/d=60mm 2001	58201032118	—
33	33 50101033100 Fork Tube L=244 91	50101033100	US $120.89
	replacement
33	33 54801133000 FORK TUBE L=244 91	54801133000	US $78.15
34	34 58401034318 Top triple clamp x=18mm/d=54mm 91	58401034318	US $241.94
37	37 50301036000 Steer.head screw m20x1,5 ws=27 91	50301036000	US $12.65
38	38 59001038200 Handlebar Clamp D=28Mm 2000 2000	59001038200	US $21.10
39	39 59001039100 Handlebar Support 28Mm Sc'99 99	59001039100	US $64.89
40	40 56401042000 Washer 10,5x32x2 99	56401042000	US $4.71
41	41 56401040000 Rubber bushing 99	56401040000	US $6.73
42	42 56401142000 Washer 10,5x31 99	56401142000	US $3.49
43	43 0982100003 Self lock.nut din0982-m10 high 99	0982100003	US $2.35
44	44 58201041000 Spacer tube 10,2x12x62 04 99	58201041000	US $2.87
45	45 59001043000 Handlebar riser 04 99	59001043000	US $11.17
81	81 54201081100 Tapered Roller Bearing Cpl. 06 99	54201081100	US $53.18
82	82 54601084100 O-Ring Support W. Sealing Lip 99	54601084100	US $21.28
	replacement
82	82 77701084000 O-Ring Support W. Sealing Lip 99	77701084000	US $21.15
84	84 54601184000 Stearing head gasket top 99	54601184000	US $7.74
86	86 54201086000 Steering Head Cover 99	54201086000	US $8.11
	replacement
86	86 78101086000 Steering Head Cover 99	78101086000	US $5.08

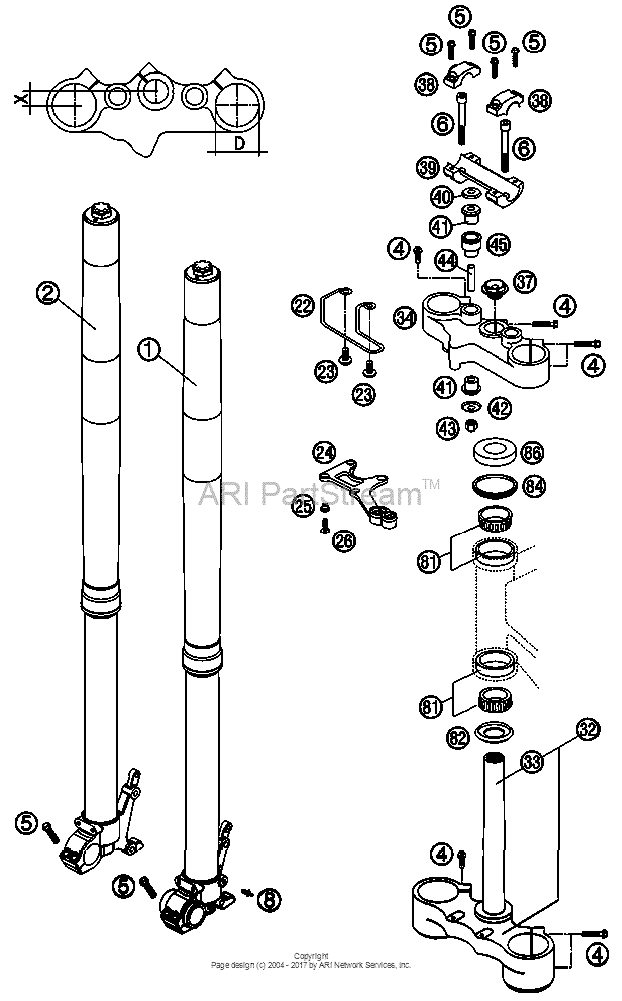

Telescopic Fork Diagram KTM 640 640 Adventure US/EU 18103364-940550

Telescopic Fork Diagram KTM 640 640 Adventure US/EU 18103364-940550
