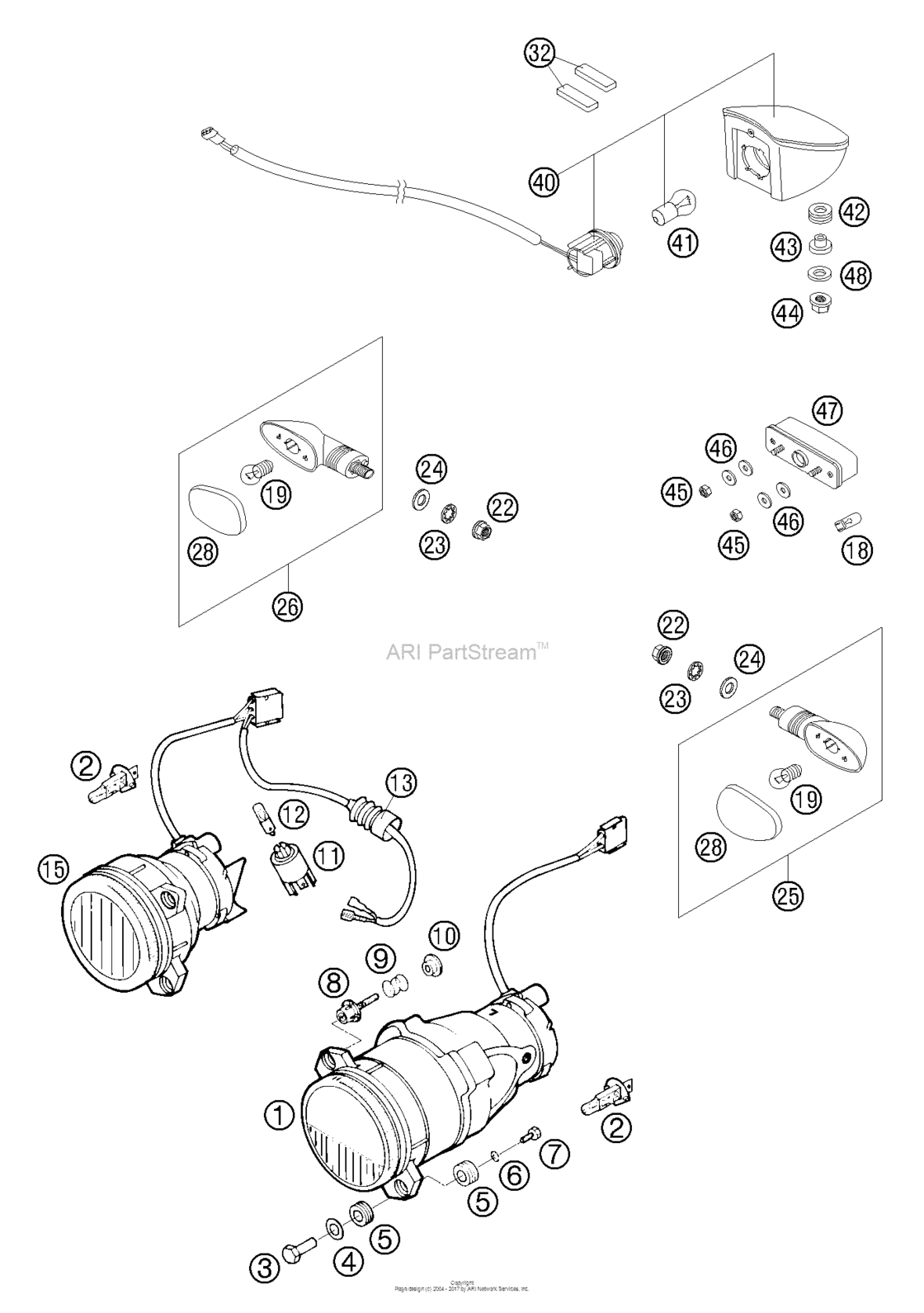

Lighting System Diagram KTM 640 640 Adventure
- Year
- 2005
- Sales region
- US/EU
- Engine Capacity
- 640
- Model
- 640 Adventure
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58311010000 Headlight low beam duke'94FOR HYD. CLUTCH 75ML |
58311010000 |
US $261.65 |
||
|
2
|
2
58311038000 Bulb h1 12v 55w whiteFOR HYD. CLUTCH 75ML |
58311038000 |
US $17.51 |
||
|
3
|
3
58311044000 Special nut m5x25 ws=10FOR HYD. CLUTCH 75ML |
58311044000 |
US $6.36 |
||
|
4
|
4
0125080003 Washer din0125-a 8,4FOR HYD. CLUTCH 75ML |
0125080003 |
US $2.02 |
||
|
5
|
5
31008060000 Rubber Sleeve D=8Mm OpenFOR HYD. CLUTCH 75ML |
31008060000 |
US $1.09 |
||
|
6
|
6
0797050003 Tooth lock wash. din6797-j 5,3FOR HYD. CLUTCH 75ML |
0797050003 |
US $0.27 |
||
|
7
|
7
0933050123 Hh screw din0933-m 5x12FOR HYD. CLUTCH 75ML |
0933050123 |
US $0.31 |
||
|
8
|
8
58311011000 Adjusting screw m5x30 cpl.FOR HYD. CLUTCH 75ML |
58311011000 |
US $3.50 |
||
|
9
|
9
12003007052
Spring l=16mm
FOR HYD. CLUTCH 75ML |
12003007052 |
— | ||
|
10
|
10
54603073000 Collar bushing 5 x 10 x 6 aluFOR HYD. CLUTCH 75ML |
54603073000 |
US $2.60 |
||
|
11
|
11
58311039000 Bulb socket ba9sFOR HYD. CLUTCH 75ML |
58311039000 |
US $5.30 |
||
|
12
|
12
44111005100 Bulb 12v 2w ba9sFOR HYD. CLUTCH 75ML |
44111005100 |
US $4.54 |
||
|
13
|
13
58302126000 Clutch lever boot '95FOR HYD. CLUTCH 75ML |
58302126000 |
US $3.91 |
||
|
15
|
15
58311110000 Headlight highbeam duke '94FOR HYD. CLUTCH 75ML |
58311110000 |
US $119.80 |
||
|
18
|
18
49011435000 Bulb 12V 5W (W2,1X9,5D) PhilFOR HYD. CLUTCH 75ML |
49011435000 |
US $4.27 |
||
| replacement | |||||
|
18
|
18
49011435100 Bulb 12V 5W (W2,1X9,5D) PhilFOR HYD. CLUTCH 75ML |
49011435100 |
US $3.81 |
||
|
19
|
19
44111015100 Bulb 12v 10w (ba15s)FOR HYD. CLUTCH 75ML |
44111015100 |
US $2.30 |
||
|
22
|
22
58414030000 Hh collar nut m10x1,25 ws=13FOR HYD. CLUTCH 75ML |
58414030000 |
US $2.60 |
||
|
23
|
23
0797100003 Lock washer din6797-j10,5 ziFOR HYD. CLUTCH 75ML |
0797100003 |
US $0.65 |
||
|
24
|
24
0125100003 Washer Din0125-A10,5FOR HYD. CLUTCH 75ML |
0125100003 |
US $1.19 |
||
|
25
|
25
5841402500030
Flasher Cpl.front L/s Rear R/s
FOR HYD. CLUTCH 75ML |
5841402500030 |
— | ||
|
26
|
26
5841402600030 Flasher Cpl.front R/s Rear L/sFOR HYD. CLUTCH 75ML |
5841402600030 |
US $25.93 |
||
|
28
|
28
58414028000 Flasher lens l/s & r/s '98FOR HYD. CLUTCH 75ML |
58414028000 |
US $6.75 |
||
|
32
|
32
58414040051
Metamoll for rearlight 99
FOR REARLIGHT 15MM X 50MM X 5MM 99 |
58414040051 |
— | ||
|
40
|
40
58414040100 Rear light cpl. lc4 2001FOR REARLIGHT 15MM X 50MM X 5MM 99 |
58414040100 |
US $69.99 |
||
|
41
|
41
58414042000 Bulb 12V 21/5W (Bay15S)ReinfoFOR REARLIGHT 15MM X 50MM X 5MM 99 |
58414042000 |
US $12.56 |
||
|
42
|
42
41001052000 Rubber Sleeve D=12MmFOR REARLIGHT 15MM X 50MM X 5MM 99 |
41001052000 |
US $5.46 |
||
|
43
|
43
58714048000 Rear light bushingFOR REARLIGHT 15MM X 50MM X 5MM 99 |
58714048000 |
US $4.73 |
||
|
44
|
44
56509064100 Self Locking Nut M6 10.9FOR REARLIGHT 15MM X 50MM X 5MM 99 |
56509064100 |
US $1.04 |
||
|
45
|
45
0985050003 Self Locking Nut Din0985-M 5FOR REARLIGHT 15MM X 50MM X 5MM 99 |
0985050003 |
US $3.26 |
||
|
46
|
46
0021050003 Washer din9021-a 5,3FOR REARLIGHT 15MM X 50MM X 5MM 99 |
0021050003 |
US $1.29 |
||
|
47
|
47
58414047000 License-plate illumination '98FOR REARLIGHT 15MM X 50MM X 5MM 99 |
58414047000 |
US $13.69 |
||
|
48
|
48
0021060003 Washer Din9021-A 6,4FOR REARLIGHT 15MM X 50MM X 5MM 99 |
0021060003 |
US $3.26 |
||
