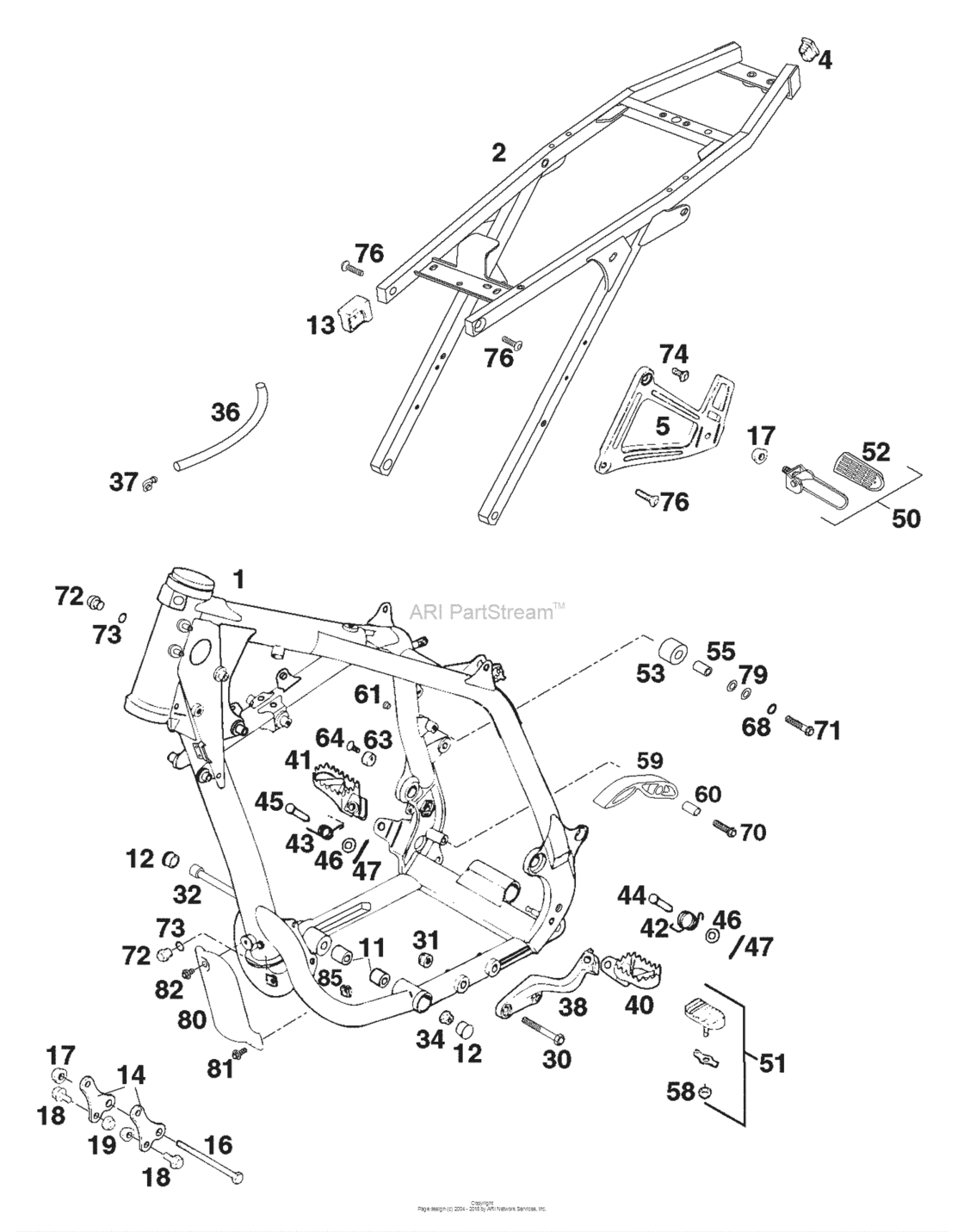

Frame, Sub Frame Diagram KTM 640 640 Duke
- Year
- 1999
- Sales region
- US/EU
- Engine Capacity
- 640
- Model
- 640 Duke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
5810300420030
Footrest bracket r/s black
660 LC4 |
5810300420030 |
— | ||
|
|
58303150044 Foot rest rear r/s cpl.'95660 LC4 |
58303150044 |
US $109.48 |
||
|
1
|
1
58703001000
Frame Cpl. Black Duke 2000
660 LC4 |
58703001000 |
— | ||
| replacement | |||||
|
1
|
1
58703001044 Frame cpl. black duke 2000660 LC4 |
58703001044 |
US $1,353.20 |
||
|
2
|
2
58703002000
Sub Frame Cpl. Black 06
660 LC4 |
58703002000 |
— | ||
| replacement | |||||
|
2
|
2
58703002144 Sub frame cpl. black 06660 LC4 |
58703002144 |
US $510.66 |
||
|
4
|
4
58303002090
Plug 12 x 17 mm
660 LC4 |
58303002090 |
— | ||
|
5
|
5
5810300320030 Footrest bracket l/s black660 LC4 |
5810300320030 |
US $88.93 |
||
| replacement | |||||
|
5
|
5
5840304800030
Footrestbrack. rear l/s 06
660 LC4 |
5840304800030 |
— | ||
|
11
|
11
58003012000 Spacer roller 10,3x20x22660 LC4 |
58003012000 |
US $10.39 |
||
|
12
|
12
71001012100 Pvc cap d=22mm660 LC4 |
71001012100 |
US $2.11 |
||
|
13
|
13
58307015000 Tank support '93660 LC4 |
58307015000 |
US $7.28 |
||
|
14
|
14
58303055000 Engine support agw '94660 LC4 |
58303055000 |
US $13.55 |
||
|
16
|
16
0931101103 Hh screw din0931-m10x110660 LC4 |
0931101103 |
US $2.23 |
||
|
17
|
17
49009082000 Self locking nut m10 fk8660 LC4 |
49009082000 |
US $2.31 |
||
|
18
|
18
49109481052 Hh collar screw m 8x16 ws=13660 LC4 |
49109481052 |
US $2.06 |
||
|
19
|
19
54310086000
Self Locking Nut M8 10.9
660 LC4 |
54310086000 |
— | ||
| replacement | |||||
|
19
|
19
54310086200 Self Locking Nut M8 10.9660 LC4 |
54310086200 |
US $1.56 |
||
|
30
|
30
0931100603
Hh screw din0931-m10x60
660 LC4 |
0931100603 |
— | ||
|
31
|
31
0985100003 Self locking nut din0985-m10660 LC4 |
0985100003 |
US $1.22 |
||
|
32
|
32
0912101603 Ah screw din0912-m10x160660 LC4 |
0912101603 |
US $8.33 |
||
|
34
|
34
54630044000 Collar nut m10 ws=13660 LC4 |
54630044000 |
US $2.16 |
||
|
36
|
36
55007016001 Pvc-hose 7x10 per meter660 LC4 |
55007016001 |
US $5.98 |
||
|
37
|
37
50303089000 Angle piece '97660 LC4 |
50303089000 |
US $4.52 |
||
|
38
|
38
5830303800030 Footrest bracket l/s black660 LC4 |
5830303800030 |
US $47.65 |
||
|
40
|
40
5830304000030 Footrest l/s black660 LC4 |
5830304000030 |
US $31.74 |
||
|
41
|
41
5460314000030 Footrest r/s black660 LC4 |
5460314000030 |
US $32.91 |
||
|
42
|
42
58303041000 Footrest spring l/s '93660 LC4 |
58303041000 |
US $6.41 |
||
|
43
|
43
54603041000 Footrest Spring L/s & R/s660 LC4 |
54603041000 |
US $3.52 |
||
|
44
|
44
58303044000 Bolt for footrest660 LC4 |
58303044000 |
US $8.14 |
||
|
45
|
45
54603044000 Bolt for footrest 9,8 x 50660 LC4 |
54603044000 |
US $7.62 |
||
|
46
|
46
0125100003 Washer Din0125-A10,5660 LC4 |
0125100003 |
US $1.19 |
||
|
47
|
47
0094032253 Pin din0094-3,2x25 steel660 LC4 |
0094032253 |
US $1.12 |
||
| replacement | |||||
|
47
|
47
0094032250 Pin din0094-3,2x25 steel660 LC4 |
0094032250 |
US $1.12 |
||
|
50
|
50
58303050044 Footrest rear l/s cpl. '95660 LC4 |
58303050044 |
US $110.96 |
||
|
51
|
51
58303045044 Footrest rubber cpl. '94660 LC4 |
58303045044 |
US $17.27 |
||
|
52
|
52
58303051000 Footrest rubber l/s&r/s duke95660 LC4 |
58303051000 |
US $14.84 |
||
|
53
|
53
58403060000 Chain roll 12x29x22,5 '98660 LC4 |
58403060000 |
US $5.20 |
||
|
55
|
55
58403060065 Bush chain roll 8x12x23 '98660 LC4 |
58403060065 |
US $2.58 |
||
|
58
|
58
0985060003 Self Lock. Nut Din0985-M 6660 LC4 |
0985060003 |
US $2.60 |
||
|
59
|
59
51103053000 Chain sliding piece below '97660 LC4 |
51103053000 |
US $13.24 |
||
|
60
|
60
51103053051 Bushing 8,2x10x20660 LC4 |
51103053051 |
US $3.06 |
||
|
61
|
61
54403135000 Plastic cap sfl10660 LC4 |
54403135000 |
US $1.31 |
||
|
63
|
63
58303063000 Brake lever stop '93660 LC4 |
58303063000 |
US $5.07 |
||
|
64
|
64
0991060203 Flat Head Din7991-M 6X20660 LC4 |
0991060203 |
US $2.99 |
||
| replacement | |||||
|
64
|
64
0991060202 Flat head din7991-m 6x20660 LC4 |
0991060202 |
US $3.26 |
||
|
68
|
68
36003014000 Lock washer 8mm660 LC4 |
36003014000 |
US $0.46 |
||
|
70
|
70
0015080303
Hh Collar Screw M8X30 Tx40
660 LC4 |
0015080303 |
— | ||
| replacement | |||||
|
70
|
70
0025080306 Hh collar screw m8x30 tx40660 LC4 |
0025080306 |
US $3.89 |
||
|
71
|
71
0015080453 Hh Collar Screw M 8X45 Ws=10660 LC4 |
0015080453 |
US $1.46 |
||
|
72
|
72
0910100003 Plug din0910-m 10x1660 LC4 |
0910100003 |
US $4.39 |
||
|
73
|
73
58038022900 Cu-seal ring 10 x 14 x 1,5660 LC4 |
58038022900 |
US $1.33 |
||
|
74
|
74
54610052000 Sprocket screw-ah m8x20 ws=6660 LC4 |
54610052000 |
US $2.35 |
||
| replacement | |||||
|
74
|
74
0019080206 Counter-sunk screw isa45 m8x20660 LC4 |
0019080206 |
US $1.82 |
||
|
76
|
76
54510052000
Counter-Sunk Screw Isa45 M8X26
660 LC4 |
54510052000 |
— | ||
| replacement | |||||
|
76
|
76
0019080266S Counter-sunk screw isa45 m8x26660 LC4 |
0019080266S |
US $2.23 |
||
|
79
|
79
0125080003 Washer din0125-a 8,4660 LC4 |
0125080003 |
US $2.02 |
||
|
80
|
80
58303010000 Cover oil filter '94660 LC4 |
58303010000 |
US $35.46 |
||
|
81
|
81
0014060153
Hh Collar Screw M6X15 Tx30
660 LC4 |
0014060153 |
— | ||
| replacement | |||||
|
81
|
81
0024060156 Hh collar screw m6x15 tx30660 LC4 |
0024060156 |
US $3.96 |
||
|
82
|
82
0014060103
Hh Collar Screw M6X10 Tx30
660 LC4 |
0014060103 |
— | ||
| replacement | |||||
|
82
|
82
0024060106 Hh collar screw m6x10 tx30660 LC4 |
0024060106 |
US $4.35 |
||
|
85
|
85
50235033300
Snap-nut holder m6 kp142
660 LC4 |
50235033300 |
— | ||
| replacement | |||||
|
85
|
85
54603048100 Range Change Metal Nut M6660 LC4 |
54603048100 |
US $5.27 |
||
