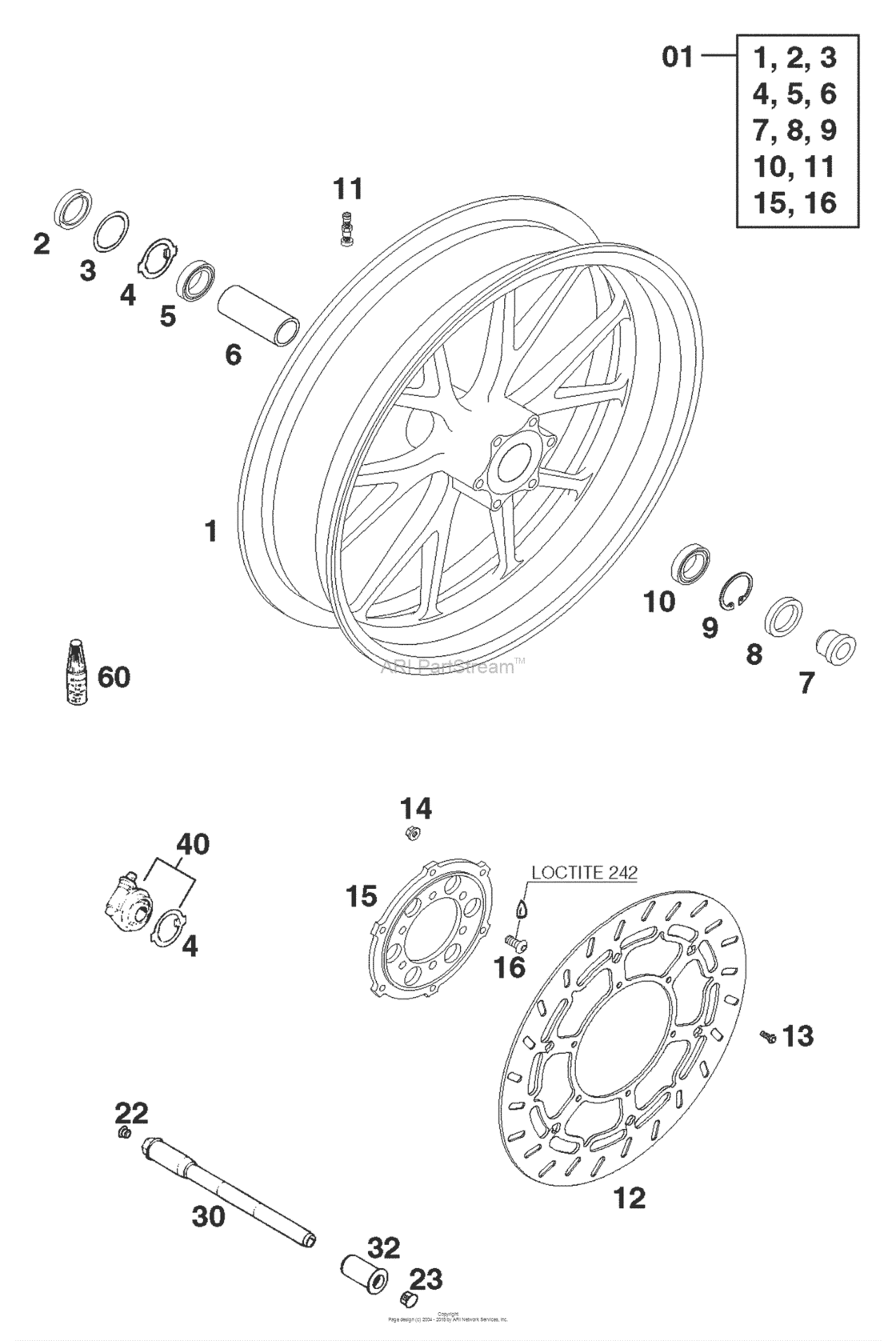

Front Wheel Diagram KTM 640 640 Duke
- Year
- 1999
- Sales region
- US/EU
- Engine Capacity
- 640
- Model
- 640 Duke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
5870906800030 Front Wheel Cpl. Duke 03660 LC4 |
5870906800030 |
US $606.17 |
||
| replacement | |||||
|
|
0015080203 Hh collar screw m 8x20 ws=10660 LC4 |
0015080203 |
US $1.68 |
||
|
01
|
01
58709068000 Front Wheel Cpl. 3,5X17 Duke660 LC4 |
58709068000 |
US $605.95 |
||
| replacement | |||||
|
01
|
01
0015080203 Hh collar screw m 8x20 ws=10660 LC4 |
0015080203 |
US $1.68 |
||
|
2
|
2
0760405270 Shaft seal ring 40x52x7 b660 LC4 |
0760405270 |
US $11.59 |
||
|
3
|
3
58111054000
Washer 40 X 52 X 0,15 '92
660 LC4 |
58111054000 |
— | ||
|
4
|
4
58111053100 Driving dog f.speedom.drive'92660 LC4 |
58111053100 |
US $6.83 |
||
|
5
|
5
0625062032 Gr.ball bear. 6203-2rshc3hmtf660 LC4 |
0625062032 |
US $17.97 |
||
|
6
|
6
54609011000 Bear.spacer tube 17,5x22x64,5660 LC4 |
54609011000 |
US $12.29 |
||
|
7
|
7
58309051000 Distance sleeve 17 x 30 x 26,7660 LC4 |
58309051000 |
US $11.05 |
||
|
8
|
8
0760253570 Shaft seal ring 25x35x7 btsl660 LC4 |
0760253570 |
US $18.89 |
||
|
9
|
9
0472035150 Circlip din0472-35x1,5660 LC4 |
0472035150 |
US $1.94 |
||
|
10
|
10
0625060037 Gr.ball bear. 6003-2rsh/c3hmtf660 LC4 |
0625060037 |
US $27.20 |
||
|
11
|
11
58709077044 Valve Cpl. Brembo Duke 2003660 LC4 |
58709077044 |
US $15.35 |
||
| replacement | |||||
|
11
|
11
58709076000 Valve cpl. brembo duke 2003660 LC4 |
58709076000 |
US $7.40 |
||
|
12
|
12
58309060000 Brake Disk Front D=320Mm660 LC4 |
58309060000 |
US $309.38 |
||
|
13
|
13
0015060203
Hh Collar Screw M 6X20 Ws=8
660 LC4 |
0015060203 |
— | ||
| replacement | |||||
|
13
|
13
0025060206 Hh collar screw m6x20 tx30660 LC4 |
0025060206 |
US $1.97 |
||
|
14
|
14
56509064100 Self Locking Nut M6 10.9660 LC4 |
56509064100 |
US $1.04 |
||
|
15
|
15
58709061000 Brake disc adapter duke660 LC4 |
58709061000 |
US $184.35 |
||
|
16
|
16
0107080203 Ah oval h.screw din0170-m 8x20660 LC4 |
0107080203 |
US $1.60 |
||
|
22
|
22
50210086000 Covering cap sfl16660 LC4 |
50210086000 |
US $3.54 |
||
|
23
|
23
58301098000 Plastic cap 3/8" 2663660 LC4 |
58301098000 |
US $1.41 |
||
|
30
|
30
58309081000
Wheel spindle m17x250 duke'94
660 LC4 |
58309081000 |
— | ||
|
32
|
32
58309082000 Axle nut m17 x 1,5 duke'94660 LC4 |
58309082000 |
US $14.69 |
||
|
40
|
40
58311052000
Speedome.drive 748208(2,66)'94
660 LC4 |
58311052000 |
— | ||
|
60
|
60
6899785 Loctite 243 Blue 6Ccm660 LC4 |
6899785 |
US $40.61 |
||
