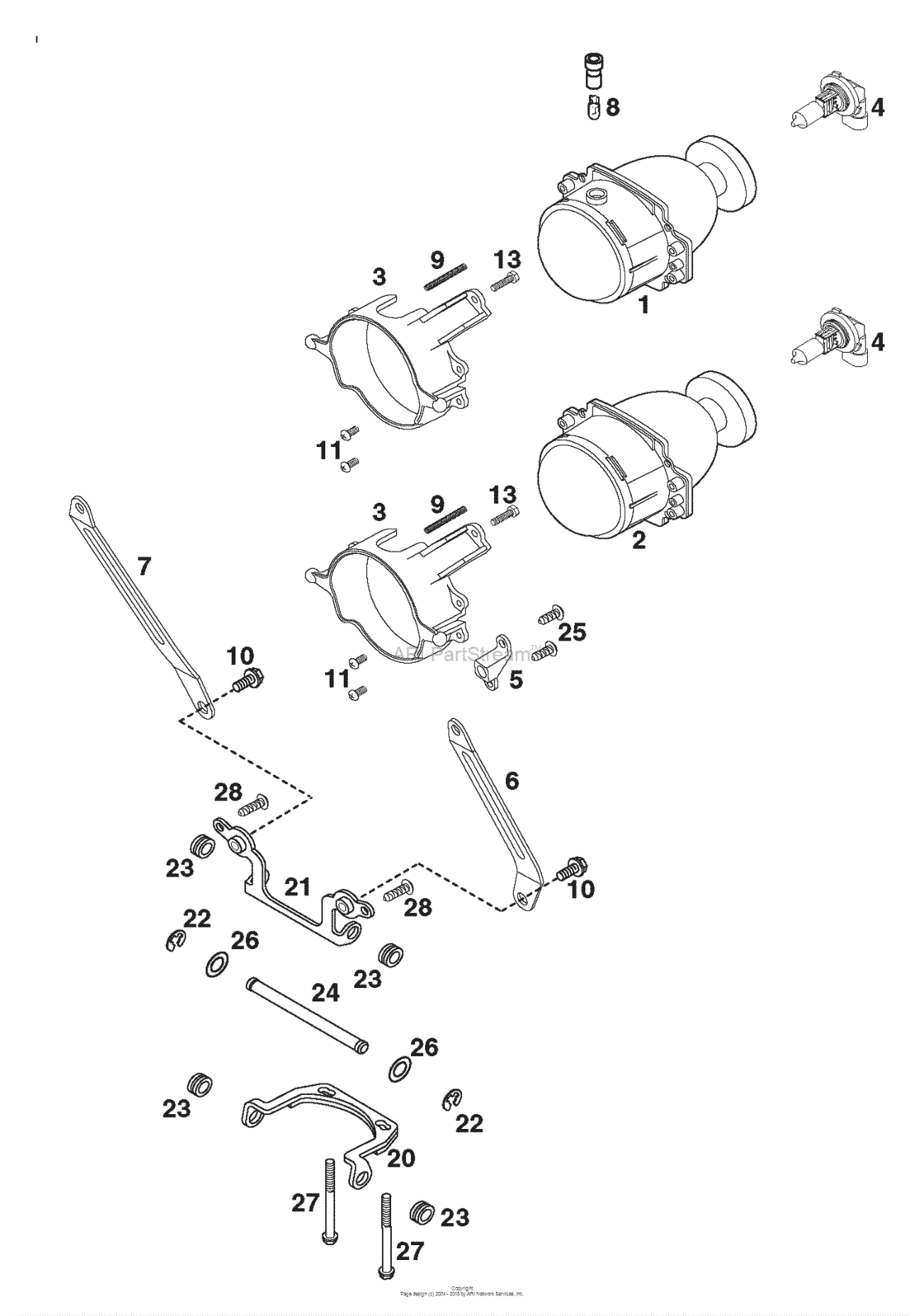

Head Light, Support Diagram KTM 640 640 Duke
- Year
- 1999
- Sales region
- US/EU
- Engine Capacity
- 640
- Model
- 640 Duke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58714002000
Headlight Highbeam Cev 603 '99
660 LC4 |
58714002000 |
— | ||
|
2
|
2
58714001000
Headlight Lowbeam Cev 602 Right Traffic '99
660 LC4 |
58714001000 |
— | ||
|
2
|
2
58714001050
Head Light Lowbeam Cev 601 Left Traffic '99
660 LC4 |
58714001050 |
— | ||
|
3
|
3
58714010000 Headlight support duke '99660 LC4 |
58714010000 |
US $27.88 |
||
|
4
|
4
58714003000 Bulb hb3 12v 60w '99660 LC4 |
58714003000 |
US $35.63 |
||
|
5
|
5
58714010070
Headlight Support Duke '99
660 LC4 |
58714010070 |
— | ||
| replacement | |||||
|
5
|
5
58714010000 Headlight support duke '99660 LC4 |
58714010000 |
US $27.88 |
||
|
6
|
6
58708001080 Brace plate for mask l/s660 LC4 |
58708001080 |
US $19.07 |
||
|
7
|
7
58708101080 Brace plate for mask r/s660 LC4 |
58708101080 |
US $20.18 |
||
|
8
|
8
49011435000 Bulb 12V 5W (W2,1X9,5D) Phil660 LC4 |
49011435000 |
US $4.27 |
||
| replacement | |||||
|
8
|
8
49011435100 Bulb 12V 5W (W2,1X9,5D) Phil660 LC4 |
49011435100 |
US $3.81 |
||
|
9
|
9
58714010050 Spring f. head light adj. '99660 LC4 |
58714010050 |
US $3.21 |
||
|
10
|
10
0015060123
Hh Collar Screw M 6X12 Ws=8
660 LC4 |
0015060123 |
— | ||
| replacement | |||||
|
10
|
10
0025060126 Hh collar screw m6x12 tx30660 LC4 |
0025060126 |
US $3.96 |
||
|
11
|
11
58714001011
Oval head screw c15 geh. ph2
660 LC4 |
58714001011 |
— | ||
|
13
|
13
58714001010 Screw for plastic d=5x35660 LC4 |
58714001010 |
US $1.14 |
||
|
20
|
20
58708002000 Hinge joint bottom 99660 LC4 |
58708002000 |
US $27.01 |
||
|
21
|
21
58708001060 Bracket f. joint mask660 LC4 |
58708001060 |
US $24.34 |
||
|
22
|
22
0799060003 Tab washer din6799-rs 6,0660 LC4 |
0799060003 |
US $0.22 |
||
|
23
|
23
31008060000 Rubber Sleeve D=8Mm Open660 LC4 |
31008060000 |
US $1.09 |
||
|
24
|
24
58708001070 Joint axle f.mask duke '99660 LC4 |
58708001070 |
US $8.89 |
||
|
25
|
25
0016050121
Screw for plastic 50x12
660 LC4 |
0016050121 |
— | ||
| replacement | |||||
|
25
|
25
0081050121 Screw for plastic k50x12 t20660 LC4 |
0081050121 |
US $1.19 |
||
|
26
|
26
0125080003 Washer din0125-a 8,4660 LC4 |
0125080003 |
US $2.02 |
||
|
27
|
27
0015060653 Hh collar screw m 6x65 ws=8660 LC4 |
0015060653 |
US $1.12 |
||
|
28
|
28
0081500181 Screw for plastic d=5x18660 LC4 |
0081500181 |
US $1.02 |
||
| replacement | |||||
|
28
|
28
0081050181 Screw for plastic k50x18 t20660 LC4 |
0081050181 |
US $0.73 |
||
