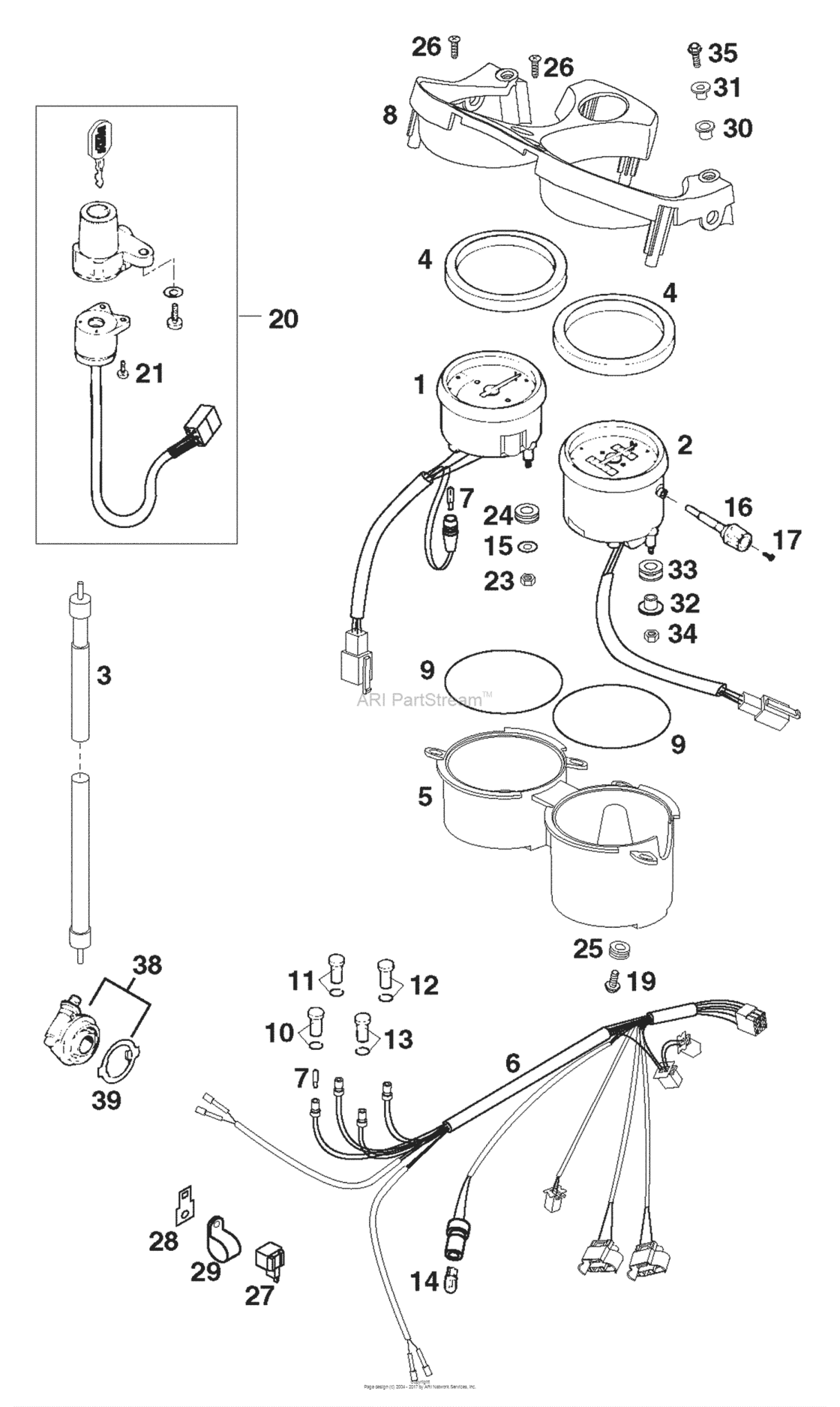

Speedometer, Tachometer Diagram KTM 640 640 Duke
- Year
- 1999
- Sales region
- US/EU
- Engine Capacity
- 640
- Model
- 640 Duke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
58714057100 Speedometer miles duke '99660 LC4 |
58714057100 |
US $215.78 |
||
|
1
|
1
58714075000 Tachometer duke '99660 LC4 |
58714075000 |
US $185.88 |
||
|
2
|
2
58714057000 Speedometer kmh duke '99660 LC4 |
58714057000 |
US $236.78 |
||
|
3
|
3
58714055000 Speedom.cable m12/12 785mm '99660 LC4 |
58714055000 |
US $22.93 |
||
|
4
|
4
58714067000 Foam rubber ring 92x110x15 '99660 LC4 |
58714067000 |
US $6.49 |
||
|
5
|
5
58711051000 Instruments bracket duke '99660 LC4 |
58711051000 |
US $41.19 |
||
|
6
|
6
58711082000 Wiring harness cockpit duke'99660 LC4 |
58711082000 |
US $65.25 |
||
|
7
|
7
49111425000 Bulb 12V 2,3W (W2X4,6D)660 LC4 |
49111425000 |
US $4.18 |
||
| replacement | |||||
|
7
|
7
49111425200 Bulb 12v 2,3w (w2x4,6d)660 LC4 |
49111425200 |
US $1.96 |
||
|
8
|
8
58714070000 Instruments cover duke '99660 LC4 |
58714070000 |
US $39.63 |
||
|
9
|
9
0770860025 O-ring 86,00x2,50 nbr70it660 LC4 |
0770860025 |
US $1.79 |
||
|
10
|
10
58011021300 H.beam Indicator Light Blue'98660 LC4 |
58011021300 |
US $6.17 |
||
|
11
|
11
58011023300 Neutral indic. light green '98660 LC4 |
58011023300 |
US $5.68 |
||
|
12
|
12
58011022400 Temperature warn. light red'98660 LC4 |
58011022400 |
US $6.31 |
||
|
13
|
13
58011024300 Flasher Indicat.light Green'98660 LC4 |
58011024300 |
US $7.72 |
||
|
14
|
14
49011435000 Bulb 12V 5W (W2,1X9,5D) Phil660 LC4 |
49011435000 |
US $4.27 |
||
| replacement | |||||
|
14
|
14
49011435100 Bulb 12V 5W (W2,1X9,5D) Phil660 LC4 |
49011435100 |
US $3.81 |
||
|
15
|
15
0134070003 Washer din0134- 7,4660 LC4 |
0134070003 |
US $1.38 |
||
|
16
|
16
58714049000
Reset knob for tripmeter '99
660 LC4 |
58714049000 |
— | ||
|
17
|
17
58714049010
Screw for reset knob '99
660 LC4 |
58714049010 |
— | ||
|
19
|
19
0016050121
Screw for plastic 50x12
660 LC4 |
0016050121 |
— | ||
| replacement | |||||
|
19
|
19
0081050121 Screw for plastic k50x12 t20660 LC4 |
0081050121 |
US $1.19 |
||
|
20
|
20
58411066000 Ignition lock w.lightswitch 98660 LC4 |
58411066000 |
US $135.10 |
||
|
21
|
21
0985040123 Flat head screw din7985-m 4x12660 LC4 |
0985040123 |
US $0.58 |
||
|
23
|
23
0934050003 Hexagon Nut Din0934-M 5660 LC4 |
0934050003 |
US $2.60 |
||
|
24
|
24
31008080000
Rubber Grommit Bl. Da60/110/30
660 LC4 |
31008080000 |
— | ||
|
25
|
25
31008060000 Rubber Sleeve D=8Mm Open660 LC4 |
31008060000 |
US $1.09 |
||
|
26
|
26
0017050181 Screw for plastic d=5x18660 LC4 |
0017050181 |
US $0.61 |
||
|
27
|
27
44611207200 Flasher unit 97660 LC4 |
44611207200 |
US $54.93 |
||
|
28
|
28
58211031100 Bracket for flasher relay660 LC4 |
58211031100 |
US $5.61 |
||
|
29
|
29
57013070400 Pvc clamp 17,4mm heyco 3381660 LC4 |
57013070400 |
US $0.90 |
||
|
30
|
30
31008070000 Rubber grommit d=7,6mm660 LC4 |
31008070000 |
US $3.08 |
||
|
31
|
31
58714070050 Bushing f.instruments cover660 LC4 |
58714070050 |
US $1.94 |
||
|
32
|
32
58714062010 Distance bushing '99660 LC4 |
58714062010 |
US $3.11 |
||
|
33
|
33
31008008000 Rubber grommit black660 LC4 |
31008008000 |
US $1.19 |
||
|
34
|
34
0985050003 Self Locking Nut Din0985-M 5660 LC4 |
0985050003 |
US $3.26 |
||
|
35
|
35
0015060163 Hh Collar Screw M 6X16 Ws=8660 LC4 |
0015060163 |
US $2.23 |
||
|
38
|
38
58311052000
Speedome.drive 748208(2,66)'94
660 LC4 |
58311052000 |
— | ||
|
39
|
39
58111053100 Driving dog f.speedom.drive'92660 LC4 |
58111053100 |
US $6.83 |
||
