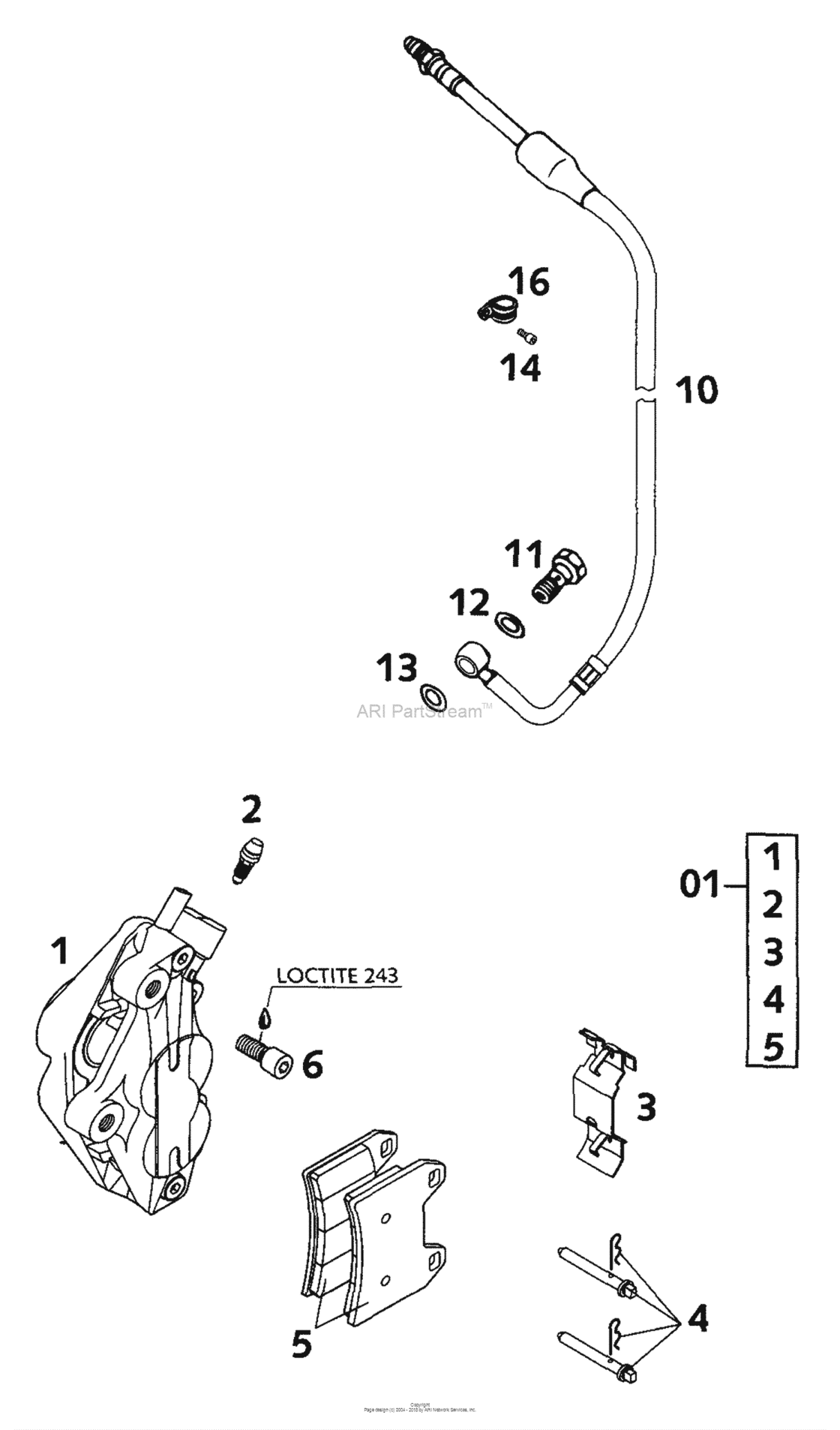

Brake Caliper Front Diagram KTM 640 640 Duke
- Year
- 2000
- Sales region
- US/EU
- Engine Capacity
- 640
- Model
- 640 Duke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
58713015000 Brake Caliper Fr. Gold Duke'99660 LC4 |
58713015000 |
US $253.16 |
||
|
2
|
2
58713020000 Bleeder screw m10x1 '99660 LC4 |
58713020000 |
US $6.73 |
||
|
3
|
3
58713018000 Retaining spring brembo '99660 LC4 |
58713018000 |
US $14.64 |
||
|
4
|
4
58713017000 Bolt whith clip '99660 LC4 |
58713017000 |
US $16.10 |
||
|
5
|
5
58713030000 Brake Pad Set Fr.ferit Id405Ff660 LC4 |
58713030000 |
US $75.77 |
||
|
6
|
6
0912100259 Ah scr.din912-m10x1,25x25 10.9660 LC4 |
0912100259 |
US $7.92 |
||
|
10
|
10
58713011000 Brake hose front 880mm '99660 LC4 |
58713011000 |
US $56.83 |
||
|
11
|
11
50213025000 Hollow Screw M10X1X19660 LC4 |
50213025000 |
US $5.39 |
||
|
12
|
12
42013226000 Cu-Seal Ring Din7603-10X16X1660 LC4 |
42013226000 |
US $4.10 |
||
|
13
|
13
42013026000 Cu-seal ring din7603-10x16x1,5660 LC4 |
42013026000 |
US $2.24 |
||
|
14
|
14
0912050123 Ah screw din0912-m 5x12660 LC4 |
0912050123 |
US $0.85 |
||
|
16
|
16
58711070000 Clamp rsgu 6/12660 LC4 |
58711070000 |
US $1.75 |
