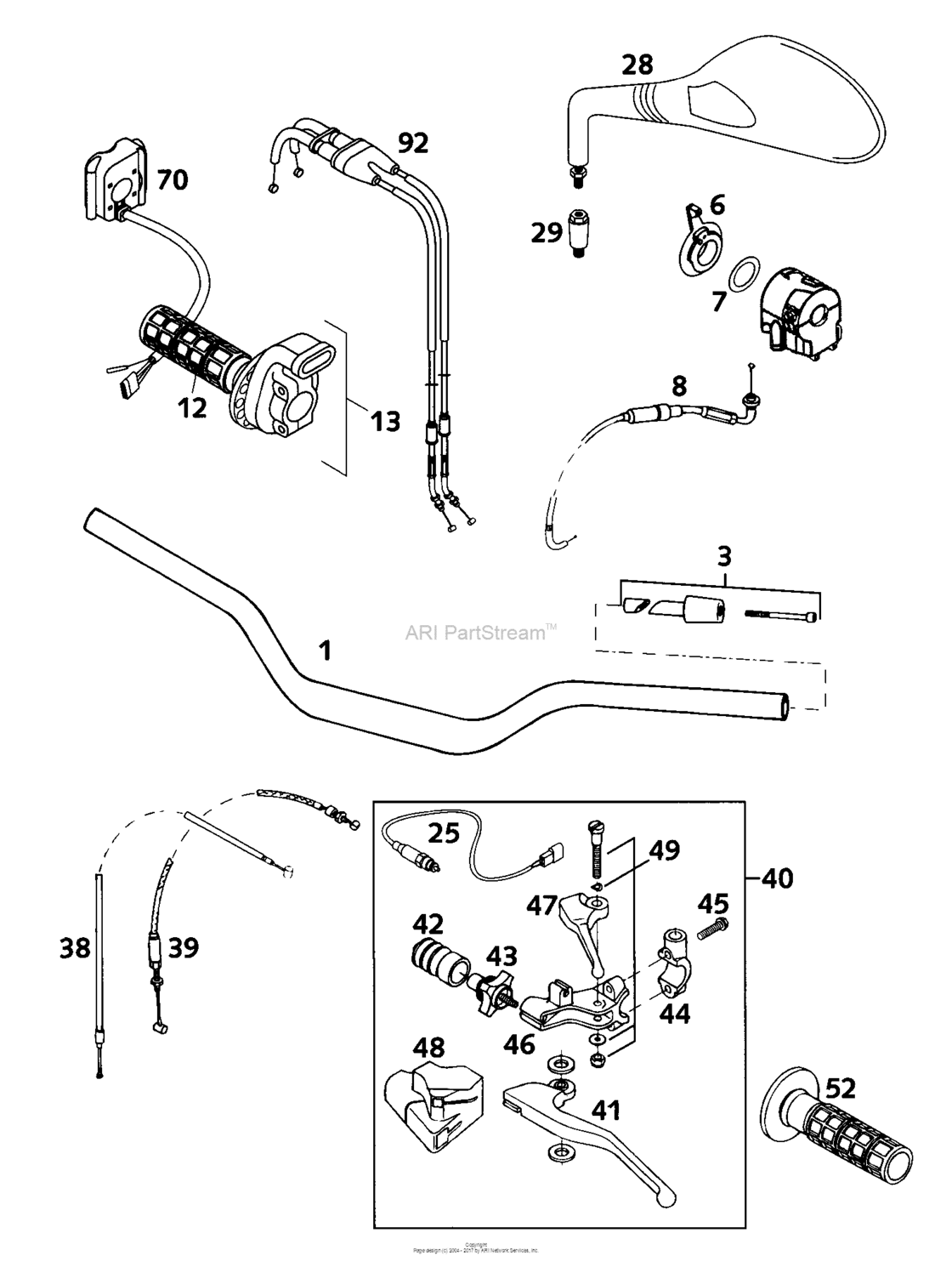

Handlebar, Controls Diagram KTM 640 640 Duke
- Year
- 2000
- Sales region
- US/EU
- Engine Capacity
- 640
- Model
- 640 Duke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
58712041000 Rear mirror r/s duke black '99660 LC4 |
58712041000 |
US $38.11 |
||
|
1
|
1
58302001500
Alu-Handlebar D=28Mm '97
660 LC4 |
58302001500 |
— | ||
|
3
|
3
58302004044 Vibrations absorber cpl. '94660 LC4 |
58302004044 |
US $49.06 |
||
|
3
|
3
58302004144
Vibrations abs.chrome cpl.2000
660 LC4 |
58302004144 |
— | ||
|
6
|
6
58302050100 Choke lever domino '94660 LC4 |
58302050100 |
US $9.04 |
||
|
7
|
7
0988253505 Thrust wash. din0988-25x35x0,5660 LC4 |
0988253505 |
US $3.33 |
||
|
8
|
8
58402095000 Choke cable for mikuni lc4 '98660 LC4 |
58402095000 |
US $48.04 |
||
|
12
|
12
58302003000
Gripp Set Full Waffle
660 LC4 |
58302003000 |
— | ||
| replacement | |||||
|
12
|
12
58302021000 Gripp set full waffle660 LC4 |
58302021000 |
US $28.88 |
||
|
13
|
13
58702010000 Throttle grip cpl. duke 2000660 LC4 |
58702010000 |
US $63.24 |
||
|
25
|
25
58411049000 Clutch switch '96660 LC4 |
58411049000 |
US $28.61 |
||
|
28
|
28
58712040000 Rear mirror l/s duke black '99660 LC4 |
58712040000 |
US $37.55 |
||
|
29
|
29
58412040050 Support for mirror lc4 '98660 LC4 |
58412040050 |
US $18.41 |
||
|
38
|
38
58402090000 Clutch cable 4t l=1115mm '99660 LC4 |
58402090000 |
US $36.65 |
||
|
39
|
39
58302094200 Decompr. cable l=693,5 lc4 '99660 LC4 |
58302094200 |
US $34.44 |
||
|
40
|
40
58402040000
Clutch lever cpl duke'96
660 LC4 |
58402040000 |
— | ||
|
41
|
41
58302055200 Clutch lever loose "30" black660 LC4 |
58302055200 |
US $49.44 |
||
|
42
|
42
58302126000 Clutch lever boot '95660 LC4 |
58302126000 |
US $3.91 |
||
|
43
|
43
58302043000 Adjustment Screw Cpl.m7660 LC4 |
58302043000 |
US $22.42 |
||
|
44
|
44
58302044000 Clamp mirrow m10x1,25660 LC4 |
58302044000 |
US $11.41 |
||
|
45
|
45
0015060253
Hh Collar Screw M6X25 Tx30
660 LC4 |
0015060253 |
— | ||
| replacement | |||||
|
45
|
45
0025060256 Hh collar screw m6x25 tx30660 LC4 |
0025060256 |
US $2.45 |
||
|
46
|
46
58402041000 Joint (pivot) domino '96660 LC4 |
58402041000 |
US $40.27 |
||
|
47
|
47
58302047000 Decompression lever loose660 LC4 |
58302047000 |
US $12.19 |
||
|
48
|
48
58402048000 Plastic Cover660 LC4 |
58402048000 |
US $9.83 |
||
| replacement | |||||
|
48
|
48
58302048000 Protecting cover660 LC4 |
58302048000 |
US $8.30 |
||
|
49
|
49
58302049000 Lever screw cpl.660 LC4 |
58302049000 |
US $6 |
||
|
52
|
52
58302052000
Rubber Grip
660 LC4 |
58302052000 |
— | ||
| replacement | |||||
|
52
|
52
58302021000 Gripp set full waffle660 LC4 |
58302021000 |
US $28.88 |
||
|
70
|
70
59011074000
Start-Stop Switch 2000
660 LC4 |
59011074000 |
— | ||
| replacement | |||||
|
70
|
70
59011074100 Start-Stop Switch 2000660 LC4 |
59011074100 |
US $54.49 |
||
|
70
|
70
59011074100 Start-Stop Switch 2000660 LC4 |
59011074100 |
US $54.49 |
||
|
92
|
92
58402091600 Thrott.cable "open-close" 2000660 LC4 |
58402091600 |
US $97.17 |
||
