Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 5843602020023 Cyl. head cpl. lc4/sxc sas 04 FOR PLASTIC D=5X18	5843602020023	US $973.03
2	2 58530090000 Dowel bushing 9,8x7,2x10 FOR PLASTIC D=5X18	58530090000	US $1.28
3	3 58036065100 Cu-seal ring 6 x 10 x 2 FOR PLASTIC D=5X18	58036065100	US $0.90
4	4 58036152600 Valve cover front '99 FOR PLASTIC D=5X18	58036152600	US $33.58
5	5 58036052000 Valve Cover Rear FOR PLASTIC D=5X18	58036052000	US $43.76
	replacement
5	5 58036052200 Valve cover rear FOR PLASTIC D=5X18	58036052200	US $14.33
6	6 58036053000 Valve cover gasket FOR PLASTIC D=5X18	58036053000	US $4.71
7	7 58330036000 Cylinder head gasket 101,3 mm FOR PLASTIC D=5X18	58330036000	US $65.03
8	8 0603061001 Cu-Seal Ring Din7603-6X10X1 FOR PLASTIC D=5X18	0603061001	US $2.64
9	9 0912060353 Ah Screw Din0912-M 6X35 FOR PLASTIC D=5X18	0912060353	US $2.09
11	11 0912060253 Ah Screw Din0912-M 6X25 FOR PLASTIC D=5X18	0912060253	US $1.79
12	12 49030028000 Collar nut m8 FOR PLASTIC D=5X18	49030028000	US $2.09
13	13 54330043000 Stud din0835-m 8x40 FOR PLASTIC D=5X18	54330043000	US $3.79
14	14 58036098000 Cu-seal ring 10 x 20 x 1 FOR PLASTIC D=5X18	58036098000	US $1.22
15	15 58036099100 Collar screw m10x80 ws=13 10.9 FOR PLASTIC D=5X18	58036099100	US $8.87
17	17 0993012000 Circlip Din7993-Rw12 FOR PLASTIC D=5X18	0993012000	US $2.11
18	18 58036026644 Valve guide intake cpl. FOR PLASTIC D=5X18	58036026644	US $14.43
19	19 58036126644 Valve guide exhaust cpl. FOR PLASTIC D=5X18	58036126644	US $14.43
21	21 0603070122 Cu-seal ring din7603- 7x12x2 FOR PLASTIC D=5X18	0603070122	US $1.21
22	22 0015060083 Hh collar screw m 6x8 ws=8 FOR PLASTIC D=5X18	0015060083	—
	replacement
22	22 0025060086 Hh collar screw m6x8 tx30 FOR PLASTIC D=5X18	0025060086	US $1.39
23	23 58336020190 Vacuum conection m6/3mm '97 FOR PLASTIC D=5X18	58336020190	US $3.88
23	23 58336020090 Vacuum connection m 6x1 ONLY FOR ADVENTURE USA	58336020090	US $5.61
30	30 58436039100 Exhaust flange cpl. r/s sas 04 ONLY FOR ADVENTURE USA	58436039100	US $43.79
31	31 58036140100 Exhaust flange l/s ONLY FOR ADVENTURE USA	58036140100	US $24.09
32	32 58036041000 Exhaust flange gasket ONLY FOR ADVENTURE USA	58036041000	US $4.71
33	33 58036040100 Exhaust flange r/s 04 ONLY FOR ADVENTURE USA	58036040100	US $27.71
34	34 58336024000 Plug sas bore ONLY FOR ADVENTURE USA	58336024000	US $2.92
35	35 58436054000 Cu-seal ring 12 x 16 x 2 ONLY FOR ADVENTURE USA	58436054000	US $1.19
42	42 58436044000 Intake boot for mikuni carbu. FOR MIKUNI CARBU.	58436044000	US $29.05
45	45 56530061000 Clamp sm12/a60 FOR MIKUNI CARBU.	56530061000	—
49	49 0912060163 Ah Screw Din0912-M 6X16 FOR MIKUNI CARBU.	0912060163	US $1.29
51	51 0912060203 Ah Screw Din0912-M 6X20 FOR MIKUNI CARBU.	0912060203	US $1.04
52	52 0912060253 Ah Screw Din0912-M 6X25 FOR MIKUNI CARBU.	0912060253	US $1.79
53	53 51005074000 Retaining plate FOR MIKUNI CARBU.	51005074000	US $2.11
54	54 0912070553 Ah screw din0912-m 7x55 12.9 FOR MIKUNI CARBU.	0912070553	—
55	55 0912070603 Ah screw din0912-m 7x60 12.9 FOR MIKUNI CARBU.	0912070603	US $7.72
56	56 0912060653 Ah Screw Din0912-M 6X65 FOR MIKUNI CARBU.	0912060653	US $1.84
57	57 0912060703 Ah screw din0912-m 6x70 FOR MIKUNI CARBU.	0912060703	US $1.79
60	60 0137060003 Spring Washer Din0137-B 6 FOR MIKUNI CARBU.	0137060003	US $0.43
64	64 42011252000 Temperature switch vdo FOR MIKUNI CARBU.	42011252000	—
65	65 0910100003 Plug din0910-m 10x1 FOR MIKUNI CARBU.	0910100003	US $4.39
66	66 0603100141 Copper Gasket Din7603-10X14X1 FOR MIKUNI CARBU.	0603100141	US $2.24
67	67 0908120153 Plug din0908-m12x1,5 FOR MIKUNI CARBU.	0908120153	US $3.81
68	68 0770100020 O-ring 10,00x2,00 silcone FOR MIKUNI CARBU.	0770100020	US $2.02
69	69 60011252000 Temperat.-sensor water lc8 02 FOR MIKUNI CARBU.	60011252000	US $38.01

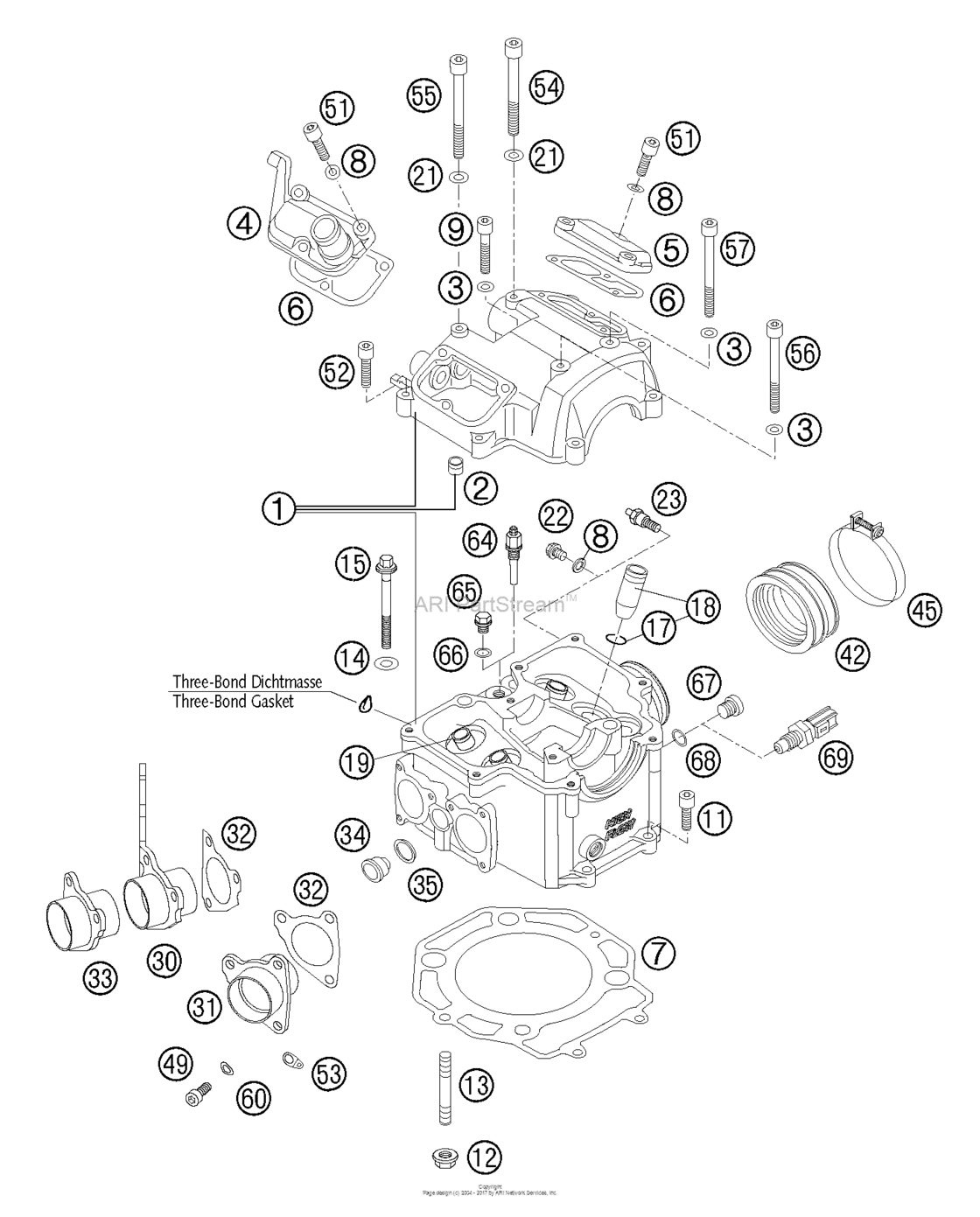

Cylinder Head Diagram KTM 640 640 Duke US/EU 18103649-940564

Cylinder Head Diagram KTM 640 640 Duke US/EU 18103649-940564
