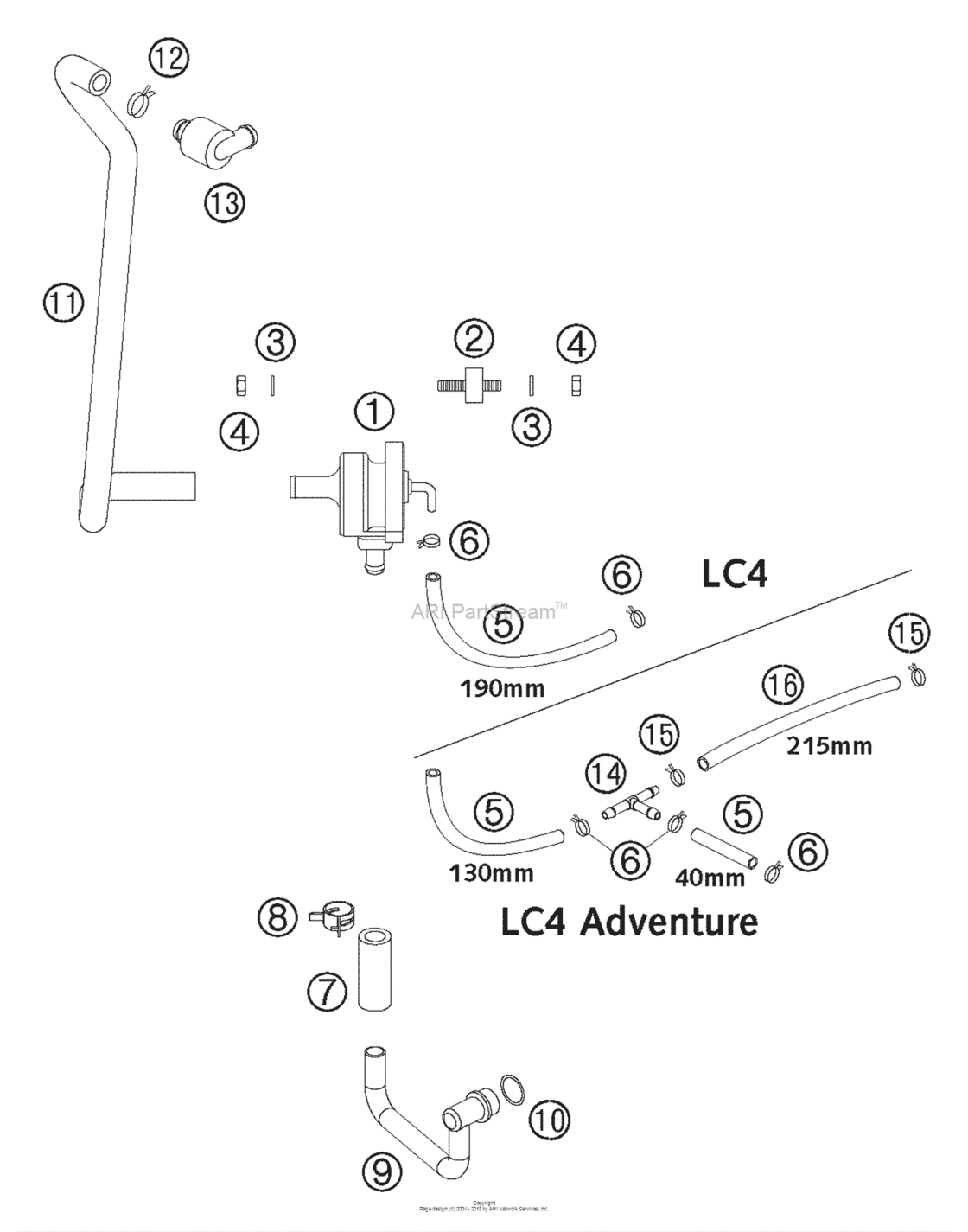

Secondary Air System Diagram KTM 640 640 Duke
- Year
- 2004
- Sales region
- US/EU
- Engine Capacity
- 640
- Model
- 640 Duke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58405026100
Sas-Valve 04
FOR PLASTIC D=5X18 |
58405026100 |
— | ||
|
2
|
2
58405021000 Silentblock 20x10 m6x10/m6x16FOR PLASTIC D=5X18 |
58405021000 |
US $6.87 |
||
|
3
|
3
0797060003 Tooth Lock Wash. Din6797-A 6,4FOR PLASTIC D=5X18 |
0797060003 |
US $0.29 |
||
|
4
|
4
0934060003 Hexagon Nut Din0934-M 6FOR PLASTIC D=5X18 |
0934060003 |
US $0.43 |
||
|
5
|
5
58405029001 Nd-hose 4x9 per meterFOR PLASTIC D=5X18 |
58405029001 |
US $18.77 |
||
|
6
|
6
45031005000 Ydnac-clamp fuel hose (8mm)FOR PLASTIC D=5X18 |
45031005000 |
US $0.48 |
||
|
7
|
7
58405019000 Hose sas-valve - connect. tubeFOR PLASTIC D=5X18 |
58405019000 |
US $3.55 |
||
|
8
|
8
00049190121 Clamp std dn19FOR PLASTIC D=5X18 |
00049190121 |
US $1 |
||
|
9
|
9
58405027100 Connecting tube sas 04FOR PLASTIC D=5X18 |
58405027100 |
US $131.07 |
||
|
10
|
10
58436054000 Cu-seal ring 12 x 16 x 2FOR PLASTIC D=5X18 |
58436054000 |
US $1.19 |
||
|
11
|
11
58405020000 Preformed hose sas 04FOR PLASTIC D=5X18 |
58405020000 |
US $13.24 |
||
|
12
|
12
58431082100 Ydnac-clamp 10173 (16mm) '98FOR PLASTIC D=5X18 |
58431082100 |
US $0.73 |
||
|
13
|
13
58431070000 Air Filter Lc4 '98FOR PLASTIC D=5X18 |
58431070000 |
US $23.44 |
||
| replacement | |||||
|
13
|
13
58431070100 Air filter lc4 for epc 2005FOR PLASTIC D=5X18 |
58431070100 |
US $16.69 |
||
|
14
|
14
58405030000 T-connection 5mm ts5 for adv.FOR PLASTIC D=5X18 |
58405030000 |
US $7.12 |
||
|
15
|
15
58007117000 Ydnac-clamp 10107 10mmFOR PLASTIC D=5X18 |
58007117000 |
US $2.16 |
||
|
16
|
16
58205035001 Hose 6x10 per meterFOR PLASTIC D=5X18 |
58205035001 |
US $15.62 |
||
| replacement | |||||
|
16
|
16
60007126001 Hose 5,4X9,4 Nbr, MeterFOR PLASTIC D=5X18 |
60007126001 |
US $8.16 |
||
