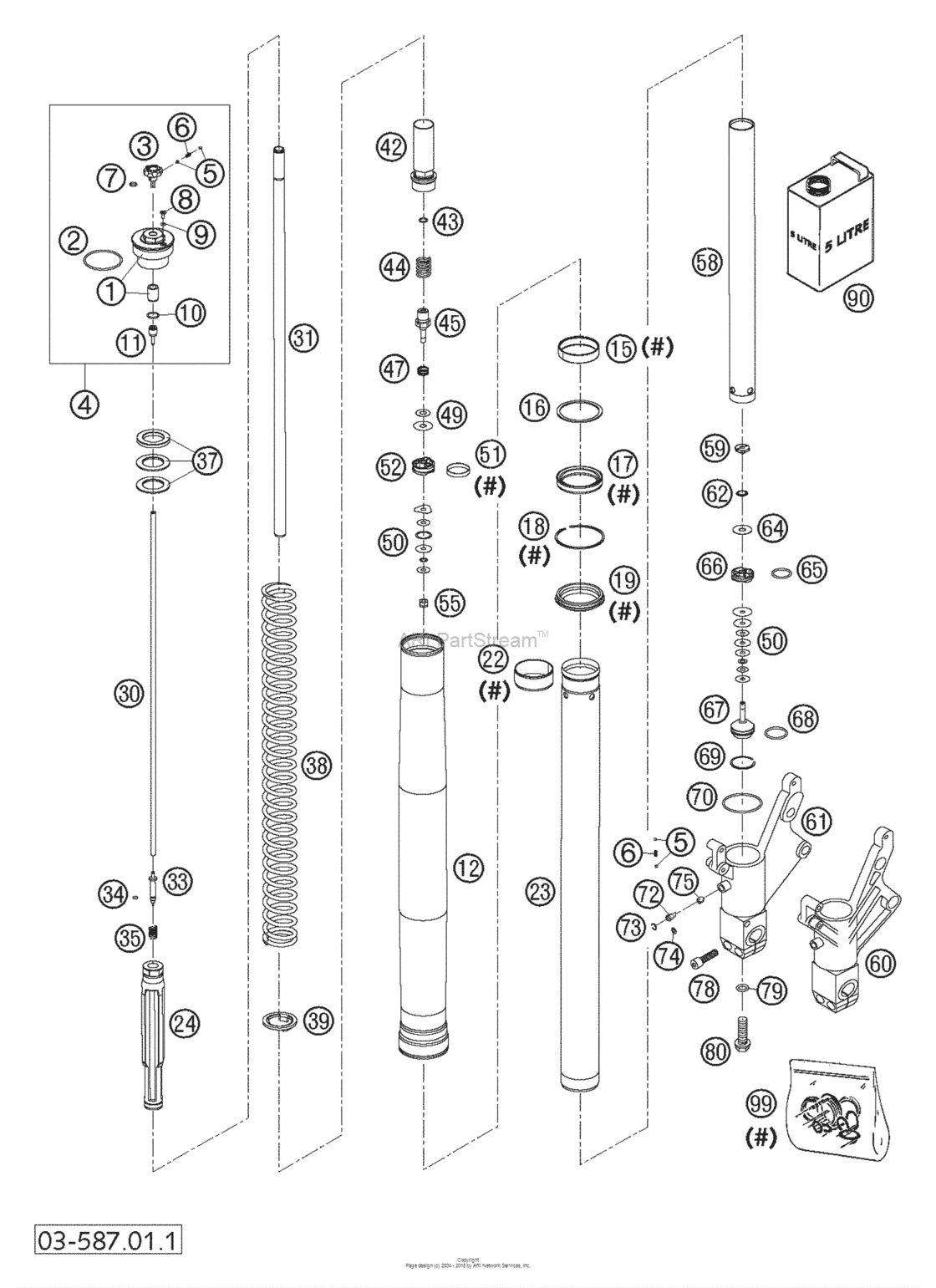

Fork Legs Wp Usd 43 Diagram KTM 640 640 Duke II
- Year
- 2003
- Sales region
- US/EU
- Engine Capacity
- 640
- Model
- 640 Duke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48600020S
Screw Cap M51X1,5 Cpl
ONLY FOR REAR FLASHER |
48600020S |
— | ||
| replacement | |||||
|
1
|
1
48600020S1
Screw Cap M51X1,5 Cpl
ONLY FOR REAR FLASHER |
48600020S1 |
— | ||
|
2
|
2
46810340 O-ring nbr 45x2ONLY FOR REAR FLASHER |
46810340 |
US $4.01 |
||
|
3
|
3
48600018 Knob reboung adjusterONLY FOR REAR FLASHER |
48600018 |
US $6 |
||
|
4
|
4
48600020S1
Screw Cap M51X1,5 Cpl
ONLY FOR REAR FLASHER |
48600020S1 |
— | ||
|
5
|
5
40540603 Steel ball d=3mmONLY FOR REAR FLASHER |
40540603 |
US $1.22 |
||
|
6
|
6
48600028 Spring d=2,9 l=7,9ONLY FOR REAR FLASHER |
48600028 |
US $3.03 |
||
|
7
|
7
48600044 O-ring nbr 6x1,5ONLY FOR REAR FLASHER |
48600044 |
US $1.14 |
||
|
8
|
8
48600058 Vent screw m4x6ONLY FOR REAR FLASHER |
48600058 |
US $2.09 |
||
|
9
|
9
48600009 O-ring nbr 3,7x1,6ONLY FOR REAR FLASHER |
48600009 |
US $0.90 |
||
|
10
|
10
48600043 O-ring nbr 12x1,5ONLY FOR REAR FLASHER |
48600043 |
US $2.24 |
||
|
11
|
11
48600019 Holder f.adjustment tube d=4mmONLY FOR REAR FLASHER |
48600019 |
US $3.69 |
||
|
12
|
12
43570210
Out.tube Black L=577Mm D=54/57
ONLY FOR REAR FLASHER |
43570210 |
— | ||
|
15
|
15
43570204 Du-bush 43x47x12 daidoONLY FOR REAR FLASHER |
43570204 |
US $30.43 |
||
| replacement | |||||
|
15
|
15
43570618 Guide Bushing 43X47X12ONLY FOR REAR FLASHER |
43570618 |
US $9.08 |
||
|
16
|
16
43570092 Support ring 45 x 52,5 x 1,5ONLY FOR REAR FLASHER |
43570092 |
US $16.83 |
||
|
17
|
17
43570201 Oil Seal Ring 43 X 52,9 X 9,5ONLY FOR REAR FLASHER |
43570201 |
US $26.45 |
||
| replacement | |||||
|
17
|
17
43570623 Oil Seal Ring 43X52,9X11,4ONLY FOR REAR FLASHER |
43570623 |
US $21.03 |
||
|
18
|
18
43570008 Lock washer sb53ONLY FOR REAR FLASHER |
43570008 |
US $2.89 |
||
|
19
|
19
43570202 Dust Stripper 43 X 53,4 X 11,8ONLY FOR REAR FLASHER |
43570202 |
US $23.36 |
||
|
22
|
22
43570203 Du-bush 42x44x20ONLY FOR REAR FLASHER |
43570203 |
US $30.43 |
||
|
23
|
23
43570064
Inner tube d=43mm l=550mm
ONLY FOR REAR FLASHER |
43570064 |
— | ||
|
24
|
24
43570142S
Hydr.stop L=200 D=27,5 Cpl. 05
ONLY FOR REAR FLASHER |
43570142S |
— | ||
| replacement | |||||
|
24
|
24
43570142S1 Hydr.stop l=200 d=27,5 cpl. 05ONLY FOR REAR FLASHER |
43570142S1 |
US $60.74 |
||
|
30
|
30
48600131 Adjustment tube l=357mmONLY FOR REAR FLASHER |
48600131 |
US $26.91 |
||
|
31
|
31
48600255
Pistonrod D=14Mm L=391Mm M11X1
ONLY FOR REAR FLASHER |
48600255 |
— | ||
|
33
|
33
48600189 Needle rebound 2003ONLY FOR REAR FLASHER |
48600189 |
US $36.04 |
||
|
34
|
34
48600046 O-ring nbr 3x1,5ONLY FOR REAR FLASHER |
48600046 |
US $2.47 |
||
|
35
|
35
48600033 Spring rebound needle c=4n/mmONLY FOR REAR FLASHER |
48600033 |
US $15.81 |
||
|
37
|
37
48600053 Spacer 42X26,5X1,5ONLY FOR REAR FLASHER |
48600053 |
US $7.09 |
||
|
37
|
37
48600036 Spacer 42x26,5x2,5ONLY FOR REAR FLASHER |
48600036 |
US $6.48 |
||
|
37
|
37
48600037 Spacer 42x26,5x5ONLY FOR REAR FLASHER |
48600037 |
US $6.41 |
||
|
37
|
37
48600038 Spacer 42x26,5x10ONLY FOR REAR FLASHER |
48600038 |
US $8.04 |
||
|
38
|
38
95010018S Spring 7,0 n/mm set d=4,9mmONLY FOR REAR FLASHER |
95010018S |
US $217.69 |
||
|
39
|
39
43570131 Interm. ring 26,2x38,5x3ONLY FOR REAR FLASHER |
43570131 |
US $15.28 |
||
|
42
|
42
48600200S Screw sleeve m29,3x1 l=65 cpl.ONLY FOR REAR FLASHER |
48600200S |
US $146.30 |
||
|
43
|
43
48600239 O-ring nbr 8x1,25ONLY FOR REAR FLASHER |
48600239 |
US $2.24 |
||
|
44
|
44
48600261 Rebound spring 34,5x15x11ONLY FOR REAR FLASHER |
48600261 |
US $48.65 |
||
|
45
|
45
48600203 Tab rebound d=3 03ONLY FOR REAR FLASHER |
48600203 |
US $36.81 |
||
|
47
|
47
35480377 Spring check valve d=0,5ONLY FOR REAR FLASHER |
35480377 |
US $2.53 |
||
|
49
|
49
48600062 Check valve 8x24x0,1ONLY FOR REAR FLASHER |
48600062 |
US $3.26 |
||
|
49
|
49
48600068
Check valve 8x18x0,1
ONLY FOR REAR FLASHER |
48600068 |
— | ||
| replacement | |||||
|
49
|
49
43570120 Shim 8x18x0,10ONLY FOR REAR FLASHER |
43570120 |
US $9.93 |
||
|
49
|
49
48600215 Check valve 8x20x0,1ONLY FOR REAR FLASHER |
48600215 |
US $5.15 |
||
|
49
|
49
48600216 Check valve 8x22x0,1ONLY FOR REAR FLASHER |
48600216 |
US $5.15 |
||
|
50
|
50
40540401 Shim 6x14x0,1ONLY FOR REAR FLASHER |
40540401 |
US $3.49 |
||
|
50
|
50
40540402 Shim 6x16x0,1ONLY FOR REAR FLASHER |
40540402 |
US $2.72 |
||
|
50
|
50
40540403 Shim 6x18x0,1ONLY FOR REAR FLASHER |
40540403 |
US $2.87 |
||
|
50
|
50
40541402 Shim 6x11x0,2ONLY FOR REAR FLASHER |
40541402 |
US $3.15 |
||
|
50
|
50
40540414 Shim 6x16x0,25ONLY FOR REAR FLASHER |
40540414 |
US $3.72 |
||
|
50
|
50
40541391 Shim 6x11x0,3ONLY FOR REAR FLASHER |
40541391 |
US $3.23 |
||
|
50
|
50
40540415 Shim 6x18x0,25ONLY FOR REAR FLASHER |
40540415 |
US $3.69 |
||
|
50
|
50
48600063 Shim 6x24x0,1ONLY FOR REAR FLASHER |
48600063 |
US $2.77 |
||
|
50
|
50
48600064 Shim 6x22x0,1ONLY FOR REAR FLASHER |
48600064 |
US $4.17 |
||
|
50
|
50
48600065 Shim 6x20x0,1ONLY FOR REAR FLASHER |
48600065 |
US $3.67 |
||
|
50
|
50
48600116 Shim 6X24X0,1 DeltaONLY FOR REAR FLASHER |
48600116 |
US $5.95 |
||
|
51
|
51
48600060 Piston ring 5x1x84ONLY FOR REAR FLASHER |
48600060 |
US $6 |
||
|
52
|
52
48600042 Piston rebound d=27,7ONLY FOR REAR FLASHER |
48600042 |
US $48.96 |
||
|
55
|
55
40540486 Nut m6x0,5 reboundONLY FOR REAR FLASHER |
40540486 |
US $5.20 |
||
|
58
|
58
48600133 Tube 29,3x1x405 d=28mmONLY FOR REAR FLASHER |
48600133 |
US $122.62 |
||
|
59
|
59
48600163 Check valve nut m6x0,5 d=2ONLY FOR REAR FLASHER |
48600163 |
US $13.80 |
||
|
60
|
60
43570196
Axle Clamp L/s Black Duke 2002
ONLY FOR REAR FLASHER |
43570196 |
— | ||
|
61
|
61
43570197
Axle Clamp R/s Black Duke 2002
ONLY FOR REAR FLASHER |
43570197 |
— | ||
|
62
|
62
48600202 Spring check valve d=0,7ONLY FOR REAR FLASHER |
48600202 |
US $2.28 |
||
|
64
|
64
48600061 Check valve 8x24x0,4ONLY FOR REAR FLASHER |
48600061 |
US $4.32 |
||
|
65
|
65
46811499 O-ring nbr 21x2ONLY FOR REAR FLASHER |
46811499 |
US $1.48 |
||
|
66
|
66
48600047 Piston compression d=27,9ONLY FOR REAR FLASHER |
48600047 |
US $49.96 |
||
|
67
|
67
48600177S
Tap Compression Cpl
ONLY FOR REAR FLASHER |
48600177S |
— | ||
|
68
|
68
43570180 O-ring nbr 15x1,5ONLY FOR REAR FLASHER |
43570180 |
US $1.24 |
||
|
69
|
69
43570175 Copper washer 29,8x1,6ONLY FOR REAR FLASHER |
43570175 |
US $2.09 |
||
|
70
|
70
43570023 O-ring nbr 41x2ONLY FOR REAR FLASHER |
43570023 |
US $3.69 |
||
|
72
|
72
48600034
Compression adj. screw
ONLY FOR REAR FLASHER |
48600034 |
— | ||
|
73
|
73
48600051 Lock washer rb12ONLY FOR REAR FLASHER |
48600051 |
US $1.39 |
||
|
74
|
74
48600049 O-ring nbr 8x2ONLY FOR REAR FLASHER |
48600049 |
US $3.67 |
||
|
75
|
75
48600190 Needle compression 2003ONLY FOR REAR FLASHER |
48600190 |
US $13.45 |
||
|
78
|
78
0912080303 Ah Screw Din0912-M 8X30ONLY FOR REAR FLASHER |
0912080303 |
US $1.50 |
||
|
79
|
79
46810146 Copper washer 12x16x1,5ONLY FOR REAR FLASHER |
46810146 |
US $1.02 |
||
|
80
|
80
48600176 Bolt m12x1 d=3ONLY FOR REAR FLASHER |
48600176 |
US $21.18 |
||
|
90
|
90
48600211S1 Fork Oil Sae4 5LONLY FOR REAR FLASHER |
48600211S1 |
US $273.84 |
||
| replacement | |||||
|
90
|
90
48601166S1 Fork Oil Sae4 5LONLY FOR REAR FLASHER |
48601166S1 |
US $218.08 |
||
|
99
|
99
R510 Repair-kit gasket 4357 mxma 03ONLY FOR REAR FLASHER |
R510 |
US $254.24 |
||
