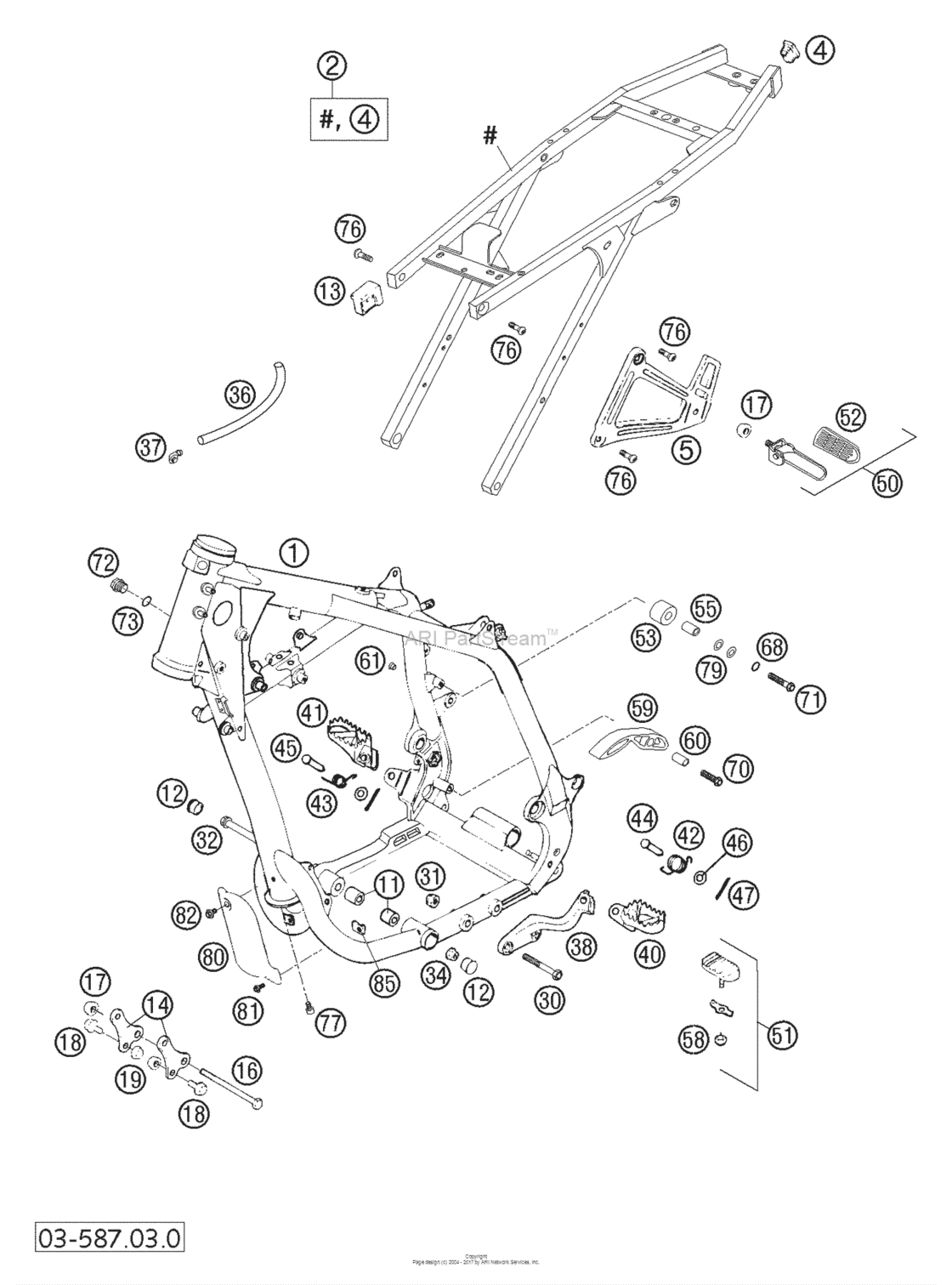

Frame, Sub Frame Diagram KTM 640 640 Duke II
- Year
- 2003
- Sales region
- US/EU
- Engine Capacity
- 640
- Model
- 640 Duke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5870300124430
Frame Cpl. Duke In.k3In. Black 03
ONLY FOR REAR FLASHER |
5870300124430 |
— | ||
|
2
|
2
58703002044
Sub Frame Cpl. Black 06
ONLY FOR REAR FLASHER |
58703002044 |
— | ||
| replacement | |||||
|
2
|
2
58703002144 Sub frame cpl. black 06ONLY FOR REAR FLASHER |
58703002144 |
US $510.66 |
||
|
4
|
4
58303002090
Plug 12 x 17 mm
ONLY FOR REAR FLASHER |
58303002090 |
— | ||
|
5
|
5
5810300320030 Footrest bracket l/s blackONLY FOR REAR FLASHER |
5810300320030 |
US $88.93 |
||
| replacement | |||||
|
5
|
5
5840304800030
Footrestbrack. rear l/s 06
ONLY FOR REAR FLASHER |
5840304800030 |
— | ||
|
5
|
5
5810300420030
Footrest bracket r/s black
ONLY FOR REAR FLASHER |
5810300420030 |
— | ||
|
11
|
11
58003012000 Spacer roller 10,3x20x22ONLY FOR REAR FLASHER |
58003012000 |
US $10.39 |
||
|
12
|
12
71001012100 Pvc cap d=22mmONLY FOR REAR FLASHER |
71001012100 |
US $2.11 |
||
|
13
|
13
58307015000 Tank support '93ONLY FOR REAR FLASHER |
58307015000 |
US $7.28 |
||
|
14
|
14
58303055000 Engine support agw '94ONLY FOR REAR FLASHER |
58303055000 |
US $13.55 |
||
|
16
|
16
58403013000 Engine brac.screw m10x110 ws13ONLY FOR REAR FLASHER |
58403013000 |
US $13.82 |
||
|
17
|
17
49009082000 Self locking nut m10 fk8ONLY FOR REAR FLASHER |
49009082000 |
US $2.31 |
||
|
18
|
18
49109481052 Hh collar screw m 8x16 ws=13ONLY FOR REAR FLASHER |
49109481052 |
US $2.06 |
||
|
19
|
19
54310086200 Self Locking Nut M8 10.9ONLY FOR REAR FLASHER |
54310086200 |
US $1.56 |
||
|
30
|
30
0931100603
Hh screw din0931-m10x60
ONLY FOR REAR FLASHER |
0931100603 |
— | ||
|
31
|
31
0982100003 Self lock.nut din0982-m10 highONLY FOR REAR FLASHER |
0982100003 |
US $2.35 |
||
|
32
|
32
58403014000 Engine brac.screw m10x160 ws13ONLY FOR REAR FLASHER |
58403014000 |
US $18.67 |
||
|
34
|
34
54630044000 Collar nut m10 ws=13ONLY FOR REAR FLASHER |
54630044000 |
US $2.16 |
||
|
36
|
36
55007016001 Pvc-hose 7x10 per meterONLY FOR REAR FLASHER |
55007016001 |
US $5.98 |
||
|
37
|
37
50303089000 Angle piece '97ONLY FOR REAR FLASHER |
50303089000 |
US $4.52 |
||
|
38
|
38
5830303800030 Footrest bracket l/s blackONLY FOR REAR FLASHER |
5830303800030 |
US $47.65 |
||
|
40
|
40
5830304000030 Footrest l/s blackONLY FOR REAR FLASHER |
5830304000030 |
US $31.74 |
||
|
41
|
41
5460314000030 Footrest r/s blackONLY FOR REAR FLASHER |
5460314000030 |
US $32.91 |
||
|
42
|
42
58303041000 Footrest spring l/s '93ONLY FOR REAR FLASHER |
58303041000 |
US $6.41 |
||
|
43
|
43
54603041000 Footrest Spring L/s & R/sONLY FOR REAR FLASHER |
54603041000 |
US $3.52 |
||
|
44
|
44
58303044000 Bolt for footrestONLY FOR REAR FLASHER |
58303044000 |
US $8.14 |
||
|
45
|
45
54603044000 Bolt for footrest 9,8 x 50ONLY FOR REAR FLASHER |
54603044000 |
US $7.62 |
||
|
46
|
46
0125100003 Washer Din0125-A10,5ONLY FOR REAR FLASHER |
0125100003 |
US $1.19 |
||
|
47
|
47
0094032253 Pin din0094-3,2x25 steelONLY FOR REAR FLASHER |
0094032253 |
US $1.12 |
||
| replacement | |||||
|
47
|
47
0094032250 Pin din0094-3,2x25 steelONLY FOR REAR FLASHER |
0094032250 |
US $1.12 |
||
|
50
|
50
58303050044 Footrest rear l/s cpl. '95ONLY FOR REAR FLASHER |
58303050044 |
US $110.96 |
||
|
50
|
50
58303150044 Foot rest rear r/s cpl.'95ONLY FOR REAR FLASHER |
58303150044 |
US $109.48 |
||
|
51
|
51
58303045044 Footrest rubber cpl. '94ONLY FOR REAR FLASHER |
58303045044 |
US $17.27 |
||
|
52
|
52
58303051000 Footrest rubber l/s&r/s duke95ONLY FOR REAR FLASHER |
58303051000 |
US $14.84 |
||
|
53
|
53
58403060000 Chain roll 12x29x22,5 '98ONLY FOR REAR FLASHER |
58403060000 |
US $5.20 |
||
|
55
|
55
58403060065 Bush chain roll 8x12x23 '98ONLY FOR REAR FLASHER |
58403060065 |
US $2.58 |
||
|
58
|
58
0985060003 Self Lock. Nut Din0985-M 6ONLY FOR REAR FLASHER |
0985060003 |
US $2.60 |
||
|
59
|
59
51103053000 Chain sliding piece below '97ONLY FOR REAR FLASHER |
51103053000 |
US $13.24 |
||
|
60
|
60
51103053051 Bushing 8,2x10x20ONLY FOR REAR FLASHER |
51103053051 |
US $3.06 |
||
|
61
|
61
54403135000 Plastic cap sfl10ONLY FOR REAR FLASHER |
54403135000 |
US $1.31 |
||
|
68
|
68
36003014000 Lock washer 8mmONLY FOR REAR FLASHER |
36003014000 |
US $0.46 |
||
|
70
|
70
0015080303
Hh Collar Screw M8X30 Tx40
ONLY FOR REAR FLASHER |
0015080303 |
— | ||
| replacement | |||||
|
70
|
70
0025080306 Hh collar screw m8x30 tx40ONLY FOR REAR FLASHER |
0025080306 |
US $3.89 |
||
|
71
|
71
0015080403
Hh Collar Screw M8X40 Tx40
ONLY FOR REAR FLASHER |
0015080403 |
— | ||
| replacement | |||||
|
71
|
71
0025080406 Hh collar screw m8x40 tx40ONLY FOR REAR FLASHER |
0025080406 |
US $2.62 |
||
|
72
|
72
0910160153 Plug din0910-m16x1,5ONLY FOR REAR FLASHER |
0910160153 |
US $6.83 |
||
|
73
|
73
0603162220 Cu-seal ring 16x22x2ONLY FOR REAR FLASHER |
0603162220 |
US $1.65 |
||
|
76
|
76
54510052100
Counter-Sunk Screw Isa45 M8X26
ONLY FOR REAR FLASHER |
54510052100 |
— | ||
| replacement | |||||
|
76
|
76
0019080266S Counter-sunk screw isa45 m8x26ONLY FOR REAR FLASHER |
0019080266S |
US $2.23 |
||
|
77
|
77
0984060103 Ah screw din7984-m 6x10ONLY FOR REAR FLASHER |
0984060103 |
US $0.65 |
||
|
79
|
79
0125080003 Washer din0125-a 8,4ONLY FOR REAR FLASHER |
0125080003 |
US $2.02 |
||
|
80
|
80
58303010000 Cover oil filter '94ONLY FOR REAR FLASHER |
58303010000 |
US $35.46 |
||
|
81
|
81
0014050163 Hh collar screw m 5x16 ws=6ONLY FOR REAR FLASHER |
0014050163 |
US $1.36 |
||
|
82
|
82
0014060103
Hh Collar Screw M6X10 Tx30
ONLY FOR REAR FLASHER |
0014060103 |
— | ||
| replacement | |||||
|
82
|
82
0024060106 Hh collar screw m6x10 tx30ONLY FOR REAR FLASHER |
0024060106 |
US $4.35 |
||
|
85
|
85
54603048200 Range change metal nut m5ONLY FOR REAR FLASHER |
54603048200 |
US $3.72 |
||
