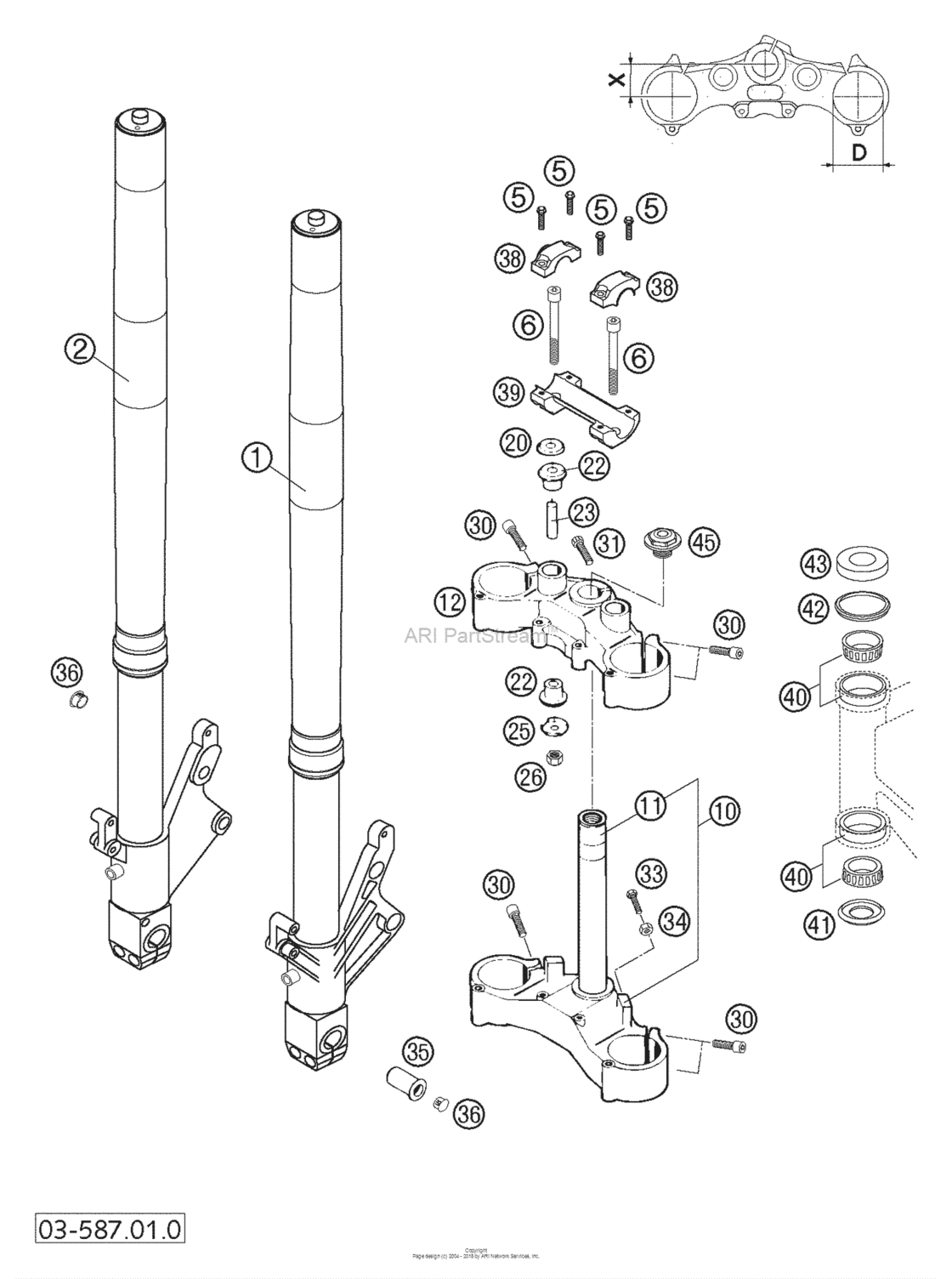

Front Fork Wp Usd 43 Diagram KTM 640 640 Duke II
- Year
- 2003
- Sales region
- US/EU
- Engine Capacity
- 640
- Model
- 640 Duke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0518X732LS
Fork Leg L/s Wp Usd43 Duke 03
ONLY FOR REAR FLASHER |
0518X732LS |
— | ||
|
2
|
2
0518X732RS
Fork Leg R/s Wp Usd43 Duke 03
ONLY FOR REAR FLASHER |
0518X732RS |
— | ||
|
5
|
5
0015080303
Hh Collar Screw M8X30 Tx40
ONLY FOR REAR FLASHER |
0015080303 |
— | ||
| replacement | |||||
|
5
|
5
0025080306 Hh collar screw m8x30 tx40ONLY FOR REAR FLASHER |
0025080306 |
US $3.89 |
||
|
6
|
6
0984100703 Ah screw din6912-m10x70ONLY FOR REAR FLASHER |
0984100703 |
US $6.92 |
||
|
10
|
10
58701032000 Bot.triple clamp x=35mm/d=54mmONLY FOR REAR FLASHER |
58701032000 |
US $164.66 |
||
|
11
|
11
50101033100 Fork Tube L=244ONLY FOR REAR FLASHER |
50101033100 |
US $120.89 |
||
| replacement | |||||
|
11
|
11
54801133000 FORK TUBE L=244ONLY FOR REAR FLASHER |
54801133000 |
US $78.15 |
||
|
12
|
12
58701034200 Top triple clamp x=35mm/d=54mmONLY FOR REAR FLASHER |
58701034200 |
US $165.77 |
||
|
20
|
20
56401042000 Washer 10,5x32x2ONLY FOR REAR FLASHER |
56401042000 |
US $4.71 |
||
|
22
|
22
56401040000 Rubber bushingONLY FOR REAR FLASHER |
56401040000 |
US $6.73 |
||
|
23
|
23
56401041100 Spacer tube 10,2x12x44ONLY FOR REAR FLASHER |
56401041100 |
US $5.25 |
||
|
25
|
25
56401142000 Washer 10,5x31ONLY FOR REAR FLASHER |
56401142000 |
US $3.49 |
||
|
26
|
26
0982100003 Self lock.nut din0982-m10 highONLY FOR REAR FLASHER |
0982100003 |
US $2.35 |
||
|
30
|
30
0912080353 Ah screw din0912-m 8x35ONLY FOR REAR FLASHER |
0912080353 |
US $1.65 |
||
|
31
|
31
0912080253 Ah screw din0912-m 8x25ONLY FOR REAR FLASHER |
0912080253 |
US $1.65 |
||
|
33
|
33
0933070253 Hh screw din0933-m 7x25ONLY FOR REAR FLASHER |
0933070253 |
US $1.11 |
||
|
34
|
34
0934070003 Hexagon nut din0934-m 7ONLY FOR REAR FLASHER |
0934070003 |
US $0.61 |
||
|
35
|
35
58309082000 Axle nut m17 x 1,5 duke'94ONLY FOR REAR FLASHER |
58309082000 |
US $14.69 |
||
|
36
|
36
58301098000 Plastic cap 3/8" 2663ONLY FOR REAR FLASHER |
58301098000 |
US $1.41 |
||
|
38
|
38
59001038200 Handlebar Clamp D=28Mm 2000ONLY FOR REAR FLASHER |
59001038200 |
US $21.10 |
||
|
39
|
39
59001039100 Handlebar Support 28Mm Sc'99ONLY FOR REAR FLASHER |
59001039100 |
US $64.89 |
||
|
40
|
40
54201081000 Tapered Roller Bearing Cpl. 06ONLY FOR REAR FLASHER |
54201081000 |
US $62.54 |
||
| replacement | |||||
|
40
|
40
54201081100 Tapered Roller Bearing Cpl. 06ONLY FOR REAR FLASHER |
54201081100 |
US $53.18 |
||
|
41
|
41
54601084100 O-Ring Support W. Sealing LipONLY FOR REAR FLASHER |
54601084100 |
US $21.28 |
||
| replacement | |||||
|
41
|
41
77701084000 O-Ring Support W. Sealing LipONLY FOR REAR FLASHER |
77701084000 |
US $21.15 |
||
|
42
|
42
54601184000 Stearing head gasket topONLY FOR REAR FLASHER |
54601184000 |
US $7.74 |
||
|
43
|
43
54201086000 Steering Head CoverONLY FOR REAR FLASHER |
54201086000 |
US $8.11 |
||
| replacement | |||||
|
43
|
43
78101086000 Steering Head CoverONLY FOR REAR FLASHER |
78101086000 |
US $5.08 |
||
|
45
|
45
50301036000 Steer.head screw m20x1,5 ws=27ONLY FOR REAR FLASHER |
50301036000 |
US $12.65 |
||
