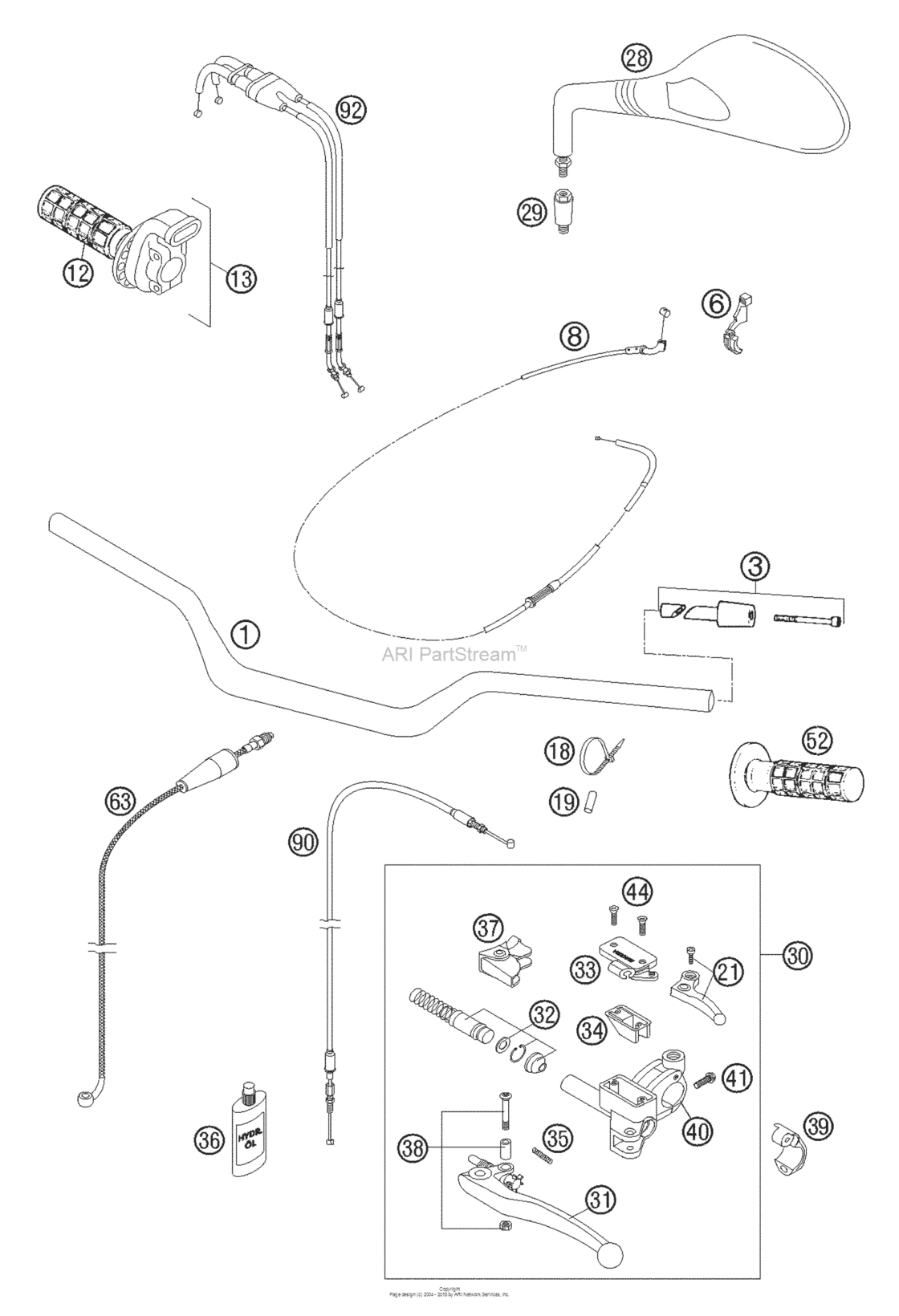

Handlebars, Controls Diagram KTM 640 640 Duke II
- Year
- 2004
- Sales region
- US/EU
- Engine Capacity
- 640
- Model
- 640 Duke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58702001000 Handlebar alu duke 2002ONLY FOR REAR FLASHER |
58702001000 |
US $227.10 |
||
| replacement | |||||
|
1
|
1
58702001100 HANDLEBAR RENTHAL 02ONLY FOR REAR FLASHER |
58702001100 |
US $217.06 |
||
|
3
|
3
58302004044 Vibrations absorber cpl. '94ONLY FOR REAR FLASHER |
58302004044 |
US $49.06 |
||
|
6
|
6
58402050000 Choke lever lc4 2002ONLY FOR REAR FLASHER |
58402050000 |
US $9.01 |
||
|
8
|
8
58402095100 Choke cable f. mikuni lc4 02ONLY FOR REAR FLASHER |
58402095100 |
US $24.43 |
||
|
12
|
12
58302003100
Gripp Set Full Waffle
ONLY FOR REAR FLASHER |
58302003100 |
— | ||
| replacement | |||||
|
12
|
12
58302021100 Gripp set full waffleONLY FOR REAR FLASHER |
58302021100 |
US $29.46 |
||
|
13
|
13
58702010000 Throttle grip cpl. duke 2000ONLY FOR REAR FLASHER |
58702010000 |
US $63.24 |
||
|
18
|
18
44011076200 Cable tie 200/3,6mm blackONLY FOR REAR FLASHER |
44011076200 |
US $0.39 |
||
|
19
|
19
58007016001 Fuel hose viton 7x2mmONLY FOR REAR FLASHER |
58007016001 |
US $52.73 |
||
|
21
|
21
59002047000 Lever Cpl. Racing 2000ONLY FOR REAR FLASHER |
59002047000 |
US $23.60 |
||
|
28
|
28
58712040000 Rear mirror l/s duke black '99ONLY FOR REAR FLASHER |
58712040000 |
US $37.55 |
||
|
28
|
28
58712041000 Rear mirror r/s duke black '99ONLY FOR REAR FLASHER |
58712041000 |
US $38.11 |
||
|
29
|
29
58412040050 Support for mirror lc4 '98ONLY FOR REAR FLASHER |
58412040050 |
US $18.41 |
||
|
30
|
30
58402030000
Master cylinder cpl. lc4 03
ONLY FOR REAR FLASHER |
58402030000 |
— | ||
|
31
|
31
60002031000 Clutch lever long cpl. 2003ONLY FOR REAR FLASHER |
60002031000 |
US $68.24 |
||
|
32
|
32
50302032000 Rep.set piston magura d=10.5ONLY FOR REAR FLASHER |
50302032000 |
US $116.60 |
||
|
33
|
33
59002033000 Cover hyd.clutch racing 2000ONLY FOR REAR FLASHER |
59002033000 |
US $41.87 |
||
|
34
|
34
50302034000 Rubber for reservoir '98ONLY FOR REAR FLASHER |
50302034000 |
US $16.18 |
||
|
35
|
35
59002035000 Spring for clutch lever 03ONLY FOR REAR FLASHER |
59002035000 |
US $5.46 |
||
|
36
|
36
50302036000
Oil For Hyd. Clutch 100 Ml
ONLY FOR REAR FLASHER |
50302036000 |
— | ||
| replacement | |||||
|
36
|
36
50302036200 Oil For Hyd. Clutch 100 MlONLY FOR REAR FLASHER |
50302036200 |
US $19.23 |
||
|
37
|
37
50302037000 Protect.cap For Lever Perch'98ONLY FOR REAR FLASHER |
50302037000 |
US $20.74 |
||
|
38
|
38
50302038000 Lever Screw Cpl. 125-200 '98ONLY FOR REAR FLASHER |
50302038000 |
US $20.35 |
||
|
39
|
39
50302030150 Clamp With Pin 2000ONLY FOR REAR FLASHER |
50302030150 |
US $34.46 |
||
|
40
|
40
59002044000 Clamp mirror with pinONLY FOR REAR FLASHER |
59002044000 |
US $40.78 |
||
|
41
|
41
0015060203
Hh Collar Screw M 6X20 Ws=8
ONLY FOR REAR FLASHER |
0015060203 |
— | ||
| replacement | |||||
|
41
|
41
0025060206 Hh collar screw m6x20 tx30ONLY FOR REAR FLASHER |
0025060206 |
US $1.97 |
||
|
44
|
44
0965040123 Flat head screw din0965-m 4x12ONLY FOR REAR FLASHER |
0965040123 |
US $0.56 |
||
|
52
|
52
58302052100
Gripp Set Full Waffle
ONLY FOR REAR FLASHER |
58302052100 |
— | ||
| replacement | |||||
|
52
|
52
58302021100 Gripp set full waffleONLY FOR REAR FLASHER |
58302021100 |
US $29.46 |
||
|
63
|
63
58432063000 Clutch pipe lc4/sxc/sm 03ONLY FOR REAR FLASHER |
58432063000 |
US $87.18 |
||
|
90
|
90
58402094000 Decompr. cable lc4 03ONLY FOR REAR FLASHER |
58402094000 |
US $41.91 |
||
|
92
|
92
58402091600 Thrott.cable "open-close" 2000ONLY FOR REAR FLASHER |
58402091600 |
US $97.17 |
||
