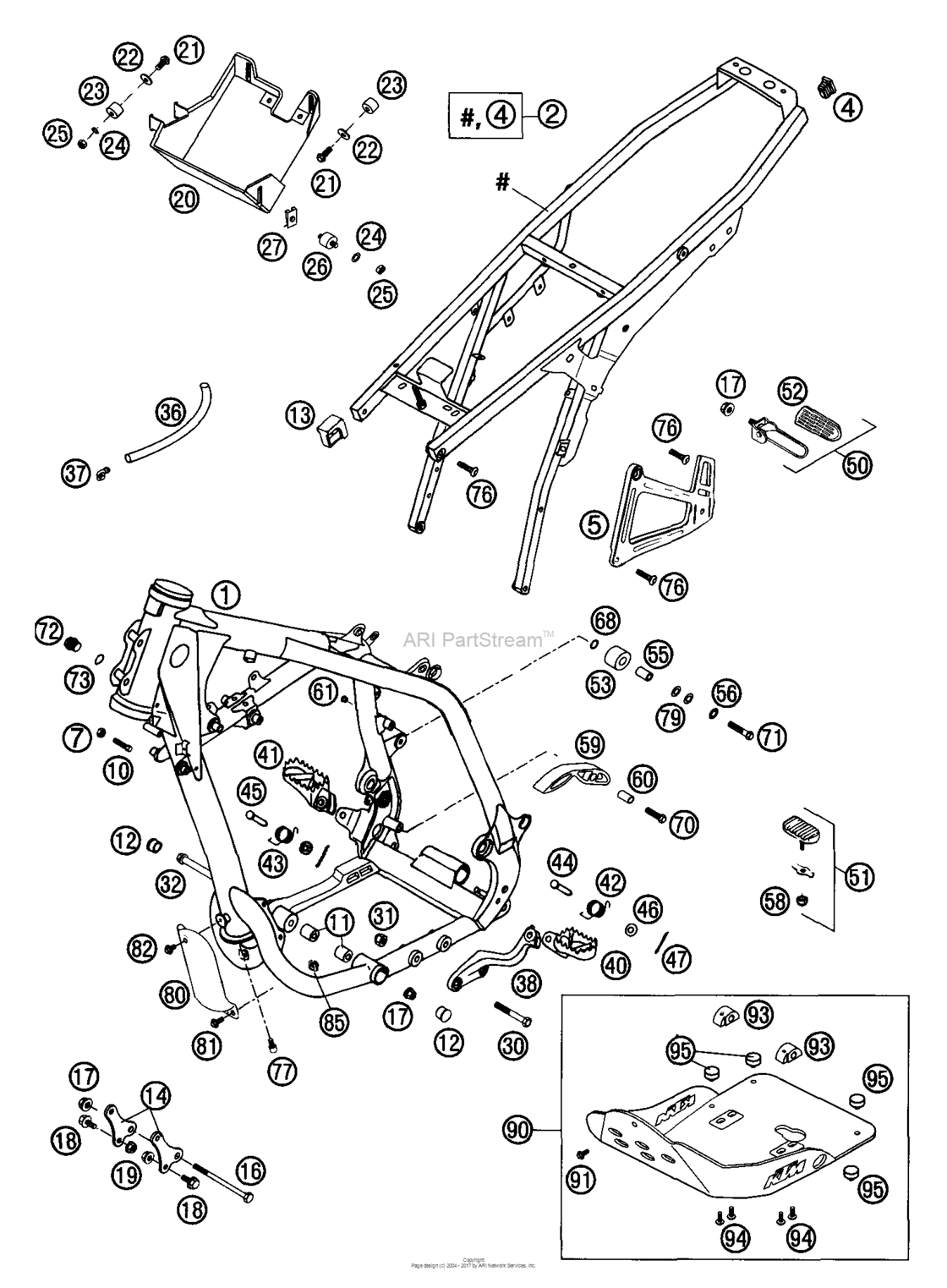

Frame, Sub Frame Diagram KTM 640 640 LC4 Adventure
- Year
- 2003
- Sales region
- US/EU
- Engine Capacity
- 640
- Model
- 640 LC4 Adventure
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5820300154490
Frame cpl. adventure 2003
1 |
5820300154490 |
— | ||
|
2
|
2
5840300234490 Subframe cpl. steel silver 001 |
5840300234490 |
US $489.04 |
||
|
4
|
4
58303002090
Plug 12 x 17 mm
1 |
58303002090 |
— | ||
|
5
|
5
5810300320090 Footrestbrack. Rear L/s 041 |
5810300320090 |
US $88.93 |
||
| replacement | |||||
|
5
|
5
5840304800090 Footrestbrack. rear l/s 041 |
5840304800090 |
US $58.21 |
||
|
5
|
5
5810300420090 Footrestbrack. rear r/s silver1 |
5810300420090 |
US $81.40 |
||
|
7
|
7
0934080003 Hexagon Nut Din0934-M 81 |
0934080003 |
US $3.26 |
||
|
10
|
10
59001037000 Special screw m8x26 ws=101 |
59001037000 |
US $2.09 |
||
|
11
|
11
58003012000 Spacer roller 10,3x20x221 |
58003012000 |
US $10.39 |
||
|
12
|
12
71001012100 Pvc cap d=22mm1 |
71001012100 |
US $2.11 |
||
|
13
|
13
58307015000 Tank support '931 |
58307015000 |
US $7.28 |
||
|
14
|
14
58303055000 Engine support agw '941 |
58303055000 |
US $13.55 |
||
|
16
|
16
58403013000 Engine brac.screw m10x110 ws131 |
58403013000 |
US $13.82 |
||
|
17
|
17
54630044000 Collar nut m10 ws=131 |
54630044000 |
US $2.16 |
||
|
18
|
18
49109481052 Hh collar screw m 8x16 ws=131 |
49109481052 |
US $2.06 |
||
|
19
|
19
54310086200 Self Locking Nut M8 10.91 |
54310086200 |
US $1.56 |
||
|
20
|
20
58403002370 Battery box 031 |
58403002370 |
US $9.08 |
||
|
21
|
21
0015060103
Hh collar screw m 6x10 ws=8
1 |
0015060103 |
— | ||
| replacement | |||||
|
21
|
21
0025060106 Hh collar screw m6x10 tx301 |
0025060106 |
US $1.58 |
||
|
22
|
22
0021060003 Washer Din9021-A 6,41 |
0021060003 |
US $3.26 |
||
|
23
|
23
43205062100 Rubber grommet 20x15-m6x10 (1)1 |
43205062100 |
US $24.07 |
||
|
24
|
24
0797060003 Tooth Lock Wash. Din6797-A 6,41 |
0797060003 |
US $0.29 |
||
|
25
|
25
0934060003 Hexagon Nut Din0934-M 61 |
0934060003 |
US $0.43 |
||
|
26
|
26
58403002010 Rubber grommet 20x15-m6x8-(2)1 |
58403002010 |
US $9.81 |
||
|
27
|
27
54603048100 Range Change Metal Nut M61 |
54603048100 |
US $5.27 |
||
|
30
|
30
0931100603
Hh screw din0931-m10x60
1 |
0931100603 |
— | ||
|
31
|
31
0982100003 Self lock.nut din0982-m10 high1 |
0982100003 |
US $2.35 |
||
|
32
|
32
58403014000 Engine brac.screw m10x160 ws131 |
58403014000 |
US $18.67 |
||
|
36
|
36
55007016001 Pvc-hose 7x10 per meter1 |
55007016001 |
US $5.98 |
||
|
37
|
37
50303089000 Angle piece '971 |
50303089000 |
US $4.52 |
||
|
38
|
38
5830303800090
Footrest bracket l/s silver'99
1 |
5830303800090 |
— | ||
|
40
|
40
5830304000090 Footrest l/s silver '991 |
5830304000090 |
US $46.82 |
||
|
41
|
41
5460314000090 Foot rest r/s silver '981 |
5460314000090 |
US $43.61 |
||
|
42
|
42
58303041000 Footrest spring l/s '931 |
58303041000 |
US $6.41 |
||
|
43
|
43
54603041000 Footrest Spring L/s & R/s1 |
54603041000 |
US $3.52 |
||
|
44
|
44
58303044000 Bolt for footrest1 |
58303044000 |
US $8.14 |
||
|
45
|
45
54603044000 Bolt for footrest 9,8 x 501 |
54603044000 |
US $7.62 |
||
|
46
|
46
0125100003 Washer Din0125-A10,51 |
0125100003 |
US $1.19 |
||
|
47
|
47
0094032253 Pin din0094-3,2x25 steel1 |
0094032253 |
US $1.12 |
||
| replacement | |||||
|
47
|
47
0094032250 Pin din0094-3,2x25 steel1 |
0094032250 |
US $1.12 |
||
|
50
|
50
58303050044 Footrest rear l/s cpl. '951 |
58303050044 |
US $110.96 |
||
|
50
|
50
58303150044 Foot rest rear r/s cpl.'951 |
58303150044 |
US $109.48 |
||
|
51
|
51
58303045044 Footrest rubber cpl. '941 |
58303045044 |
US $17.27 |
||
|
52
|
52
58303051000 Footrest rubber l/s&r/s duke951 |
58303051000 |
US $14.84 |
||
|
53
|
53
58403060000 Chain roll 12x29x22,5 '981 |
58403060000 |
US $5.20 |
||
|
55
|
55
58403060065 Bush chain roll 8x12x23 '981 |
58403060065 |
US $2.58 |
||
|
56
|
56
0797080003 Toothlock washer din6797-j 8,41 |
0797080003 |
US $0.20 |
||
|
58
|
58
0985060003 Self Lock. Nut Din0985-M 61 |
0985060003 |
US $2.60 |
||
|
59
|
59
51103053000 Chain sliding piece below '971 |
51103053000 |
US $13.24 |
||
|
60
|
60
51103053051 Bushing 8,2x10x201 |
51103053051 |
US $3.06 |
||
|
61
|
61
54403135000 Plastic cap sfl101 |
54403135000 |
US $1.31 |
||
|
68
|
68
36003014000 Lock washer 8mm1 |
36003014000 |
US $0.46 |
||
|
70
|
70
0015080303
Hh Collar Screw M8X30 Tx40
1 |
0015080303 |
— | ||
| replacement | |||||
|
70
|
70
0025080306 Hh collar screw m8x30 tx401 |
0025080306 |
US $3.89 |
||
|
71
|
71
0015080453 Hh Collar Screw M 8X45 Ws=101 |
0015080453 |
US $1.46 |
||
|
72
|
72
0910160153 Plug din0910-m16x1,51 |
0910160153 |
US $6.83 |
||
|
73
|
73
0603162220 Cu-seal ring 16x22x21 |
0603162220 |
US $1.65 |
||
|
76
|
76
54510052100
Counter-Sunk Screw Isa45 M8X26
1 |
54510052100 |
— | ||
| replacement | |||||
|
76
|
76
0019080266S Counter-sunk screw isa45 m8x261 |
0019080266S |
US $2.23 |
||
|
77
|
77
0984060103 Ah screw din7984-m 6x101 |
0984060103 |
US $0.65 |
||
|
79
|
79
0125080003 Washer din0125-a 8,41 |
0125080003 |
US $2.02 |
||
|
80
|
80
58303010000 Cover oil filter '941 |
58303010000 |
US $35.46 |
||
|
81
|
81
0014060153
Hh Collar Screw M6X15 Tx30
1 |
0014060153 |
— | ||
| replacement | |||||
|
81
|
81
0024060156 Hh collar screw m6x15 tx301 |
0024060156 |
US $3.96 |
||
|
82
|
82
0014060103
Hh Collar Screw M6X10 Tx30
1 |
0014060103 |
— | ||
| replacement | |||||
|
82
|
82
0024060106 Hh collar screw m6x10 tx301 |
0024060106 |
US $4.35 |
||
|
85
|
85
50235033300
Snap-nut holder m6 kp142
1 |
50235033300 |
— | ||
| replacement | |||||
|
85
|
85
54603048100 Range Change Metal Nut M61 |
54603048100 |
US $5.27 |
||
|
90
|
90
58412099044
Skid plate limited cpl. 97
1 |
58412099044 |
— | ||
|
91
|
91
0014060103
Hh Collar Screw M6X10 Tx30
1 |
0014060103 |
— | ||
| replacement | |||||
|
91
|
91
0024060106 Hh collar screw m6x10 tx301 |
0024060106 |
US $4.35 |
||
|
93
|
93
58003012200
Engine protector bracket '97
1 |
58003012200 |
— | ||
|
94
|
94
0014060153
Hh Collar Screw M6X15 Tx30
1 |
0014060153 |
— | ||
| replacement | |||||
|
94
|
94
0024060156 Hh collar screw m6x15 tx301 |
0024060156 |
US $3.96 |
||
|
95
|
95
54308042000 Rubber Buffer1 |
54308042000 |
US $2.89 |
||
