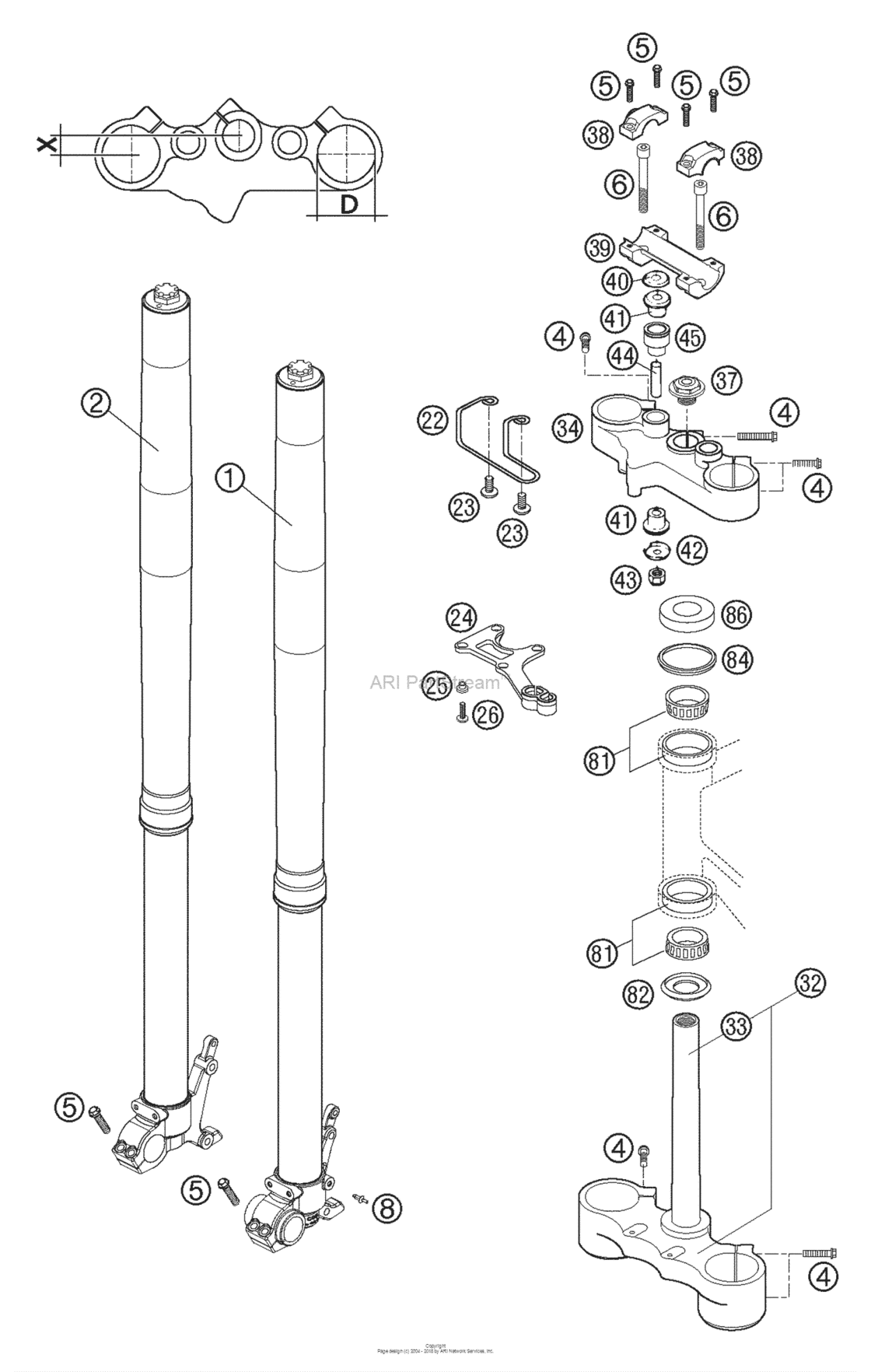

Front Fork Wp Usd 48 Diagram KTM 640 640 LC4 Adventure
- Year
- 2004
- Sales region
- US/EU
- Engine Capacity
- 640
- Model
- 640 LC4 Adventure
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1418Y753LS
Fork 4860 Mxma Adv. Left 04
1 |
1418Y753LS |
— | ||
|
2
|
2
1418Y753RS
Fork 4860 Mxma Adv. Right 04
1 |
1418Y753RS |
— | ||
|
4
|
4
0015080353 Hh Collar Screw M 8X35 Ws=101 |
0015080353 |
US $7.12 |
||
|
5
|
5
0015080303
Hh Collar Screw M8X30 Tx40
1 |
0015080303 |
— | ||
| replacement | |||||
|
5
|
5
0025080306 Hh collar screw m8x30 tx401 |
0025080306 |
US $3.89 |
||
|
6
|
6
0984100856 Ah screw din6912-m10x851 |
0984100856 |
US $9.98 |
||
|
8
|
8
60003088000 Plastic cap for m6 031 |
60003088000 |
US $0.80 |
||
|
22
|
22
58213010150 Brake hose guide 20011 |
58213010150 |
US $9.06 |
||
|
23
|
23
0014060103
Hh Collar Screw M6X10 Tx30
1 |
0014060103 |
— | ||
| replacement | |||||
|
23
|
23
0024060106 Hh collar screw m6x10 tx301 |
0024060106 |
US $4.35 |
||
|
24
|
24
60008019000 Brake hose guide lower 031 |
60008019000 |
US $5.46 |
||
|
25
|
25
50308052000 Bush 6X11X16X5 Mm1 |
50308052000 |
US $3.49 |
||
| replacement | |||||
|
25
|
25
79608052000 Bush 6X11X16X5 Mm1 |
79608052000 |
US $1.31 |
||
|
26
|
26
0015060163 Hh Collar Screw M 6X16 Ws=81 |
0015060163 |
US $2.23 |
||
|
32
|
32
58201032118
Bot.triple clamp x=18mm/d=60mm
1 |
58201032118 |
— | ||
|
33
|
33
50101033100 Fork Tube L=2441 |
50101033100 |
US $120.89 |
||
| replacement | |||||
|
33
|
33
54801133000 FORK TUBE L=2441 |
54801133000 |
US $78.15 |
||
|
34
|
34
58401034318 Top triple clamp x=18mm/d=54mm1 |
58401034318 |
US $241.94 |
||
|
37
|
37
50301036000 Steer.head screw m20x1,5 ws=271 |
50301036000 |
US $12.65 |
||
|
38
|
38
59001038200 Handlebar Clamp D=28Mm 20001 |
59001038200 |
US $21.10 |
||
|
39
|
39
59001039100 Handlebar Support 28Mm Sc'991 |
59001039100 |
US $64.89 |
||
|
40
|
40
56401042000 Washer 10,5x32x21 |
56401042000 |
US $4.71 |
||
|
41
|
41
56401040000 Rubber bushing1 |
56401040000 |
US $6.73 |
||
|
42
|
42
56401142000 Washer 10,5x311 |
56401142000 |
US $3.49 |
||
|
43
|
43
0982100003 Self lock.nut din0982-m10 high1 |
0982100003 |
US $2.35 |
||
|
44
|
44
58201041000 Spacer tube 10,2x12x62 041 |
58201041000 |
US $2.87 |
||
|
45
|
45
59001043000 Handlebar riser 041 |
59001043000 |
US $11.17 |
||
|
81
|
81
54201081000 Tapered Roller Bearing Cpl. 061 |
54201081000 |
US $62.54 |
||
| replacement | |||||
|
81
|
81
54201081100 Tapered Roller Bearing Cpl. 061 |
54201081100 |
US $53.18 |
||
|
82
|
82
54601084100 O-Ring Support W. Sealing Lip1 |
54601084100 |
US $21.28 |
||
| replacement | |||||
|
82
|
82
77701084000 O-Ring Support W. Sealing Lip1 |
77701084000 |
US $21.15 |
||
|
84
|
84
54601184000 Stearing head gasket top1 |
54601184000 |
US $7.74 |
||
|
86
|
86
54201086000 Steering Head Cover1 |
54201086000 |
US $8.11 |
||
| replacement | |||||
|
86
|
86
78101086000 Steering Head Cover1 |
78101086000 |
US $5.08 |
||
