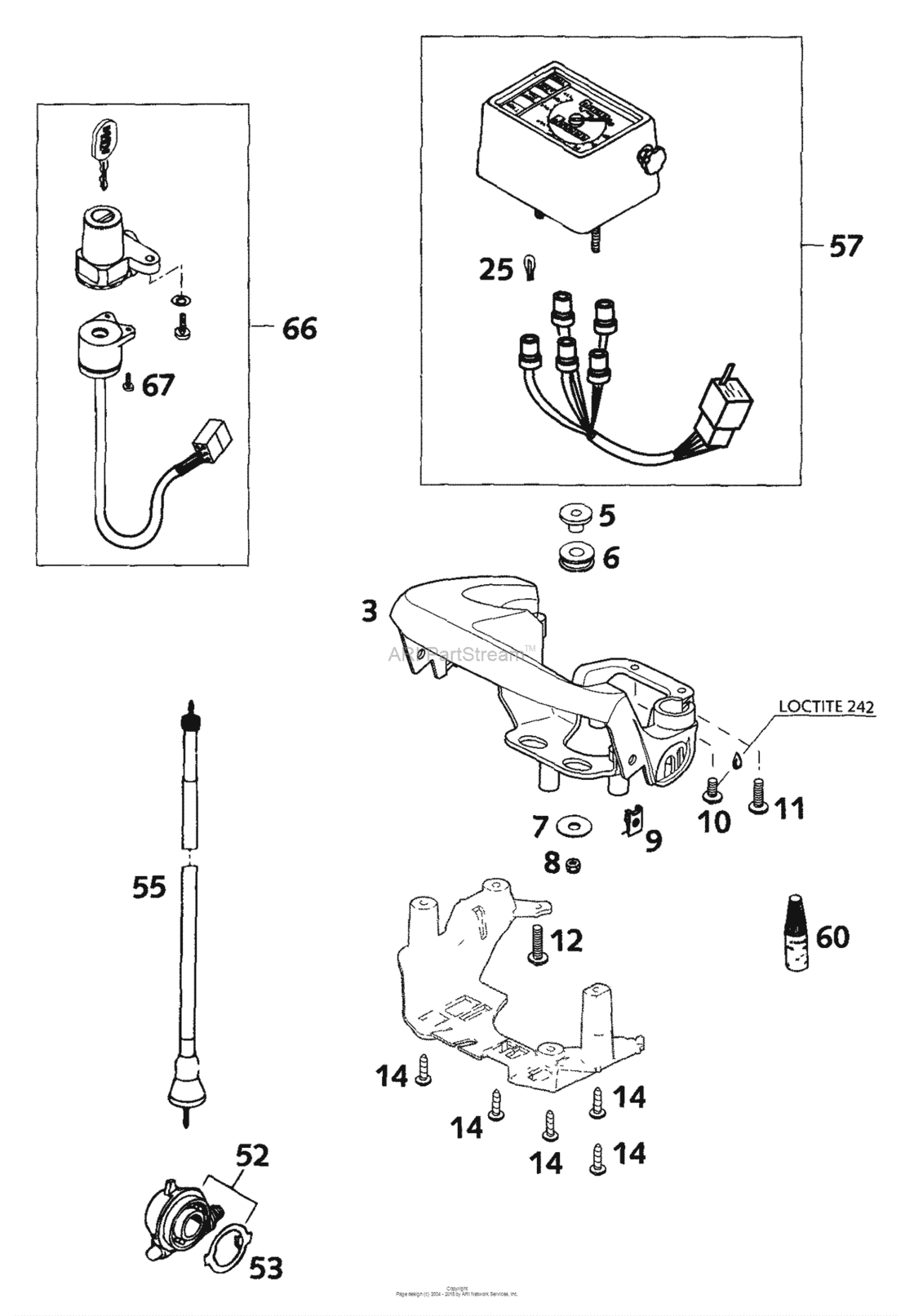

Speedometer, Support Diagram KTM 640 640 LC4
- Year
- 2000
- Sales region
- US/EU
- Engine Capacity
- 640
- Model
- 640 LC4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
3
|
3
58411003100
Mask bracket lc4 '98
FOR AUTO-DECOMPR. '95 |
58411003100 |
— | ||
|
5
|
5
54635036000
Bushing
FOR AUTO-DECOMPR. '95 |
54635036000 |
— | ||
|
6
|
6
41001052000 Rubber Sleeve D=12MmFOR AUTO-DECOMPR. '95 |
41001052000 |
US $5.46 |
||
|
7
|
7
0021060003 Washer Din9021-A 6,4FOR AUTO-DECOMPR. '95 |
0021060003 |
US $3.26 |
||
|
8
|
8
0985060003 Self Lock. Nut Din0985-M 6FOR AUTO-DECOMPR. '95 |
0985060003 |
US $2.60 |
||
|
9
|
9
54603048100 Range Change Metal Nut M6FOR AUTO-DECOMPR. '95 |
54603048100 |
US $5.27 |
||
|
10
|
10
0014060103
Hh Collar Screw M6X10 Tx30
FOR AUTO-DECOMPR. '95 |
0014060103 |
— | ||
| replacement | |||||
|
10
|
10
0024060106 Hh collar screw m6x10 tx30FOR AUTO-DECOMPR. '95 |
0024060106 |
US $4.35 |
||
|
11
|
11
0014060203 Hh Collar Screw M 6X20 Ws=8FOR AUTO-DECOMPR. '95 |
0014060203 |
US $3.26 |
||
|
12
|
12
0014060253 Hh collar screw m 6x25 ws=8FOR AUTO-DECOMPR. '95 |
0014060253 |
US $1.19 |
||
|
14
|
14
0017060203
Screw For Plastic K60X20 Sw6
FOR AUTO-DECOMPR. '95 |
0017060203 |
— | ||
| replacement | |||||
|
14
|
14
0017060205 Screw For Plastic K60X20 Sw6FOR AUTO-DECOMPR. '95 |
0017060205 |
US $2.24 |
||
|
25
|
25
49111425000 Bulb 12V 2,3W (W2X4,6D)FOR AUTO-DECOMPR. '95 |
49111425000 |
US $4.18 |
||
| replacement | |||||
|
25
|
25
49111425200 Bulb 12v 2,3w (w2x4,6d)FOR AUTO-DECOMPR. '95 |
49111425200 |
US $1.96 |
||
|
52
|
52
58111052100
Odometer Drive
FOR AUTO-DECOMPR. '95 |
58111052100 |
— | ||
|
53
|
53
58111053100 Driving dog f.speedom.drive'92FOR AUTO-DECOMPR. '95 |
58111053100 |
US $6.83 |
||
|
55
|
55
58414055200 Speedom.cable M12/m12 960Mm'99FOR AUTO-DECOMPR. '95 |
58414055200 |
US $53.70 |
||
|
57
|
57
58414057100 Speedometer nipp.seiki mph '98FOR AUTO-DECOMPR. '95 |
58414057100 |
US $307.28 |
||
|
60
|
60
6899785 Loctite 243 Blue 6CcmFOR AUTO-DECOMPR. '95 |
6899785 |
US $40.61 |
||
|
66
|
66
58411066100
Ignition Lock
FOR AUTO-DECOMPR. '95 |
58411066100 |
— | ||
| replacement | |||||
|
66
|
66
75011166000 Ignition lockFOR AUTO-DECOMPR. '95 |
75011166000 |
US $151.69 |
||
|
67
|
67
0985040123 Flat head screw din7985-m 4x12FOR AUTO-DECOMPR. '95 |
0985040123 |
US $0.58 |
||
