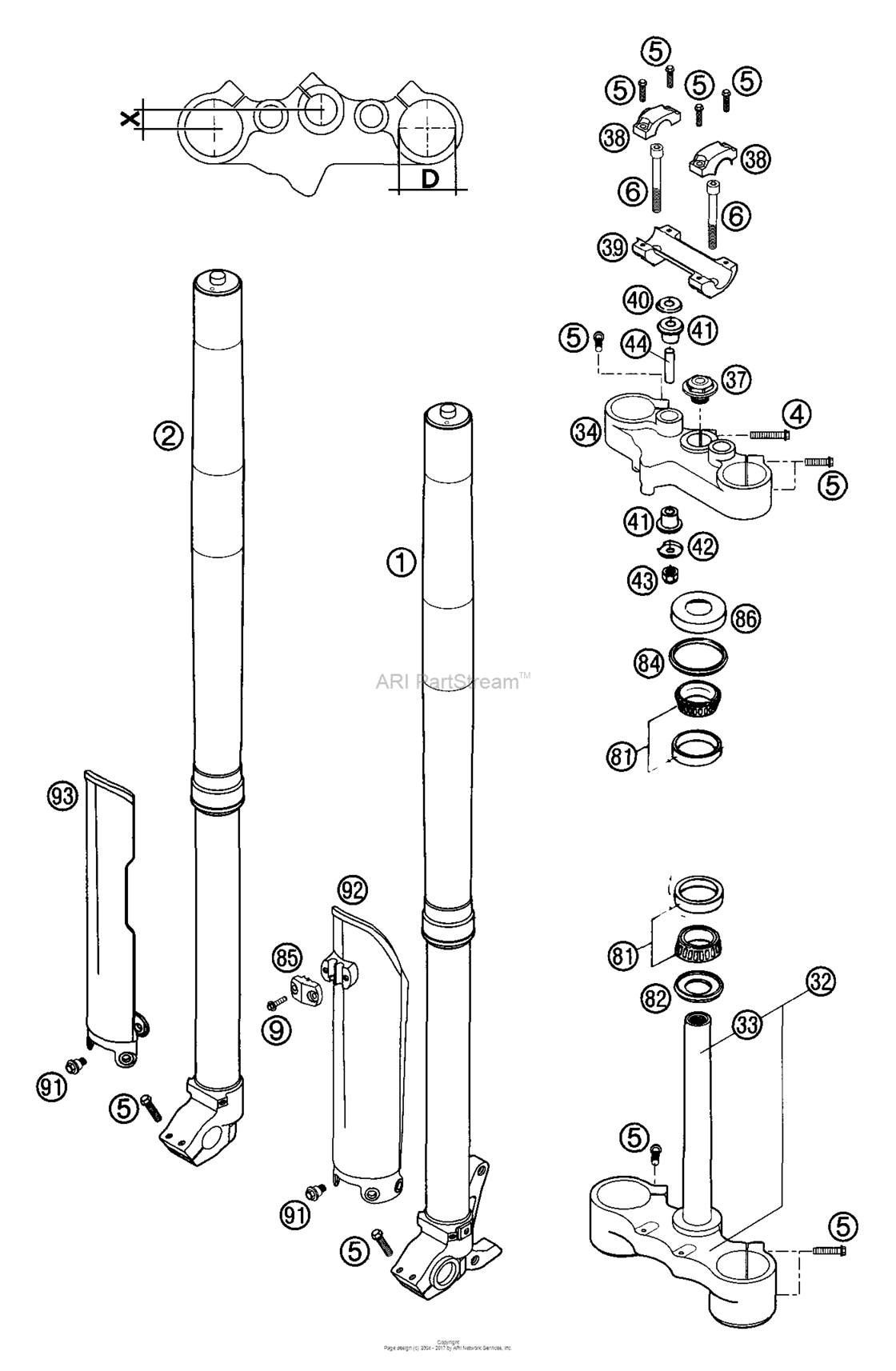

Front Fork Wp Usd 43 Diagram KTM 640 640 LC4
- Year
- 2002
- Sales region
- US/EU
- Engine Capacity
- 640
- Model
- 640 LC4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0518W714LS
Fork Leg L/s Wp43 Lc4 2002 (640 Lc4)
FOR AUTO-DECOMPR. '95 |
0518W714LS |
— | ||
|
1
|
1
0518W722LS
Fork Leg L/s Wp43 Lc4 Sm
FOR AUTO-DECOMPR. '95 |
0518W722LS |
— | ||
|
2
|
2
0518W714RS
Fork Leg R/s Wp43 Lc4 2002 (640 Lc4)
FOR AUTO-DECOMPR. '95 |
0518W714RS |
— | ||
|
2
|
2
0518W722RS
Fork Leg R/s Wp43 Lc4 Sm
FOR AUTO-DECOMPR. '95 |
0518W722RS |
— | ||
|
4
|
4
0015080353 Hh Collar Screw M 8X35 Ws=10FOR AUTO-DECOMPR. '95 |
0015080353 |
US $7.12 |
||
|
5
|
5
0015080303
Hh Collar Screw M8X30 Tx40
FOR AUTO-DECOMPR. '95 |
0015080303 |
— | ||
| replacement | |||||
|
5
|
5
0025080306 Hh collar screw m8x30 tx40FOR AUTO-DECOMPR. '95 |
0025080306 |
US $3.89 |
||
|
6
|
6
0984100703 Ah screw din6912-m10x70FOR AUTO-DECOMPR. '95 |
0984100703 |
US $6.92 |
||
|
9
|
9
0017060203
Screw For Plastic K60X20 Sw6
FOR AUTO-DECOMPR. '95 |
0017060203 |
— | ||
| replacement | |||||
|
9
|
9
0017060205 Screw For Plastic K60X20 Sw6FOR AUTO-DECOMPR. '95 |
0017060205 |
US $2.24 |
||
|
32
|
32
58401032018
Bot.triple Clamp X=18Mm/d=57Mm
FOR AUTO-DECOMPR. '95 |
58401032018 |
— | ||
| replacement | |||||
|
32
|
32
58401032118 Bot.triple clamp x=18mm/d=57mmFOR AUTO-DECOMPR. '95 |
58401032118 |
US $433.52 |
||
|
33
|
33
50101033100 Fork Tube L=244FOR AUTO-DECOMPR. '95 |
50101033100 |
US $120.89 |
||
| replacement | |||||
|
33
|
33
54801133000 FORK TUBE L=244FOR AUTO-DECOMPR. '95 |
54801133000 |
US $78.15 |
||
|
34
|
34
58401034218
Top triple clamp x=18mm/d=54mm
FOR AUTO-DECOMPR. '95 |
58401034218 |
— | ||
| replacement | |||||
|
34
|
34
58401034318 Top triple clamp x=18mm/d=54mmFOR AUTO-DECOMPR. '95 |
58401034318 |
US $241.94 |
||
|
37
|
37
50301036000 Steer.head screw m20x1,5 ws=27FOR AUTO-DECOMPR. '95 |
50301036000 |
US $12.65 |
||
|
38
|
38
59001038200 Handlebar Clamp D=28Mm 2000FOR AUTO-DECOMPR. '95 |
59001038200 |
US $21.10 |
||
|
39
|
39
59001039100 Handlebar Support 28Mm Sc'99FOR AUTO-DECOMPR. '95 |
59001039100 |
US $64.89 |
||
|
40
|
40
56401042000 Washer 10,5x32x2FOR AUTO-DECOMPR. '95 |
56401042000 |
US $4.71 |
||
|
41
|
41
56401040000 Rubber bushingFOR AUTO-DECOMPR. '95 |
56401040000 |
US $6.73 |
||
|
42
|
42
56401142000 Washer 10,5x31FOR AUTO-DECOMPR. '95 |
56401142000 |
US $3.49 |
||
|
43
|
43
0982100003 Self lock.nut din0982-m10 highFOR AUTO-DECOMPR. '95 |
0982100003 |
US $2.35 |
||
|
44
|
44
56401041100 Spacer tube 10,2x12x44FOR AUTO-DECOMPR. '95 |
56401041100 |
US $5.25 |
||
|
81
|
81
54201081000 Tapered Roller Bearing Cpl. 06FOR AUTO-DECOMPR. '95 |
54201081000 |
US $62.54 |
||
| replacement | |||||
|
81
|
81
54201081100 Tapered Roller Bearing Cpl. 06FOR AUTO-DECOMPR. '95 |
54201081100 |
US $53.18 |
||
|
82
|
82
54601084100 O-Ring Support W. Sealing LipFOR AUTO-DECOMPR. '95 |
54601084100 |
US $21.28 |
||
| replacement | |||||
|
82
|
82
77701084000 O-Ring Support W. Sealing LipFOR AUTO-DECOMPR. '95 |
77701084000 |
US $21.15 |
||
|
84
|
84
54601184000 Stearing head gasket topFOR AUTO-DECOMPR. '95 |
54601184000 |
US $7.74 |
||
|
85
|
85
59001085100 Clamp f.speed.cable d=6mm 2001FOR AUTO-DECOMPR. '95 |
59001085100 |
US $2.30 |
||
|
86
|
86
54201086000 Steering Head CoverFOR AUTO-DECOMPR. '95 |
54201086000 |
US $8.11 |
||
| replacement | |||||
|
86
|
86
78101086000 Steering Head CoverFOR AUTO-DECOMPR. '95 |
78101086000 |
US $5.08 |
||
|
91
|
91
59001092050 Special Screw M6X12,5 Ws=8FOR AUTO-DECOMPR. '95 |
59001092050 |
US $2.35 |
||
|
92
|
92
59001092100
Fork Prot. L/s+R/s Black 10
FOR AUTO-DECOMPR. '95 |
59001092100 |
— | ||
| replacement | |||||
|
92
|
92
5900109410030 FORK PROT. L/S+R/S BLACK 10FOR AUTO-DECOMPR. '95 |
5900109410030 |
US $49.79 |
||
|
93
|
93
59001093100
Fork Prot. L/s+R/s Black 10
FOR AUTO-DECOMPR. '95 |
59001093100 |
— | ||
| replacement | |||||
|
93
|
93
5900109410030 FORK PROT. L/S+R/S BLACK 10FOR AUTO-DECOMPR. '95 |
5900109410030 |
US $49.79 |
||
