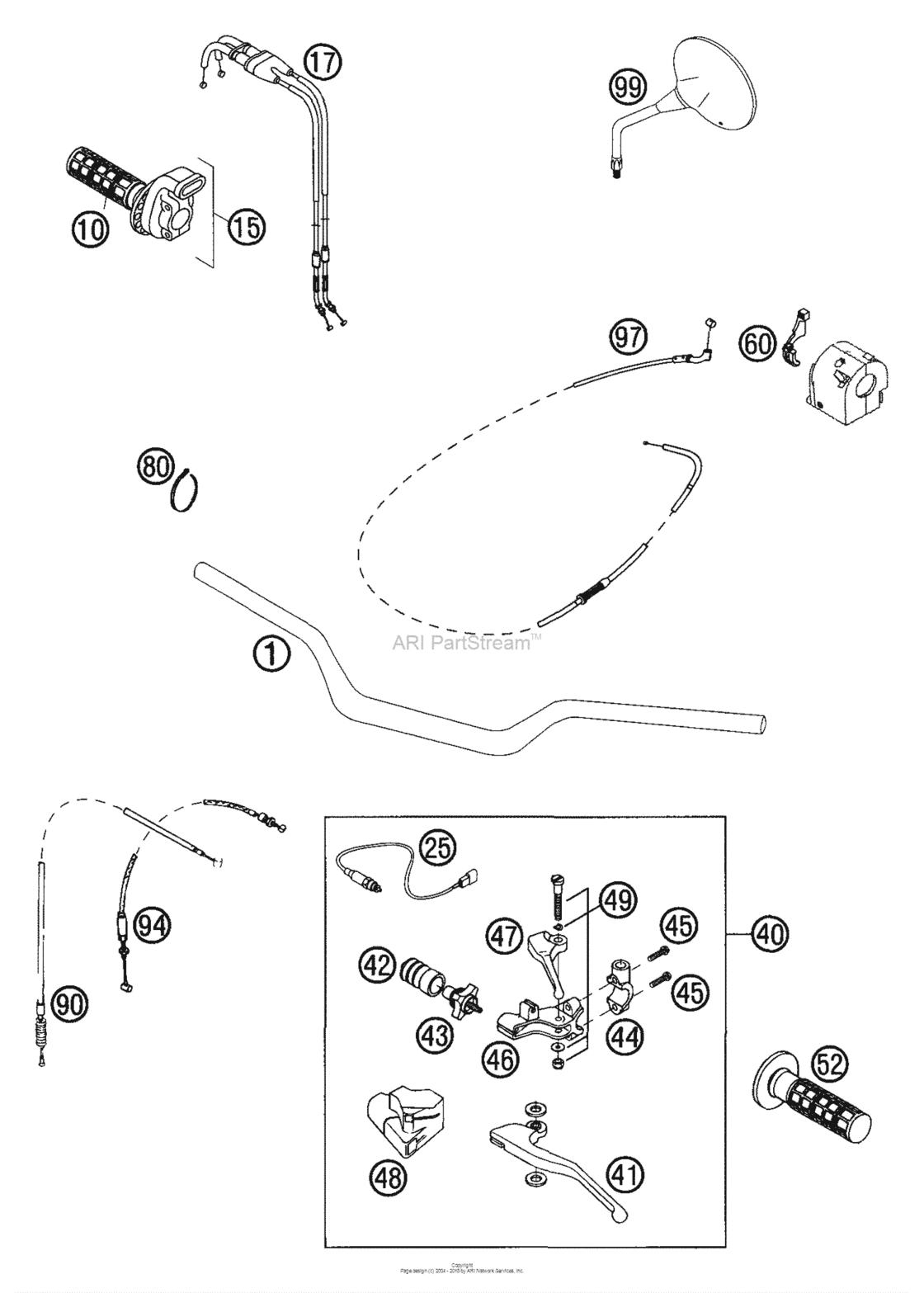

Handlebar, Controls Diagram KTM 640 640 LC4
- Year
- 2002
- Sales region
- US/EU
- Engine Capacity
- 640
- Model
- 640 LC4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58402001000 Handlebar alu lc4, adventure02FOR AUTO-DECOMPR. '95 |
58402001000 |
US $183.60 |
||
|
10
|
10
58302003000
Gripp Set Full Waffle
FOR AUTO-DECOMPR. '95 |
58302003000 |
— | ||
| replacement | |||||
|
10
|
10
58302021000 Gripp set full waffleFOR AUTO-DECOMPR. '95 |
58302021000 |
US $28.88 |
||
|
15
|
15
58402010600 Throttle grip cpl. 640lc4 2000FOR AUTO-DECOMPR. '95 |
58402010600 |
US $57.09 |
||
|
17
|
17
58402091600 Thrott.cable "open-close" 2000FOR AUTO-DECOMPR. '95 |
58402091600 |
US $97.17 |
||
|
25
|
25
58411049000 Clutch switch '96FOR AUTO-DECOMPR. '95 |
58411049000 |
US $28.61 |
||
|
40
|
40
58402040100
Clutch lever cpl. domino '97
FOR AUTO-DECOMPR. '95 |
58402040100 |
— | ||
|
41
|
41
58402042000 Clutch lever loose silver '97FOR AUTO-DECOMPR. '95 |
58402042000 |
US $45.36 |
||
|
42
|
42
58302126000 Clutch lever boot '95FOR AUTO-DECOMPR. '95 |
58302126000 |
US $3.91 |
||
|
43
|
43
58302043000 Adjustment Screw Cpl.m7FOR AUTO-DECOMPR. '95 |
58302043000 |
US $22.42 |
||
|
44
|
44
58302044000 Clamp mirrow m10x1,25FOR AUTO-DECOMPR. '95 |
58302044000 |
US $11.41 |
||
|
45
|
45
0015060253
Hh Collar Screw M6X25 Tx30
FOR AUTO-DECOMPR. '95 |
0015060253 |
— | ||
| replacement | |||||
|
45
|
45
0025060256 Hh collar screw m6x25 tx30FOR AUTO-DECOMPR. '95 |
0025060256 |
US $2.45 |
||
|
46
|
46
58402041000 Joint (pivot) domino '96FOR AUTO-DECOMPR. '95 |
58402041000 |
US $40.27 |
||
|
47
|
47
58302047000 Decompression lever looseFOR AUTO-DECOMPR. '95 |
58302047000 |
US $12.19 |
||
|
48
|
48
58402048000 Plastic CoverFOR AUTO-DECOMPR. '95 |
58402048000 |
US $9.83 |
||
| replacement | |||||
|
48
|
48
58302048000 Protecting coverFOR AUTO-DECOMPR. '95 |
58302048000 |
US $8.30 |
||
|
49
|
49
58302049000 Lever screw cpl.FOR AUTO-DECOMPR. '95 |
58302049000 |
US $6 |
||
|
52
|
52
58302052000
Rubber Grip
FOR AUTO-DECOMPR. '95 |
58302052000 |
— | ||
| replacement | |||||
|
52
|
52
58302021000 Gripp set full waffleFOR AUTO-DECOMPR. '95 |
58302021000 |
US $28.88 |
||
|
60
|
60
58402050000 Choke lever lc4 2002FOR AUTO-DECOMPR. '95 |
58402050000 |
US $9.01 |
||
|
80
|
80
44011076200 Cable tie 200/3,6mm blackFOR AUTO-DECOMPR. '95 |
44011076200 |
US $0.39 |
||
|
80
|
80
44011076100 Cable tie 100/2,5mm blackFOR AUTO-DECOMPR. '95 |
44011076100 |
US $0.39 |
||
| replacement | |||||
|
80
|
80
44011076140 Cable tie 140/2,5mm blackFOR AUTO-DECOMPR. '95 |
44011076140 |
US $0.29 |
||
|
90
|
90
58402090000 Clutch cable 4t l=1115mm '99FOR AUTO-DECOMPR. '95 |
58402090000 |
US $36.65 |
||
|
94
|
94
58302094200 Decompr. cable l=693,5 lc4 '99FOR AUTO-DECOMPR. '95 |
58302094200 |
US $34.44 |
||
|
97
|
97
58402095100 Choke cable f. mikuni lc4 02FOR AUTO-DECOMPR. '95 |
58402095100 |
US $24.43 |
||
|
99
|
99
58412040100 Rear mirror l/s+r/s lc4 2001FOR AUTO-DECOMPR. '95 |
58412040100 |
US $66.86 |
||
