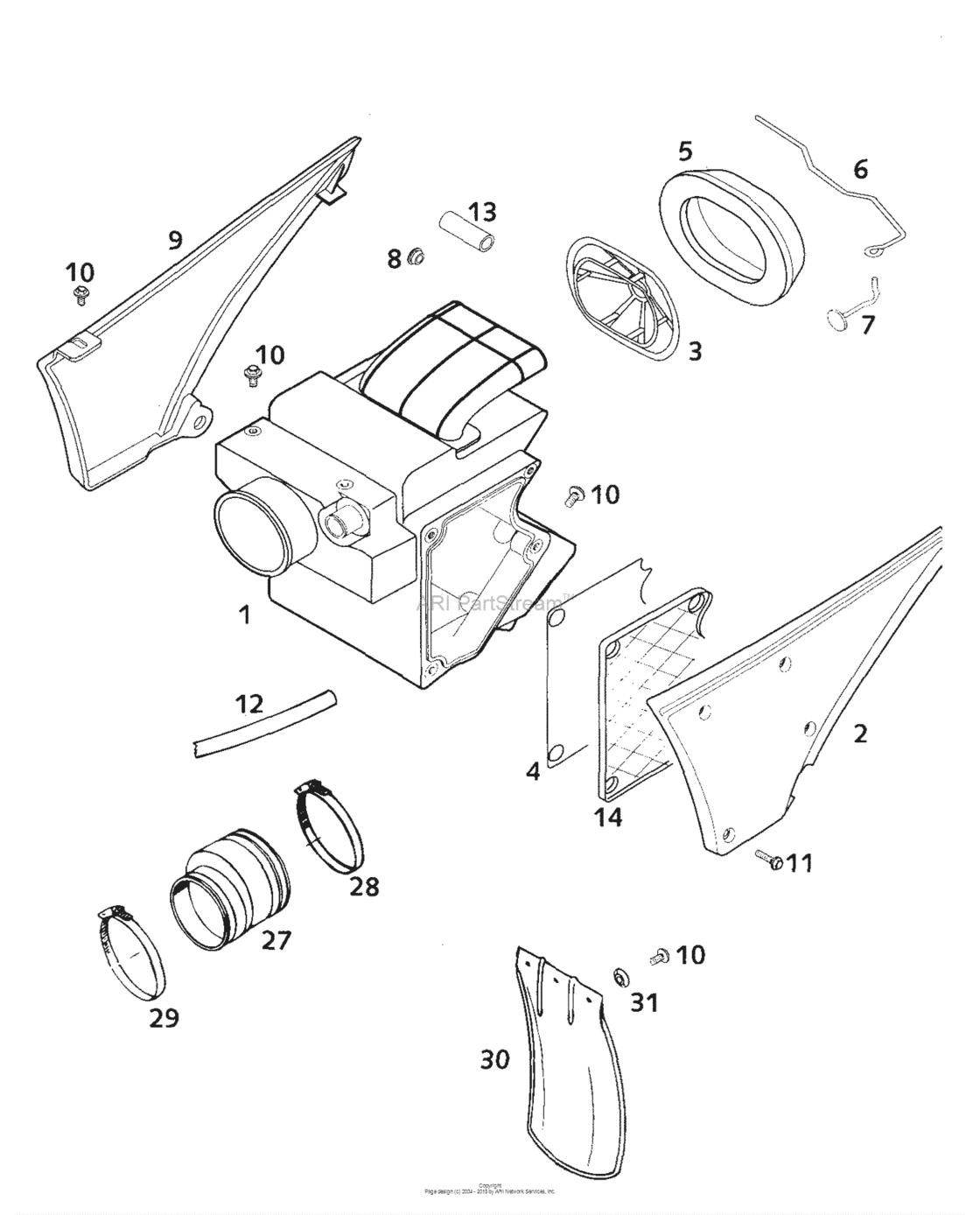

Air Filter Box Diagram KTM 640 640 LC4-E
- Year
- 2000
- Sales region
- US/EU
- Engine Capacity
- 640
- Model
- 640 LC4-E/mil
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58406001100
F/17H Box Cpl. With Sls For Sls, Connection Rebore
FOR CENTER STAND '99 |
58406001100 |
— | ||
| replacement | |||||
|
1
|
1
58406001200 Filter box e-start 03FOR CENTER STAND '99 |
58406001200 |
US $225.11 |
||
|
2
|
2
58406003100
Filter box cover l/s lc4'98
FOR CENTER STAND '99 |
58406003100 |
— | ||
|
3
|
3
58406016000 Filter carrier '97FOR CENTER STAND '99 |
58406016000 |
US $14.89 |
||
|
4
|
4
58406090100 Gasket filter box cover lc4'98FOR CENTER STAND '99 |
58406090100 |
US $11.29 |
||
|
5
|
5
58406015100 Air filterFOR CENTER STAND '99 |
58406015100 |
US $34.27 |
||
|
6
|
6
58406017100
Holding hanger for filter '98
FOR CENTER STAND '99 |
58406017100 |
— | ||
|
7
|
7
58406017050
Hook f.holding hang.filter '97
FOR CENTER STAND '99 |
58406017050 |
— | ||
|
8
|
8
36111021000 PlugFOR CENTER STAND '99 |
36111021000 |
US $0.61 |
||
|
9
|
9
58406004000
Filter box cover r/s lc4'98
FOR CENTER STAND '99 |
58406004000 |
— | ||
|
10
|
10
0014060103
Hh Collar Screw M6X10 Tx30
FOR CENTER STAND '99 |
0014060103 |
— | ||
| replacement | |||||
|
10
|
10
0024060106 Hh collar screw m6x10 tx30FOR CENTER STAND '99 |
0024060106 |
US $4.35 |
||
|
11
|
11
0015050203
Hh Collar Screw M5X20 Tx30
FOR CENTER STAND '99 |
0015050203 |
— | ||
| replacement | |||||
|
11
|
11
0025050206 Hh collar screw m5x20 tx30FOR CENTER STAND '99 |
0025050206 |
US $1.33 |
||
|
12
|
12
57005020001 Hose 10x14 per meterFOR CENTER STAND '99 |
57005020001 |
US $13.86 |
||
|
13
|
13
57005020001 Hose 10x14 per meterFOR CENTER STAND '99 |
57005020001 |
US $13.86 |
||
|
14
|
14
58406003150 Carrier filter box gasket '98FOR CENTER STAND '99 |
58406003150 |
US $6.49 |
||
|
27
|
27
58406026000 Air filter boot 400/640 lc4'97FOR CENTER STAND '99 |
58406026000 |
US $20.62 |
||
|
28
|
28
55006028000 Hose clamp 60-80mmFOR CENTER STAND '99 |
55006028000 |
US $5.46 |
||
|
29
|
29
51006027000 Hose Clamp 50-70MmFOR CENTER STAND '99 |
51006027000 |
US $5.66 |
||
|
30
|
30
54606010000 Splash Protect.for Filter BoxFOR CENTER STAND '99 |
54606010000 |
US $20.42 |
||
|
31
|
31
72210079000 BucketFOR CENTER STAND '99 |
72210079000 |
US $2.72 |
||
|
32
|
32
0014060103
Hh Collar Screw M6X10 Tx30
FOR CENTER STAND '99 |
0014060103 |
— | ||
| replacement | |||||
|
32
|
32
0024060106 Hh collar screw m6x10 tx30FOR CENTER STAND '99 |
0024060106 |
US $4.35 |
||
