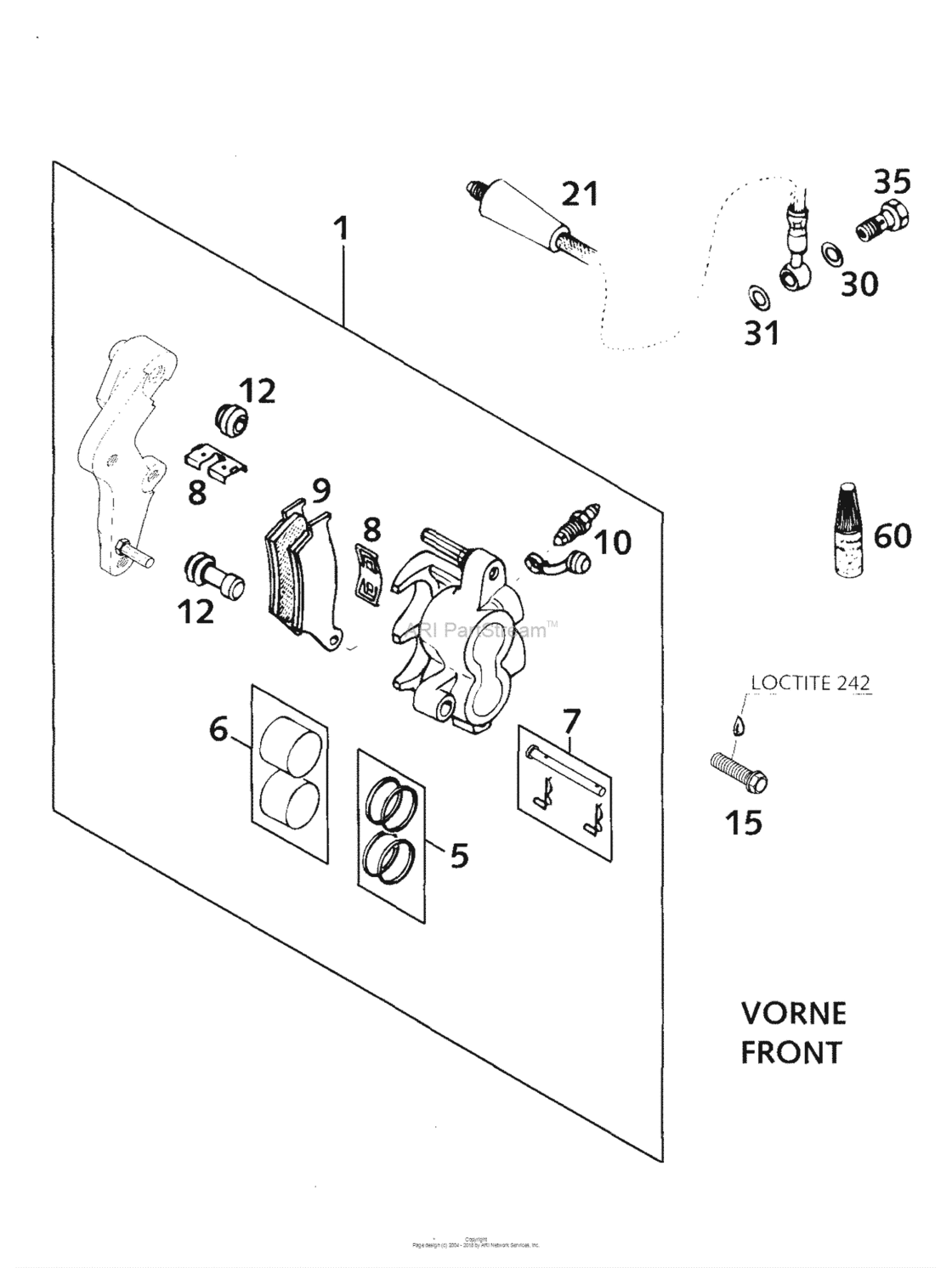

Brake Caliper Front Diagram KTM 640 640 LC4-E
- Year
- 2000
- Sales region
- US/EU
- Engine Capacity
- 640
- Model
- 640 LC4-E/mil
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58413015144 Brakecal.front cpl. 300mm 2000FOR CENTER STAND '99 |
58413015144 |
US $202.11 |
||
|
1
|
1
58413015244 Brakecal.front cpl. 320mm 2000FOR CENTER STAND '99 |
58413015244 |
US $270.93 |
||
|
5
|
5
54613205000 Repair kit 28mmFOR CENTER STAND '99 |
54613205000 |
US $20.21 |
||
|
6
|
6
54613206000 Repair kit piston 28mmFOR CENTER STAND '99 |
54613206000 |
US $40.29 |
||
|
7
|
7
54613210100 Bolt Cpl. 6X56FOR CENTER STAND '99 |
54613210100 |
US $17.19 |
||
|
8
|
8
54613212000 Retaining Plate Set BremboFOR CENTER STAND '99 |
54613212000 |
US $27.20 |
||
|
9
|
9
58413030000 Brake p.set fr. textart4069 gfFOR CENTER STAND '99 |
58413030000 |
US $51.44 |
||
| replacement | |||||
|
9
|
9
59013930100 BRAKE PAD SETFOR CENTER STAND '99 |
59013930100 |
US $46.85 |
||
|
10
|
10
54513214000 Bleeder Screw With CapFOR CENTER STAND '99 |
54513214000 |
US $14.89 |
||
| replacement | |||||
|
10
|
10
60013020000 Bleeder Screw With CapFOR CENTER STAND '99 |
60013020000 |
US $6.27 |
||
|
12
|
12
54613218000 Cup Set ShortFOR CENTER STAND '99 |
54613218000 |
US $25.72 |
||
| replacement | |||||
|
12
|
12
54613218100 CUP SET SHORTFOR CENTER STAND '99 |
54613218100 |
US $25.72 |
||
|
15
|
15
0015080350
Hh Collar Screw M8X35 Tx40
FOR CENTER STAND '99 |
0015080350 |
— | ||
| replacement | |||||
|
15
|
15
0025080356S Hh Collar Screw M8X35 Tx40FOR CENTER STAND '99 |
0025080356S |
US $2.72 |
||
|
21
|
21
58413011200 Brakehose fr.l=1225mm lc4 2000FOR CENTER STAND '99 |
58413011200 |
US $85.27 |
||
|
30
|
30
42013226000 Cu-Seal Ring Din7603-10X16X1FOR CENTER STAND '99 |
42013226000 |
US $4.10 |
||
|
31
|
31
42013026000 Cu-seal ring din7603-10x16x1,5FOR CENTER STAND '99 |
42013026000 |
US $2.24 |
||
|
35
|
35
50213025000 Hollow Screw M10X1X19FOR CENTER STAND '99 |
50213025000 |
US $5.39 |
||
|
60
|
60
6899785 Loctite 243 Blue 6CcmFOR CENTER STAND '99 |
6899785 |
US $40.61 |
||
