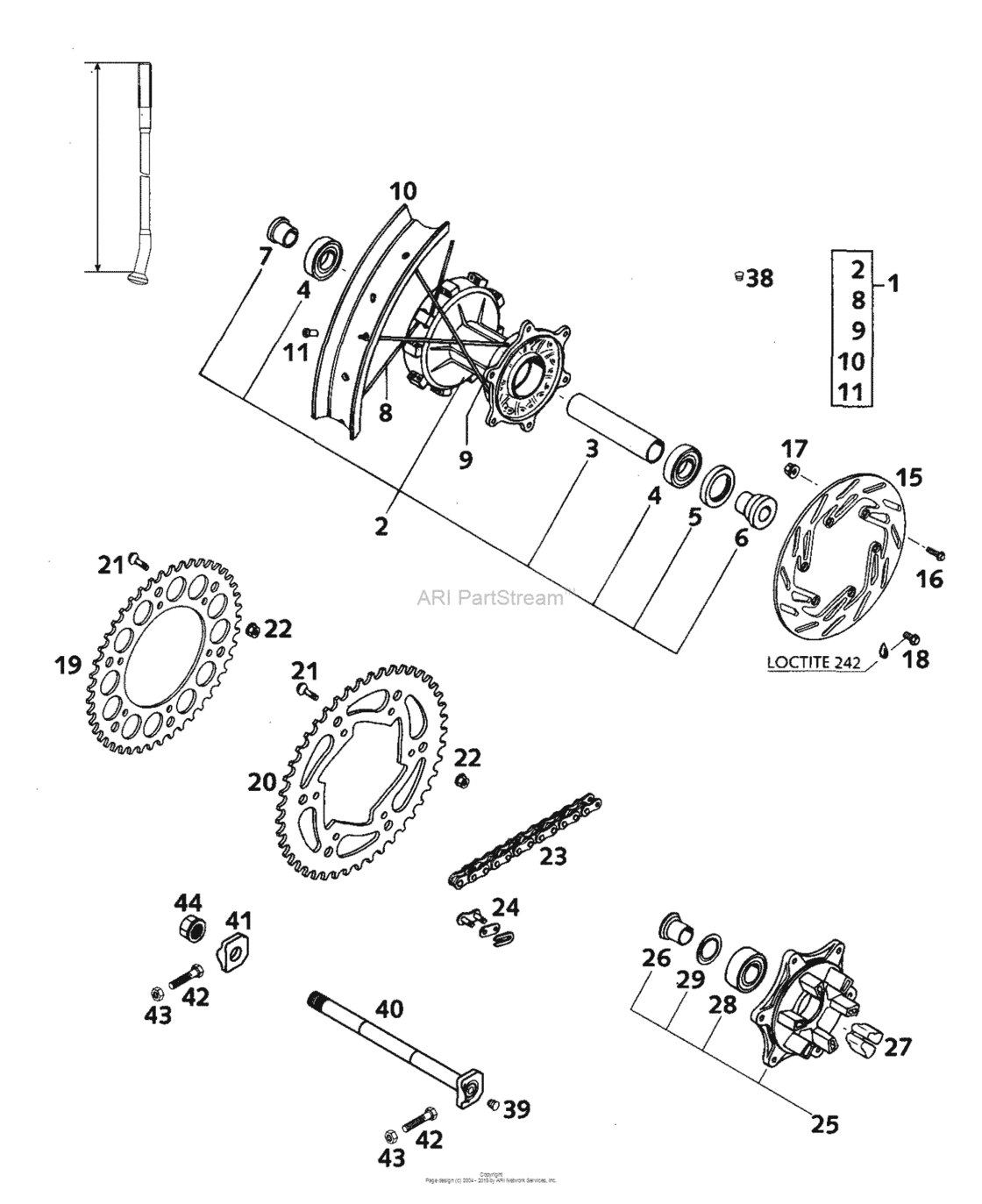

Rear Wheel Lc4-E Diagram KTM 640 640 LC4-E
- Year
- 2000
- Sales region
- US/EU
- Engine Capacity
- 640
- Model
- 640 LC4-E/mil
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58310001044 Rear Wheel Cpl. Damped 2,5X18FOR CENTER STAND '99 |
58310001044 |
US $983.93 |
||
| replacement | |||||
|
1
|
1
58410001544 Rear wheel cpl. damped 2,5x18"FOR CENTER STAND '99 |
58410001544 |
US $677.54 |
||
|
2
|
2
58310010044
Rear Hub Cpl
FOR CENTER STAND '99 |
58310010044 |
— | ||
| replacement | |||||
|
2
|
2
5841001034491 Rear Wheel Hub Damped Cpl. 06FOR CENTER STAND '99 |
5841001034491 |
US $317.56 |
||
|
3
|
3
54610411100 Bushing Spacer Tube L=98,3MmFOR CENTER STAND '99 |
54610411100 |
US $20.45 |
||
| replacement | |||||
|
3
|
3
58410011000 Bushing Spacer Tube L=98,3MmFOR CENTER STAND '99 |
58410011000 |
US $15.67 |
||
|
4
|
4
0625062052 Gr.ball bear. 6205-2rshc3hmtf7FOR CENTER STAND '99 |
0625062052 |
US $30.99 |
||
|
5
|
5
0760325272 Shaft seal ring 32x52x7 bFOR CENTER STAND '99 |
0760325272 |
US $16.49 |
||
|
6
|
6
54610016000
Bushing For Hub 08
FOR CENTER STAND '99 |
54610016000 |
— | ||
| replacement | |||||
|
6
|
6
78010016000 Bushing for hub 08FOR CENTER STAND '99 |
78010016000 |
US $29.68 |
||
|
7
|
7
54610416300 Bushing For Rear Damped HubFOR CENTER STAND '99 |
54610416300 |
US $18.79 |
||
|
8
|
8
54610471000 Spoke m5x223-10g 18"FOR CENTER STAND '99 |
54610471000 |
US $4.66 |
||
|
9
|
9
50310071197 Spoke M5X197-10G 18 DdeFOR CENTER STAND '99 |
50310071197 |
US $4.71 |
||
|
10
|
10
58010470100
Rear rim 2,50x18" did
FOR CENTER STAND '99 |
58010470100 |
— | ||
|
11
|
11
58309072000 Spoke Sipple Quadrax M5 Not AvailableFOR CENTER STAND '99 |
58309072000 |
US $2.35 |
||
| replacement | |||||
|
11
|
11
60310072000
SPOKE NIPPLE QUADRAX M5
FOR CENTER STAND '99 |
60310072000 |
— | ||
|
15
|
15
58010060600 Rear Brake Disk 220Mm CountersFOR CENTER STAND '99 |
58010060600 |
US $192.27 |
||
|
16
|
16
0015060203
Hh Collar Screw M 6X20 Ws=8
FOR CENTER STAND '99 |
0015060203 |
— | ||
| replacement | |||||
|
16
|
16
0025060206 Hh collar screw m6x20 tx30FOR CENTER STAND '99 |
0025060206 |
US $1.97 |
||
|
17
|
17
56509064100 Self Locking Nut M6 10.9FOR CENTER STAND '99 |
56509064100 |
US $1.04 |
||
|
18
|
18
0015060120 Special Screw M6X13 Ws=8 10.9FOR CENTER STAND '99 |
0015060120 |
US $1.41 |
||
| replacement | |||||
|
18
|
18
59009062013 Special Screw M6X13 Ws=8 10.9FOR CENTER STAND '99 |
59009062013 |
US $2.24 |
||
|
19
|
19
58310051038 Rear Sprocket 38-TFOR CENTER STAND '99 |
58310051038 |
US $87.19 |
||
|
19
|
19
58310151040 Rear Sprocket 40-TFOR CENTER STAND '99 |
58310151040 |
US $87.19 |
||
|
19
|
19
58310051042 Rear Sprocket 42-TFOR CENTER STAND '99 |
58310051042 |
US $87.19 |
||
|
19
|
19
58310151045
Rear Sprocket 45-T
FOR CENTER STAND '99 |
58310151045 |
— | ||
| replacement | |||||
|
19
|
19
7771015104501 New Genuine PartFOR CENTER STAND '99 |
7771015104501 |
US $54.04 |
||
|
20
|
20
58310151048 Rear Sprocket 48-TFOR CENTER STAND '99 |
58310151048 |
US $87.19 |
||
|
20
|
20
58310151050 Rear Sprocket 50-TFOR CENTER STAND '99 |
58310151050 |
US $87.19 |
||
|
20
|
20
58310151052 Rear Sprocket 52-TFOR CENTER STAND '99 |
58310151052 |
US $84 |
||
| replacement | |||||
|
20
|
20
7771015105201 Rear Sprocket 52-TFOR CENTER STAND '99 |
7771015105201 |
US $54.04 |
||
|
21
|
21
54510052100
Counter-Sunk Screw Isa45 M8X26
FOR CENTER STAND '99 |
54510052100 |
— | ||
| replacement | |||||
|
21
|
21
0019080266S Counter-sunk screw isa45 m8x26FOR CENTER STAND '99 |
0019080266S |
US $2.23 |
||
|
22
|
22
54310086200 Self Locking Nut M8 10.9FOR CENTER STAND '99 |
54310086200 |
US $1.56 |
||
|
23
|
23
50010065100 Superseded By 78010167118FOR CENTER STAND '99 |
50010065100 |
US $168.30 |
||
| replacement | |||||
|
23
|
23
50310800118
Superseded By 78010167118
FOR CENTER STAND '99 |
50310800118 |
— | ||
|
23
|
23
50010065101
Chain /m
FOR CENTER STAND '99 |
50010065101 |
— | ||
|
24
|
24
50010066100 Master Link 5/8X1/4 X-RingFOR CENTER STAND '99 |
50010066100 |
US $8.64 |
||
|
25
|
25
58310050044 Sprocket Support CplFOR CENTER STAND '99 |
58310050044 |
US $197.32 |
||
|
26
|
26
54610417300 Bush. F.sprocketsupport L=25MmFOR CENTER STAND '99 |
54610417300 |
US $15.27 |
||
|
27
|
27
54610459000 Rubber Damping Block '91FOR CENTER STAND '99 |
54610459000 |
US $7.11 |
||
|
28
|
28
0625032057 Gr. ball bearing 3205b-2rsrtngFOR CENTER STAND '99 |
0625032057 |
US $93.72 |
||
|
29
|
29
54610018000 Seal Washer 3205 AvFOR CENTER STAND '99 |
54610018000 |
US $9.25 |
||
|
38
|
38
55003135000 Plug For RimFOR CENTER STAND '99 |
55003135000 |
US $1.02 |
||
|
39
|
39
50210086000 Covering cap sfl16FOR CENTER STAND '99 |
50210086000 |
US $3.54 |
||
|
40
|
40
50210085044
Wheel spindle rear cpl.l=264mm
FOR CENTER STAND '99 |
50210085044 |
— | ||
|
41
|
41
56510084100
Chain tensioner '95
FOR CENTER STAND '99 |
56510084100 |
— | ||
|
42
|
42
50203030090 Hh screw m8x40 ws=10FOR CENTER STAND '99 |
50203030090 |
US $2.77 |
||
|
43
|
43
0934080003 Hexagon Nut Din0934-M 8FOR CENTER STAND '99 |
0934080003 |
US $3.26 |
||
|
44
|
44
50310099000 Hexagon Nut M20X1,5 '98FOR CENTER STAND '99 |
50310099000 |
US $19.04 |
||
