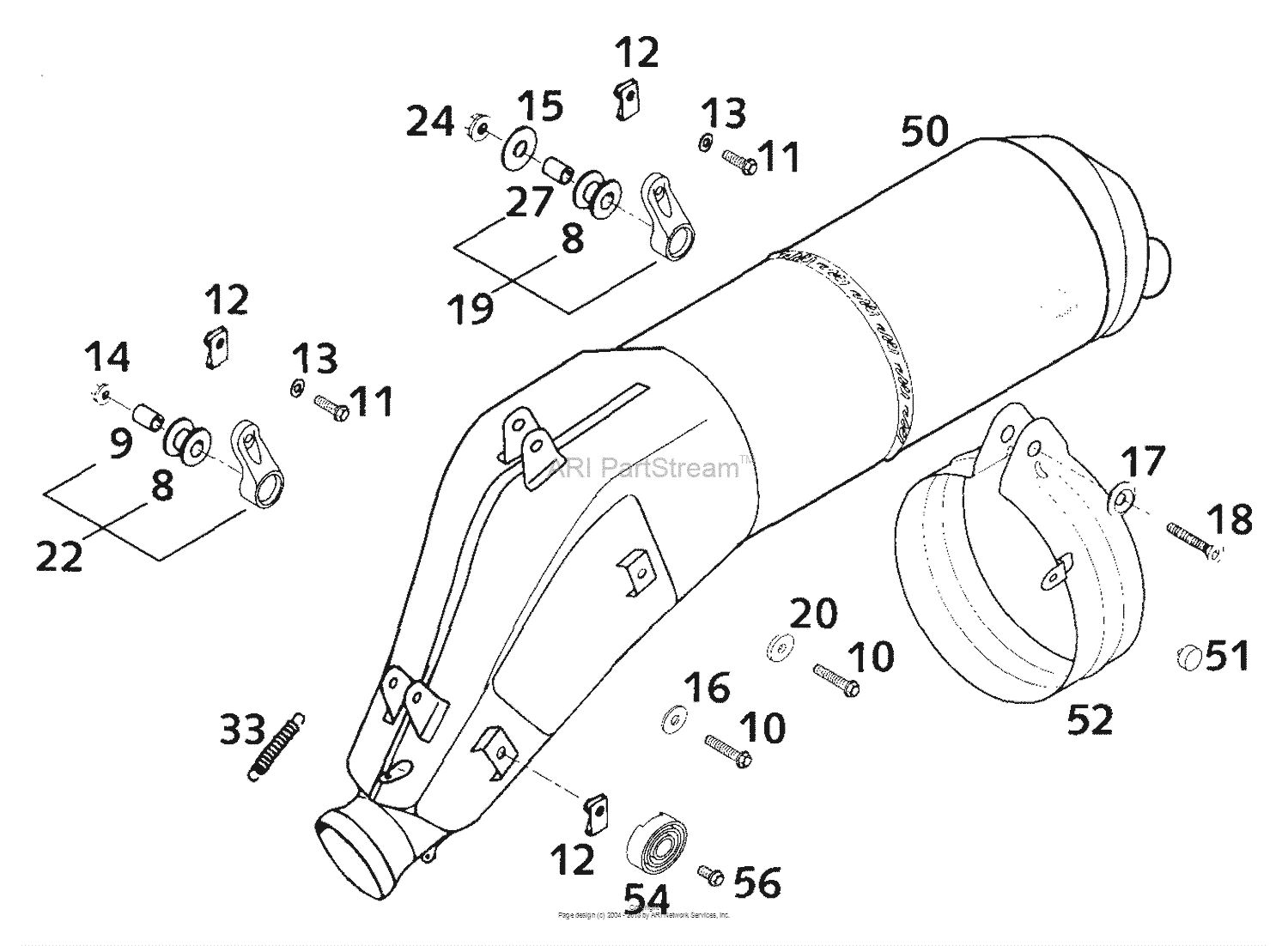

Silencer Diagram KTM 640 640 LC4-E
- Year
- 2000
- Sales region
- US/EU
- Engine Capacity
- 640
- Model
- 640 LC4-E/mil
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
8
|
8
54305068100 Damp. component silicone greyFOR CENTER STAND '99 |
54305068100 |
US $14.26 |
||
|
9
|
9
54305069000 Bushing 7x12x15,4FOR CENTER STAND '99 |
54305069000 |
US $3.33 |
||
|
10
|
10
0015060303
Hh Collar Screw M6X30 Tx30
FOR CENTER STAND '99 |
0015060303 |
— | ||
| replacement | |||||
|
10
|
10
0025060306 Hh collar screw m6x30 tx30FOR CENTER STAND '99 |
0025060306 |
US $3.96 |
||
|
11
|
11
0015060203
Hh Collar Screw M 6X20 Ws=8
FOR CENTER STAND '99 |
0015060203 |
— | ||
| replacement | |||||
|
11
|
11
0025060206 Hh collar screw m6x20 tx30FOR CENTER STAND '99 |
0025060206 |
US $1.97 |
||
|
12
|
12
54603048100 Range Change Metal Nut M6FOR CENTER STAND '99 |
54603048100 |
US $5.27 |
||
|
13
|
13
0137060000
Spring Washer Din0137-B 6
FOR CENTER STAND '99 |
0137060000 |
— | ||
| replacement | |||||
|
13
|
13
0137060003 Spring Washer Din0137-B 6FOR CENTER STAND '99 |
0137060003 |
US $0.43 |
||
|
14
|
14
56509064100 Self Locking Nut M6 10.9FOR CENTER STAND '99 |
56509064100 |
US $1.04 |
||
|
15
|
15
0021080003 Washer din9021-a 8,4FOR CENTER STAND '99 |
0021080003 |
US $2.18 |
||
|
16
|
16
0021060003 Washer Din9021-A 6,4FOR CENTER STAND '99 |
0021060003 |
US $3.26 |
||
|
17
|
17
58303061000 Special washer alu 8 x 24 mmFOR CENTER STAND '99 |
58303061000 |
US $6.73 |
||
|
18
|
18
0991080353 Flat head screw din7991-m 8x35FOR CENTER STAND '99 |
0991080353 |
US $2.21 |
||
|
19
|
19
58305165144 Silencer bracket cpl. shortFOR CENTER STAND '99 |
58305165144 |
US $31.18 |
||
|
20
|
20
50232050001 Steel washer 6,4x17x3FOR CENTER STAND '99 |
50232050001 |
US $4.86 |
||
|
22
|
22
58305165244 Silencer bracket cpl. short'96FOR CENTER STAND '99 |
58305165244 |
US $32.03 |
||
|
24
|
24
54310086200 Self Locking Nut M8 10.9FOR CENTER STAND '99 |
54310086200 |
US $1.56 |
||
|
27
|
27
56505069000 Spacer bushing 8,4x12x16FOR CENTER STAND '99 |
56505069000 |
US $3.49 |
||
|
33
|
33
50305016000
Ten.spring L=62Mm Ey.moveable
FOR CENTER STAND '99 |
50305016000 |
— | ||
| replacement | |||||
|
33
|
33
A46005016000 TEN.SPRING L=62MM EY.MOVEABLEFOR CENTER STAND '99 |
A46005016000 |
US $5.88 |
||
|
50
|
50
58305083000
Silencer In.ktm Katin
FOR CENTER STAND '99 |
58305083000 |
— | ||
|
50
|
50
58305083100
Silencer In.ktm Hgs3In
FOR CENTER STAND '99 |
58305083100 |
— | ||
|
51
|
51
54308042000 Rubber BufferFOR CENTER STAND '99 |
54308042000 |
US $2.89 |
||
|
52
|
52
58305161200
Retain.clamp f.hgs-silenc. '99
FOR CENTER STAND '99 |
58305161200 |
— | ||
|
54
|
54
58405098100
Rubberbuffer f. silencer 2000
FOR CENTER STAND '99 |
58405098100 |
— | ||
|
56
|
56
0015060123
Hh Collar Screw M 6X12 Ws=8
FOR CENTER STAND '99 |
0015060123 |
— | ||
| replacement | |||||
|
56
|
56
0025060126 Hh collar screw m6x12 tx30FOR CENTER STAND '99 |
0025060126 |
US $3.96 |
||
