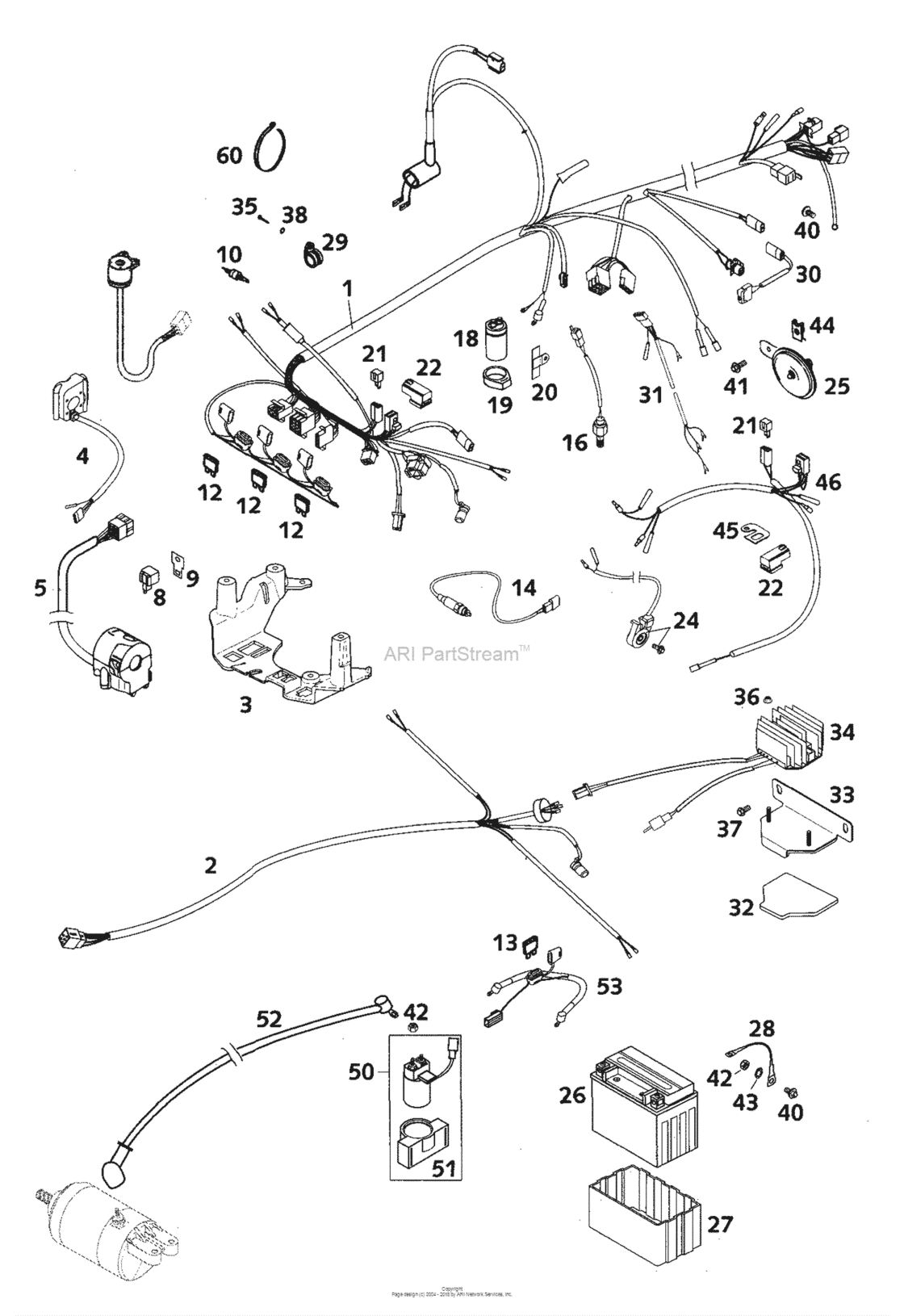

Wiring Harness Diagram KTM 640 640 LC4-E
- Year
- 2000
- Sales region
- US/EU
- Engine Capacity
- 640
- Model
- 640 LC4-E/mil
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
44011076200 Cable tie 200/3,6mm blackFOR CENTER STAND '99 |
44011076200 |
US $0.39 |
||
|
1
|
1
58411175100
Wiring harness 640 lc4 '98
FOR CENTER STAND '99 |
58411175100 |
— | ||
|
2
|
2
58411176100
Wiring Harness Rear Lc4 2001
FOR CENTER STAND '99 |
58411176100 |
— | ||
| replacement | |||||
|
2
|
2
58411176200 Wiring harness rear lc4 2001FOR CENTER STAND '99 |
58411176200 |
US $30.41 |
||
|
3
|
3
58411083100 Bracket for plugs lc4 '98FOR CENTER STAND '99 |
58411083100 |
US $7.34 |
||
|
4
|
4
59011074000
Start-Stop Switch 2000
FOR CENTER STAND '99 |
59011074000 |
— | ||
| replacement | |||||
|
4
|
4
59011074100 Start-Stop Switch 2000FOR CENTER STAND '99 |
59011074100 |
US $54.49 |
||
|
4
|
4
59011074100 Start-Stop Switch 2000FOR CENTER STAND '99 |
59011074100 |
US $54.49 |
||
|
5
|
5
58411070000
Head light switch cev lc4 '98
FOR CENTER STAND '99 |
58411070000 |
— | ||
|
8
|
8
44611207200 Flasher unit 97FOR CENTER STAND '99 |
44611207200 |
US $54.93 |
||
|
9
|
9
58211031100 Bracket for flasher relayFOR CENTER STAND '99 |
58211031100 |
US $5.61 |
||
|
10
|
10
51011050000 Break Light SwitchFOR CENTER STAND '99 |
51011050000 |
US $20.76 |
||
| replacement | |||||
|
10
|
10
51011050100 BREAK LIGHT SWITCHFOR CENTER STAND '99 |
51011050100 |
US $17.22 |
||
|
12
|
12
58011109110 Fuse 10 A 2000FOR CENTER STAND '99 |
58011109110 |
US $0.71 |
||
|
13
|
13
58011109120 Fuse 20 AFOR CENTER STAND '99 |
58011109120 |
US $0.73 |
||
|
14
|
14
58411049000 Clutch switch '96FOR CENTER STAND '99 |
58411049000 |
US $28.61 |
||
|
16
|
16
50311051100 Brake Light Switch Rear '98FOR CENTER STAND '99 |
50311051100 |
US $73.85 |
||
|
18
|
18
49111435100 Condensator 25V, 10.000 MfFOR CENTER STAND '99 |
49111435100 |
US $59.25 |
||
|
19
|
19
54511048000 Capacitor bracketFOR CENTER STAND '99 |
54511048000 |
US $5.24 |
||
|
20
|
20
54611448000
Bracket for capacitor
FOR CENTER STAND '99 |
54611448000 |
— | ||
|
21
|
21
58411096100 Diode s3h-15 97FOR CENTER STAND '99 |
58411096100 |
US $9.81 |
||
|
22
|
22
58411057000
Starter relay '96
FOR CENTER STAND '99 |
58411057000 |
— | ||
|
24
|
24
58411045000 Side stand switch cpl. '97FOR CENTER STAND '99 |
58411045000 |
US $102.39 |
||
|
25
|
25
54511060100 Dc Horn 12V K80/l LebFOR CENTER STAND '99 |
54511060100 |
US $75 |
||
| replacement | |||||
|
25
|
25
50311060000 Dc Horn 12V K80/l LebFOR CENTER STAND '99 |
50311060000 |
US $31.25 |
||
|
26
|
26
58411053000
Battery 12V 8Ah
FOR CENTER STAND '99 |
58411053000 |
— | ||
| replacement | |||||
|
26
|
26
76011053100 Battery 12V/8AhFOR CENTER STAND '99 |
76011053100 |
US $219.52 |
||
|
27
|
27
58411053050 Battery cover 96FOR CENTER STAND '99 |
58411053050 |
US $25.62 |
||
|
28
|
28
58411097100 Ground cable d=6mm l=140mm '97FOR CENTER STAND '99 |
58411097100 |
US $7.67 |
||
|
29
|
29
49007439000 Clamp rsgu 15/12FOR CENTER STAND '99 |
49007439000 |
US $4.96 |
||
|
30
|
30
58431065100 Micro switch lc4 '98FOR CENTER STAND '99 |
58431065100 |
US $65.06 |
||
|
31
|
31
58411085000 Wiring harn. epc f. engine lc4FOR CENTER STAND '99 |
58411085000 |
US $10.63 |
||
|
32
|
32
58411055150 Metamoll for battery bracketFOR CENTER STAND '99 |
58411055150 |
US $5.30 |
||
|
33
|
33
58411055100 Battery bracket lc4-e/duke'97FOR CENTER STAND '99 |
58411055100 |
US $25.45 |
||
|
34
|
34
58411034100 Volt.regulator-Rectifier 12VFOR CENTER STAND '99 |
58411034100 |
US $222.24 |
||
|
35
|
35
0981480133
Sheet met.scr.din7981- 4,8x13
FOR CENTER STAND '99 |
0981480133 |
— | ||
|
36
|
36
56509064100 Self Locking Nut M6 10.9FOR CENTER STAND '99 |
56509064100 |
US $1.04 |
||
|
37
|
37
0015060103
Hh collar screw m 6x10 ws=8
FOR CENTER STAND '99 |
0015060103 |
— | ||
| replacement | |||||
|
37
|
37
0025060106 Hh collar screw m6x10 tx30FOR CENTER STAND '99 |
0025060106 |
US $1.58 |
||
|
38
|
38
0797050003 Tooth lock wash. din6797-j 5,3FOR CENTER STAND '99 |
0797050003 |
US $0.27 |
||
|
40
|
40
0014060103
Hh Collar Screw M6X10 Tx30
FOR CENTER STAND '99 |
0014060103 |
— | ||
| replacement | |||||
|
40
|
40
0024060106 Hh collar screw m6x10 tx30FOR CENTER STAND '99 |
0024060106 |
US $4.35 |
||
|
41
|
41
0014060153
Hh Collar Screw M6X15 Tx30
FOR CENTER STAND '99 |
0014060153 |
— | ||
| replacement | |||||
|
41
|
41
0024060156 Hh collar screw m6x15 tx30FOR CENTER STAND '99 |
0024060156 |
US $3.96 |
||
|
42
|
42
0985060003 Self Lock. Nut Din0985-M 6FOR CENTER STAND '99 |
0985060003 |
US $2.60 |
||
|
43
|
43
58411098100 Contact washer m6 vsv-k6FOR CENTER STAND '99 |
58411098100 |
US $0.54 |
||
|
44
|
44
54603048100 Range Change Metal Nut M6FOR CENTER STAND '99 |
54603048100 |
US $5.27 |
||
|
45
|
45
58311031000 Retaining plateFOR CENTER STAND '99 |
58311031000 |
US $2.04 |
||
|
46
|
46
58411046000
Side stand cable 400/640 '99
FOR CENTER STAND '99 |
58411046000 |
— | ||
|
50
|
50
58411058000 Starter Relay With Hold.rubberFOR CENTER STAND '99 |
58411058000 |
US $81.79 |
||
|
51
|
51
58411058050 Hold. rubber for startrelayFOR CENTER STAND '99 |
58411058050 |
US $16.83 |
||
|
52
|
52
58411059100 Startercable 700 mm '97FOR CENTER STAND '99 |
58411059100 |
US $20.25 |
||
|
53
|
53
58411059250
Battery cable 190mm 20a '98
FOR CENTER STAND '99 |
58411059250 |
— | ||
|
60
|
60
44011076305 Cable tie 300/4,8mm blackFOR CENTER STAND '99 |
44011076305 |
US $0.36 |
||
