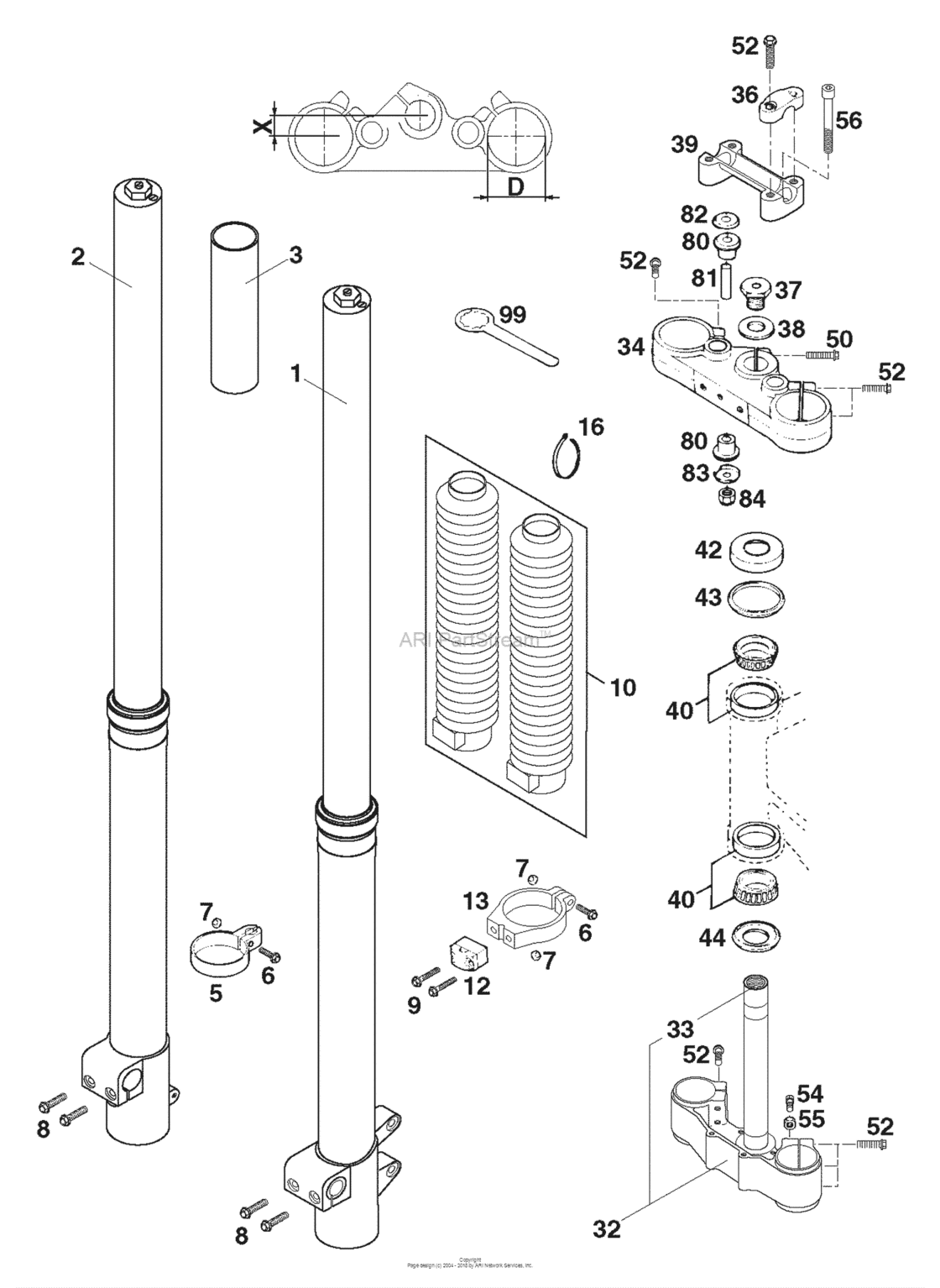

Front Fork Diagram KTM 640 640 LC4-E/mil
- Year
- 1998
- Sales region
- US/EU
- Engine Capacity
- 640
- Model
- 640 LC4-E/mil
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
44011076200 Cable tie 200/3,6mm black(400/640 LC4-E, SM) |
44011076200 |
US $0.39 |
||
|
1
|
1
0918S776LS
Fork Leg L/s Wp In.0918S776In. '98 400/640 Lc4 R
(400/640 LC4-E, SM) |
0918S776LS |
— | ||
|
2
|
2
0918S776RS
Fork Leg R/s Wp In.0918S776In. '98 400/640 Lc4 R
(400/640 LC4-E, SM) |
0918S776RS |
— | ||
|
3
|
3
57901025000
Plastic Tube Black L=150Mm
(400/640 LC4-E, SM) |
57901025000 |
— | ||
|
5
|
5
50301070000 Sp.cable Guide Marz.50,wp50'97(400/640 LC4-E, SM) |
50301070000 |
US $3.11 |
||
|
6
|
6
0015050203
Hh Collar Screw M5X20 Tx30
(400/640 LC4-E, SM) |
0015050203 |
— | ||
| replacement | |||||
|
6
|
6
0025050206 Hh collar screw m5x20 tx30(400/640 LC4-E, SM) |
0025050206 |
US $1.33 |
||
|
7
|
7
0985050003 Self Locking Nut Din0985-M 5(400/640 LC4-E, SM) |
0985050003 |
US $3.26 |
||
|
8
|
8
0015080253
H H Collar Screw
(400/640 LC4-E, SM) |
0015080253 |
— | ||
| replacement | |||||
|
8
|
8
0025080256 Hh Collar Screw M8X25 Tx40(400/640 LC4-E, SM) |
0025080256 |
US $4.10 |
||
|
9
|
9
0015050303 Hh collar screw m 5x30 ws=8(400/640 LC4-E, SM) |
0015050303 |
US $1.22 |
||
|
10
|
10
3951085
Garn. Protectors Black 50Mm Wp
(400/640 LC4-E, SM) |
3951085 |
— | ||
|
12
|
12
5460108500030
Brake Hose Clamp Black '98
(400/640 LC4-E, SM) |
5460108500030 |
— | ||
|
13
|
13
50301090250
Clamp protector guide '98
(400/640 LC4-E, SM) |
50301090250 |
— | ||
|
16
|
16
44011076305 Cable tie 300/4,8mm black(400/640 LC4-E, SM) |
44011076305 |
US $0.36 |
||
|
32
|
32
57901032016
Bot.triple Clamp X=16Mm/d=50Mm
(400/640 LC4-E, SM) |
57901032016 |
— | ||
|
33
|
33
50101033100 Fork Tube L=244(400/640 LC4-E, SM) |
50101033100 |
US $120.89 |
||
| replacement | |||||
|
33
|
33
54801133000 FORK TUBE L=244(400/640 LC4-E, SM) |
54801133000 |
US $78.15 |
||
|
34
|
34
57901034016
Top Tripleclamp X=16Mm/d=50Mm Black
(400/640 LC4-E, SM) |
57901034016 |
— | ||
|
36
|
36
54601038000
Handlebar Clamp
(400/640 LC4-E, SM) |
54601038000 |
— | ||
| replacement | |||||
|
36
|
36
50301038000 Handlebar clamp d=22mm 2001(400/640 LC4-E, SM) |
50301038000 |
US $21.54 |
||
|
37
|
37
56401043000 Hh screw m20x1,5(400/640 LC4-E, SM) |
56401043000 |
US $25.01 |
||
| replacement | |||||
|
37
|
37
50301036000 Steer.head screw m20x1,5 ws=27(400/640 LC4-E, SM) |
50301036000 |
US $12.65 |
||
|
38
|
38
56401044000
Washer 21x38x3
(400/640 LC4-E, SM) |
56401044000 |
— | ||
|
39
|
39
58301039100 Handlebar support '95(400/640 LC4-E, SM) |
58301039100 |
US $61.20 |
||
|
40
|
40
54201081000 Tapered Roller Bearing Cpl. 06(400/640 LC4-E, SM) |
54201081000 |
US $62.54 |
||
| replacement | |||||
|
40
|
40
54201081100 Tapered Roller Bearing Cpl. 06(400/640 LC4-E, SM) |
54201081100 |
US $53.18 |
||
|
42
|
42
54201086000 Steering Head Cover(400/640 LC4-E, SM) |
54201086000 |
US $8.11 |
||
| replacement | |||||
|
42
|
42
78101086000 Steering Head Cover(400/640 LC4-E, SM) |
78101086000 |
US $5.08 |
||
|
43
|
43
54601184000 Stearing head gasket top(400/640 LC4-E, SM) |
54601184000 |
US $7.74 |
||
|
44
|
44
54601084100 O-Ring Support W. Sealing Lip(400/640 LC4-E, SM) |
54601084100 |
US $21.28 |
||
| replacement | |||||
|
44
|
44
77701084000 O-Ring Support W. Sealing Lip(400/640 LC4-E, SM) |
77701084000 |
US $21.15 |
||
|
50
|
50
0015080403
Hh Collar Screw M8X40 Tx40
(400/640 LC4-E, SM) |
0015080403 |
— | ||
| replacement | |||||
|
50
|
50
0025080406 Hh collar screw m8x40 tx40(400/640 LC4-E, SM) |
0025080406 |
US $2.62 |
||
|
52
|
52
0015080303
Hh Collar Screw M8X30 Tx40
(400/640 LC4-E, SM) |
0015080303 |
— | ||
| replacement | |||||
|
52
|
52
0025080306 Hh collar screw m8x30 tx40(400/640 LC4-E, SM) |
0025080306 |
US $3.89 |
||
|
54
|
54
0933080253 Hh Screw Din0933-M 8X25(400/640 LC4-E, SM) |
0933080253 |
US $1.24 |
||
|
55
|
55
0934080003 Hexagon Nut Din0934-M 8(400/640 LC4-E, SM) |
0934080003 |
US $3.26 |
||
|
56
|
56
0984100703 Ah screw din6912-m10x70(400/640 LC4-E, SM) |
0984100703 |
US $6.92 |
||
|
80
|
80
56401040000 Rubber bushing(400/640 LC4-E, SM) |
56401040000 |
US $6.73 |
||
|
81
|
81
56401041100 Spacer tube 10,2x12x44(400/640 LC4-E, SM) |
56401041100 |
US $5.25 |
||
|
82
|
82
56401042000 Washer 10,5x32x2(400/640 LC4-E, SM) |
56401042000 |
US $4.71 |
||
|
83
|
83
56401142000 Washer 10,5x31(400/640 LC4-E, SM) |
56401142000 |
US $3.49 |
||
|
84
|
84
0985100003 Self locking nut din0985-m10(400/640 LC4-E, SM) |
0985100003 |
US $1.22 |
||
|
99
|
99
54212035000
Ring wrench ws=32
(400/640 LC4-E, SM) |
54212035000 |
— | ||
