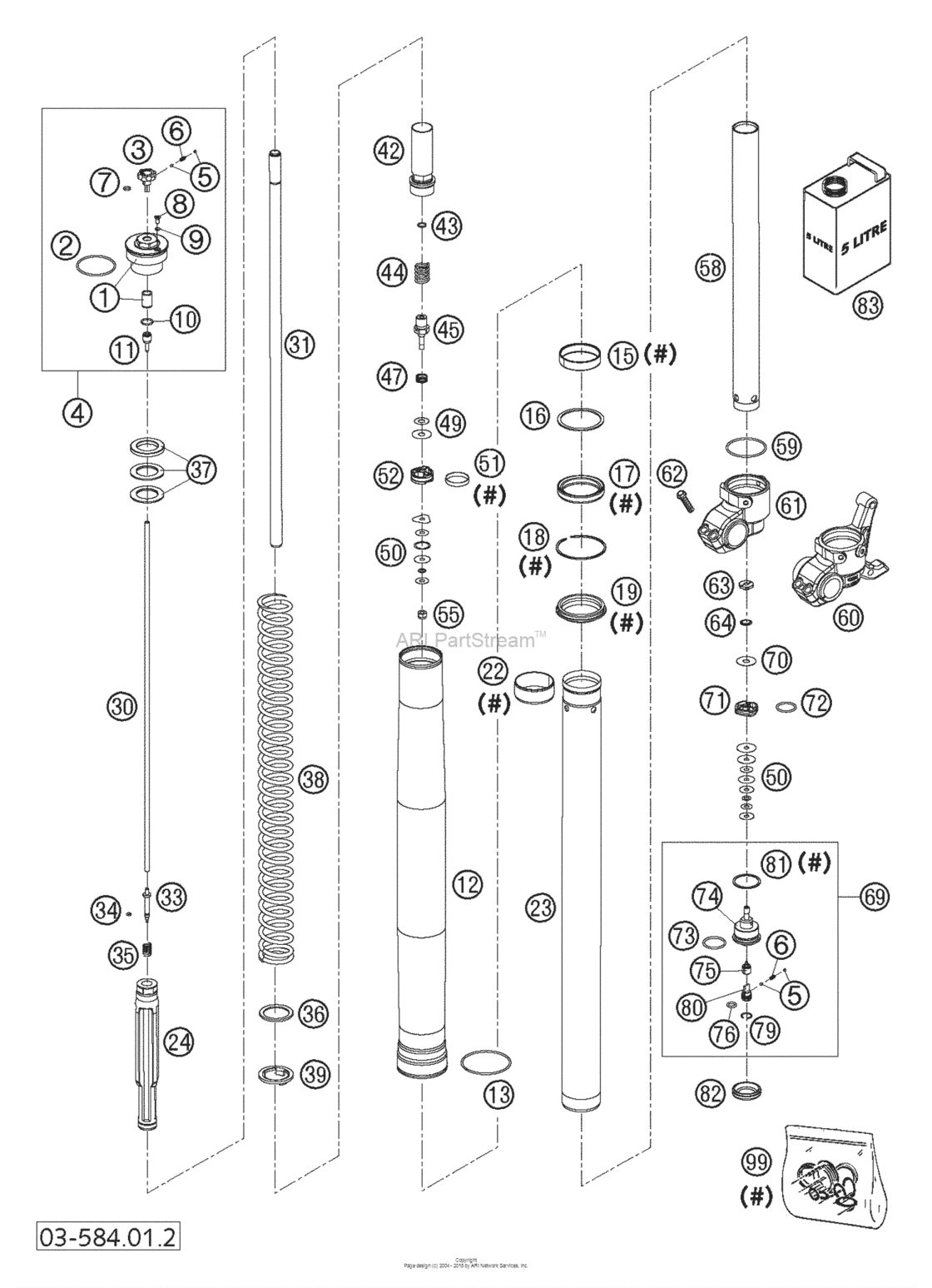

Fork Legs Wp Usd 43 Diagram KTM 640 640 LC4 Enduro
- Year
- 2003
- Sales region
- US/EU
- Engine Capacity
- 640
- Model
- 640 LC4 Enduro
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48600020S
Screw Cap M51X1,5 Cpl
LC4, LC4 SUPERMOTO BLACK 03 |
48600020S |
— | ||
| replacement | |||||
|
1
|
1
48600020S1
Screw Cap M51X1,5 Cpl
LC4, LC4 SUPERMOTO BLACK 03 |
48600020S1 |
— | ||
|
2
|
2
46810340 O-ring nbr 45x2LC4, LC4 SUPERMOTO BLACK 03 |
46810340 |
US $4.01 |
||
|
3
|
3
48600018 Knob reboung adjusterLC4, LC4 SUPERMOTO BLACK 03 |
48600018 |
US $6 |
||
|
4
|
4
48600020S1
Screw Cap M51X1,5 Cpl
LC4, LC4 SUPERMOTO BLACK 03 |
48600020S1 |
— | ||
|
5
|
5
40540603 Steel ball d=3mmLC4, LC4 SUPERMOTO BLACK 03 |
40540603 |
US $1.22 |
||
|
6
|
6
48600028 Spring d=2,9 l=7,9LC4, LC4 SUPERMOTO BLACK 03 |
48600028 |
US $3.03 |
||
|
7
|
7
48600044 O-ring nbr 6x1,5LC4, LC4 SUPERMOTO BLACK 03 |
48600044 |
US $1.14 |
||
|
8
|
8
48600058 Vent screw m4x6LC4, LC4 SUPERMOTO BLACK 03 |
48600058 |
US $2.09 |
||
|
9
|
9
48600009 O-ring nbr 3,7x1,6LC4, LC4 SUPERMOTO BLACK 03 |
48600009 |
US $0.90 |
||
|
10
|
10
48600043 O-ring nbr 12x1,5LC4, LC4 SUPERMOTO BLACK 03 |
48600043 |
US $2.24 |
||
|
11
|
11
48600019 Holder f.adjustment tube d=4mmLC4, LC4 SUPERMOTO BLACK 03 |
48600019 |
US $3.69 |
||
|
12
|
12
43570211 Outer tube l=577 d=54/57 03LC4, LC4 SUPERMOTO BLACK 03 |
43570211 |
US $743.99 |
||
|
13
|
13
43570099 Guiding ring d=53mmLC4, LC4 SUPERMOTO BLACK 03 |
43570099 |
US $26.25 |
||
|
15
|
15
43570204 Du-bush 43x47x12 daidoLC4, LC4 SUPERMOTO BLACK 03 |
43570204 |
US $30.43 |
||
| replacement | |||||
|
15
|
15
43570618 Guide Bushing 43X47X12LC4, LC4 SUPERMOTO BLACK 03 |
43570618 |
US $9.08 |
||
|
16
|
16
43570092 Support ring 45 x 52,5 x 1,5LC4, LC4 SUPERMOTO BLACK 03 |
43570092 |
US $16.83 |
||
|
17
|
17
43570201 Oil Seal Ring 43 X 52,9 X 9,5LC4, LC4 SUPERMOTO BLACK 03 |
43570201 |
US $26.45 |
||
| replacement | |||||
|
17
|
17
43570623 Oil Seal Ring 43X52,9X11,4LC4, LC4 SUPERMOTO BLACK 03 |
43570623 |
US $21.03 |
||
|
18
|
18
43570008 Lock washer sb53LC4, LC4 SUPERMOTO BLACK 03 |
43570008 |
US $2.89 |
||
|
19
|
19
43570202 Dust Stripper 43 X 53,4 X 11,8LC4, LC4 SUPERMOTO BLACK 03 |
43570202 |
US $23.36 |
||
|
22
|
22
43570203 Du-bush 42x44x20LC4, LC4 SUPERMOTO BLACK 03 |
43570203 |
US $30.43 |
||
|
23
|
23
43570145
Superseded By 43570221
LC4, LC4 SUPERMOTO BLACK 03 |
43570145 |
— | ||
|
24
|
24
43570142S
Hydr.stop L=200 D=27,5 Cpl. 05
LC4, LC4 SUPERMOTO BLACK 03 |
43570142S |
— | ||
| replacement | |||||
|
24
|
24
43570142S1 Hydr.stop l=200 d=27,5 cpl. 05LC4, LC4 SUPERMOTO BLACK 03 |
43570142S1 |
US $60.74 |
||
|
30
|
30
48600014 Adjustment tube l=512mmLC4, LC4 SUPERMOTO BLACK 03 |
48600014 |
US $17.41 |
||
|
31
|
31
48600250
Piston Rod D=14 L=546 M11X1
LC4, LC4 SUPERMOTO BLACK 03 |
48600250 |
— | ||
|
33
|
33
48600189 Needle rebound 2003LC4, LC4 SUPERMOTO BLACK 03 |
48600189 |
US $36.04 |
||
|
34
|
34
48600046 O-ring nbr 3x1,5LC4, LC4 SUPERMOTO BLACK 03 |
48600046 |
US $2.47 |
||
|
35
|
35
48600033 Spring rebound needle c=4n/mmLC4, LC4 SUPERMOTO BLACK 03 |
48600033 |
US $15.81 |
||
|
37
|
37
48600036 Spacer 42x26,5x2,5LC4, LC4 SUPERMOTO BLACK 03 |
48600036 |
US $6.48 |
||
|
37
|
37
48600037 Spacer 42x26,5x5LC4, LC4 SUPERMOTO BLACK 03 |
48600037 |
US $6.41 |
||
|
37
|
37
48600053 Spacer 42X26,5X1,5LC4, LC4 SUPERMOTO BLACK 03 |
48600053 |
US $7.09 |
||
|
38
|
38
95010002S Spring 4,0 n/mm set d=4,75mmLC4, LC4 SUPERMOTO BLACK 03 |
95010002S |
US $217.69 |
||
|
38
|
38
95010003S Spring 4,2 n/mm set d=4,9mmLC4, LC4 SUPERMOTO BLACK 03 |
95010003S |
US $223.13 |
||
|
38
|
38
95010004S Spring 4,4 n/mm set d=4,9mmLC4, LC4 SUPERMOTO BLACK 03 |
95010004S |
US $223.13 |
||
|
39
|
39
43570131 Interm. ring 26,2x38,5x3LC4, LC4 SUPERMOTO BLACK 03 |
43570131 |
US $15.28 |
||
|
42
|
42
48600200S Screw sleeve m29,3x1 l=65 cpl.LC4, LC4 SUPERMOTO BLACK 03 |
48600200S |
US $146.30 |
||
|
43
|
43
48600239 O-ring nbr 8x1,25LC4, LC4 SUPERMOTO BLACK 03 |
48600239 |
US $2.24 |
||
|
44
|
44
48600178
Rebound Spring D=14,6Mm L=75Mm (640 Lc4)
LC4, LC4 SUPERMOTO BLACK 03 |
48600178 |
— | ||
|
45
|
45
48600203 Tab rebound d=3 03LC4, LC4 SUPERMOTO BLACK 03 |
48600203 |
US $36.81 |
||
|
47
|
47
35480377 Spring check valve d=0,5LC4, LC4 SUPERMOTO BLACK 03 |
35480377 |
US $2.53 |
||
|
49
|
49
43570120 Shim 8x18x0,10LC4, LC4 SUPERMOTO BLACK 03 |
43570120 |
US $9.93 |
||
|
49
|
49
48600062 Check valve 8x24x0,1LC4, LC4 SUPERMOTO BLACK 03 |
48600062 |
US $3.26 |
||
|
49
|
49
48600215 Check valve 8x20x0,1LC4, LC4 SUPERMOTO BLACK 03 |
48600215 |
US $5.15 |
||
|
49
|
49
48600216 Check valve 8x22x0,1LC4, LC4 SUPERMOTO BLACK 03 |
48600216 |
US $5.15 |
||
|
50
|
50
48600063 Shim 6x24x0,1LC4, LC4 SUPERMOTO BLACK 03 |
48600063 |
US $2.77 |
||
|
50
|
50
48600064 Shim 6x22x0,1LC4, LC4 SUPERMOTO BLACK 03 |
48600064 |
US $4.17 |
||
|
50
|
50
48600065 Shim 6x20x0,1LC4, LC4 SUPERMOTO BLACK 03 |
48600065 |
US $3.67 |
||
|
50
|
50
48600116 Shim 6X24X0,1 DeltaLC4, LC4 SUPERMOTO BLACK 03 |
48600116 |
US $5.95 |
||
|
50
|
50
48600139 Shim 6X22X0,1 DeltaLC4, LC4 SUPERMOTO BLACK 03 |
48600139 |
US $3.88 |
||
|
50
|
50
40540400 Shim 6x12x0,1LC4, LC4 SUPERMOTO BLACK 03 |
40540400 |
US $3.67 |
||
|
50
|
50
40540401 Shim 6x14x0,1LC4, LC4 SUPERMOTO BLACK 03 |
40540401 |
US $3.49 |
||
|
50
|
50
40540402 Shim 6x16x0,1LC4, LC4 SUPERMOTO BLACK 03 |
40540402 |
US $2.72 |
||
|
50
|
50
40540403 Shim 6x18x0,1LC4, LC4 SUPERMOTO BLACK 03 |
40540403 |
US $2.87 |
||
|
50
|
50
40540404 Shim 6x12x0,15LC4, LC4 SUPERMOTO BLACK 03 |
40540404 |
US $3.40 |
||
|
50
|
50
40540405 Shim 6x14x0,15LC4, LC4 SUPERMOTO BLACK 03 |
40540405 |
US $3.62 |
||
|
50
|
50
40540414 Shim 6x16x0,25LC4, LC4 SUPERMOTO BLACK 03 |
40540414 |
US $3.72 |
||
|
50
|
50
40540415 Shim 6x18x0,25LC4, LC4 SUPERMOTO BLACK 03 |
40540415 |
US $3.69 |
||
|
50
|
50
40540447 Shim 6x10x0,3LC4, LC4 SUPERMOTO BLACK 03 |
40540447 |
US $2.23 |
||
|
51
|
51
48600060 Piston ring 5x1x84LC4, LC4 SUPERMOTO BLACK 03 |
48600060 |
US $6 |
||
|
52
|
52
48600042 Piston rebound d=27,7LC4, LC4 SUPERMOTO BLACK 03 |
48600042 |
US $48.96 |
||
|
55
|
55
40540486 Nut m6x0,5 reboundLC4, LC4 SUPERMOTO BLACK 03 |
40540486 |
US $5.20 |
||
|
58
|
58
48600081 Tube 29,3x1x390 d=8,5mmLC4, LC4 SUPERMOTO BLACK 03 |
48600081 |
US $119.51 |
||
|
59
|
59
43570023 O-ring nbr 41x2LC4, LC4 SUPERMOTO BLACK 03 |
43570023 |
US $3.69 |
||
|
60
|
60
43570207
Axle Clamp L/s Lc4 03
LC4, LC4 SUPERMOTO BLACK 03 |
43570207 |
— | ||
|
61
|
61
43570123
Axle Clamp R/s Cpl. Usd 43 04
LC4, LC4 SUPERMOTO BLACK 03 |
43570123 |
— | ||
| replacement | |||||
|
61
|
61
43570123S Axle clamp r/s cpl. usd 43 04LC4, LC4 SUPERMOTO BLACK 03 |
43570123S |
US $281.38 |
||
|
62
|
62
50600061 Hh Collar Screw M8X30 Tx40LC4, LC4 SUPERMOTO BLACK 03 |
50600061 |
US $5.20 |
||
| replacement | |||||
|
62
|
62
0025080306 Hh collar screw m8x30 tx40LC4, LC4 SUPERMOTO BLACK 03 |
0025080306 |
US $3.89 |
||
|
63
|
63
48600163 Check valve nut m6x0,5 d=2LC4, LC4 SUPERMOTO BLACK 03 |
48600163 |
US $13.80 |
||
|
64
|
64
40541278 Spring check valve d=0,5mmLC4, LC4 SUPERMOTO BLACK 03 |
40541278 |
US $7.87 |
||
|
69
|
69
48600152S1 Tap Compression CplLC4, LC4 SUPERMOTO BLACK 03 |
48600152S1 |
US $100.27 |
||
| replacement | |||||
|
69
|
69
48600586E Tap Compression CplLC4, LC4 SUPERMOTO BLACK 03 |
48600586E |
US $96.46 |
||
|
70
|
70
48600061 Check valve 8x24x0,4LC4, LC4 SUPERMOTO BLACK 03 |
48600061 |
US $4.32 |
||
|
71
|
71
48600047 Piston compression d=27,9LC4, LC4 SUPERMOTO BLACK 03 |
48600047 |
US $49.96 |
||
|
72
|
72
46811499 O-ring nbr 21x2LC4, LC4 SUPERMOTO BLACK 03 |
46811499 |
US $1.48 |
||
|
73
|
73
35480320 O-ring nbr 24x2LC4, LC4 SUPERMOTO BLACK 03 |
35480320 |
US $2.70 |
||
|
74
|
74
48600152
Tap Compression Cpl
LC4, LC4 SUPERMOTO BLACK 03 |
48600152 |
— | ||
| replacement | |||||
|
74
|
74
48600586E Tap Compression CplLC4, LC4 SUPERMOTO BLACK 03 |
48600586E |
US $96.46 |
||
|
75
|
75
48600190 Needle compression 2003LC4, LC4 SUPERMOTO BLACK 03 |
48600190 |
US $13.45 |
||
|
76
|
76
48600049 O-ring nbr 8x2LC4, LC4 SUPERMOTO BLACK 03 |
48600049 |
US $3.67 |
||
|
79
|
79
48600051 Lock washer rb12LC4, LC4 SUPERMOTO BLACK 03 |
48600051 |
US $1.39 |
||
|
80
|
80
48600034
Compression adj. screw
LC4, LC4 SUPERMOTO BLACK 03 |
48600034 |
— | ||
|
81
|
81
48600004 Copper washer 29,5x33,5x1LC4, LC4 SUPERMOTO BLACK 03 |
48600004 |
US $1.65 |
||
|
82
|
82
48600141 Rubber cap d=35mmLC4, LC4 SUPERMOTO BLACK 03 |
48600141 |
US $3.42 |
||
|
83
|
83
48600211S1 Fork Oil Sae4 5LLC4, LC4 SUPERMOTO BLACK 03 |
48600211S1 |
US $273.84 |
||
| replacement | |||||
|
83
|
83
48601166S1 Fork Oil Sae4 5LLC4, LC4 SUPERMOTO BLACK 03 |
48601166S1 |
US $218.08 |
||
|
99
|
99
R510 Repair-kit gasket 4357 mxma 03LC4, LC4 SUPERMOTO BLACK 03 |
R510 |
US $254.24 |
||
