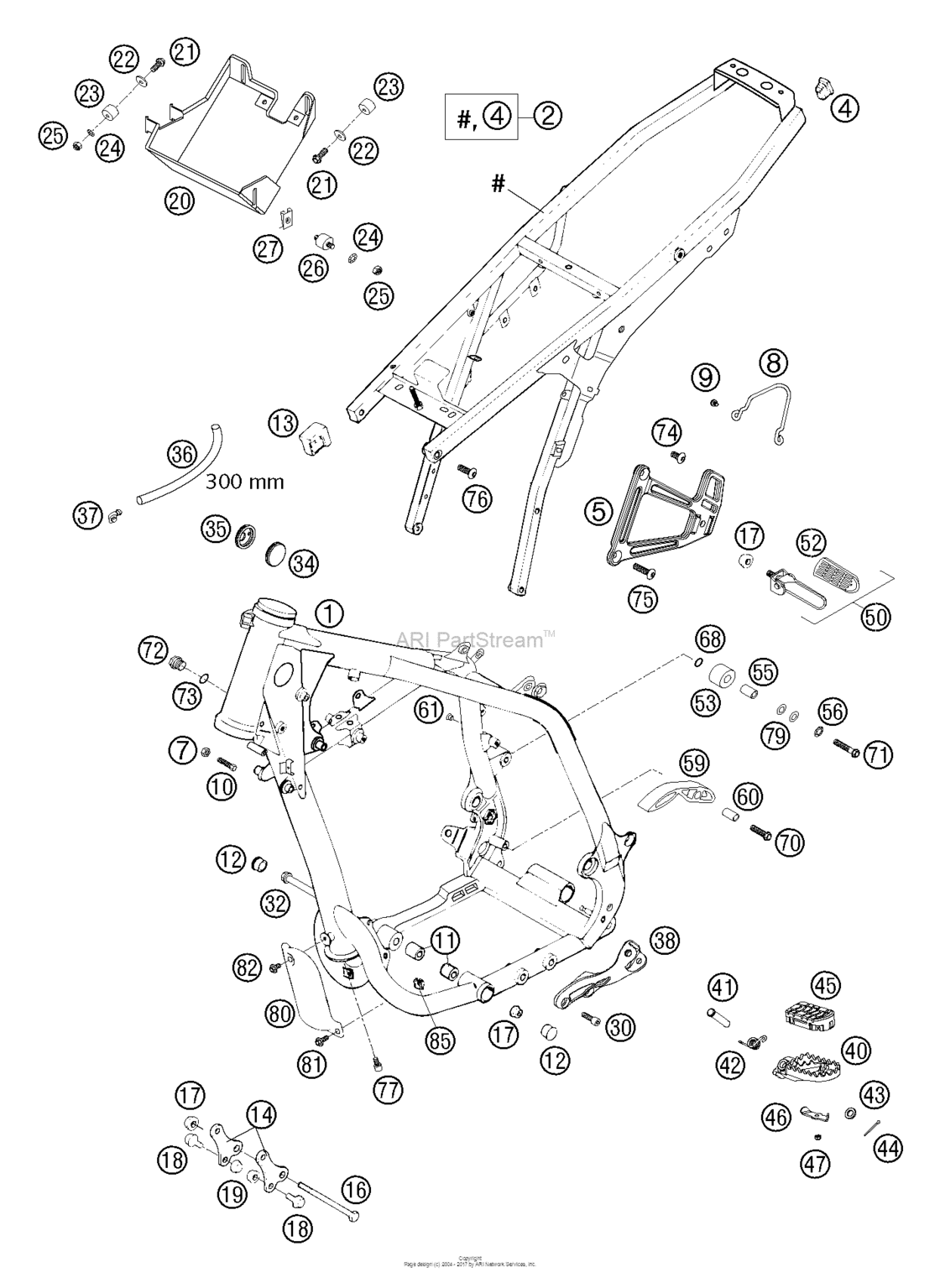

Frame, Sub Frame Diagram KTM 640 640 LC4 Enduro
- Year
- 2004
- Sales region
- US/EU
- Engine Capacity
- 640
- Model
- 640 LC4 Enduro
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5840300194490
Frame Cpl. 640 Lc4 In.h4In. 2004
LC4 SUPERMOTO |
5840300194490 |
— | ||
|
2
|
2
5840300234490 Subframe cpl. steel silver 00LC4 SUPERMOTO |
5840300234490 |
US $489.04 |
||
|
4
|
4
58303002090
Plug 12 x 17 mm
LC4 SUPERMOTO |
58303002090 |
— | ||
|
5
|
5
5840304800090 Footrestbrack. rear l/s 04LC4 SUPERMOTO |
5840304800090 |
US $58.21 |
||
|
5
|
5
5810300420090 Footrestbrack. rear r/s silverLC4 SUPERMOTO |
5810300420090 |
US $81.40 |
||
|
7
|
7
0934080003 Hexagon Nut Din0934-M 8LC4 SUPERMOTO |
0934080003 |
US $3.26 |
||
|
8
|
8
58403056000 Thermal protection bow 04LC4 SUPERMOTO |
58403056000 |
US $6.05 |
||
|
9
|
9
0985050103 Oval head scr. din7985-m 5x10LC4 SUPERMOTO |
0985050103 |
US $2.18 |
||
|
10
|
10
59001037000 Special screw m8x26 ws=10LC4 SUPERMOTO |
59001037000 |
US $2.09 |
||
|
11
|
11
58003012000 Spacer roller 10,3x20x22LC4 SUPERMOTO |
58003012000 |
US $10.39 |
||
|
12
|
12
71001012100 Pvc cap d=22mmLC4 SUPERMOTO |
71001012100 |
US $2.11 |
||
|
13
|
13
58307015000 Tank support '93LC4 SUPERMOTO |
58307015000 |
US $7.28 |
||
|
14
|
14
58303055000 Engine support agw '94LC4 SUPERMOTO |
58303055000 |
US $13.55 |
||
|
16
|
16
58403013000 Engine brac.screw m10x110 ws13LC4 SUPERMOTO |
58403013000 |
US $13.82 |
||
|
17
|
17
54630044000 Collar nut m10 ws=13LC4 SUPERMOTO |
54630044000 |
US $2.16 |
||
|
18
|
18
49109481052 Hh collar screw m 8x16 ws=13LC4 SUPERMOTO |
49109481052 |
US $2.06 |
||
|
19
|
19
54310086200 Self Locking Nut M8 10.9LC4 SUPERMOTO |
54310086200 |
US $1.56 |
||
|
20
|
20
58403002370 Battery box 03LC4 SUPERMOTO |
58403002370 |
US $9.08 |
||
|
21
|
21
0015060103
Hh collar screw m 6x10 ws=8
LC4 SUPERMOTO |
0015060103 |
— | ||
| replacement | |||||
|
21
|
21
0025060106 Hh collar screw m6x10 tx30LC4 SUPERMOTO |
0025060106 |
US $1.58 |
||
|
22
|
22
0021060003 Washer Din9021-A 6,4LC4 SUPERMOTO |
0021060003 |
US $3.26 |
||
|
23
|
23
43205062100 Rubber grommet 20x15-m6x10 (1)LC4 SUPERMOTO |
43205062100 |
US $24.07 |
||
|
24
|
24
0797060003 Tooth Lock Wash. Din6797-A 6,4LC4 SUPERMOTO |
0797060003 |
US $0.29 |
||
|
25
|
25
0934060003 Hexagon Nut Din0934-M 6LC4 SUPERMOTO |
0934060003 |
US $0.43 |
||
|
26
|
26
58403002010 Rubber grommet 20x15-m6x8-(2)LC4 SUPERMOTO |
58403002010 |
US $9.81 |
||
|
27
|
27
54603048100 Range Change Metal Nut M6LC4 SUPERMOTO |
54603048100 |
US $5.27 |
||
|
30
|
30
0912100250
Ah-Collar Screw M10X25 Isa45
LC4 SUPERMOTO |
0912100250 |
— | ||
| replacement | |||||
|
30
|
30
0032100256S Ah-collar screw m10x25 isa45LC4 SUPERMOTO |
0032100256S |
US $5.12 |
||
|
32
|
32
58403014000 Engine brac.screw m10x160 ws13LC4 SUPERMOTO |
58403014000 |
US $18.67 |
||
|
34
|
34
54606004000 Plug 37mmLC4 SUPERMOTO |
54606004000 |
US $1.89 |
||
|
35
|
35
54606004100 Plug 37mm perforated 04LC4 SUPERMOTO |
54606004100 |
US $1.96 |
||
|
36
|
36
55007016001 Pvc-hose 7x10 per meterLC4 SUPERMOTO |
55007016001 |
US $5.98 |
||
|
37
|
37
50303089000 Angle piece '97LC4 SUPERMOTO |
50303089000 |
US $4.52 |
||
|
38
|
38
58403038000 Footrest Bracket Left Alu 05LC4 SUPERMOTO |
58403038000 |
US $82.62 |
||
| replacement | |||||
|
38
|
38
58403038100 Footrest bracket left alu 05LC4 SUPERMOTO |
58403038100 |
US $80.70 |
||
|
40
|
40
59003040250 Footrest L/s 08LC4 SUPERMOTO |
59003040250 |
US $70.60 |
||
| replacement | |||||
|
40
|
40
78003040050 Footrest l/s 08LC4 SUPERMOTO |
78003040050 |
US $44.12 |
||
|
40
|
40
59003041250 Footrest R/s 08LC4 SUPERMOTO |
59003041250 |
US $69.17 |
||
| replacement | |||||
|
40
|
40
78003041050 Footrest r/s 08LC4 SUPERMOTO |
78003041050 |
US $44.12 |
||
|
41
|
41
54803044000 Pin For Foot Ped 51.5X9.8 MmLC4 SUPERMOTO |
54803044000 |
US $10.98 |
||
|
42
|
42
54603041000 Footrest Spring L/s & R/sLC4 SUPERMOTO |
54603041000 |
US $3.52 |
||
|
43
|
43
0125100003 Washer Din0125-A10,5LC4 SUPERMOTO |
0125100003 |
US $1.19 |
||
|
44
|
44
0094032253 Pin din0094-3,2x25 steelLC4 SUPERMOTO |
0094032253 |
US $1.12 |
||
| replacement | |||||
|
44
|
44
0094032250 Pin din0094-3,2x25 steelLC4 SUPERMOTO |
0094032250 |
US $1.12 |
||
|
45
|
45
60003040010 Footrest rubber front l/s 03LC4 SUPERMOTO |
60003040010 |
US $19.16 |
||
|
45
|
45
60003041010 Footrest rubber front r/s 03LC4 SUPERMOTO |
60003041010 |
US $19.16 |
||
|
46
|
46
60003044010 Closing panel front l/s r/s 03LC4 SUPERMOTO |
60003044010 |
US $5.12 |
||
|
47
|
47
0985050003 Self Locking Nut Din0985-M 5LC4 SUPERMOTO |
0985050003 |
US $3.26 |
||
|
50
|
50
58303050044 Footrest rear l/s cpl. '95LC4 SUPERMOTO |
58303050044 |
US $110.96 |
||
|
50
|
50
58303150044 Foot rest rear r/s cpl.'95LC4 SUPERMOTO |
58303150044 |
US $109.48 |
||
|
52
|
52
58303051000 Footrest rubber l/s&r/s duke95LC4 SUPERMOTO |
58303051000 |
US $14.84 |
||
|
53
|
53
58403060000 Chain roll 12x29x22,5 '98LC4 SUPERMOTO |
58403060000 |
US $5.20 |
||
|
55
|
55
58403060065 Bush chain roll 8x12x23 '98LC4 SUPERMOTO |
58403060065 |
US $2.58 |
||
|
56
|
56
0797080003 Toothlock washer din6797-j 8,4LC4 SUPERMOTO |
0797080003 |
US $0.20 |
||
|
59
|
59
51103053000 Chain sliding piece below '97LC4 SUPERMOTO |
51103053000 |
US $13.24 |
||
|
60
|
60
51103053051 Bushing 8,2x10x20LC4 SUPERMOTO |
51103053051 |
US $3.06 |
||
|
61
|
61
54403135000 Plastic cap sfl10LC4 SUPERMOTO |
54403135000 |
US $1.31 |
||
|
68
|
68
36003014000 Lock washer 8mmLC4 SUPERMOTO |
36003014000 |
US $0.46 |
||
|
70
|
70
0015080303
Hh Collar Screw M8X30 Tx40
LC4 SUPERMOTO |
0015080303 |
— | ||
| replacement | |||||
|
70
|
70
0025080306 Hh collar screw m8x30 tx40LC4 SUPERMOTO |
0025080306 |
US $3.89 |
||
|
71
|
71
0015080453 Hh Collar Screw M 8X45 Ws=10LC4 SUPERMOTO |
0015080453 |
US $1.46 |
||
|
72
|
72
0910160153 Plug din0910-m16x1,5LC4 SUPERMOTO |
0910160153 |
US $6.83 |
||
|
73
|
73
0603162220 Cu-seal ring 16x22x2LC4 SUPERMOTO |
0603162220 |
US $1.65 |
||
|
74
|
74
54610052000 Sprocket screw-ah m8x20 ws=6LC4 SUPERMOTO |
54610052000 |
US $2.35 |
||
| replacement | |||||
|
74
|
74
0019080206 Counter-sunk screw isa45 m8x20LC4 SUPERMOTO |
0019080206 |
US $1.82 |
||
|
75
|
75
54510052200 Ah screw 8x29 fl.head 04LC4 SUPERMOTO |
54510052200 |
US $1.55 |
||
|
76
|
76
54510052100
Counter-Sunk Screw Isa45 M8X26
LC4 SUPERMOTO |
54510052100 |
— | ||
| replacement | |||||
|
76
|
76
0019080266S Counter-sunk screw isa45 m8x26LC4 SUPERMOTO |
0019080266S |
US $2.23 |
||
|
77
|
77
0984060103 Ah screw din7984-m 6x10LC4 SUPERMOTO |
0984060103 |
US $0.65 |
||
|
79
|
79
0125080003 Washer din0125-a 8,4LC4 SUPERMOTO |
0125080003 |
US $2.02 |
||
|
80
|
80
58303010000 Cover oil filter '94LC4 SUPERMOTO |
58303010000 |
US $35.46 |
||
|
81
|
81
0014060153
Hh Collar Screw M6X15 Tx30
LC4 SUPERMOTO |
0014060153 |
— | ||
| replacement | |||||
|
81
|
81
0024060156 Hh collar screw m6x15 tx30LC4 SUPERMOTO |
0024060156 |
US $3.96 |
||
|
82
|
82
0014060103
Hh Collar Screw M6X10 Tx30
LC4 SUPERMOTO |
0014060103 |
— | ||
| replacement | |||||
|
82
|
82
0024060106 Hh collar screw m6x10 tx30LC4 SUPERMOTO |
0024060106 |
US $4.35 |
||
|
85
|
85
50235033300
Snap-nut holder m6 kp142
LC4 SUPERMOTO |
50235033300 |
— | ||
| replacement | |||||
|
85
|
85
54603048100 Range Change Metal Nut M6LC4 SUPERMOTO |
54603048100 |
US $5.27 |
||
