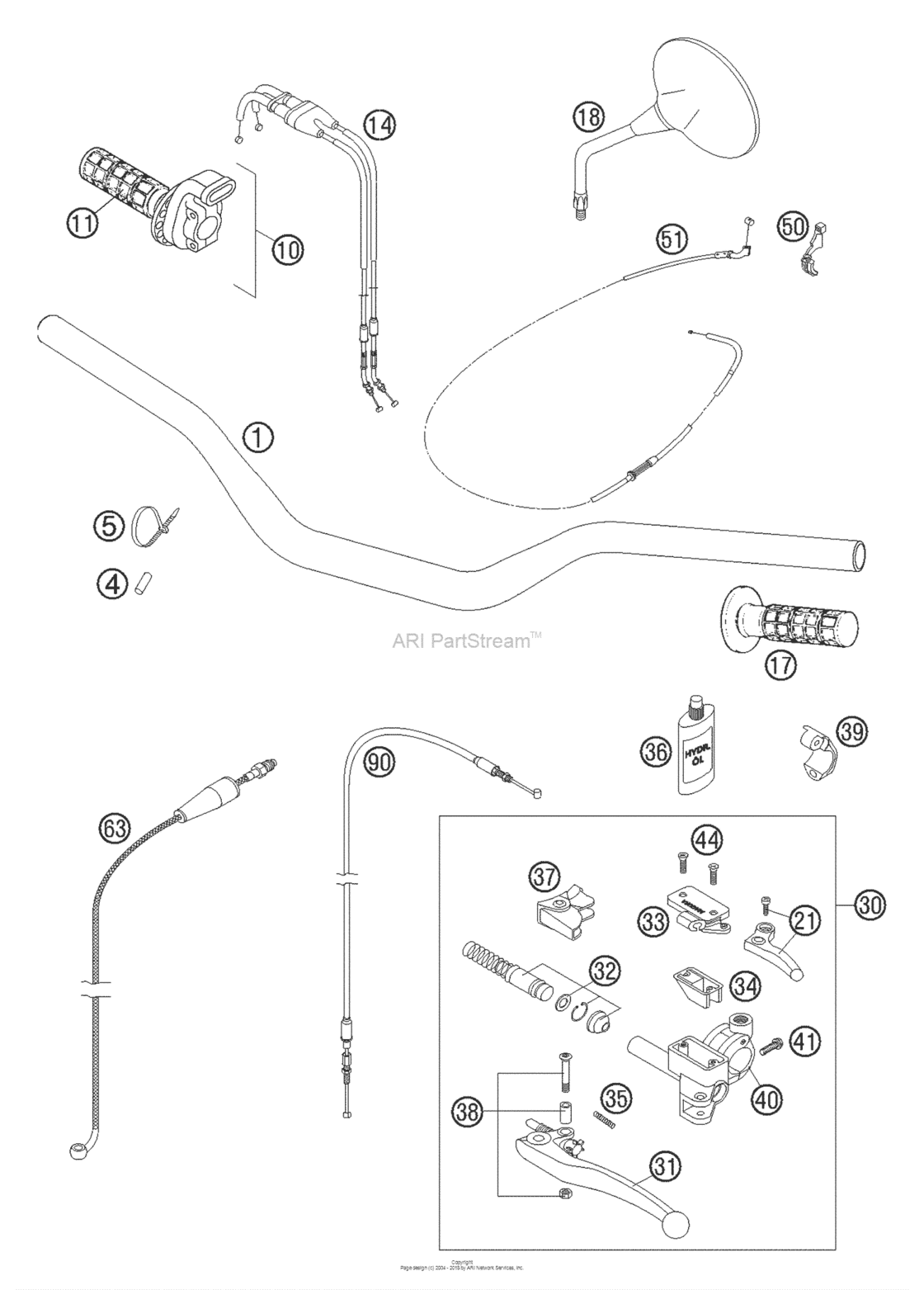

Handlebar, Controls Diagram KTM 640 640 LC4 Enduro
- Year
- 2005
- Sales region
- US/EU
- Engine Capacity
- 640
- Model
- 640 LC4 Enduro
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58402001000 Handlebar alu lc4, adventure02WITHOUT SPRING FITTING |
58402001000 |
US $183.60 |
||
|
4
|
4
58007016001 Fuel hose viton 7x2mmWITHOUT SPRING FITTING |
58007016001 |
US $52.73 |
||
|
5
|
5
44011076200 Cable tie 200/3,6mm blackWITHOUT SPRING FITTING |
44011076200 |
US $0.39 |
||
|
10
|
10
58402010600 Throttle grip cpl. 640lc4 2000WITHOUT SPRING FITTING |
58402010600 |
US $57.09 |
||
|
11
|
11
58302003000
Gripp Set Full Waffle
WITHOUT SPRING FITTING |
58302003000 |
— | ||
| replacement | |||||
|
11
|
11
58302021000 Gripp set full waffleWITHOUT SPRING FITTING |
58302021000 |
US $28.88 |
||
|
14
|
14
58402091600 Thrott.cable "open-close" 2000WITHOUT SPRING FITTING |
58402091600 |
US $97.17 |
||
|
17
|
17
58302052000
Rubber Grip
WITHOUT SPRING FITTING |
58302052000 |
— | ||
| replacement | |||||
|
17
|
17
58302021000 Gripp set full waffleWITHOUT SPRING FITTING |
58302021000 |
US $28.88 |
||
|
18
|
18
58412040100 Rear mirror l/s+r/s lc4 2001WITHOUT SPRING FITTING |
58412040100 |
US $66.86 |
||
|
21
|
21
59002047000 Lever Cpl. Racing 2000WITHOUT SPRING FITTING |
59002047000 |
US $23.60 |
||
|
30
|
30
58402030000
Master cylinder cpl. lc4 03
WITHOUT SPRING FITTING |
58402030000 |
— | ||
|
31
|
31
60002031000 Clutch lever long cpl. 2003WITHOUT SPRING FITTING |
60002031000 |
US $68.24 |
||
|
32
|
32
50302032000 Rep.set piston magura d=10.5WITHOUT SPRING FITTING |
50302032000 |
US $116.60 |
||
|
33
|
33
59002033000 Cover hyd.clutch racing 2000WITHOUT SPRING FITTING |
59002033000 |
US $41.87 |
||
|
34
|
34
50302034000 Rubber for reservoir '98WITHOUT SPRING FITTING |
50302034000 |
US $16.18 |
||
|
35
|
35
59002035000 Spring for clutch lever 03WITHOUT SPRING FITTING |
59002035000 |
US $5.46 |
||
|
36
|
36
50302036200 Oil For Hyd. Clutch 100 MlWITHOUT SPRING FITTING |
50302036200 |
US $19.23 |
||
|
37
|
37
50302037000 Protect.cap For Lever Perch'98WITHOUT SPRING FITTING |
50302037000 |
US $20.74 |
||
|
38
|
38
50302038000 Lever Screw Cpl. 125-200 '98WITHOUT SPRING FITTING |
50302038000 |
US $20.35 |
||
|
39
|
39
50302030150 Clamp With Pin 2000WITHOUT SPRING FITTING |
50302030150 |
US $34.46 |
||
|
40
|
40
59002044000 Clamp mirror with pinWITHOUT SPRING FITTING |
59002044000 |
US $40.78 |
||
|
41
|
41
0015060203
Hh Collar Screw M 6X20 Ws=8
WITHOUT SPRING FITTING |
0015060203 |
— | ||
| replacement | |||||
|
41
|
41
0025060206 Hh collar screw m6x20 tx30WITHOUT SPRING FITTING |
0025060206 |
US $1.97 |
||
|
44
|
44
0965040123 Flat head screw din0965-m 4x12WITHOUT SPRING FITTING |
0965040123 |
US $0.56 |
||
|
50
|
50
58402050000 Choke lever lc4 2002WITHOUT SPRING FITTING |
58402050000 |
US $9.01 |
||
|
51
|
51
58402095100 Choke cable f. mikuni lc4 02WITHOUT SPRING FITTING |
58402095100 |
US $24.43 |
||
|
63
|
63
58432063000 Clutch pipe lc4/sxc/sm 03WITHOUT SPRING FITTING |
58432063000 |
US $87.18 |
||
|
90
|
90
58402094000 Decompr. cable lc4 03WITHOUT SPRING FITTING |
58402094000 |
US $41.91 |
||
