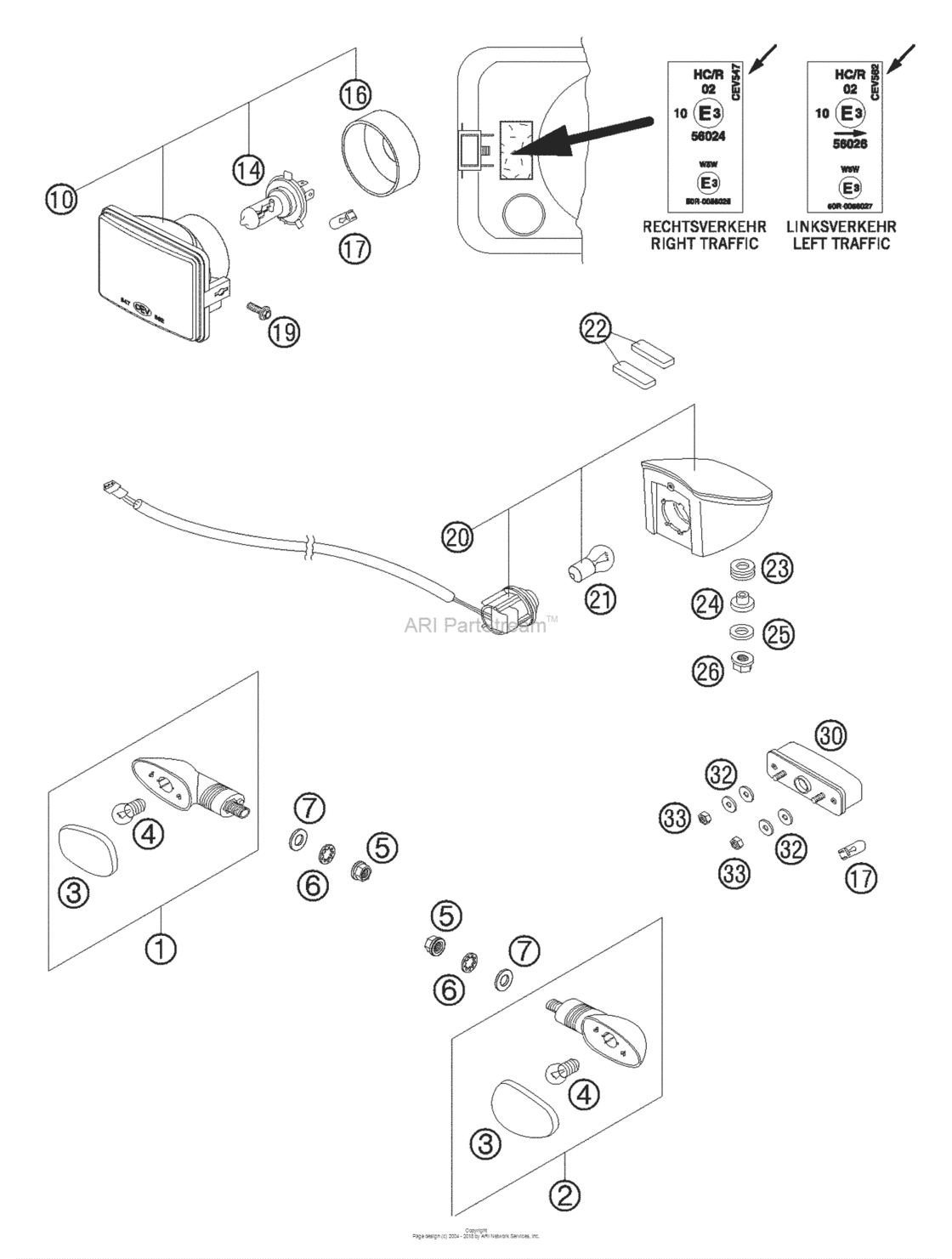

Lighting System Diagram KTM 640 640 LC4 Enduro
- Year
- 2005
- Sales region
- US/EU
- Engine Capacity
- 640
- Model
- 640 LC4 Enduro
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5841402600030 Flasher Cpl.front R/s Rear L/sWITHOUT SPRING FITTING |
5841402600030 |
US $25.93 |
||
|
2
|
2
5841402500030
Flasher Cpl.front L/s Rear R/s
WITHOUT SPRING FITTING |
5841402500030 |
— | ||
|
3
|
3
58414028000 Flasher lens l/s & r/s '98WITHOUT SPRING FITTING |
58414028000 |
US $6.75 |
||
|
4
|
4
44111015100 Bulb 12v 10w (ba15s)WITHOUT SPRING FITTING |
44111015100 |
US $2.30 |
||
|
5
|
5
58414030000 Hh collar nut m10x1,25 ws=13WITHOUT SPRING FITTING |
58414030000 |
US $2.60 |
||
|
6
|
6
0797100003 Lock washer din6797-j10,5 ziWITHOUT SPRING FITTING |
0797100003 |
US $0.65 |
||
|
7
|
7
0125100003 Washer Din0125-A10,5WITHOUT SPRING FITTING |
0125100003 |
US $1.19 |
||
|
10
|
10
58414001100 Head light cev 547 right/s. h4WITHOUT SPRING FITTING |
58414001100 |
US $108.85 |
||
|
10
|
10
58414001200 Head light cev 562 left/s. h4WITHOUT SPRING FITTING |
58414001200 |
US $97.67 |
||
|
14
|
14
57111038000 Bulb h4 12v 60/55w (p43t)WITHOUT SPRING FITTING |
57111038000 |
US $44.46 |
||
|
16
|
16
50211537000 Rubber capWITHOUT SPRING FITTING |
50211537000 |
US $3.43 |
||
|
17
|
17
49011435000 Bulb 12V 5W (W2,1X9,5D) PhilWITHOUT SPRING FITTING |
49011435000 |
US $4.27 |
||
| replacement | |||||
|
17
|
17
49011435100 Bulb 12V 5W (W2,1X9,5D) PhilWITHOUT SPRING FITTING |
49011435100 |
US $3.81 |
||
|
19
|
19
0014060203 Hh Collar Screw M 6X20 Ws=8WITHOUT SPRING FITTING |
0014060203 |
US $3.26 |
||
|
20
|
20
58414040100 Rear light cpl. lc4 2001WITHOUT SPRING FITTING |
58414040100 |
US $69.99 |
||
|
21
|
21
58414042000 Bulb 12V 21/5W (Bay15S)ReinfoWITHOUT SPRING FITTING |
58414042000 |
US $12.56 |
||
|
22
|
22
58414040051
Metamoll for rearlight 99
WITHOUT SPRING FITTING |
58414040051 |
— | ||
|
23
|
23
41001052000 Rubber Sleeve D=12MmWITHOUT SPRING FITTING |
41001052000 |
US $5.46 |
||
|
24
|
24
58714048000 Rear light bushingWITHOUT SPRING FITTING |
58714048000 |
US $4.73 |
||
|
25
|
25
51006097000 Washer 6,2x22x1,st30,w.galv.WITHOUT SPRING FITTING |
51006097000 |
US $1.62 |
||
|
26
|
26
56509064100 Self Locking Nut M6 10.9WITHOUT SPRING FITTING |
56509064100 |
US $1.04 |
||
|
30
|
30
58414047000 License-plate illumination '98WITHOUT SPRING FITTING |
58414047000 |
US $13.69 |
||
|
32
|
32
0021050003 Washer din9021-a 5,3WITHOUT SPRING FITTING |
0021050003 |
US $1.29 |
||
|
33
|
33
0985050003 Self Locking Nut Din0985-M 5WITHOUT SPRING FITTING |
0985050003 |
US $3.26 |
||
