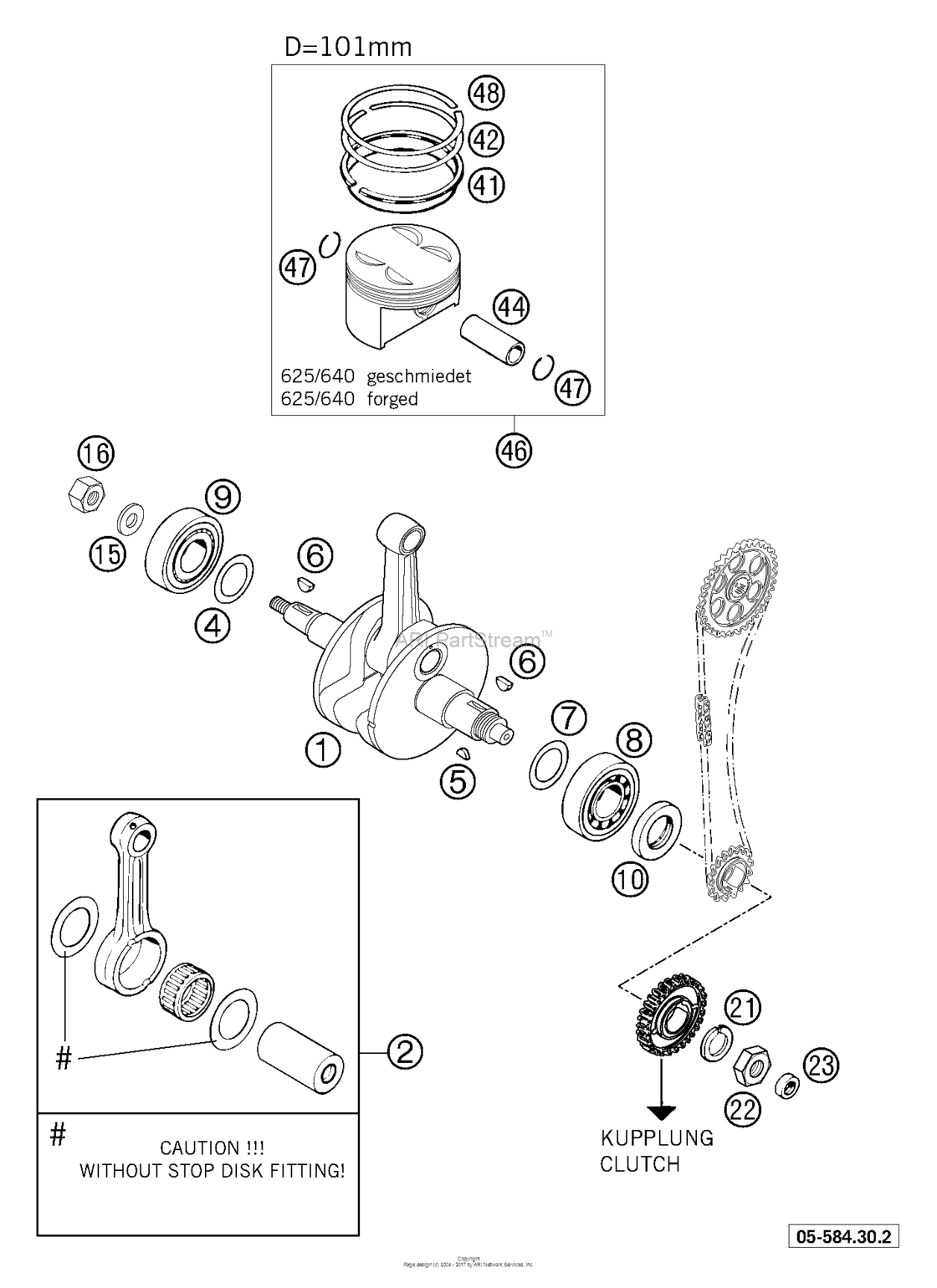

Crankshaft & Piston Diagram KTM 640 640 LC4 Super Moto
- Year
- 2005
- Sales region
- US/EU
- Engine Capacity
- 640
- Model
- 640 LC4 Super Moto
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58430018300 Crankshaft cpl. lc4 05STROKE 78MM |
58430018300 |
US $716.86 |
||
|
2
|
2
58430015044 Con.rod repair kit620/625/640 CCM L=141,5MM |
58430015044 |
US $369.73 |
||
|
4
|
4
56530081000 Shim washer 36x48x0,10620/625/640 CCM L=141,5MM |
56530081000 |
US $4.10 |
||
|
4
|
4
56530081100 Shim washer 36x48x0,15620/625/640 CCM L=141,5MM |
56530081100 |
US $1.28 |
||
|
4
|
4
56530081300 Shim washer 36x48x0,30620/625/640 CCM L=141,5MM |
56530081300 |
US $1.28 |
||
|
5
|
5
0888030050 Woodruff Key Din6888-3X5X13620/625/640 CCM L=141,5MM |
0888030050 |
US $2.60 |
||
|
6
|
6
6946005 Woodruff Key 5X6,5 Harded620/625/640 CCM L=141,5MM |
6946005 |
US $0.92 |
||
|
7
|
7
56030081000 Thrust washer 30,5x45x0,10620/625/640 CCM L=141,5MM |
56030081000 |
US $0.43 |
||
|
7
|
7
56030081100 Thrust washer 30,7x47x0,15620/625/640 CCM L=141,5MM |
56030081100 |
US $0.94 |
||
|
7
|
7
56030081200 Thrust washer 30,5x45x0,30620/625/640 CCM L=141,5MM |
56030081200 |
US $1.21 |
||
|
8
|
8
58030082000 Cyl.roller bearing nj 306 c3620/625/640 CCM L=141,5MM |
58030082000 |
US $118.75 |
||
|
9
|
9
56530123000 Cyl.roller bear. nj 207 ecp c3620/625/640 CCM L=141,5MM |
56530123000 |
US $92.29 |
||
|
10
|
10
0760304772 Sh.seal Ring 30X47X7 Bsl Viton620/625/640 CCM L=141,5MM |
0760304772 |
US $26.23 |
||
|
15
|
15
58330095000 Steel washer 16 x 30 x 3620/625/640 CCM L=141,5MM |
58330095000 |
US $3.67 |
||
|
16
|
16
58430028000
Hex nut m16x1,25 l/s
620/625/640 CCM L=141,5MM |
58430028000 |
— | ||
|
21
|
21
58030019000 Locking ring vsk 20620/625/640 CCM L=141,5MM |
58030019000 |
US $1.70 |
||
|
22
|
22
0936200155 Hexagon nut din0936-m20x1,5620/625/640 CCM L=141,5MM |
0936200155 |
US $8.52 |
||
|
23
|
23
0760122270 Shaft Seal Ring 12 X 22 X 7 B620/625/640 CCM L=141,5MM |
0760122270 |
US $15.86 |
||
|
41
|
41
58330031300 Oil scraper ring 101x2,5620/625/640 CCM L=141,5MM |
58330031300 |
US $35.56 |
||
|
42
|
42
58330932100 Tap.compr.piston ring 101x1,25620/625/640 CCM L=141,5MM |
58330932100 |
US $33.47 |
||
|
44
|
44
58330833000 Piston pin 22 x 13 x 60620/625/640 CCM L=141,5MM |
58330833000 |
US $47.82 |
||
|
46
|
46
58430007100I
Piston i cpl. d=101 elko 03
620/625/640 CCM L=141,5MM |
58430007100I |
— | ||
|
46
|
46
58430007100II
Piston ii cpl. d=101 elko 03
620/625/640 CCM L=141,5MM |
58430007100II |
— | ||
|
47
|
47
58430074000 Circlip 22 x 1,6620/625/640 CCM L=141,5MM |
58430074000 |
US $9.45 |
||
|
48
|
48
58430032000 L-ring 101x93,5x1,5 2000620/625/640 CCM L=141,5MM |
58430032000 |
US $50.27 |
