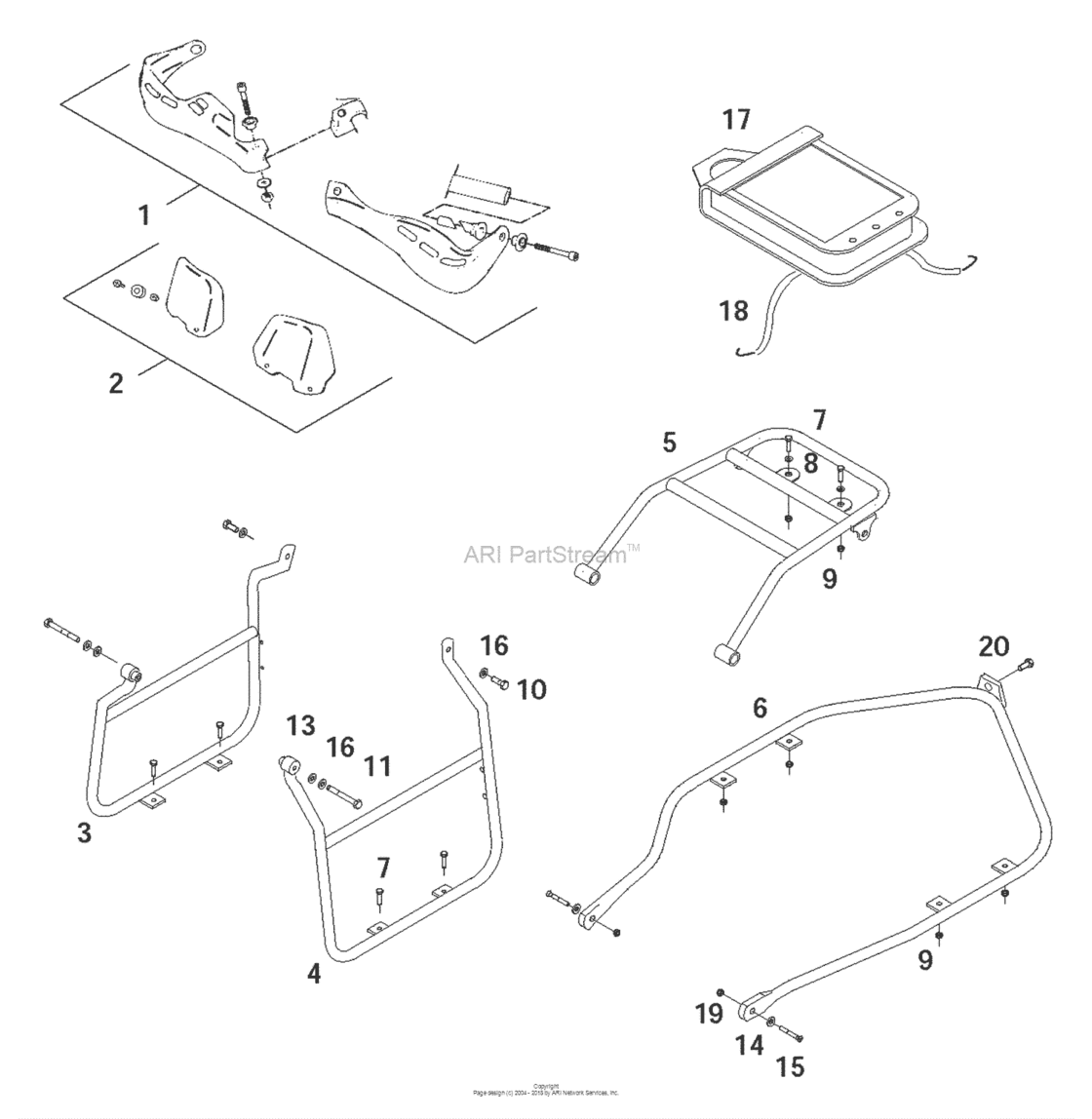

*accessories Diagram KTM 640 640 LS-E/mil
- Year
- 2000
- Sales region
- US/EU
- Engine Capacity
- 640
- Model
- 640 LS-E/mil
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5920207904430
Hand Guard Cpl. L+R/s Black
(400/640 LC4-E, SM) |
5920207904430 |
— | ||
|
2
|
2
5020207905030
Screen cpl.l+r/s black
(400/640 LC4-E, SM) |
5020207905030 |
— | ||
|
3
|
3
57912021000
Case Holder Ri
(400/640 LC4-E, SM) |
57912021000 |
— | ||
|
4
|
4
57912020000
Case Holder Le
(400/640 LC4-E, SM) |
57912020000 |
— | ||
|
5
|
5
57912010000
Baggage Carrier Mil. Black
(400/640 LC4-E, SM) |
57912010000 |
— | ||
|
6
|
6
57912010020
Basic Frame
(400/640 LC4-E, SM) |
57912010020 |
— | ||
|
7
|
7
0014060203 Hh Collar Screw M 6X20 Ws=8(400/640 LC4-E, SM) |
0014060203 |
US $3.26 |
||
|
8
|
8
0125060003 Washer Din0125-A 6,4(400/640 LC4-E, SM) |
0125060003 |
US $0.37 |
||
|
9
|
9
56509064100 Self Locking Nut M6 10.9(400/640 LC4-E, SM) |
56509064100 |
US $1.04 |
||
|
10
|
10
0015080163
Hh collar screw m 8x16 ws=10
(400/640 LC4-E, SM) |
0015080163 |
— | ||
| replacement | |||||
|
10
|
10
0025080166 Hh collar screw m8x16 tx40(400/640 LC4-E, SM) |
0025080166 |
US $2.35 |
||
|
11
|
11
0015080553
H H Collar Screw
(400/640 LC4-E, SM) |
0015080553 |
— | ||
| replacement | |||||
|
11
|
11
0025080556 Hh collar screw m8x55 tx40(400/640 LC4-E, SM) |
0025080556 |
US $3.50 |
||
|
13
|
13
31004001100 Washer 10,5 x 21 x 3(400/640 LC4-E, SM) |
31004001100 |
US $1.46 |
||
|
14
|
14
0991080353 Flat head screw din7991-m 8x35(400/640 LC4-E, SM) |
0991080353 |
US $2.21 |
||
|
15
|
15
58303061000 Special washer alu 8 x 24 mm(400/640 LC4-E, SM) |
58303061000 |
US $6.73 |
||
|
16
|
16
36003014000 Lock washer 8mm(400/640 LC4-E, SM) |
36003014000 |
US $0.46 |
||
|
17
|
17
57912019000
Tank Bag
(400/640 LC4-E, SM) |
57912019000 |
— | ||
|
18
|
18
57912019051
Tensioner Mil. L=590
(400/640 LC4-E, SM) |
57912019051 |
— | ||
|
19
|
19
54310086200 Self Locking Nut M8 10.9(400/640 LC4-E, SM) |
54310086200 |
US $1.56 |
||
|
20
|
20
0014060153
Hh Collar Screw M6X15 Tx30
(400/640 LC4-E, SM) |
0014060153 |
— | ||
| replacement | |||||
|
20
|
20
0024060156 Hh collar screw m6x15 tx30(400/640 LC4-E, SM) |
0024060156 |
US $3.96 |
||
