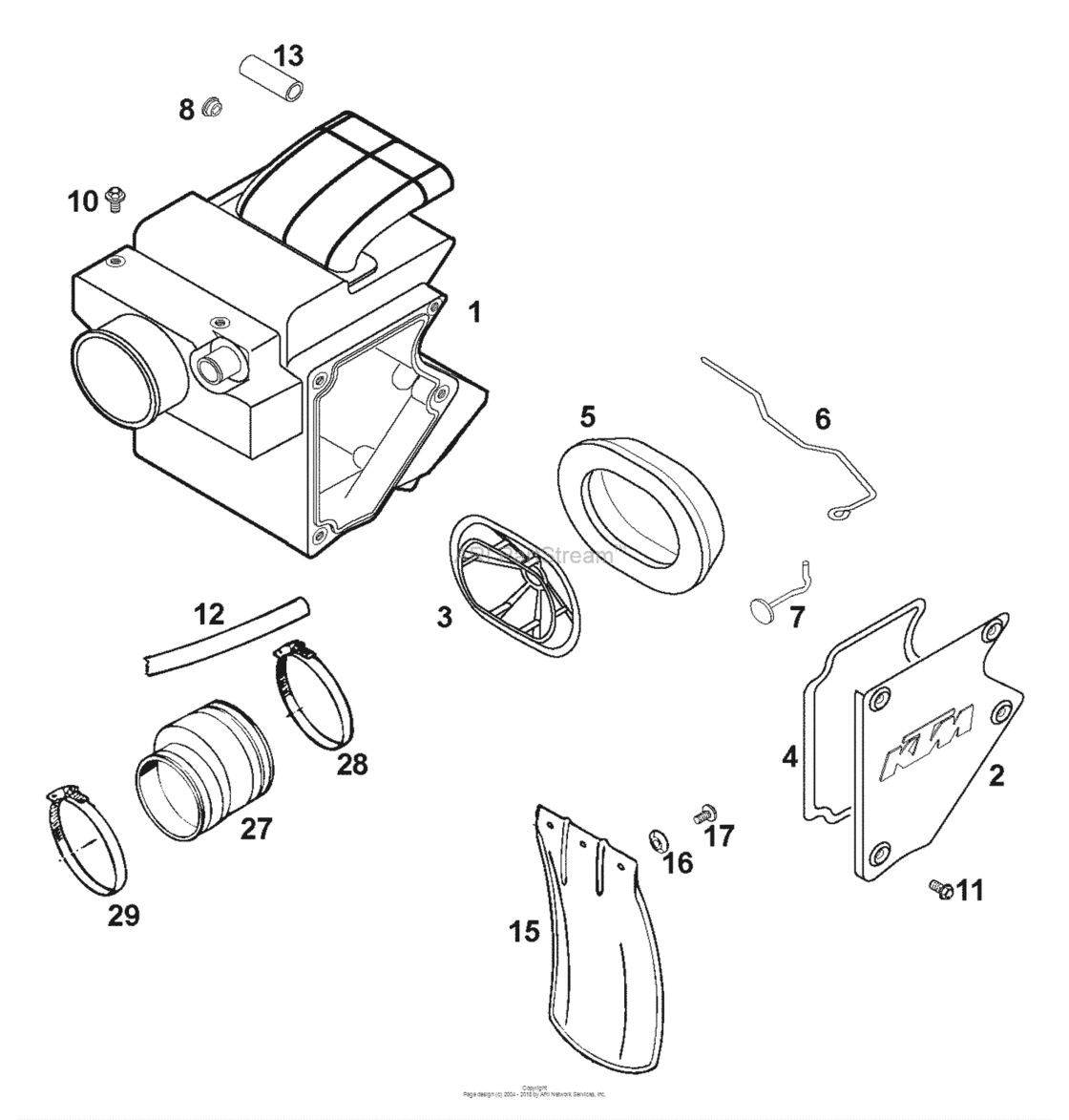

Air Filter Box Diagram KTM 640 640 LS-E/mil
- Year
- 2000
- Sales region
- US/EU
- Engine Capacity
- 640
- Model
- 640 LS-E/mil
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58406001100
F/17H Box Cpl. With Sls For Sls, Connection Rebore
(400/640 LC4-E, SM) |
58406001100 |
— | ||
| replacement | |||||
|
1
|
1
58406001200 Filter box e-start 03(400/640 LC4-E, SM) |
58406001200 |
US $225.11 |
||
|
2
|
2
58406003000 Filter box cover egs-e '97(400/640 LC4-E, SM) |
58406003000 |
US $10.76 |
||
|
3
|
3
58406016000 Filter carrier '97(400/640 LC4-E, SM) |
58406016000 |
US $14.89 |
||
|
4
|
4
58406090000 Gasket for filter box cover(400/640 LC4-E, SM) |
58406090000 |
US $16.81 |
||
|
5
|
5
58406015100 Air filter(400/640 LC4-E, SM) |
58406015100 |
US $34.27 |
||
|
6
|
6
58406017100
Holding hanger for filter '98
(400/640 LC4-E, SM) |
58406017100 |
— | ||
|
7
|
7
58406017050
Hook f.holding hang.filter '97
(400/640 LC4-E, SM) |
58406017050 |
— | ||
|
8
|
8
36111021000 Plug(400/640 LC4-E, SM) |
36111021000 |
US $0.61 |
||
|
10
|
10
0014060103
Hh Collar Screw M6X10 Tx30
(400/640 LC4-E, SM) |
0014060103 |
— | ||
| replacement | |||||
|
10
|
10
0024060106 Hh collar screw m6x10 tx30(400/640 LC4-E, SM) |
0024060106 |
US $4.35 |
||
|
11
|
11
0015050123
Hh collar screw m 5x12 ws=8
(400/640 LC4-E, SM) |
0015050123 |
— | ||
| replacement | |||||
|
11
|
11
0025050126 Hh collar screw m5x12 tx30(400/640 LC4-E, SM) |
0025050126 |
US $3.38 |
||
|
12
|
12
57005020001 Hose 10x14 per meter(400/640 LC4-E, SM) |
57005020001 |
US $13.86 |
||
|
13
|
13
57005020001 Hose 10x14 per meter(400/640 LC4-E, SM) |
57005020001 |
US $13.86 |
||
|
15
|
15
54606010000 Splash Protect.for Filter Box(400/640 LC4-E, SM) |
54606010000 |
US $20.42 |
||
|
16
|
16
72210079000 Bucket(400/640 LC4-E, SM) |
72210079000 |
US $2.72 |
||
|
17
|
17
0014060103
Hh Collar Screw M6X10 Tx30
(400/640 LC4-E, SM) |
0014060103 |
— | ||
| replacement | |||||
|
17
|
17
0024060106 Hh collar screw m6x10 tx30(400/640 LC4-E, SM) |
0024060106 |
US $4.35 |
||
|
27
|
27
58406026000 Air filter boot 400/640 lc4'97(400/640 LC4-E, SM) |
58406026000 |
US $20.62 |
||
|
28
|
28
55006028000 Hose clamp 60-80mm(400/640 LC4-E, SM) |
55006028000 |
US $5.46 |
||
|
29
|
29
51006027000 Hose Clamp 50-70Mm(400/640 LC4-E, SM) |
51006027000 |
US $5.66 |
||
