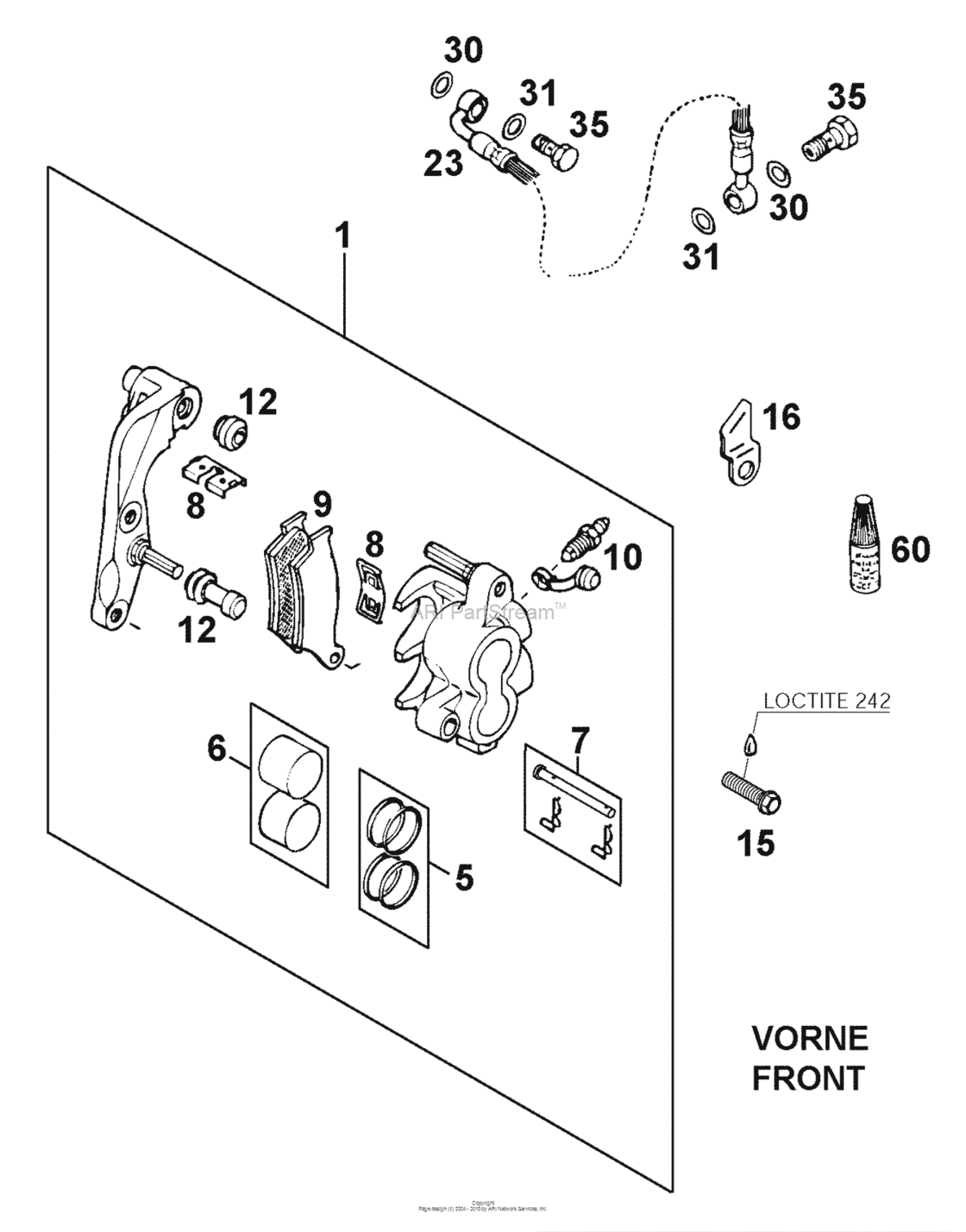

Brake Caliper Front Diagram KTM 640 640 LS-E/mil
- Year
- 2000
- Sales region
- US/EU
- Engine Capacity
- 640
- Model
- 640 LS-E/mil
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58413015044 Brake cali.front cpl. 2 piston(400/640 LC4-E, SM) |
58413015044 |
US $297.02 |
||
|
5
|
5
54613205000 Repair kit 28mm(400/640 LC4-E, SM) |
54613205000 |
US $20.21 |
||
|
6
|
6
54613206000 Repair kit piston 28mm(400/640 LC4-E, SM) |
54613206000 |
US $40.29 |
||
|
7
|
7
54613210100 Bolt Cpl. 6X56(400/640 LC4-E, SM) |
54613210100 |
US $17.19 |
||
|
8
|
8
54613212000 Retaining Plate Set Brembo(400/640 LC4-E, SM) |
54613212000 |
US $27.20 |
||
|
9
|
9
58413030000 Brake p.set fr. textart4069 gf(400/640 LC4-E, SM) |
58413030000 |
US $51.44 |
||
| replacement | |||||
|
9
|
9
59013930100 BRAKE PAD SET(400/640 LC4-E, SM) |
59013930100 |
US $46.85 |
||
|
10
|
10
54513214000 Bleeder Screw With Cap(400/640 LC4-E, SM) |
54513214000 |
US $14.89 |
||
| replacement | |||||
|
10
|
10
60013020000 Bleeder Screw With Cap(400/640 LC4-E, SM) |
60013020000 |
US $6.27 |
||
|
12
|
12
54613218000 Cup Set Short(400/640 LC4-E, SM) |
54613218000 |
US $25.72 |
||
| replacement | |||||
|
12
|
12
54613218100 CUP SET SHORT(400/640 LC4-E, SM) |
54613218100 |
US $25.72 |
||
|
15
|
15
0015080353 Hh Collar Screw M 8X35 Ws=10(400/640 LC4-E, SM) |
0015080353 |
US $7.12 |
||
|
16
|
16
58313092000 Clamp(400/640 LC4-E, SM) |
58313092000 |
US $4.44 |
||
| replacement | |||||
|
16
|
16
50201090000
Clamp for brake hose '94
(400/640 LC4-E, SM) |
50201090000 |
— | ||
|
23
|
23
58313011000 Brake hose 1580mm wp '97(400/640 LC4-E, SM) |
58313011000 |
US $149.63 |
||
|
30
|
30
42013226000 Cu-Seal Ring Din7603-10X16X1(400/640 LC4-E, SM) |
42013226000 |
US $4.10 |
||
|
31
|
31
42013026000 Cu-seal ring din7603-10x16x1,5(400/640 LC4-E, SM) |
42013026000 |
US $2.24 |
||
|
35
|
35
50213025000 Hollow Screw M10X1X19(400/640 LC4-E, SM) |
50213025000 |
US $5.39 |
||
|
60
|
60
6899785 Loctite 243 Blue 6Ccm(400/640 LC4-E, SM) |
6899785 |
US $40.61 |
||
