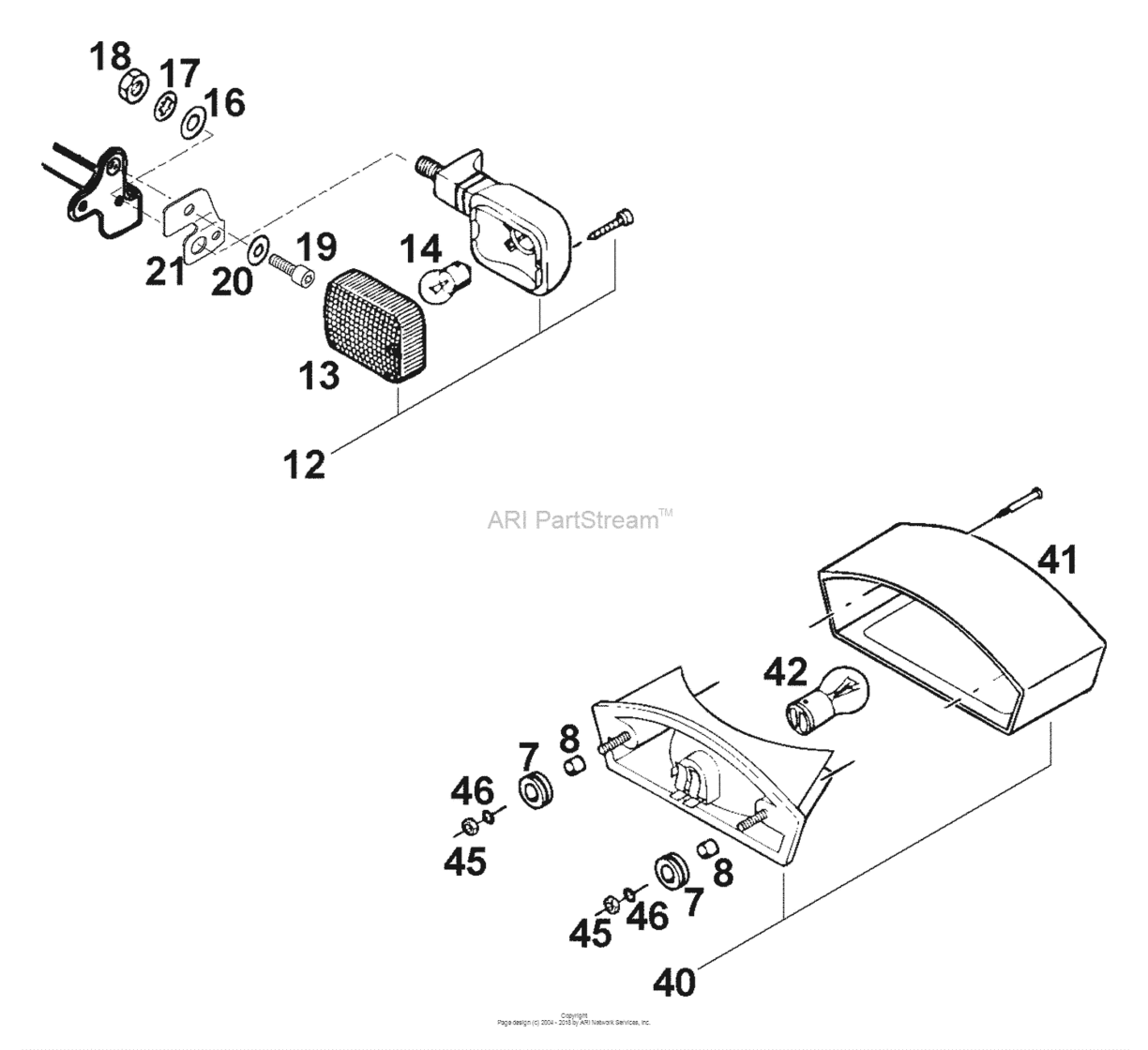

Flasher, Rear Light Diagram KTM 640 640 LS-E/mil
- Year
- 2000
- Sales region
- US/EU
- Engine Capacity
- 640
- Model
- 640 LS-E/mil
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
58311112000
Flasher L/s
(400/640 LC4-E, SM) |
58311112000 |
— | ||
|
|
58314034000
Flasher Bracket R/s Bent
(400/640 LC4-E, SM) |
58314034000 |
— | ||
|
7
|
7
31008060000 Rubber Sleeve D=8Mm Open(400/640 LC4-E, SM) |
31008060000 |
US $1.09 |
||
|
8
|
8
58011039000 Spacer bushing 6,5 x 8 x 7(400/640 LC4-E, SM) |
58011039000 |
US $1.79 |
||
|
12
|
12
58311012000
Flasher R/s
(400/640 LC4-E, SM) |
58311012000 |
— | ||
|
13
|
13
58311013000 Flasher lens l/s and r/s(400/640 LC4-E, SM) |
58311013000 |
US $6.68 |
||
|
14
|
14
44111015100 Bulb 12v 10w (ba15s)(400/640 LC4-E, SM) |
44111015100 |
US $2.30 |
||
|
16
|
16
0125100003 Washer Din0125-A10,5(400/640 LC4-E, SM) |
0125100003 |
US $1.19 |
||
|
17
|
17
0797100003 Lock washer din6797-j10,5 zi(400/640 LC4-E, SM) |
0797100003 |
US $0.65 |
||
|
18
|
18
0934102003 Hexagon nut din0934-m10x1,25(400/640 LC4-E, SM) |
0934102003 |
US $1.04 |
||
|
19
|
19
0912060163 Ah Screw Din0912-M 6X16(400/640 LC4-E, SM) |
0912060163 |
US $1.29 |
||
|
20
|
20
0021060003 Washer Din9021-A 6,4(400/640 LC4-E, SM) |
0021060003 |
US $3.26 |
||
|
21
|
21
58314033000
Flasher Bracket L/s Bent
(400/640 LC4-E, SM) |
58314033000 |
— | ||
|
40
|
40
58311040000 Rear Light Cpl. Cev 358 '93(400/640 LC4-E, SM) |
58311040000 |
US $45.66 |
||
|
41
|
41
58311041000 Lens '93(400/640 LC4-E, SM) |
58311041000 |
US $24.43 |
||
|
42
|
42
57011045000 Bulb 12V 21/5W (Bay15S)Reinfo(400/640 LC4-E, SM) |
57011045000 |
US $15.37 |
||
| replacement | |||||
|
42
|
42
58414042000 Bulb 12V 21/5W (Bay15S)Reinfo(400/640 LC4-E, SM) |
58414042000 |
US $12.56 |
||
|
45
|
45
0985060003 Self Lock. Nut Din0985-M 6(400/640 LC4-E, SM) |
0985060003 |
US $2.60 |
||
|
46
|
46
0021060003 Washer Din9021-A 6,4(400/640 LC4-E, SM) |
0021060003 |
US $3.26 |
||
