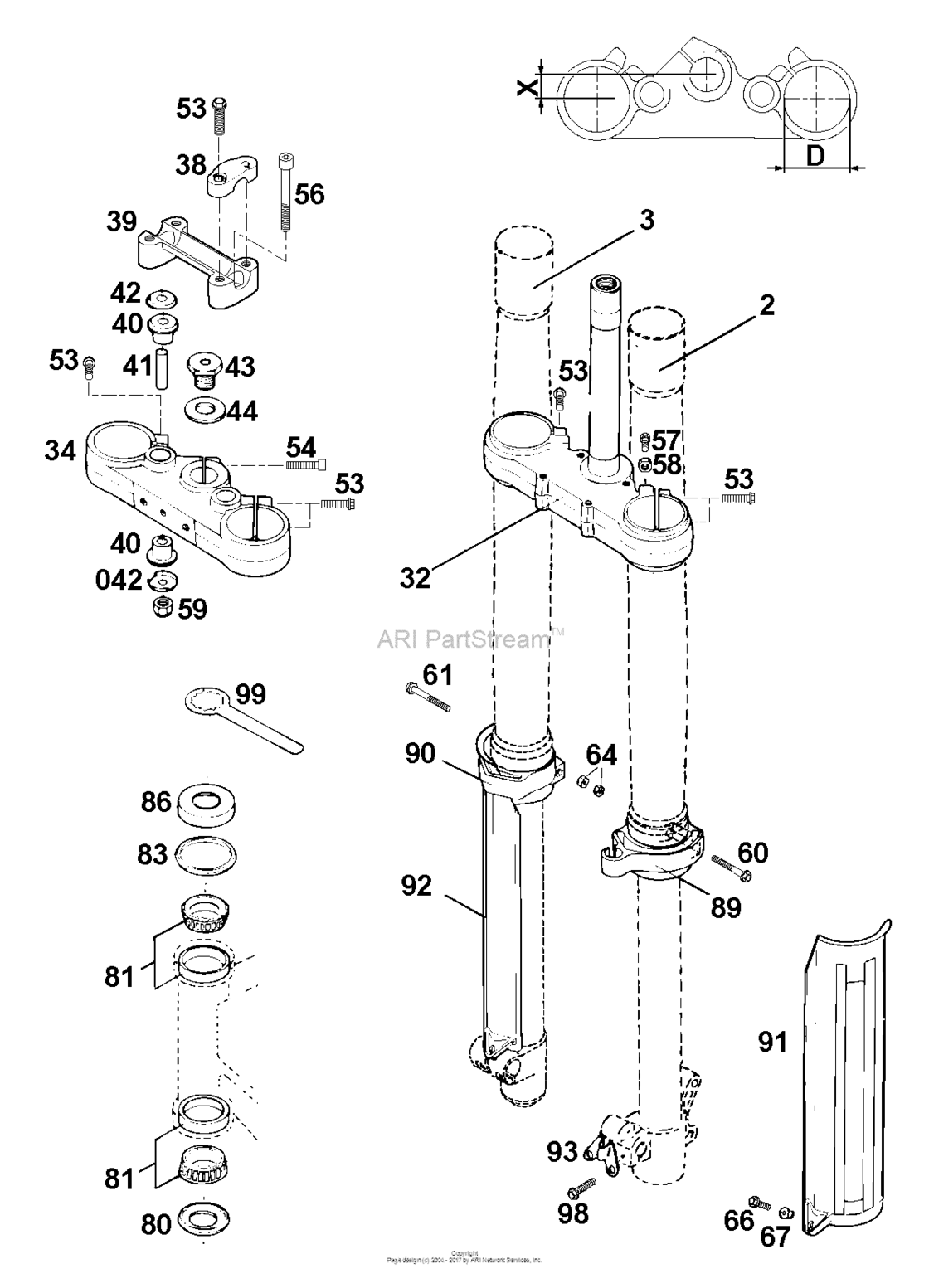

Front Fork Diagram KTM 640 640 LS-E/mil
- Year
- 2000
- Sales region
- US/EU
- Engine Capacity
- 640
- Model
- 640 LS-E/mil
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
58301001900
Fork Leg I/s K4T97K3 400/620 Lse
(400/640 LC4-E, SM) |
58301001900 |
— | ||
|
3
|
3
58301002900
Fork Leg R/s K4T97K3 400/620 Lse
(400/640 LC4-E, SM) |
58301002900 |
— | ||
|
32
|
32
57901032044
Bot.triple Clamp X=20Mm/d=57Mm
(400/640 LC4-E, SM) |
57901032044 |
— | ||
|
34
|
34
5830103410030
Top Triple Clamp X=20Mm/d=54Mm
(400/640 LC4-E, SM) |
5830103410030 |
— | ||
|
38
|
38
54601038000
Handlebar Clamp
(400/640 LC4-E, SM) |
54601038000 |
— | ||
| replacement | |||||
|
38
|
38
50301038000 Handlebar clamp d=22mm 2001(400/640 LC4-E, SM) |
50301038000 |
US $21.54 |
||
|
39
|
39
58301039100 Handlebar support '95(400/640 LC4-E, SM) |
58301039100 |
US $61.20 |
||
|
40
|
40
56401040000 Rubber bushing(400/640 LC4-E, SM) |
56401040000 |
US $6.73 |
||
|
41
|
41
56401041100 Spacer tube 10,2x12x44(400/640 LC4-E, SM) |
56401041100 |
US $5.25 |
||
|
42
|
42
56401042000 Washer 10,5x32x2(400/640 LC4-E, SM) |
56401042000 |
US $4.71 |
||
|
042
|
042
56401142000 Washer 10,5x31(400/640 LC4-E, SM) |
56401142000 |
US $3.49 |
||
|
43
|
43
50301036000 Steer.head screw m20x1,5 ws=27(400/640 LC4-E, SM) |
50301036000 |
US $12.65 |
||
|
44
|
44
56401044000
Washer 21x38x3
(400/640 LC4-E, SM) |
56401044000 |
— | ||
|
53
|
53
0015080303
Hh Collar Screw M8X30 Tx40
(400/640 LC4-E, SM) |
0015080303 |
— | ||
| replacement | |||||
|
53
|
53
0025080306 Hh collar screw m8x30 tx40(400/640 LC4-E, SM) |
0025080306 |
US $3.89 |
||
|
54
|
54
0912080353 Ah screw din0912-m 8x35(400/640 LC4-E, SM) |
0912080353 |
US $1.65 |
||
|
56
|
56
0984100702
Ah Screw Din6912-M10X70
(400/640 LC4-E, SM) |
0984100702 |
— | ||
| replacement | |||||
|
56
|
56
0984100703 Ah screw din6912-m10x70(400/640 LC4-E, SM) |
0984100703 |
US $6.92 |
||
|
57
|
57
0933070203 Hh screw din0933-m 7x20(400/640 LC4-E, SM) |
0933070203 |
US $1.58 |
||
|
58
|
58
0934070003 Hexagon nut din0934-m 7(400/640 LC4-E, SM) |
0934070003 |
US $0.61 |
||
|
59
|
59
0985100003 Self locking nut din0985-m10(400/640 LC4-E, SM) |
0985100003 |
US $1.22 |
||
|
60
|
60
0015050403 Hh Collar Screw M 5X40(400/640 LC4-E, SM) |
0015050403 |
US $1.58 |
||
| replacement | |||||
|
60
|
60
0931050403 Hh Screw Din931 M5X40(400/640 LC4-E, SM) |
0931050403 |
US $2.18 |
||
|
61
|
61
0015050453
Hh Collar Screw M 5X45
(400/640 LC4-E, SM) |
0015050453 |
— | ||
|
64
|
64
0985050003 Self Locking Nut Din0985-M 5(400/640 LC4-E, SM) |
0985050003 |
US $3.26 |
||
|
66
|
66
0015050163 Hh Collar Screw M 5X16 Ws=8(400/640 LC4-E, SM) |
0015050163 |
US $1.31 |
||
|
67
|
67
54601094100 Collar bushing f.sliding prot.(400/640 LC4-E, SM) |
54601094100 |
US $5.39 |
||
|
80
|
80
54601084100 O-Ring Support W. Sealing Lip(400/640 LC4-E, SM) |
54601084100 |
US $21.28 |
||
| replacement | |||||
|
80
|
80
77701084000 O-Ring Support W. Sealing Lip(400/640 LC4-E, SM) |
77701084000 |
US $21.15 |
||
|
81
|
81
54201081000 Tapered Roller Bearing Cpl. 06(400/640 LC4-E, SM) |
54201081000 |
US $62.54 |
||
| replacement | |||||
|
81
|
81
54201081100 Tapered Roller Bearing Cpl. 06(400/640 LC4-E, SM) |
54201081100 |
US $53.18 |
||
|
83
|
83
54601184000 Stearing head gasket top(400/640 LC4-E, SM) |
54601184000 |
US $7.74 |
||
|
86
|
86
54201086000 Steering Head Cover(400/640 LC4-E, SM) |
54201086000 |
US $8.11 |
||
| replacement | |||||
|
86
|
86
78101086000 Steering Head Cover(400/640 LC4-E, SM) |
78101086000 |
US $5.08 |
||
|
89
|
89
5460109000030
Protector guide l/s black
(400/640 LC4-E, SM) |
5460109000030 |
— | ||
|
90
|
90
5460119000030
Protector guide r/s black
(400/640 LC4-E, SM) |
5460119000030 |
— | ||
|
91
|
91
5460109100030 Sliding protector l/s black(400/640 LC4-E, SM) |
5460109100030 |
US $19.14 |
||
|
92
|
92
5460119100030
Sliding protector r/s black
(400/640 LC4-E, SM) |
5460119100030 |
— | ||
|
93
|
93
50201090000
Clamp for brake hose '94
(400/640 LC4-E, SM) |
50201090000 |
— | ||
|
98
|
98
0015070253
Hh Collar Screw M 7X25 Ws=8
(400/640 LC4-E, SM) |
0015070253 |
— | ||
|
99
|
99
54212035000
Ring wrench ws=32
(400/640 LC4-E, SM) |
54212035000 |
— | ||
