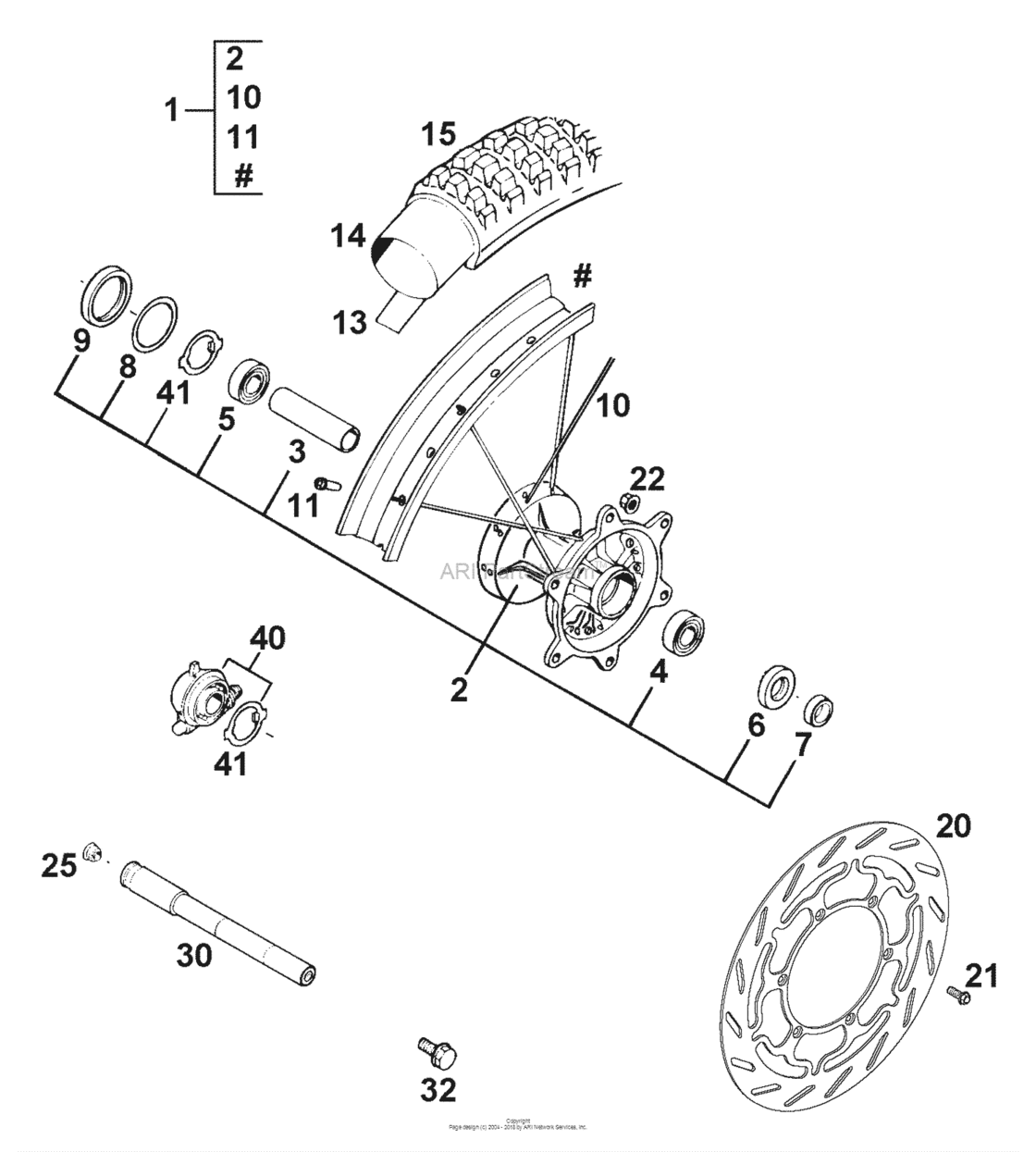

Front Wheel Diagram KTM 640 640 LS-E/mil
- Year
- 2000
- Sales region
- US/EU
- Engine Capacity
- 640
- Model
- 640 LS-E/mil
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5800900114430
Front Wheel 1,6X21In. Did Black
(400/640 LC4-E, SM) |
5800900114430 |
— | ||
|
2
|
2
5460901004430
Front Hub Cpl. Black '97
(400/640 LC4-E, SM) |
5460901004430 |
— | ||
|
3
|
3
54609011000 Bear.spacer tube 17,5x22x64,5(400/640 LC4-E, SM) |
54609011000 |
US $12.29 |
||
|
4
|
4
0625060037 Gr.ball bear. 6003-2rsh/c3hmtf(400/640 LC4-E, SM) |
0625060037 |
US $27.20 |
||
|
5
|
5
0625062032 Gr.ball bear. 6203-2rshc3hmtf(400/640 LC4-E, SM) |
0625062032 |
US $17.97 |
||
|
6
|
6
0760253570 Shaft seal ring 25x35x7 btsl(400/640 LC4-E, SM) |
0760253570 |
US $18.89 |
||
|
7
|
7
54609051000
Spacer ring 17x25x7,5
(400/640 LC4-E, SM) |
54609051000 |
— | ||
|
8
|
8
58111054000
Washer 40 X 52 X 0,15 '92
(400/640 LC4-E, SM) |
58111054000 |
— | ||
|
9
|
9
0760405270 Shaft seal ring 40x52x7 b(400/640 LC4-E, SM) |
0760405270 |
US $11.59 |
||
|
10
|
10
5830907123430
Spoke M5X234-15G 21' Dde Black
(400/640 LC4-E, SM) |
5830907123430 |
— | ||
|
11
|
11
5650907200030
Steel Nipple M5 Black
(400/640 LC4-E, SM) |
5650907200030 |
— | ||
|
13
|
13
51009073000 Rim Band 21(400/640 LC4-E, SM) |
51009073000 |
US $15.27 |
||
| replacement | |||||
|
13
|
13
50309073000 Rim Band 21(400/640 LC4-E, SM) |
50309073000 |
US $8.59 |
||
|
14
|
14
51009075000 Hose 21In(400/640 LC4-E, SM) |
51009075000 |
US $36.50 |
||
| replacement | |||||
|
14
|
14
50309075000
Hose 21In
(400/640 LC4-E, SM) |
50309075000 |
— | ||
|
15
|
15
58409074200
Tyre 90/90-21' Mt21
(400/640 LC4-E, SM) |
58409074200 |
— | ||
|
20
|
20
58309060100 Brake disk front d=300mm '96(400/640 LC4-E, SM) |
58309060100 |
US $304.59 |
||
|
21
|
21
0015060163 Hh Collar Screw M 6X16 Ws=8(400/640 LC4-E, SM) |
0015060163 |
US $2.23 |
||
|
22
|
22
56509064000 Self Locking Nut M6 10.9(400/640 LC4-E, SM) |
56509064000 |
US $1.14 |
||
| replacement | |||||
|
22
|
22
56509064100 Self Locking Nut M6 10.9(400/640 LC4-E, SM) |
56509064100 |
US $1.04 |
||
|
25
|
25
55009086000 Plug sfl13(400/640 LC4-E, SM) |
55009086000 |
US $1.39 |
||
|
30
|
30
58009081600 Wheel spindle wp l=213mm(400/640 LC4-E, SM) |
58009081600 |
US $95.34 |
||
|
32
|
32
49032011000 Hh collar screw m10x20 ws=17(400/640 LC4-E, SM) |
49032011000 |
US $5.73 |
||
|
40
|
40
58111052100
Odometer Drive
(400/640 LC4-E, SM) |
58111052100 |
— | ||
|
41
|
41
58111053100 Driving dog f.speedom.drive'92(400/640 LC4-E, SM) |
58111053100 |
US $6.83 |
||
