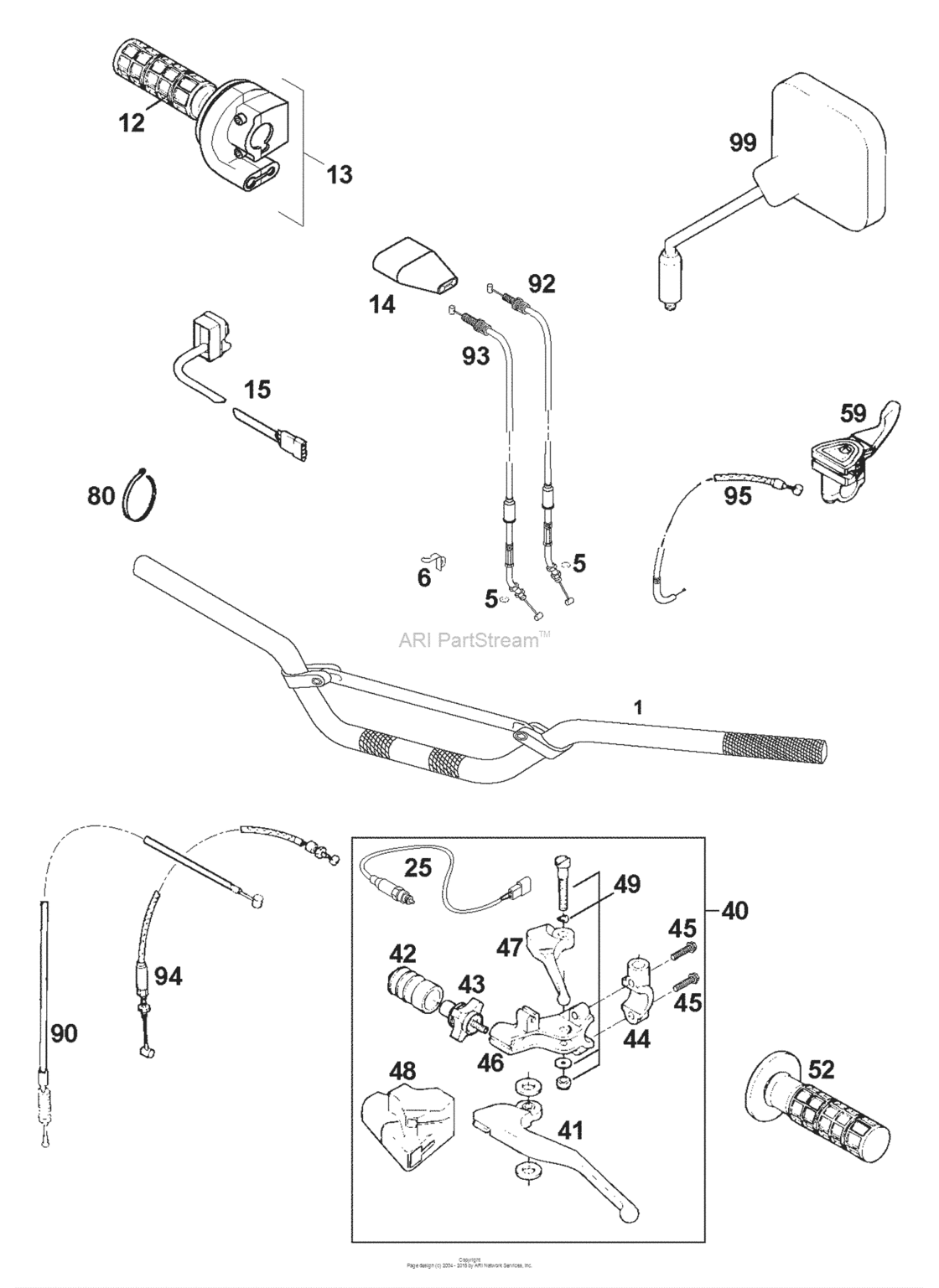

Handlebar, Controls Diagram KTM 640 640 LS-E/mil
- Year
- 2000
- Sales region
- US/EU
- Engine Capacity
- 640
- Model
- 640 LS-E/mil
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
58012140000 Rear mirror r/s(400/640 LC4-E, SM) |
58012140000 |
US $42.67 |
||
|
1
|
1
57902001000030
Handlebar Mil. Black '00
(400/640 LC4-E, SM) |
57902001000030 |
— | ||
|
5
|
5
0799040000 Tab washer din6799-rs 4,0(400/640 LC4-E, SM) |
0799040000 |
US $0.19 |
||
|
6
|
6
58402093000
Bracket for thrott.cable lc4
(400/640 LC4-E, SM) |
58402093000 |
— | ||
|
12
|
12
58302003000
Gripp Set Full Waffle
(400/640 LC4-E, SM) |
58302003000 |
— | ||
| replacement | |||||
|
12
|
12
58302021000 Gripp set full waffle(400/640 LC4-E, SM) |
58302021000 |
US $28.88 |
||
|
13
|
13
58402010400 Thrott.grip cpl. domino-mikuni(400/640 LC4-E, SM) |
58402010400 |
US $63.39 |
||
|
14
|
14
58302016200
Protect.cover rxc/duke usa '95
(400/640 LC4-E, SM) |
58302016200 |
— | ||
|
15
|
15
58411074000 Start-stop switch(400/640 LC4-E, SM) |
58411074000 |
US $40.29 |
||
|
25
|
25
58411049000 Clutch switch '96(400/640 LC4-E, SM) |
58411049000 |
US $28.61 |
||
|
40
|
40
58402040100
Clutch lever cpl. domino '97
(400/640 LC4-E, SM) |
58402040100 |
— | ||
|
41
|
41
58402042000 Clutch lever loose silver '97(400/640 LC4-E, SM) |
58402042000 |
US $45.36 |
||
|
42
|
42
58302126000 Clutch lever boot '95(400/640 LC4-E, SM) |
58302126000 |
US $3.91 |
||
|
43
|
43
58302043000 Adjustment Screw Cpl.m7(400/640 LC4-E, SM) |
58302043000 |
US $22.42 |
||
|
44
|
44
58302044000 Clamp mirrow m10x1,25(400/640 LC4-E, SM) |
58302044000 |
US $11.41 |
||
|
45
|
45
0015060253
Hh Collar Screw M6X25 Tx30
(400/640 LC4-E, SM) |
0015060253 |
— | ||
| replacement | |||||
|
45
|
45
0025060256 Hh collar screw m6x25 tx30(400/640 LC4-E, SM) |
0025060256 |
US $2.45 |
||
|
46
|
46
58402041000 Joint (pivot) domino '96(400/640 LC4-E, SM) |
58402041000 |
US $40.27 |
||
|
47
|
47
58302047000 Decompression lever loose(400/640 LC4-E, SM) |
58302047000 |
US $12.19 |
||
|
48
|
48
58402048000 Plastic Cover(400/640 LC4-E, SM) |
58402048000 |
US $9.83 |
||
| replacement | |||||
|
48
|
48
58302048000 Protecting cover(400/640 LC4-E, SM) |
58302048000 |
US $8.30 |
||
|
49
|
49
58302049000 Lever screw cpl.(400/640 LC4-E, SM) |
58302049000 |
US $6 |
||
|
52
|
52
58302052000
Rubber Grip
(400/640 LC4-E, SM) |
58302052000 |
— | ||
| replacement | |||||
|
52
|
52
58302021000 Gripp set full waffle(400/640 LC4-E, SM) |
58302021000 |
US $28.88 |
||
|
59
|
59
58302050000
Choke lever domino '93
(400/640 LC4-E, SM) |
58302050000 |
— | ||
|
80
|
80
44011076200 Cable tie 200/3,6mm black(400/640 LC4-E, SM) |
44011076200 |
US $0.39 |
||
|
80
|
80
44011076100 Cable tie 100/2,5mm black(400/640 LC4-E, SM) |
44011076100 |
US $0.39 |
||
| replacement | |||||
|
80
|
80
44011076140 Cable tie 140/2,5mm black(400/640 LC4-E, SM) |
44011076140 |
US $0.29 |
||
|
90
|
90
50202090200 Clutch Cable(400/640 LC4-E, SM) |
50202090200 |
US $40.48 |
||
| replacement | |||||
|
90
|
90
58402090000 Clutch cable 4t l=1115mm '99(400/640 LC4-E, SM) |
58402090000 |
US $36.65 |
||
|
92
|
92
58402092000 Thrott.cable"close"dom.-mikuni(400/640 LC4-E, SM) |
58402092000 |
US $52.17 |
||
|
93
|
93
58402192000 Thrott.cable"open"dom.-mikuni(400/640 LC4-E, SM) |
58402192000 |
US $54.64 |
||
|
94
|
94
58302094000 Decompression cable lc4 '93(400/640 LC4-E, SM) |
58302094000 |
US $37.81 |
||
|
95
|
95
57902095000
Choke Cable 640 Military '98
(400/640 LC4-E, SM) |
57902095000 |
— | ||
|
99
|
99
58012040000 Rear mirror l/s(400/640 LC4-E, SM) |
58012040000 |
US $41.60 |
||
