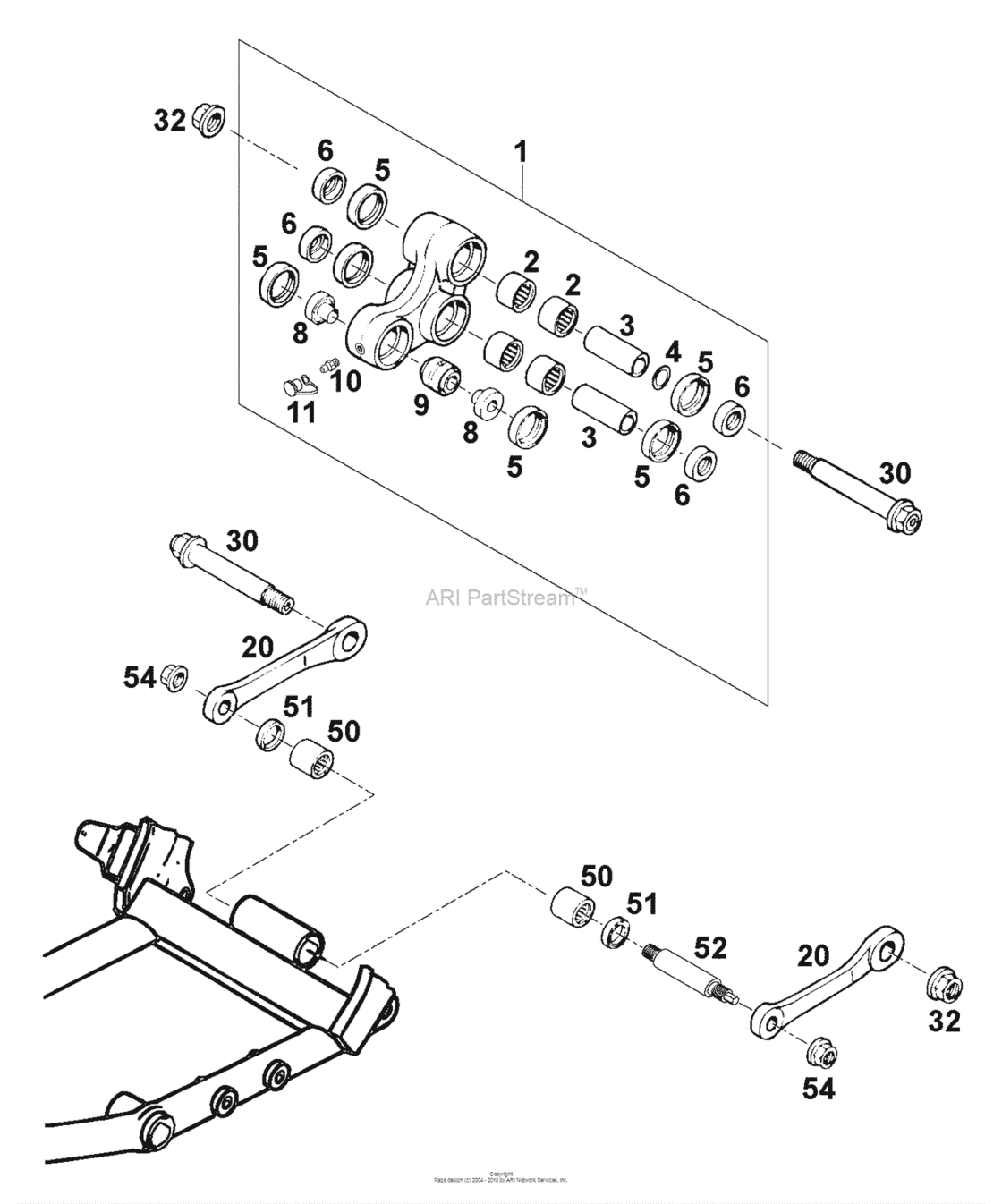

Pro Lever System Diagram KTM 640 640 LS-E/mil
- Year
- 2000
- Sales region
- US/EU
- Engine Capacity
- 640
- Model
- 640 LS-E/mil
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
54603090020 Steel washer 15,2x19x0,2(400/640 LC4-E, SM) |
54603090020 |
US $1.56 |
||
|
|
54603090030 Steel washer 15,2x19x0,3(400/640 LC4-E, SM) |
54603090030 |
US $1.09 |
||
|
1
|
1
58303080144
Rocker Arm
(400/640 LC4-E, SM) |
58303080144 |
— | ||
| replacement | |||||
|
1
|
1
58303080244 Rocker arm cpl. forged lc4 '99(400/640 LC4-E, SM) |
58303080244 |
US $294.13 |
||
|
2
|
2
54603097000 Needle bush hk 2016(400/640 LC4-E, SM) |
54603097000 |
US $15.33 |
||
|
3
|
3
54603081000 Bushing sleeve 15 x 20 x 48(400/640 LC4-E, SM) |
54603081000 |
US $25.01 |
||
|
4
|
4
54603090010 Steel washer 15,2x19x0,1(400/640 LC4-E, SM) |
54603090010 |
US $2.11 |
||
|
5
|
5
0760253270 Shaft seal ring 25x32x7(400/640 LC4-E, SM) |
0760253270 |
US $6.51 |
||
|
6
|
6
58303090000 Spac.f.shaft sealring 15x25x11(400/640 LC4-E, SM) |
58303090000 |
US $6.66 |
||
|
8
|
8
58303085100 Bushing for bearing link '95(400/640 LC4-E, SM) |
58303085100 |
US $6.41 |
||
|
9
|
9
54203083050
Hinge bearing blasted
(400/640 LC4-E, SM) |
54203083050 |
— | ||
|
10
|
10
72003035000 Grease fitting m6 straight(400/640 LC4-E, SM) |
72003035000 |
US $1.60 |
||
|
11
|
11
53003099000 Cap with loop red(400/640 LC4-E, SM) |
53003099000 |
US $1.45 |
||
|
20
|
20
58303083000 Linkage arm l=127mm '93(400/640 LC4-E, SM) |
58303083000 |
US $51.46 |
||
|
30
|
30
54603182050
Bolt Linkage Arm Cpl
(400/640 LC4-E, SM) |
54603182050 |
— | ||
| replacement | |||||
|
30
|
30
54603182000 Bolt Linkage Arm Cpl(400/640 LC4-E, SM) |
54603182000 |
US $40.61 |
||
|
32
|
32
54603015000 Self locking nut m14x1,5 ws=19(400/640 LC4-E, SM) |
54603015000 |
US $4.85 |
||
|
50
|
50
56503195100 Needle bearing hk 1816(400/640 LC4-E, SM) |
56503195100 |
US $13.97 |
||
|
51
|
51
0760182442 Shaft seal ring 18x24x4(400/640 LC4-E, SM) |
0760182442 |
US $6.53 |
||
|
52
|
52
58303084100 Bushing bolt connecting bar'96(400/640 LC4-E, SM) |
58303084100 |
US $43.01 |
||
|
54
|
54
49103415000
Self lock. nut m12x1,75 ws=19
(400/640 LC4-E, SM) |
49103415000 |
— | ||
