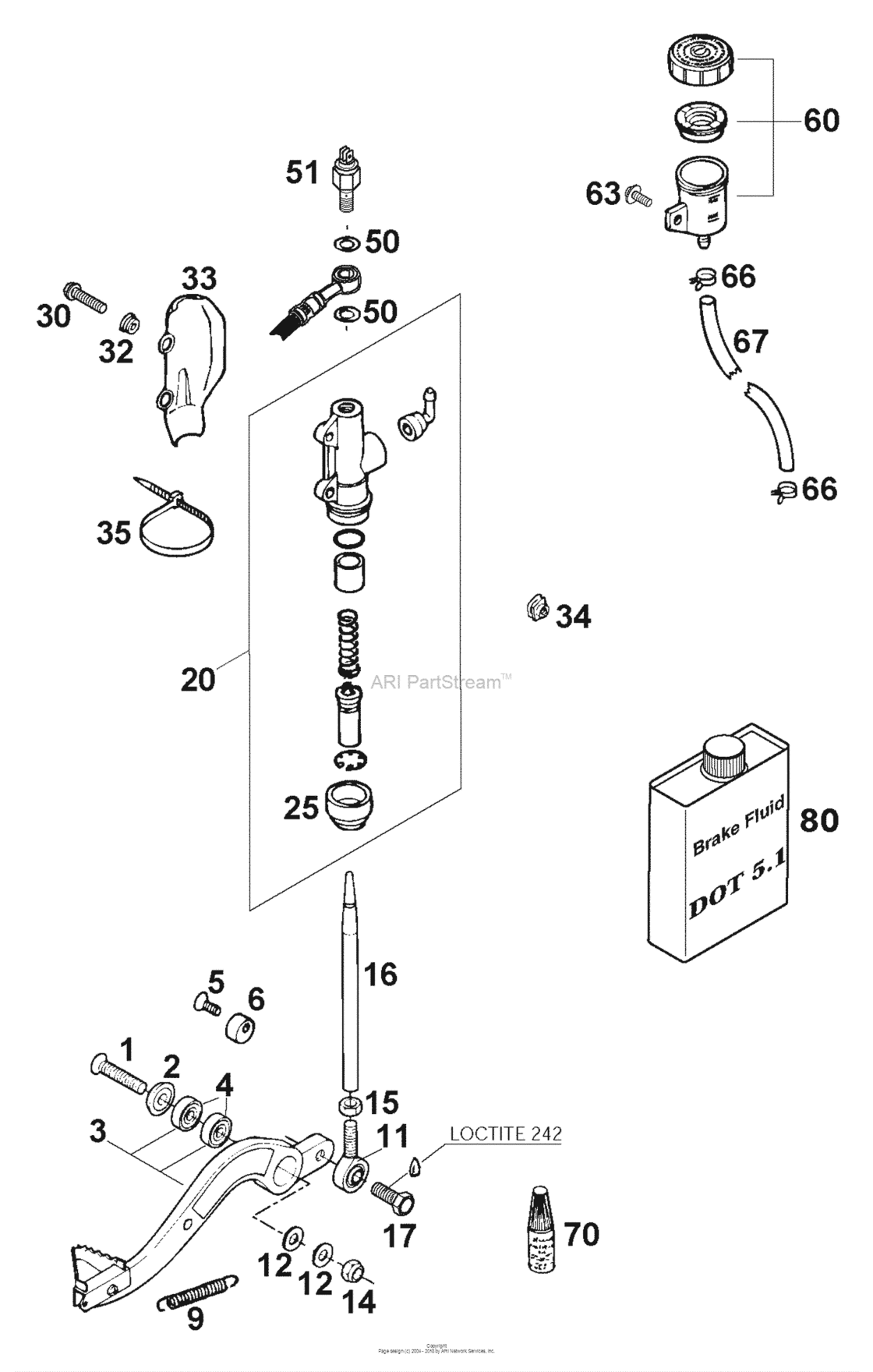

Rear Brake Control Diagram KTM 640 640 LS-E/mil
- Year
- 2000
- Sales region
- US/EU
- Engine Capacity
- 640
- Model
- 640 LS-E/mil
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0991080353 Flat head screw din7991-m 8x35(400/640 LC4-E, SM) |
0991080353 |
US $2.21 |
||
|
2
|
2
58303061000 Special washer alu 8 x 24 mm(400/640 LC4-E, SM) |
58303061000 |
US $6.73 |
||
|
3
|
3
58303060344
Superseded By 58403070044
(400/640 LC4-E, SM) |
58303060344 |
— | ||
|
4
|
4
0625006087 Grooved Ball Bear. 608 2Rs C3(400/640 LC4-E, SM) |
0625006087 |
US $19.19 |
||
|
5
|
5
0991060203 Flat Head Din7991-M 6X20(400/640 LC4-E, SM) |
0991060203 |
US $2.99 |
||
| replacement | |||||
|
5
|
5
0991060202 Flat head din7991-m 6x20(400/640 LC4-E, SM) |
0991060202 |
US $3.26 |
||
|
6
|
6
58303063000 Brake lever stop '93(400/640 LC4-E, SM) |
58303063000 |
US $5.07 |
||
|
9
|
9
13003062000 Return spring(400/640 LC4-E, SM) |
13003062000 |
US $5.76 |
||
|
11
|
11
58303062000 Heim joint m8 w=12mm '93(400/640 LC4-E, SM) |
58303062000 |
US $47.36 |
||
|
12
|
12
0125080003 Washer din0125-a 8,4(400/640 LC4-E, SM) |
0125080003 |
US $2.02 |
||
|
14
|
14
0985080003 Self Locking Nut Din0985-M 8(400/640 LC4-E, SM) |
0985080003 |
US $0.85 |
||
|
15
|
15
0934080003 Hexagon Nut Din0934-M 8(400/640 LC4-E, SM) |
0934080003 |
US $3.26 |
||
|
16
|
16
58303168000
Pressure Rod
(400/640 LC4-E, SM) |
58303168000 |
— | ||
| replacement | |||||
|
16
|
16
58303068100 Push rod alu l=178mm '93(400/640 LC4-E, SM) |
58303068100 |
US $12.05 |
||
|
17
|
17
0933080223 Hh screw din0933-m 8x22 8.8(400/640 LC4-E, SM) |
0933080223 |
US $1.14 |
||
|
20
|
20
54513101044 Main Brake Cylinder '89(400/640 LC4-E, SM) |
54513101044 |
US $118.37 |
||
|
25
|
25
54513151000 Rubber sleeve(400/640 LC4-E, SM) |
54513151000 |
US $19.06 |
||
|
30
|
30
0015060253
Hh Collar Screw M6X25 Tx30
(400/640 LC4-E, SM) |
0015060253 |
— | ||
| replacement | |||||
|
30
|
30
0025060256 Hh collar screw m6x25 tx30(400/640 LC4-E, SM) |
0025060256 |
US $2.45 |
||
|
32
|
32
50213161000 Collar bushing(400/640 LC4-E, SM) |
50213161000 |
US $3.38 |
||
|
33
|
33
54513038000 Brake cyl. protector "brembo"(400/640 LC4-E, SM) |
54513038000 |
US $6.09 |
||
|
34
|
34
50235033300
Snap-nut holder m6 kp142
(400/640 LC4-E, SM) |
50235033300 |
— | ||
| replacement | |||||
|
34
|
34
54603048100 Range Change Metal Nut M6(400/640 LC4-E, SM) |
54603048100 |
US $5.27 |
||
|
35
|
35
44011076305 Cable tie 300/4,8mm black(400/640 LC4-E, SM) |
44011076305 |
US $0.36 |
||
|
50
|
50
42013226000 Cu-Seal Ring Din7603-10X16X1(400/640 LC4-E, SM) |
42013226000 |
US $4.10 |
||
|
51
|
51
50311051000 Rear Brake Light Switch(400/640 LC4-E, SM) |
50311051000 |
US $23.70 |
||
|
60
|
60
54513030044 Brake Fluid Reservoir '89(400/640 LC4-E, SM) |
54513030044 |
US $17.56 |
||
|
63
|
63
0014060103
Hh Collar Screw M6X10 Tx30
(400/640 LC4-E, SM) |
0014060103 |
— | ||
| replacement | |||||
|
63
|
63
0024060106 Hh collar screw m6x10 tx30(400/640 LC4-E, SM) |
0024060106 |
US $4.35 |
||
|
66
|
66
58007017000 Ydnac clamp 10101 (9mm)(400/640 LC4-E, SM) |
58007017000 |
US $1.84 |
||
|
67
|
67
58007016101 Hose For Reservoir 6X1,5(400/640 LC4-E, SM) |
58007016101 |
US $17.49 |
||
|
70
|
70
6899785 Loctite 243 Blue 6Ccm(400/640 LC4-E, SM) |
6899785 |
US $40.61 |
||
|
80
|
80
306054
Brake fluid dot 4.0
(400/640 LC4-E, SM) |
306054 |
— | ||
