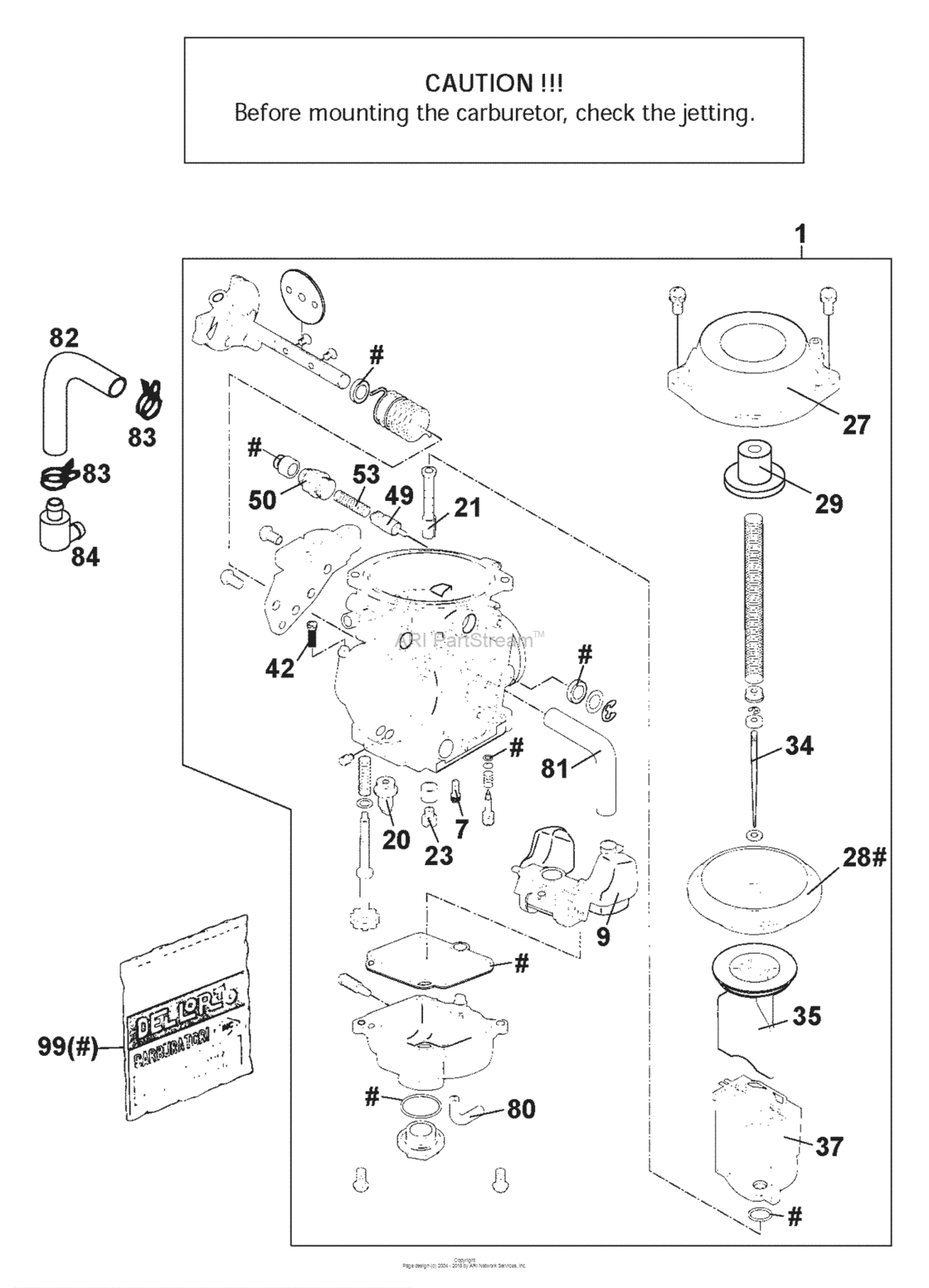

Carburetor Bst 40 Diagram KTM 640 640 LS-E/mil
- Year
- 2000
- Sales region
- US/EU
- Engine Capacity
- 640
- Model
- 640 LS-E/mil
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57931001000
Carb. Mikuni 40
(400/640 LC4-E, SM) |
57931001000 |
— | ||
|
7
|
7
58431007045 Idling jet 45(400/640 LC4-E, SM) |
58431007045 |
US $13.18 |
||
|
9
|
9
58431009000 Float 6,1 gramm mikuni(400/640 LC4-E, SM) |
58431009000 |
US $40.75 |
||
|
20
|
20
58431020000 Needle valve 2,8mm(400/640 LC4-E, SM) |
58431020000 |
US $55.13 |
||
|
21
|
21
58431021689 Needle jet 689 x-6(400/640 LC4-E, SM) |
58431021689 |
US $21.88 |
||
|
23
|
23
58431023140 Main jet 140(400/640 LC4-E, SM) |
58431023140 |
US $7.19 |
||
|
23
|
23
58431023142 Main jet 142,5(400/640 LC4-E, SM) |
58431023142 |
US $6.04 |
||
|
23
|
23
58431023145 Main jet 145(400/640 LC4-E, SM) |
58431023145 |
US $7.72 |
||
|
27
|
27
57931027000 Diaphragm Cover Mikuni400Mil04(400/640 LC4-E, SM) |
57931027000 |
US $27.80 |
||
| replacement | |||||
|
27
|
27
57931027100 Diaphragm cover mikuni400mil04(400/640 LC4-E, SM) |
57931027100 |
US $27.80 |
||
|
28
|
28
58431028000 Diaphragm for throttle valve(400/640 LC4-E, SM) |
58431028000 |
US $39.76 |
||
|
29
|
29
58331029011
Slide Stop L=11Mm
(400/640 LC4-E, SM) |
58331029011 |
— | ||
|
34
|
34
584310346G5 Jet needle 6g5(400/640 LC4-E, SM) |
584310346G5 |
US $11.51 |
||
|
35
|
35
58431035000 Throttle valve "1"(400/640 LC4-E, SM) |
58431035000 |
US $48.54 |
||
|
37
|
37
58431037000 Throttle valve guide plastic(400/640 LC4-E, SM) |
58431037000 |
US $37.84 |
||
|
42
|
42
58431042000 Fuel screen mikuni(400/640 LC4-E, SM) |
58431042000 |
US $7.99 |
||
|
49
|
49
58431049000 Starting piston mikuni(400/640 LC4-E, SM) |
58431049000 |
US $10.37 |
||
|
50
|
50
58431050000 Screw m12 startsystemn(400/640 LC4-E, SM) |
58431050000 |
US $7.70 |
||
|
53
|
53
58431053000 Spring 22,5mm for start.piston(400/640 LC4-E, SM) |
58431053000 |
US $5.61 |
||
|
80
|
80
52031137001 Pvc-hose 3x5mm(400/640 LC4-E, SM) |
52031137001 |
US $6 |
||
|
81
|
81
54435024001 Hose Id 7,5 Per Meter(400/640 LC4-E, SM) |
54435024001 |
US $27.40 |
||
|
82
|
82
58431097000 Angular hose t-con.-carburetor(400/640 LC4-E, SM) |
58431097000 |
US $17.68 |
||
|
83
|
83
58431082000
Ydnac-clamp 15mm '98
(400/640 LC4-E, SM) |
58431082000 |
— | ||
|
84
|
84
58431070000 Air Filter Lc4 '98(400/640 LC4-E, SM) |
58431070000 |
US $23.44 |
||
| replacement | |||||
|
84
|
84
58431070100 Air filter lc4 for epc 2005(400/640 LC4-E, SM) |
58431070100 |
US $16.69 |
||
|
99
|
99
58431099000 Gasket set mikuni bst40-225(400/640 LC4-E, SM) |
58431099000 |
US $63.31 |
||
