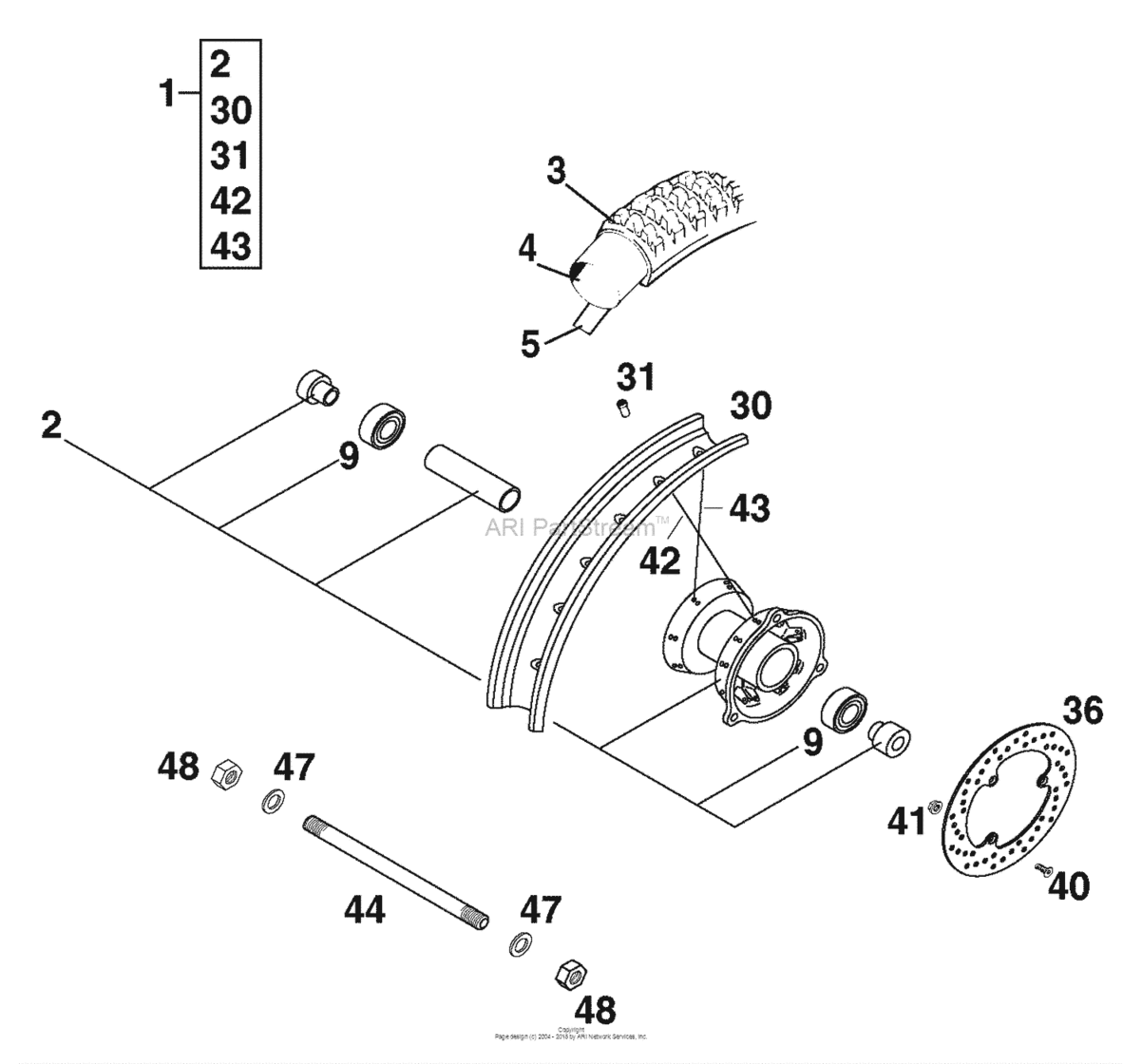

Front Wheel Diagram KTM 65 65 SX
- Year
- 1998
- Sales region
- US/EU
- Engine Capacity
- 65
- Model
- 65 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46009001044 Front wheel cpl. 1,6x14" '982002 |
46009001044 |
US $257.06 |
||
|
2
|
2
46009010000 Fr.wheel Hub Cpl. Silver 20062002 |
46009010000 |
US $223.50 |
||
| replacement | |||||
|
2
|
2
46109010144 Fr.wheel hub cpl. silver 20062002 |
46109010144 |
US $211.48 |
||
|
3
|
3
46009074000
Tyre 60/100-14In. 30M M39
2002 |
46009074000 |
— | ||
|
4
|
4
46009075000
Hose 2,75X14In
2002 |
46009075000 |
— | ||
|
5
|
5
46009073000
Rim Band 85 Sx 14 2003
2002 |
46009073000 |
— | ||
| replacement | |||||
|
5
|
5
47010073000 Rim band 85 sx 14" 20032002 |
47010073000 |
US $6.49 |
||
|
9
|
9
0625060037 Gr.ball bear. 6003-2rsh/c3hmtf2002 |
0625060037 |
US $27.20 |
||
|
30
|
30
46009070000
Rim Front 1,6X14 Alu 2008
2002 |
46009070000 |
— | ||
| replacement | |||||
|
30
|
30
46109070100 Rim front 1,6x14" alu 20082002 |
46109070100 |
US $166.38 |
||
|
31
|
31
46009072000 Spoke Nippel M3,5 20012002 |
46009072000 |
US $1.21 |
||
| replacement | |||||
|
31
|
31
46009072100 Spoke nippel m3,5 20012002 |
46009072100 |
US $1 |
||
|
36
|
36
46009060000 Brake disk front 198mm '982002 |
46009060000 |
US $87.67 |
||
|
40
|
40
0991060203 Flat Head Din7991-M 6X202002 |
0991060203 |
US $2.99 |
||
| replacement | |||||
|
40
|
40
0991060202 Flat head din7991-m 6x202002 |
0991060202 |
US $3.26 |
||
|
41
|
41
56509064000 Self Locking Nut M6 10.92002 |
56509064000 |
US $1.14 |
||
| replacement | |||||
|
41
|
41
56509064100 Self Locking Nut M6 10.92002 |
56509064100 |
US $1.04 |
||
|
42
|
42
46009071000 Spoke m3,5x145mm2002 |
46009071000 |
US $1.02 |
||
|
43
|
43
46009171000 Spoke m3,5x149mm2002 |
46009171000 |
US $1.02 |
||
|
44
|
44
46009081000 Axle front 194mm m12x12002 |
46009081000 |
US $27.74 |
||
|
47
|
47
0125120003 Flat washer din0125-a132002 |
0125120003 |
US $0.63 |
||
|
48
|
48
0934120103 Hexagon nut din0934-m12x12002 |
0934120103 |
US $1.17 |
||
