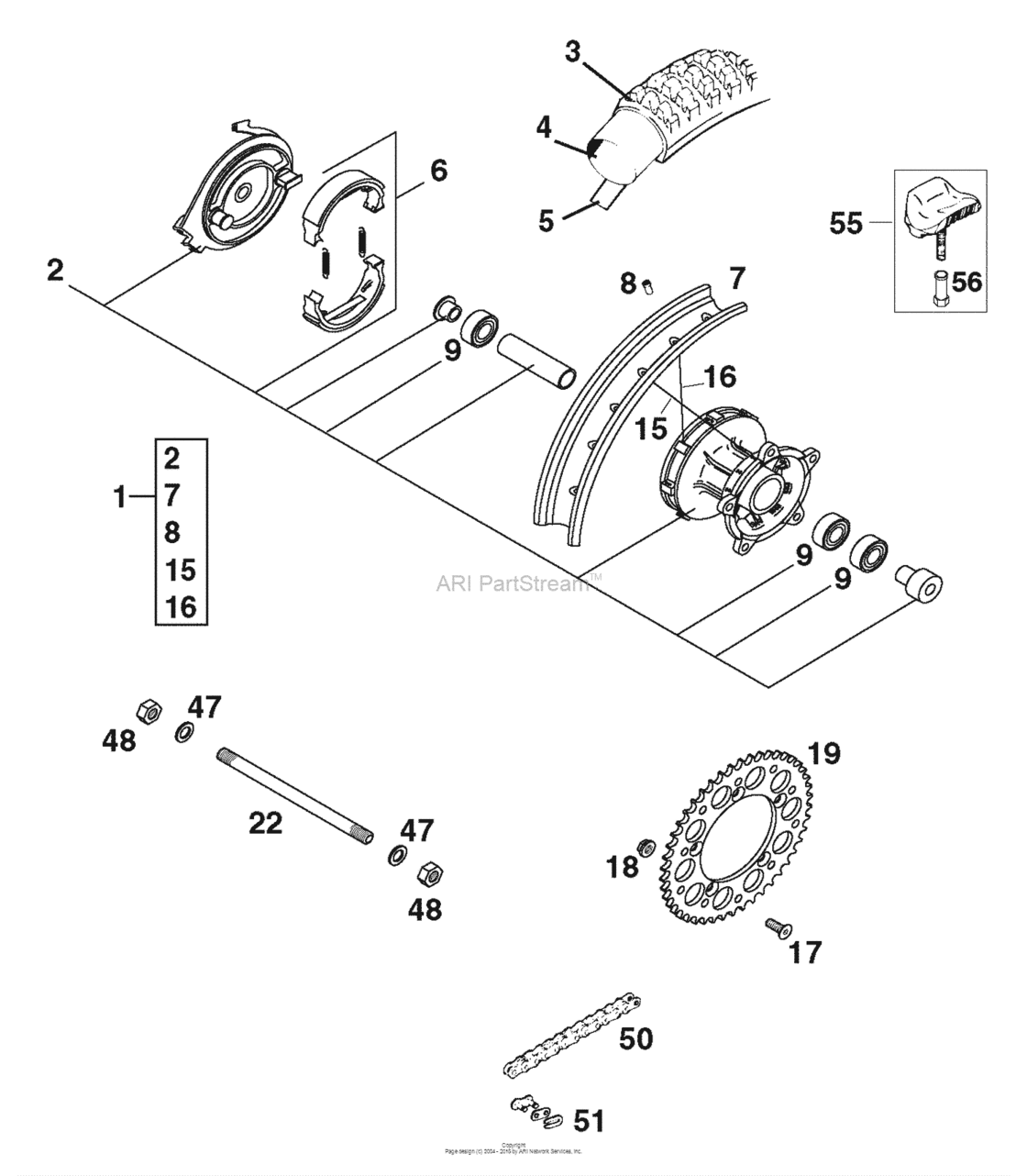

Rear Wheel Diagram KTM 65 65 SX
- Year
- 1998
- Sales region
- US/EU
- Engine Capacity
- 65
- Model
- 65 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46010001044
Rear wheel cpl. 1,60x12" '98
2002 |
46010001044 |
— | ||
|
2
|
2
46010010044 Rear wheel hub cpl. silver '982002 |
46010010044 |
US $279.02 |
||
|
3
|
3
46010074000
Tyre 80/100-12In. 41M M40
2002 |
46010074000 |
— | ||
|
4
|
4
46010075000
Hose 3,00-12In
2002 |
46010075000 |
— | ||
|
5
|
5
46010073000 Rim band 12"2002 |
46010073000 |
US $5.66 |
||
|
6
|
6
49010035000 Brake shoes garn. rear2002 |
49010035000 |
US $37.77 |
||
|
7
|
7
46010070000
Rim Rear 1,6X12 Alu 2007
2002 |
46010070000 |
— | ||
| replacement | |||||
|
7
|
7
46110070000 Rim rear 1,6x12" alu 20072002 |
46110070000 |
US $161.86 |
||
|
8
|
8
46009072000 Spoke Nippel M3,5 20012002 |
46009072000 |
US $1.21 |
||
| replacement | |||||
|
8
|
8
46009072100 Spoke nippel m3,5 20012002 |
46009072100 |
US $1 |
||
|
9
|
9
0625060037 Gr.ball bear. 6003-2rsh/c3hmtf2002 |
0625060037 |
US $27.20 |
||
|
15
|
15
46010071000 Spoke m3,5x128-20g 12" l/s2002 |
46010071000 |
US $1.14 |
||
|
16
|
16
46010171000
Spoke m3,5x139-27g 12" r/s
2002 |
46010171000 |
— | ||
|
17
|
17
0991080253 Flat head screw din7991-m 8x252002 |
0991080253 |
US $2.21 |
||
|
18
|
18
54310086000
Self Locking Nut M8 10.9
2002 |
54310086000 |
— | ||
| replacement | |||||
|
18
|
18
54310086200 Self Locking Nut M8 10.92002 |
54310086200 |
US $1.56 |
||
|
19
|
19
46010051044 Rear sprocket 44-t2002 |
46010051044 |
US $65.35 |
||
|
19
|
19
46010051046 Rear sprocket 46-t2002 |
46010051046 |
US $67 |
||
|
22
|
22
46010085000 Axle 207mm m12x12002 |
46010085000 |
US $25.21 |
||
|
47
|
47
0125120003 Flat washer din0125-a132002 |
0125120003 |
US $0.63 |
||
|
48
|
48
0934120103 Hexagon nut din0934-m12x12002 |
0934120103 |
US $1.17 |
||
|
50
|
50
46010065108 Chain 1/2X1/4 65 Sx2002 |
46010065108 |
US $52.38 |
||
| replacement | |||||
|
50
|
50
46110165112 Chain 1/2x1/4" 65 sx2002 |
46110165112 |
US $48.01 |
||
|
51
|
51
46010066000
Chain lock 1/2x1/4"
2002 |
46010066000 |
— | ||
|
55
|
55
51009100100 Rim Lock 1,602002 |
51009100100 |
US $20.55 |
||
| replacement | |||||
|
55
|
55
78109090000 Rim Lock 1,602002 |
78109090000 |
US $20.43 |
||
|
56
|
56
50310090050 Nut for wheel holder '962002 |
50310090050 |
US $4.01 |
||
| replacement | |||||
|
56
|
56
77110090050 Nut For Wheel Holder2002 |
77110090050 |
US $3.60 |
||
