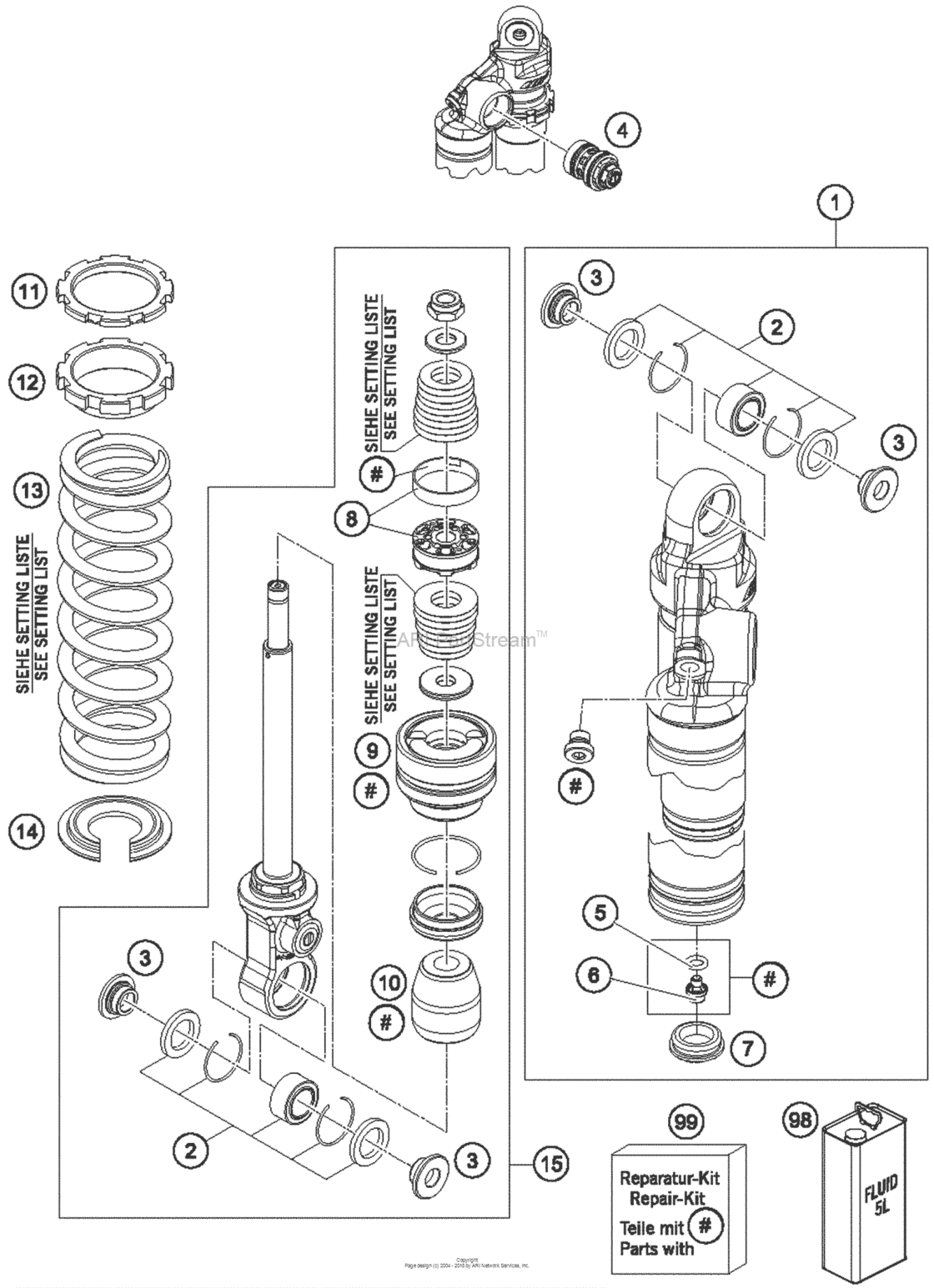

Monoshock Disassembled Diagram KTM 65 65 SX
- Year
- 2015
- Sales region
- US/EU
- Engine Capacity
- 65
- Model
- 65 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36120846S1 Monoshock Top Part Cpl08 |
36120846S1 |
US $456.21 |
||
|
2
|
2
R15009
Bearing kit kgw 1525 990 duke
08 |
R15009 |
— | ||
| replacement | |||||
|
2
|
2
R12012
Rep. kit bear./seal up. 07
08 |
R12012 |
— | ||
|
3
|
3
46180009 Spacer Bushing Kgw 10X2208 |
46180009 |
US $4.98 |
||
|
4
|
4
50180213S25 Dcc-Compr.damp.control Cpl. 1515 |
50180213S25 |
US $100.40 |
||
|
5
|
5
46810893 O-ring nbr 5,28x1,7815 |
46810893 |
US $1.12 |
||
|
6
|
6
36120151 Screw plug m5x615 |
36120151 |
US $7.31 |
||
|
7
|
7
46811208 Rubber cap "do not open"15 |
46811208 |
US $5.68 |
||
|
8
|
8
14460016 Piston + piston spring15 |
14460016 |
US $173.08 |
||
|
9
|
9
36120787S Adaptor 36mm h26,6 cpl. 0707 |
36120787S |
US $111.81 |
||
|
10
|
10
36120799 Bump rubber07 |
36120799 |
US $23.17 |
||
|
11
|
11
36120015 Counternut07 |
36120015 |
US $40.99 |
||
|
12
|
12
36120418 Adjusting nut07 |
36120418 |
US $49.13 |
||
|
13
|
13
93010207S Shock Spring 35N/mm - 210MmAs Required |
93010207S |
US $223.13 |
||
|
13
|
13
93010208S Shock Spring 40N/mm - 210MmAs Required |
93010208S |
US $223.13 |
||
|
13
|
13
93010209S Shock Spring 45N/mm - 210MmAs Required |
93010209S |
US $223.13 |
||
|
14
|
14
36120386 Spring ret. h=3, d=14,5As Required |
36120386 |
US $40.92 |
||
|
15
|
15
36120781S12 Monoshock Lower Part CplAs Required |
36120781S12 |
US $346.55 |
||
|
98
|
98
50180751S1
Shock Absorber Fluid 5 Lt
As Required |
50180751S1 |
— | ||
|
99
|
99
R12023 Repair Kit Not AvailableAs Required |
R12023 |
US $37.01 |
||
