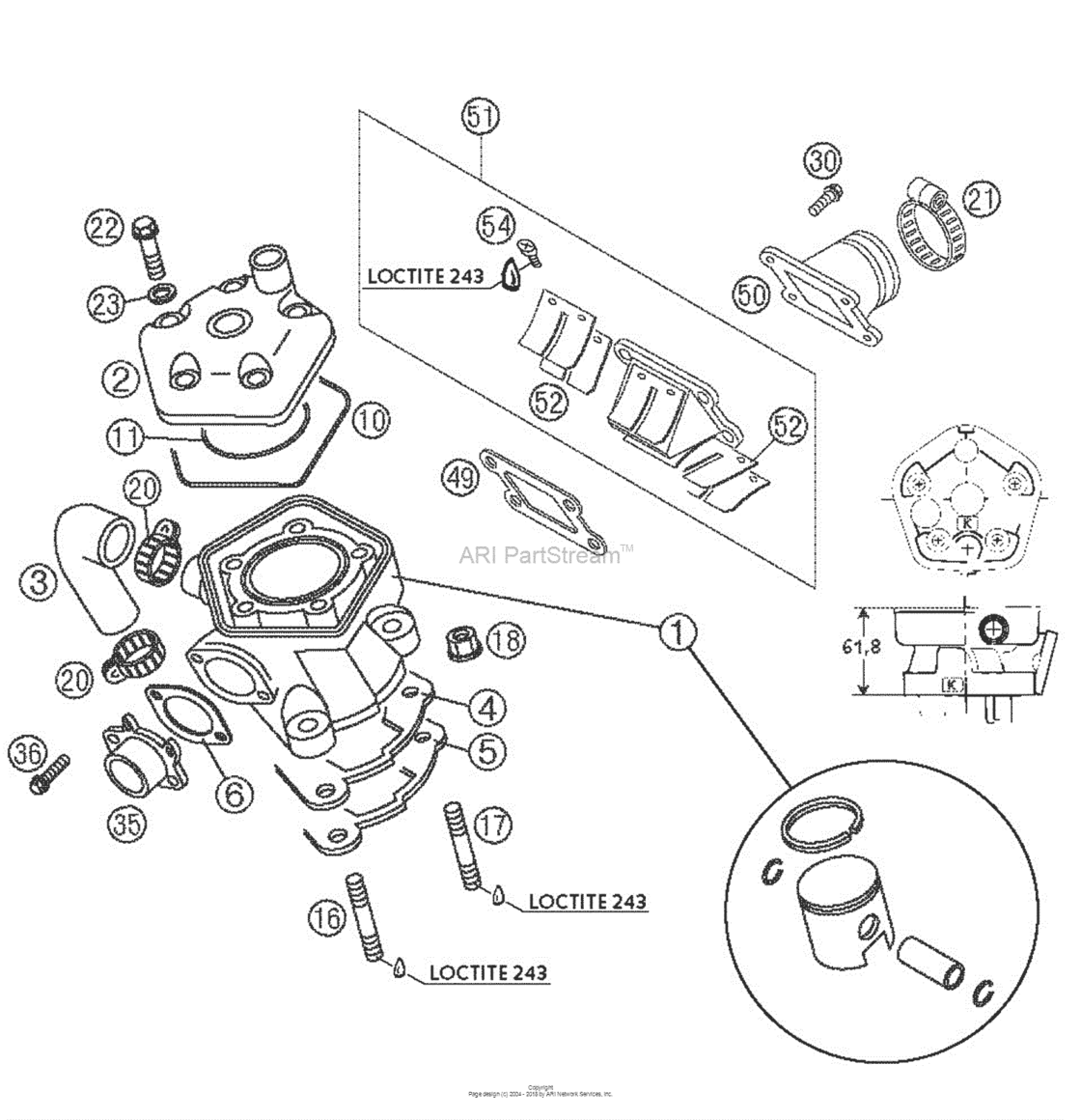

Cylinder Diagram KTM 65 65 SX
- Year
- 2002
- Sales region
- US/EU
- Engine Capacity
- 65
- Model
- 65 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46030005500 Cylinderheadscr.hh-M7X38 2003’99 |
46030005500 |
US $877.06 |
||
| replacement | |||||
|
1
|
1
46030079100 Cylinderheadscr.hh-m7x38 2003’99 |
46030079100 |
US $1.17 |
||
|
2
|
2
46030006600 Cylinderhead "k" 65ccm '9999 |
46030006600 |
US $243.27 |
||
|
3
|
3
46035027000 Pre-form.hose cyl.-clutch cov.99 |
46035027000 |
US $8.21 |
||
|
4
|
4
46030035050 Cylinder base gasket 0,5 mm(As Required) |
46030035050 |
US $10.17 |
||
|
5
|
5
46030035020 Cylinder base gasket 0,2 mm(As Required) |
46030035020 |
US $11.87 |
||
|
6
|
6
46030046000 Exhaust gasket 60/65 ccm(As Required) |
46030046000 |
US $6.09 |
||
|
10
|
10
46030037000 O-ring 94,97x1,78(As Required) |
46030037000 |
US $7.77 |
||
|
11
|
11
46030036000 O-ring 53,7x1,78 viton(As Required) |
46030036000 |
US $8.11 |
||
|
16
|
16
46030043000 Stud m8x41(As Required) |
46030043000 |
US $5.71 |
||
|
17
|
17
46030043100 Stud m8x44(As Required) |
46030043100 |
US $5.80 |
||
|
18
|
18
46030045000 Collar nut m8 ws=10WS=10 |
46030045000 |
US $6.94 |
||
|
20
|
20
10001020000 Hose Clamp 18-29WS=10 |
10001020000 |
US $4.71 |
||
|
21
|
21
31001027000 Hose clamp 32-52mm d5WS=10 |
31001027000 |
US $7.57 |
||
|
22
|
22
46030079000 Cylinderheadscr.hh-m7x33 20012001 |
46030079000 |
US $1.09 |
||
|
23
|
23
50230032010 Cu-seal ring 7,3 x 12 x 0,52001 |
50230032010 |
US $2.23 |
||
| replacement | |||||
|
23
|
23
0603070121 Cu-seal ring din7603- 7,3x12x12001 |
0603070121 |
US $1.09 |
||
|
30
|
30
0015060203
Hh Collar Screw M 6X20 Ws=8
WS=8 |
0015060203 |
— | ||
| replacement | |||||
|
30
|
30
0025060206 Hh collar screw m6x20 tx30WS=8 |
0025060206 |
US $1.97 |
||
|
35
|
35
46036040100 Exhaust flange 65 sx 20022002 |
46036040100 |
US $19.43 |
||
|
36
|
36
0015060203
Hh Collar Screw M 6X20 Ws=8
WS=8 |
0015060203 |
— | ||
| replacement | |||||
|
36
|
36
0025060206 Hh collar screw m6x20 tx30WS=8 |
0025060206 |
US $1.97 |
||
|
49
|
49
46030049000 Intake valve gasketWS=8 |
46030049000 |
US $2.47 |
||
|
50
|
50
46030050000
Intake flange
WS=8 |
46030050000 |
— | ||
|
51
|
51
45130051044 Membrane Housing Cpl.65Sx 20012001 |
45130051044 |
US $106.73 |
||
| replacement | |||||
|
51
|
51
46030051144 Membrane housing cpl.65sx 20012001 |
46030051144 |
US $88.45 |
||
|
52
|
52
46030052000 Membrane loose 60/65 ccm2001 |
46030052000 |
US $15.61 |
||
|
54
|
54
0985030063 Flat head screw din7985-m 3x62001 |
0985030063 |
US $0.10 |
||
