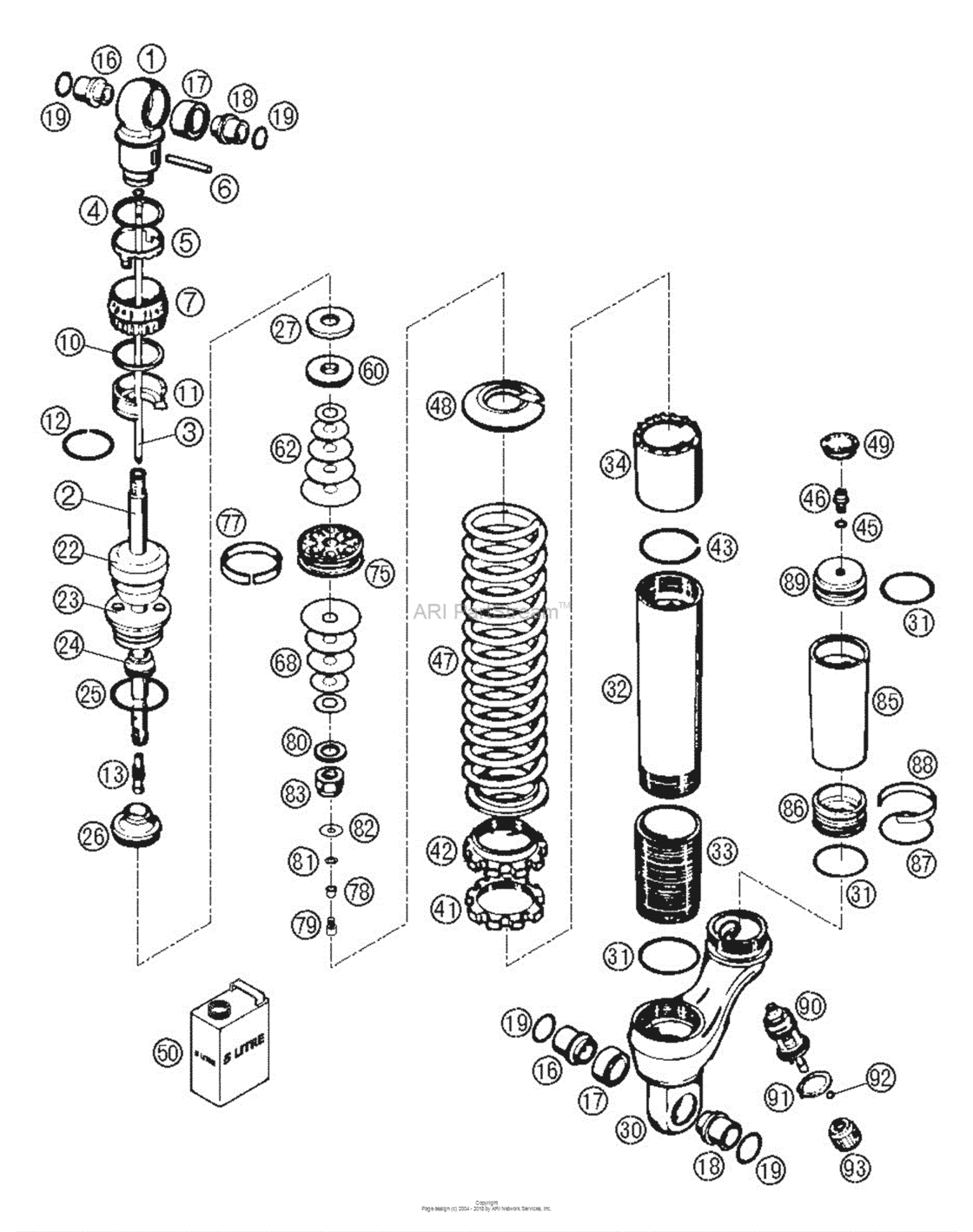

Shock Absorber Wp Disassembled Diagram KTM 65 65 SX
- Year
- 2003
- Sales region
- US/EU
- Engine Capacity
- 65
- Model
- 65 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46811525 Shock abs. bottom l=46WS=8 |
46811525 |
US $253.69 |
||
|
2
|
2
36120586
Piston Rod D=14, L=126
WS=8 |
36120586 |
— | ||
| replacement | |||||
|
2
|
2
36120586S Piston rod d=14, l=126WS=8 |
36120586S |
US $188.80 |
||
|
3
|
3
46811401S Needle cpl. d=4, l=142WS=8 |
46811401S |
US $136.92 |
||
|
4
|
4
46811222 O-ring 36x0,5WS=8 |
46811222 |
US $9.55 |
||
|
5
|
5
46811263 WasherWS=8 |
46811263 |
US $13.97 |
||
|
6
|
6
46811261 Pin 4x35WS=8 |
46811261 |
US $4.79 |
||
|
7
|
7
46811262 Adj. knob d=41WS=8 |
46811262 |
US $27.27 |
||
|
10
|
10
46811221 O-ring 35x3WS=8 |
46811221 |
US $15.49 |
||
|
11
|
11
46811367 Intermediato ring h=4WS=8 |
46811367 |
US $39.36 |
||
|
12
|
12
46811268 Circlip 22x1,2WS=8 |
46811268 |
US $1.94 |
||
|
13
|
13
46811259 Needle seat 5x17,25WS=8 |
46811259 |
US $39.41 |
||
|
16
|
16
46811076 Adaptor bush kgw 10x20WS=8 |
46811076 |
US $15.33 |
||
|
17
|
17
46811027 Bushing kgw 1525WS=8 |
46811027 |
US $63.75 |
||
|
18
|
18
46811077 Adaptor bush kgw 10x22WS=8 |
46811077 |
US $10.10 |
||
|
19
|
19
46811050 Seal kgwWS=8 |
46811050 |
US $7.58 |
||
|
22
|
22
36120135 Bump rubber wp65 redWS=8 |
36120135 |
US $30.36 |
||
|
23
|
23
36120521 Screw cap m37,65WS=8 |
36120521 |
US $64.80 |
||
|
24
|
24
46811044 Dust seal 1424WS=8 |
46811044 |
US $24.99 |
||
|
25
|
25
36120064 O-ring nbr 29,74x3,53WS=8 |
36120064 |
US $4.44 |
||
|
26
|
26
36120522S1 Adapter cpl. d=36 h=20,5WS=8 |
36120522S1 |
US $77.06 |
||
|
27
|
27
36120469 Shim 28,5x14x2WS=8 |
36120469 |
US $9.57 |
||
|
30
|
30
36120726 Shock absorb.case pgb kgw h=33WS=8 |
36120726 |
US $254.80 |
||
|
31
|
31
46811042 O-Ring 40,00X2,00 WpWS=8 |
46811042 |
US $2.89 |
||
|
32
|
32
36120137 Tube l=167WS=8 |
36120137 |
US $88.74 |
||
|
33
|
33
36120019 Threaded bush l=70 blackWS=8 |
36120019 |
US $44.46 |
||
|
34
|
34
36120467 Protection sleeve l=40WS=8 |
36120467 |
US $22.59 |
||
|
41
|
41
36120015 CounternutWS=8 |
36120015 |
US $40.99 |
||
|
42
|
42
36120418 Adjusting nutWS=8 |
36120418 |
US $49.13 |
||
|
43
|
43
40540015 Circlip 38x1,5WS=8 |
40540015 |
US $2.19 |
||
|
45
|
45
46810893 O-ring nbr 5,28x1,78WS=8 |
46810893 |
US $1.12 |
||
|
46
|
46
36120151 Screw plug m5x6WS=8 |
36120151 |
US $7.31 |
||
|
47
|
47
93010049 Spring wp 40-220WS=8 |
93010049 |
US $217.69 |
||
|
47
|
47
93010050 Spring wp 45-220(As Required) |
93010050 |
US $217.69 |
||
|
48
|
48
36120386 Spring ret. h=3, d=14,5(As Required) |
36120386 |
US $40.92 |
||
|
49
|
49
46811208 Rubber cap "do not open"(As Required) |
46811208 |
US $5.68 |
||
|
50
|
50
50180342S1
Shock Absorber Fluid 5 Lt
2003 |
50180342S1 |
— | ||
| replacement | |||||
|
50
|
50
50180751S1
Shock Absorber Fluid 5 Lt
2003 |
50180751S1 |
— | ||
|
60
|
60
36120557 Rebound bush h=5,62003 |
36120557 |
US $29.31 |
||
|
62
|
62
36120312 Shim 10x16x0,302003 |
36120312 |
US $2.40 |
||
|
62
|
62
36120334 Shim 10x21x0,202003 |
36120334 |
US $4.44 |
||
|
62
|
62
36120335 Shim 10x23x0,202003 |
36120335 |
US $4.44 |
||
|
62
|
62
36120336 Shim 10x25x0,202003 |
36120336 |
US $4.44 |
||
|
62
|
62
36120337 Shim 10x27x0,202003 |
36120337 |
US $5.19 |
||
|
62
|
62
36120330 Shim 10x29x0,152003 |
36120330 |
US $5.07 |
||
|
62
|
62
36120331 Shim 10x31x0,152003 |
36120331 |
US $5.07 |
||
|
62
|
62
36120332 Shim 10x33x0,152003 |
36120332 |
US $5.07 |
||
|
62
|
62
36120329 Shim 10x27x0,152003 |
36120329 |
US $5.07 |
||
|
62
|
62
36120325 Shim 10x19x0,152003 |
36120325 |
US $4.34 |
||
|
62
|
62
36120340 Shim 10x33x0,202003 |
36120340 |
US $5.07 |
||
|
68
|
68
36120314 Shim 10x18x0,302003 |
36120314 |
US $2.33 |
||
|
68
|
68
36120342 Shim 10x21x0,252003 |
36120342 |
US $4.34 |
||
|
68
|
68
36120343 Shim 10x23x0,252003 |
36120343 |
US $4.34 |
||
|
68
|
68
36120336 Shim 10x25x0,202003 |
36120336 |
US $4.44 |
||
|
68
|
68
36120284 Shim 10x16x0,102003 |
36120284 |
US $2.33 |
||
|
68
|
68
36120335 Shim 10x23x0,202003 |
36120335 |
US $4.44 |
||
|
68
|
68
36120328 Shim 10x25x0,152003 |
36120328 |
US $4.34 |
||
|
75
|
75
36120603 Piston 6+6xd=5,5/3,5 ba2003 |
36120603 |
US $95.06 |
||
|
77
|
77
36120040 Piston ring 8x1x108,32003 |
36120040 |
US $8.70 |
||
|
78
|
78
46811267 Bushing 6x9x32003 |
46811267 |
US $6.26 |
||
|
79
|
79
46811251
Bleed screw m 4x6
2003 |
46811251 |
— | ||
|
80
|
80
36120604 Shim d10xd22x2,52003 |
36120604 |
US $20.16 |
||
|
81
|
81
40540450 Shim 6x9,5x0,32003 |
40540450 |
US $2.02 |
||
|
82
|
82
40540403 Shim 6x18x0,12003 |
40540403 |
US $2.87 |
||
|
83
|
83
36120605S2 Piston rod nut cpl. h=15,22003 |
36120605S2 |
US $89.22 |
||
|
85
|
85
36120631 Reservoir screw l=98 grey2003 |
36120631 |
US $174.64 |
||
|
86
|
86
36120024 Separation piston d=422003 |
36120024 |
US $36.36 |
||
|
87
|
87
36120466 O-ring viton 32x52003 |
36120466 |
US $10.27 |
||
|
88
|
88
46810022 Piston ring 3,9x1,5x1242003 |
46810022 |
US $9.84 |
||
|
89
|
89
36120552 Screw for reservoir cap m52003 |
36120552 |
US $52.65 |
||
|
90
|
90
46810850S7 Cc-compre.damping control cpl.2003 |
46810850S7 |
US $173.81 |
||
|
91
|
91
46810334
Lock washer jv24
2003 |
46810334 |
— | ||
|
92
|
92
46810333 Steel-ball d=4,752003 |
46810333 |
US $1.29 |
||
|
93
|
93
50180131S Adjusting knob cc-mech. cpl.2003 |
50180131S |
US $31.11 |
||
