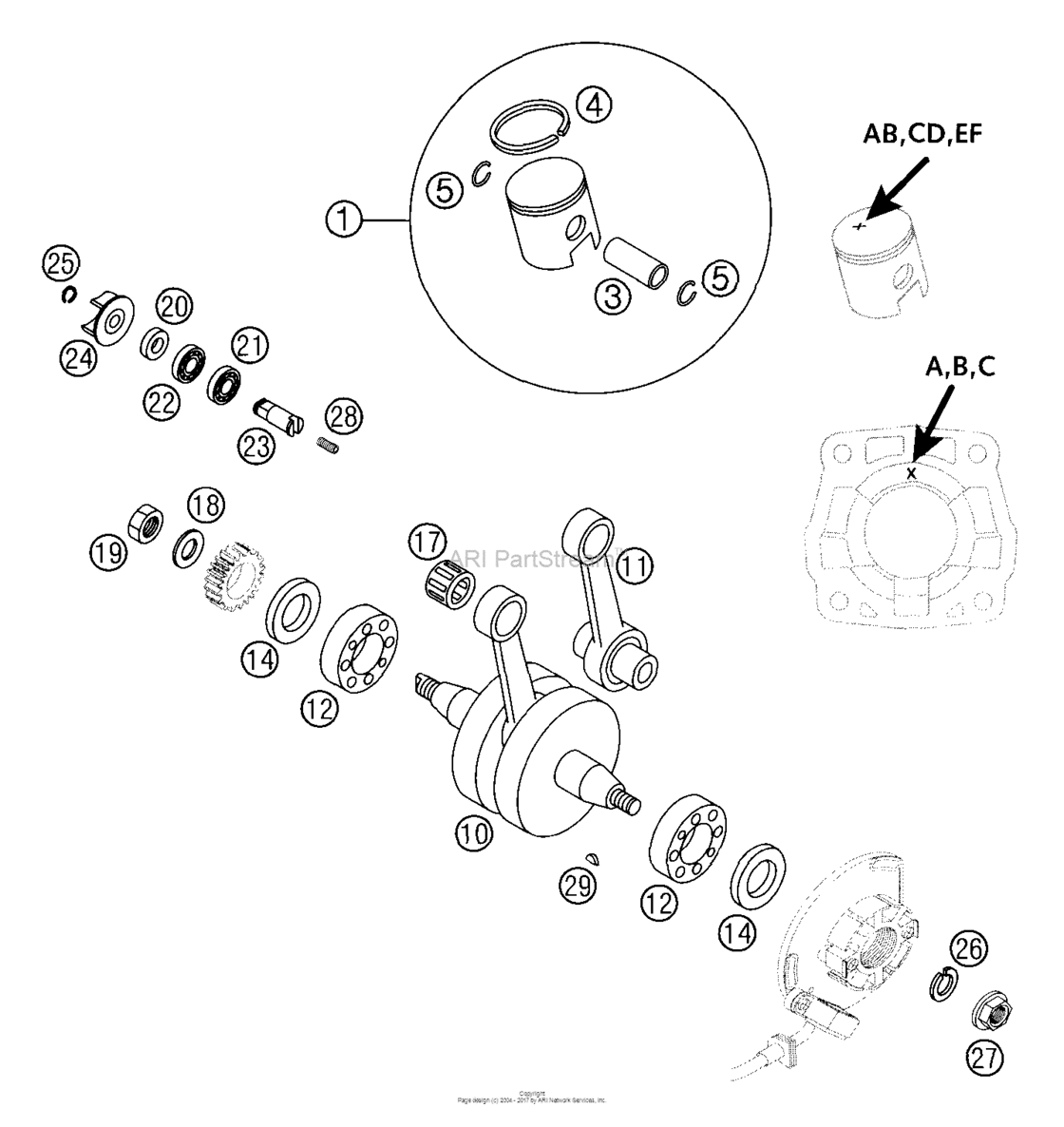

Crankshaft, Piston Diagram KTM 65 65 SX
- Year
- 2004
- Sales region
- US/EU
- Engine Capacity
- 65
- Model
- 65 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46030007500A
Piston cpl. 45mm "a/b" 65'98
2002 |
46030007500A |
— | ||
|
1
|
1
46030007500C
Piston cpl. 45mm "c/d" 65'98
2002 |
46030007500C |
— | ||
|
1
|
1
46030007500E
Piston cpl. 45mm "e/f" 65'98
2002 |
46030007500E |
— | ||
|
3
|
3
46030033000 Piston pin 12x382002 |
46030033000 |
US $8.94 |
||
|
4
|
4
46030030500 Piston ring 45mm 65ccm2002 |
46030030500 |
US $48.47 |
||
|
5
|
5
46030074000
Circlip 09
2002 |
46030074000 |
— | ||
| replacement | |||||
|
5
|
5
45230074000 Circlip 092002 |
45230074000 |
US $2.60 |
||
|
10
|
10
46030018200
Crankshaft Cpl. Stroke 40,8
2002 |
46030018200 |
— | ||
| replacement | |||||
|
10
|
10
46130018000 Crankshaft cpl. stroke 40,8 072002 |
46130018000 |
US $605.51 |
||
|
11
|
11
46030015100 Conn.rod repair set 65 sx 20032002 |
46030015100 |
US $286.16 |
||
|
12
|
12
46030082200 Grooved ball bear.20x52x15 ntn2002 |
46030082200 |
US $20.71 |
||
|
14
|
14
47030076100 Seal shaft ring 20x35x6 btsl2002 |
47030076100 |
US $19.23 |
||
|
17
|
17
46030034000 Needle bear.pistonpin 12x15x172002 |
46030034000 |
US $13.94 |
||
|
18
|
18
46030078100 Locking washer 14x20x12002 |
46030078100 |
US $2.60 |
||
|
19
|
19
46030029100 Hh-nut m14x1,25x5 '992002 |
46030029100 |
US $9.66 |
||
|
20
|
20
46035056100
Shaft seal ring 10x18x4
2002 |
46035056100 |
— | ||
|
21
|
21
46035057000 Water pump bearing 10x19x52002 |
46035057000 |
US $26.67 |
||
|
22
|
22
46035058000 Wa.pu.bear. 10x19x5 doublelip2002 |
46035058000 |
US $26.86 |
||
|
23
|
23
45135054000
Water Pump Shaft 50 Lc 2007
2002 |
45135054000 |
— | ||
| replacement | |||||
|
23
|
23
45135054100 Water pump shaft 50 lc 20072002 |
45135054100 |
US $31.25 |
||
|
24
|
24
46035055100 Water pump wheel 60/65 '992002 |
46035055100 |
US $9.88 |
||
|
25
|
25
0471090010 Circlip din0471- 9x12002 |
0471090010 |
US $0.53 |
||
|
26
|
26
50230029012 Locking ring vsk 122002 |
50230029012 |
US $2.19 |
||
|
27
|
27
49030021000 Collar nut m12x1 r/s2002 |
49030021000 |
US $10.57 |
||
|
28
|
28
45135058000 Spring for water pump shaft 042002 |
45135058000 |
US $1.11 |
||
|
29
|
29
0888030050 Woodruff Key Din6888-3X5X132002 |
0888030050 |
US $2.60 |
||
