Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 46104030044 Swingarm cpl. 65 sx 2002 2002	46104030044	US $480.44
2	2 0318Y718 Monoshock 3612 Bavp 03 2002	0318Y718	US $756.82
	replacement
2	2 0318X713 Monoshock 3612 bavp 03 2002	0318X713	—
3	3 54603097000 Needle bush hk 2016 2002	54603097000	US $15.33
4	4 46004030070 Spacer bushing 20x26x30x9,7 2002	46004030070	US $1.97
6	6 46004030071 Bushing box 12x20x36,5 2002	46004030071	US $19.62
7	7 0770160021 O-ring 16,00x2,00 viton 2002	0770160021	US $1.87
10	10 46104066000 Chain slid. guard fro. 65sx 02 2002	46104066000	US $16.12
11	11 46104066050 Bush for chainslider guard 02 2002	46104066050	US $9.01
12	12 0010050103 Special Screw M 5,0X10 2002	0010050103	US $0.85
13	13 0009050103 Special screw m 5,0x10 2002	0009050103	—
	replacement
13	13 0009050106 Ejot Spiral Screw Sf M5X10-K 2002	0009050106	US $2.60
14	14 46007066000 Chain guide rear 60/65 '98 2002	46007066000	US $14.55
15	15 0015060403 Hh Collar Screw M6X40 Tx30 2002	0015060403	—
	replacement
15	15 0025060406 Hh collar screw m6x40 tx30 2002	0025060406	US $2.23
16	16 56509064100 Self Locking Nut M6 10.9 2002	56509064100	US $1.04
21	21 0931100453 Hh screw din0931-m10x45 2002	0931100453	US $2.11
22	22 0125100003 Washer Din0125-A10,5 2002	0125100003	US $1.19
23	23 54310086100 Self locking nut m10 cu ws=14 2002	54310086100	US $2.55
24	24 46012024000 Hook wrench for shock absorber 2002	46012024000	US $20.64
25	25 46004037000 Swingarm bolt 201mm m12x1 2002	46004037000	US $28.71
28	28 0917120103 Nut din917-m12x1 2002	0917120103	US $4.39
30	30 46010083000 Chain adjuster 60/65 '98 2002	46010083000	US $12.10
31	31 0933060353 Hh screw din0933-m 6x35 2002	0933060353	US $0.54
32	32 0934060003 Hexagon Nut Din0934-M 6 2002	0934060003	US $0.43
35	35 54611076100 Retain.clamp For Brake Hose'96 2002	54611076100	US $1.09

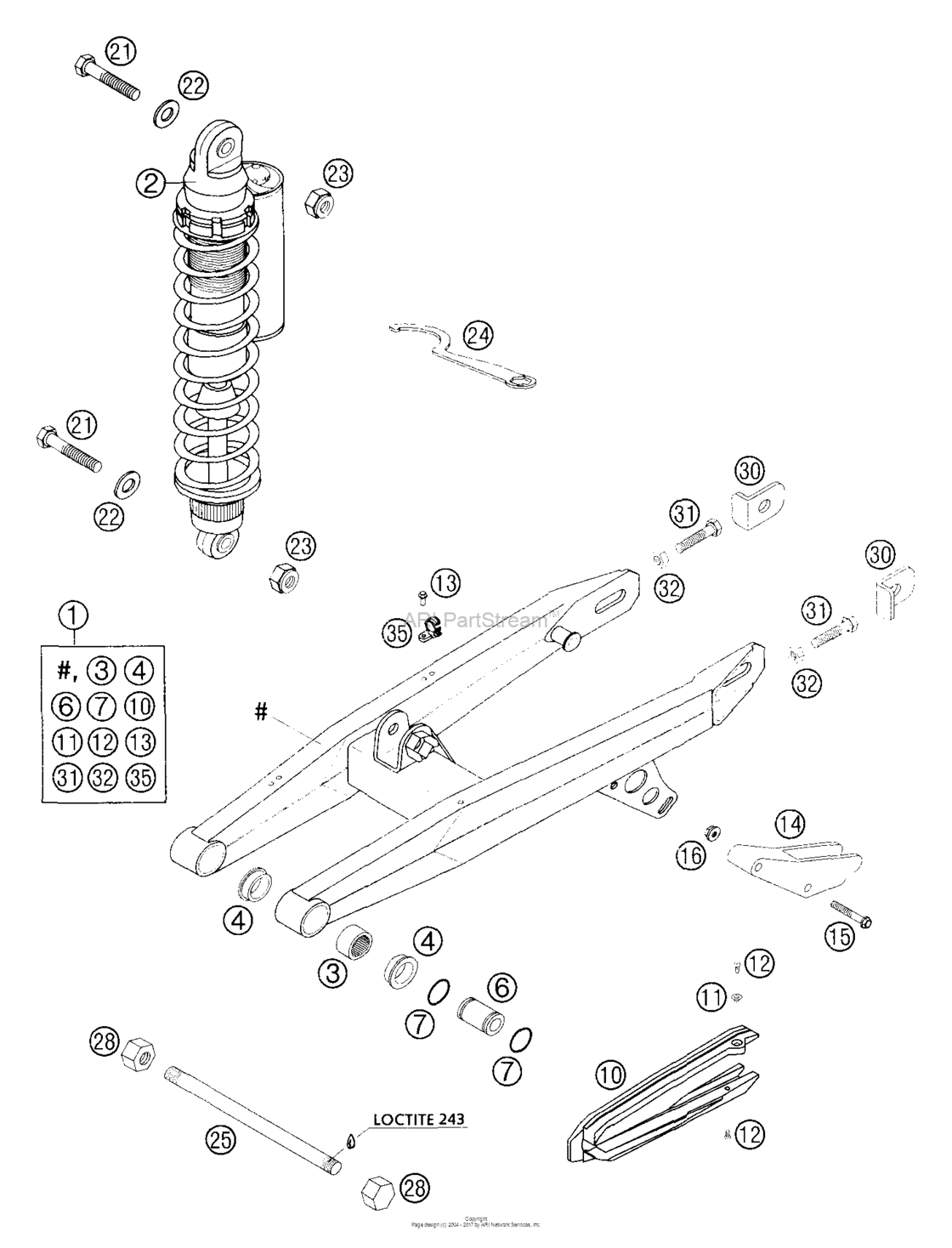

Swingarm, Shock Absorber Diagram KTM 65 65 SX US/EU 18105292-940635

Swingarm, Shock Absorber Diagram KTM 65 65 SX US/EU 18105292-940635
