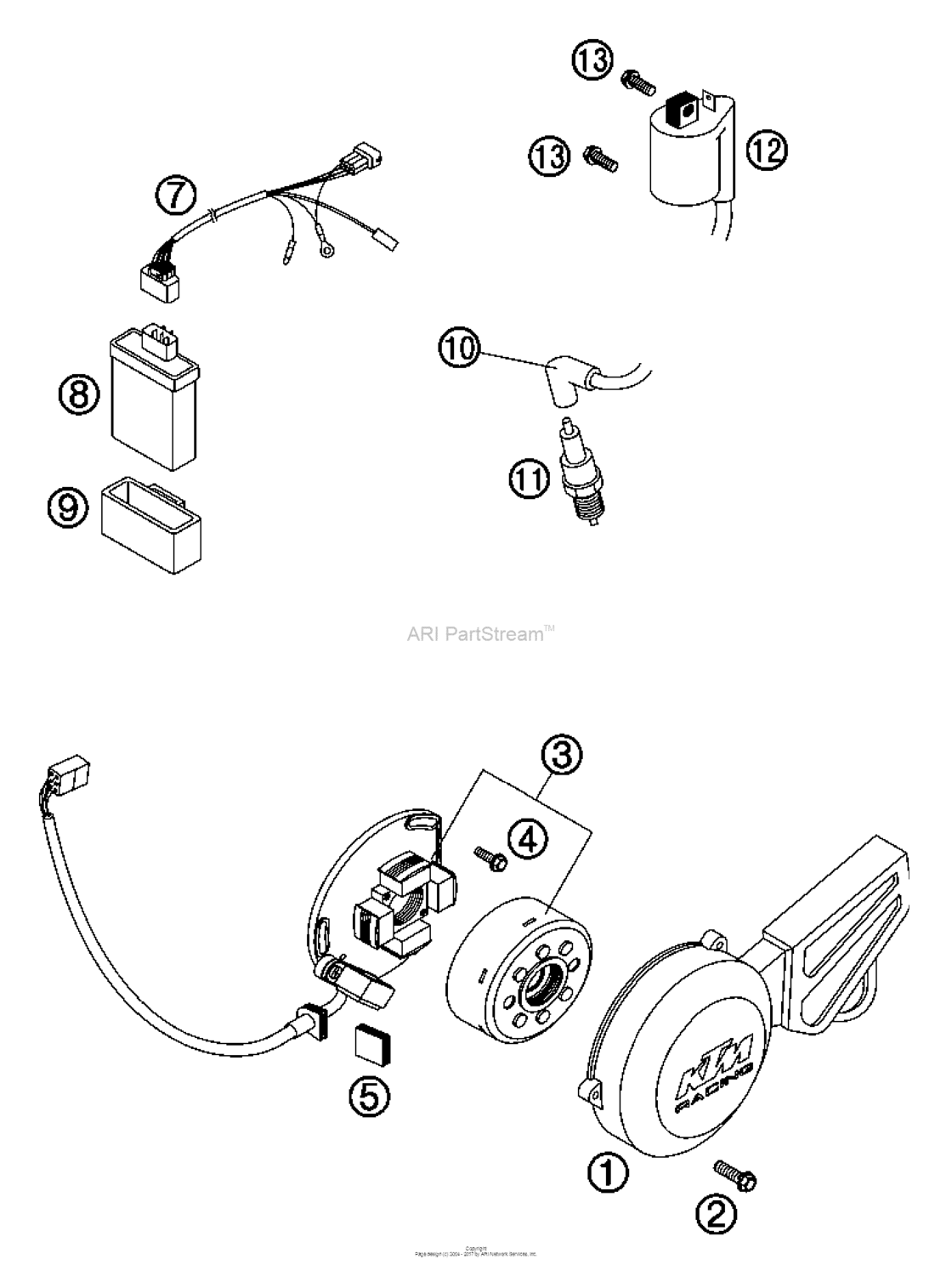

Ignition System Diagram KTM 65 65 SX
- Year
- 2006
- Sales region
- US/EU
- Engine Capacity
- 65
- Model
- 65 SX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46030002100 Ignition cover 65 sx 2003TX30 |
46030002100 |
US $88.30 |
||
|
2
|
2
0015060203
Hh Collar Screw M 6X20 Ws=8
TX30 |
0015060203 |
— | ||
| replacement | |||||
|
2
|
2
0025060206 Hh collar screw m6x20 tx30TX30 |
0025060206 |
US $1.97 |
||
|
3
|
3
46139002100 Ignition cpl. 65 sx 2003TX30 |
46139002100 |
US $385.68 |
||
| replacement | |||||
|
3
|
3
46139005000 Rotor 65 sx 2003TX30 |
46139005000 |
US $83.05 |
||
|
4
|
4
0015050163 Hh Collar Screw M 5X16 Ws=8TX30 |
0015050163 |
US $1.31 |
||
|
5
|
5
46139012000 Rubber for ignition cover 2003TX30 |
46139012000 |
US $3.98 |
||
|
7
|
7
46139095000 Wiring harness 65 sx 2003TX30 |
46139095000 |
US $69.26 |
||
|
8
|
8
46139031100 Electronic box 65 sx 2006TX30 |
46139031100 |
US $172.45 |
||
|
9
|
9
46139030000 Rubber br. digi.box 65sx 2003TX30 |
46139030000 |
US $5.61 |
||
|
10
|
10
47039090000 Spark plug cap ngk reinforc.04TX30 |
47039090000 |
US $24.26 |
||
|
11
|
11
54331093410 Spark plug ngk br8ecmTX30 |
54331093410 |
US $16.85 |
||
|
12
|
12
46139006100 Ignition coil cpl. 65 sx 2003TX30 |
46139006100 |
US $37.18 |
||
|
13
|
13
0015060203
Hh Collar Screw M 6X20 Ws=8
TX30 |
0015060203 |
— | ||
| replacement | |||||
|
13
|
13
0025060206 Hh collar screw m6x20 tx30TX30 |
0025060206 |
US $1.97 |
||
